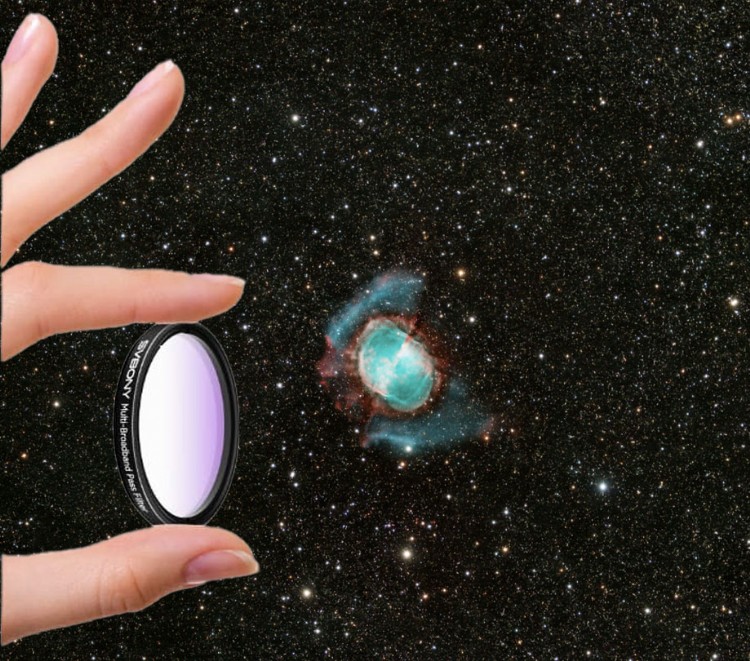

SV260 light pollution filter put to the test

The SVBONY SV260 is a purpose-built astrophotography filter designed to elevate deep-sky imaging in areas afflicted by moderate to severe light pollution. This filter utilizes a multi-bandpass optical design to isolate and transmit specific wavelengths of light commonly emitted by celestial objects while selectively blocking light pollution wavelengths. The result is a dramatic improvement in image contrast, starfield clarity, and the fidelity of color representation. It’s engineered specifically for use in capturing galaxies, reflection nebulae, and wide starfields, targets that benefit from balanced broadband light capture across multiple spectral zones.

SV260 light pollution filter put to the test - Real results under urban skies

Unlike traditional narrowband filters that emphasize single emission lines at the cost of broader color data, the SV260 offers five discrete bandpasses that allow light from key astrophysical elements to pass while maintaining the broader color palette needed for true-to-life broadband imaging. This makes the filter especially suitable for deep-sky observers and photographers who want to capture the rich, subtle hues of galaxies and nebulae without the distortions often caused by urban and suburban lighting. The filter’s high peak transmittance of over 90% ensures minimal light loss, making it effective even during long exposure stacking sessions where signal preservation is critical.

One of the standout optical features of the SV260 is its OD4-level light suppression capability. This means it blocks unwanted light with optical density values that reach OD4, particularly effective at cutting out wavelengths associated with mercury and sodium vapor lighting. The filter also boasts strong performance in the near-infrared range, with blocking extending up to 1100nm, ensuring that stray IR emissions do not contaminate the captured signal. When applied in a full imaging workflow, the result is not just cleaner images but also enhanced visibility of fine galactic and nebular structures that would otherwise be drowned out by background noise.

Mechanically, the SV260 is built around a standard 2-inch (M48x0.75) threaded format, making it compatible with most filter wheels, focusers, and adapters used in amateur and professional astrophotography rigs. It includes a 2mm thick optical substrate with a clear aperture of 44mm, ensuring minimal vignetting when used with full-frame or large sensor cameras. Its 60/40 surface quality and 1/2λ parallelism speak to a high manufacturing standard that minimizes aberrations, reflections, and ghosting artifacts during use with fast optical systems.

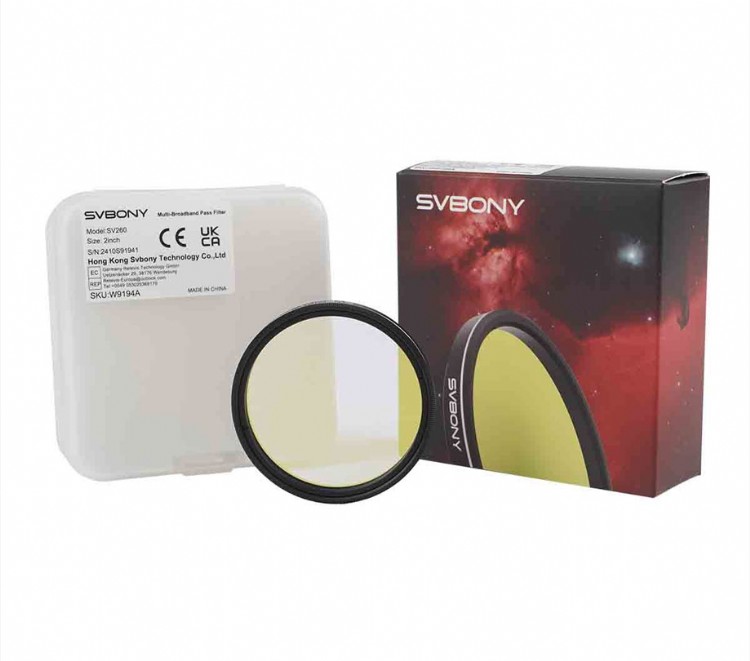

SVBONY SV260 Multi-Bandpass Light Pollution Filter specifications

• Model: SV260
• Type: Multi-Broadband Light Pollution Filter
• SKU: W9194A
• Filter Size: 2-inch (M48x0.75 threading)
• Substrate Thickness: 2mm
• Clear Aperture: 44mm
• Wavelength Range: 300–1000nm
• Peak Transmittance: Over 90%
• Bandpass Configuration: 5-band design optimized for broadband deep-sky imaging
• Optical Density Blocking:
• OD4 @ 350–400nm
• OD2 @ Hg 589nm
• OD2 @ Hg 435.8nm
• OD2 @ Na 589.6nm
• OD1 @ Hg 546.1nm
• OD2 @ Na 615.4nm
• OD3 @ Hg 577nm
• OD2 @ Na 616.1nm
• OD3 @ Hg 578.1nm
• OD4 @ 720–1100nm
• Surface Quality: 60/40
• Surface Parallelism: 1/2λ
• Threading: M48x0.75 (Single Thread)
• Weight: 12.5g / 0.44oz / 0.027lb
• List Price: US$189.99


The SV260’s broadband profile is particularly beneficial for imagers who want to maintain a natural look in their deep-sky photos while still enjoying significant protection against intrusive city light. This makes it ideal not only for emission nebulae that benefit from narrowband isolation but also for galaxies and reflection nebulae that demand a more delicate balance of broadband transmission. Its transmission spectrum aligns well with emission zones like SII, OIII, and Ha, all while bypassing typical spectral interference from manmade sources.

Another key advantage of this filter is its suitability for starfield photography, where wide-angle optics and full-sensor usage can often exaggerate the effects of ambient skyglow. By maintaining clarity across the visible spectrum and even into the near-infrared, the SV260 enables photographers to explore large celestial vistas with rich color gradients and minimal background interference. It provides a major advantage when imaging from backyards, driveways, or any site where natural darkness is compromised.

The robust engineering of the SV260 allows it to operate as a permanent part of an imaging rig, either screwed directly into a field flattener or mounted in a filter wheel. Its fine optical tolerances and high surface quality help preserve image sharpness, making it compatible with high-resolution sensors and demanding optical systems. For astrophotographers in light-polluted environments, this filter offers a well-rounded solution that doesn’t force compromises between light suppression and color accuracy.

What Seti Astro had to say about the SV260 Multi-Band Pass Light Pollution Filter

Frank, also known as Seti Astro, embarked on an exciting collaboration with SVBony to review their new SV260 Multi-Band Pass Light Pollution Filter. Living under heavily light-polluted skies, Frank saw this as an opportunity to evaluate a filter that could genuinely enhance deep sky imaging capabilities in challenging environments. With a methodical and data-driven approach, he tested the SV260 using his monochrome ASI294MM Pro camera setup, aiming to see how it could integrate with his existing LRGB filter system and improve contrast and clarity, especially when observing faint, distant celestial targets.

The SV260 arrived well-packaged and included a transmission versus wavelength graph, which Frank immediately set to work digitizing. He developed a script to convert the graph into a CSV format, allowing him to visualize and compare its transmission characteristics directly against the known emission lines of Hydrogen, Oxygen, and Sulfur, as well as common sources of light pollution. He also performed the same analysis on his existing Antlia LRGB filters. This detailed comparative study revealed that the SV260 was strategically designed to dodge many of the broadband light pollution lines while allowing key emission lines through, a design that promised to boost contrast and detail.

Upon overlaying the transmission curves of his Antlia LRGB filters with the SV260, Frank observed how the SV260 extended the blue end of the spectrum while suppressing light pollution across all bands. This was especially evident when combining the filters, by multiplying the transmission data of each LRGB filter with the SV260’s curve, he could simulate how they would perform in tandem. This analysis showed a meaningful reduction in light pollution without significantly sacrificing signal from astronomical objects, especially valuable in urban or suburban environments.

Putting theory into practice, Frank decided to use the SV260 during a search for an exoplanet orbiting the star TIC 101643617. His strategy included taking long exposure RGB sequences over multiple nights, both with and without the filter, to compare their effectiveness directly. He captured nearly 275 90-second exposures in the green channel without the filter and then repeated the process on a separate night with the SV260 in place. This allowed him to isolate the filter’s effect on image clarity, particularly in regions of the sky where faint galaxies and other dim structures reside.

Zooming into the data, the images processed with the SV260 demonstrated significantly improved halo definition and revealed extremely faint galaxies that were nearly invisible without the filter. These galaxies, redshifted and challenging to detect in the green channel, began to emerge when the light pollution was suppressed. Frank then applied identical image processing techniques, using neural network-based sharpening and denoising, to both sets of images. The difference was stark: with the SV260, the number of visible faint objects increased notably, and delicate wisps of galactic structure became apparent where there had previously been only noise.

Even in the red channel, where Frank faced a night of suboptimal weather and fewer usable exposures, the contrast enhancement from the SV260 stood out. Despite working with only about a third of the data compared to the no-filter session, the filter still delivered more defined stars and greater background contrast. He noted that while the raw image was noisier due to the reduced exposure time, the suppression of background light pollution allowed even subtle differences to shine through. This was particularly useful in highlighting weak signals from distant celestial bodies.

The blue channel comparisons, built from a more balanced dataset of roughly 300 exposures with and without the filter, further confirmed the SV260’s utility. Even in this band, typically less affected by light pollution in Frank’s location, the filter contributed to improved object visibility. Structures that had appeared flat and indistinct in the no-filter images started to show subtle, definable patterns and shapes. Frank emphasized that even in seemingly less critical use cases, the SV260 made a measurable difference.

Beyond light pollution control, Frank found that the SV260 surprisingly helped with another common astrophotography challenge, capturing good flats. Flats are calibration frames used to correct for uneven illumination and dust on the sensor, but they can be difficult to perfect, especially when internal reflections interfere with the exposure. Installing the SV260 at the end of the focuser seemed to reduce off-axis reflections significantly, allowing him to produce much cleaner flats than usual. This alone was a game-changer for improving the final image calibration quality in his setup.

Unveiling the hidden universe: Deep-sky discoveries with the SV260 filter

After compiling and processing the full set of RGB data from his multi-night session with the SV260, Frank assembled a composite image that beautifully showcased the enhanced star colors and contrast. One galaxy in the field, relatively small but surrounded by even more distant interacting galaxies, became the centerpiece for comparison. The SV260-enabled version of the image pulled out extremely red, dim galaxies that had remained hidden in the no-filter images. This ability to extract previously invisible details, especially in redshifted objects, was one of the most compelling outcomes of the test.

To further validate the scientific depth of his results, Frank ran the final image through his Seti Astro suite’s catalog analysis tool. Many of the newly visible galaxies had no catalog records, no redshift data, and were virtually unknown. Some visible stars were located over 11,000 light-years away, and one identified galaxy with a redshift record sat 1,600 megaparsecs away. Using NASA’s NED database, Frank performed a cone search in one region and confirmed that even the Digitized Sky Survey (DSS) had only partially documented the area. Yet his filtered image brought forth numerous undocumented red objects, offering a tantalizing glimpse into the potential of backyard astronomers to contribute to astronomical discovery.

Pushing even further, he plotted the newly observed objects in a 3D galaxy and quasar viewer. Some of the galaxies were located at staggering distances, 790 million light-years, 900 million light-years, and even one at 3.7 billion light-years away. While Frank acknowledged that his exposures were deep, he credited the SV260’s impact on contrast and suppression of noise as the key reason he was able to reveal such remote objects.

By the end of the video, Frank was unequivocal about the filter’s value. In his location, and likely in many others affected by light pollution, the SV260 was not just a useful addition, it was a crucial tool for advancing astrophotography capabilities. He praised SVBony for developing a product that not only performed well with one-shot color (OSC) cameras but also integrated seamlessly with monochrome setups and traditional LRGB workflows.

The SV260's ability to enable deeper, clearer, and more scientifically valuable imaging stood out in every test Frank conducted. From allowing the identification of galaxies beyond cataloged limits to improving calibration workflow and enabling crisper star field composition, the filter proved its merit. It opened up possibilities for astrophotographers struggling with city skyglow and empowered them to explore distant corners of the universe with enhanced clarity. For Frank, it had earned a permanent place in his imaging rig, and he encouraged viewers dealing with similar conditions to consider trying it for themselves.

Capturing Distant Galaxies with the SV260 Light Pollution Filter: SVBony SV260 Filter & Review
