Seeing color clearly with color science tools

Spend enough hours staring at a screen trying to tame a stacked image and you learn that color is not a flavor choice. It is a measurement problem, full of assumptions about spectra, sensors, displays, and our own eyes. We publish images on the web, and the web speaks sRGB by default. That means every decision we make about color gets squeezed through that pipeline. If we want images that look credible on more than our own monitor, we need tools that speak the same language as our viewers.

Color Science Tools Release

A newly minted suite of web based color science tools has reached a thoughtful level of maturity. The suite implements core color transforms derived from the sRGB color space. In practice, that means you can load an sRGB image and inspect it with models that describe how colors relate to physical spectra and how they are perceived by human vision. For those of us who straddle code and camera, this is a welcome bridge between theory and the night.

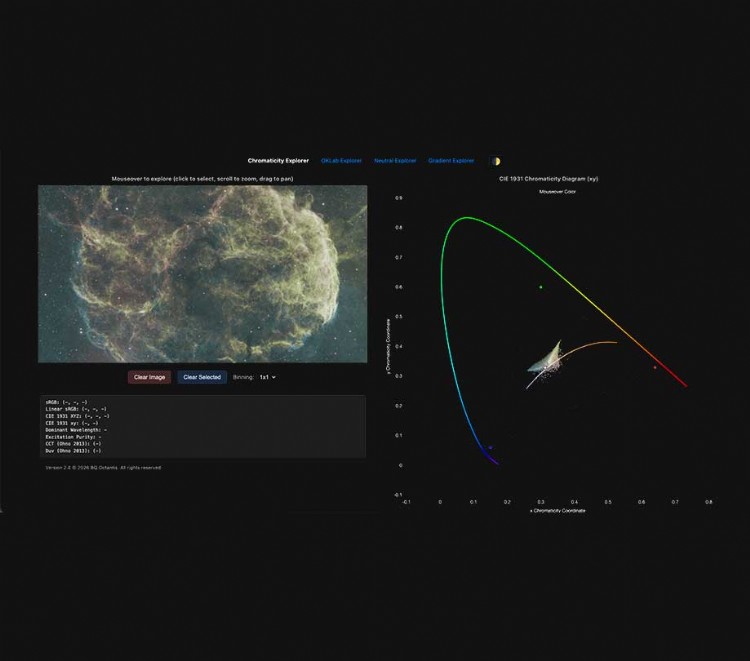

Image Chromaticity Explorer in practice

The Image Chromaticity Explorer projects the colors in a standard sRGB image onto the CIE 1931 chromaticity diagram. That diagram maps colors by their x and y coordinates, connecting image hues to dominant wavelength and excitation purity. It can also estimate correlated color temperature and Duv relative to the Planckian locus, which is a dignified way of asking how close a color is to the path that blackbody radiators trace. For emission nebula work, the tool offers a reference grid for OIII to HII mixtures built from pure line spectra filtered through CIE color matching functions and Fitzpatrick two thousand four interstellar extinction curves. The grid is framed as a sanity check, not an oracle, since tone mapping and gamut clipping in sRGB can nudge things astray. If you have ever wondered whether your teal leaning filament is genuinely OIII rich or simply a byproduct of curve pushing, this is the sort of test bench that turns hunches into evidence.

On a recent narrowband composite of the Veil, I used the chromaticity map to see where my filaments landed. Stretches had pulled the OIII more than my eye admitted. The plot made that plain. A few restrained tweaks and the balance felt more honest without draining the life from the scene.

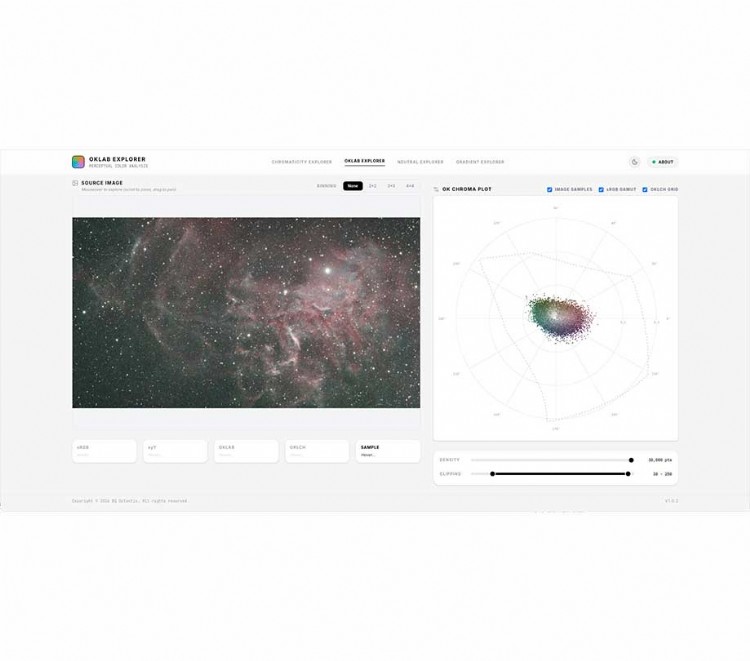

Measuring differences with Image OKLab Explorer

Where CIE 1931 roots color in physics, OKLab focuses on perception. The Image OKLab Explorer lets you inspect hue and chroma with a yardstick that is closer to how we see differences. That helps answer questions like how far did the star cores shift after a round of deconvolution, or how much did a gradient removal step separate two adjacent hues. When you track edits through OKLab, you can tune changes to be perceptually even rather than mathematically even, which matters when small moves add up across a multi night project.

Whites, lightness, and the Perceptual Neutral Explorer

Anyone who has wrestled with white balance knows it is not a single goal, it is a family of choices that depend on context. The Perceptual Neutral Explorer plots candidate whites on a grid of correlated color temperature and Duv at a uniform perceived lightness defined in OKL. There is a mask mode that limits the stimulus to a small spot of about two degrees, aligning with classic viewing conditions. For reference, D65, which anchors one to one to one web white and grayscale proportions, is at 6504 K with Duv about 0.00321. Recent research suggests that our natural background for self luminous colors trends closer to about 9000 K. The tool feeds accurate sRGB values into your display chain, but it cannot know if your operating system is warming things up with a night mode or if you have a custom calibration in play. Used with that in mind, it becomes a calm place to choose a white that suits your intent without drifting into guesswork.

In my workflow, I often start with a neutral that respects D65 when I need broad compatibility, then explore slightly cooler anchors when I want to preserve the nocturnal feel without tinting stars green or purple. Seeing those choices on a CCT and Duv grid at constant lightness saves time and reduces subjective back and forth.

Building palettes with the Chromaticity Gradient Explorer

Gradients are not just for user interfaces. They are the connective tissue between structures in our images. The Chromaticity Gradient Explorer builds linear color progressions between two chromaticity points in CIE 1931, or between endpoints on the spectral locus. You can view the result as sRGB at maximum brightness or at constant perceived lightness. The difference matters. Constant lightness keeps brightness from masking hue changes, which is helpful when designing narrowband palettes where you want fine hue steps without accidental luminance ramps. I found it useful for creating a gentle bridge between the golds of dust and the cyan of oxygen without blowing out highlights.

Practical advice for your workflow

If you plan to put these tools to work, export test images in sRGB with your full intended tone curve. Disable any screen warmth features while evaluating and, if possible, use a calibrated display. Treat the OIII to HII grid as a compass rather than a pin. Remember that aggressive stretches or gamut clipping can relocate colors in ways the grid cannot entirely predict. Consider OKLab distances when making small local color moves. A change that looks minor in RGB numbers can be a large perceptual leap. When picking a white, make a deliberate choice based on viewing conditions and intent rather than habit. Lastly, when building gradients for palettes, check both constant lightness and maximum channel views. One will tell you about perceptual smoothness, the other about channel headroom.

What it means for citizen scientists

The strength of this suite is not that it replaces judgment. It invites better judgment by making the consequences of our choices visible. For developers who shoot and imagers who code, it is a common vocabulary. For the rest of us, it is a way to reason about color without pretense. We get a fair shot at aligning what we felt at the eyepiece with what we publish on the screen. That is all many of us want. Honest images that carry both wonder and restraint.

The suite is web based and accessible without installation. It implements the essential transforms in a way that feels transparent rather than black box. As with all good tools, the proof is in quieter edits and fewer arguments with your own eyes. There are no shortcuts to a well balanced image, but there are better maps. This one belongs in your kit.
