Celestron RASA 6 inch telescope arrives

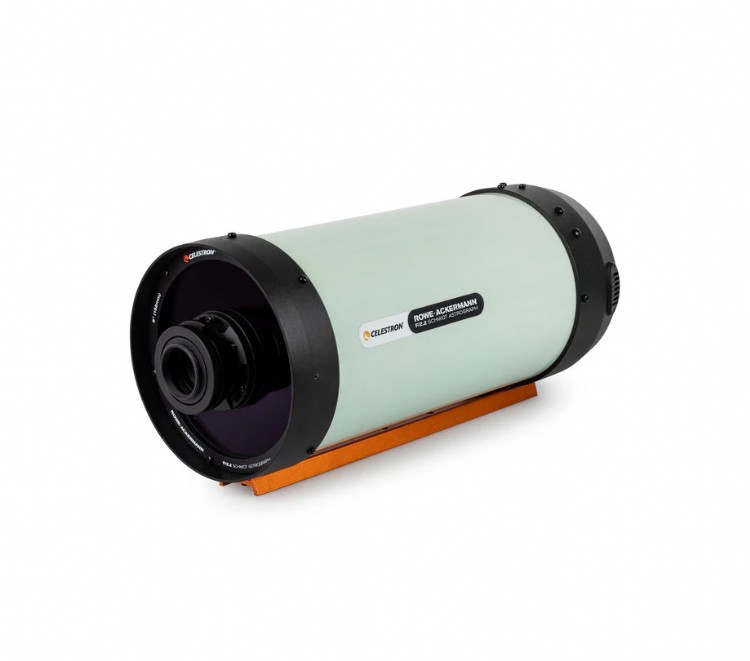

Celestron has introduced a new , seriously exciting telescope: the RASA 6, or Rowe-Ackermann Schmidt Astrograph 6. Now this little beast is a fast imaging system — we’re talking f/2.2 — which means you can pull in a ton of light really quickly. That translates to super short exposures and wide-field shots that are perfect for capturing those big, beautiful nebulae and starfields.

It’s part of Celestron’s RASA line, which, believe it or not, has been used for things like space surveillance and satellite tracking since 2014 — not just by backyard astrophotographers like us, but by actual government and commercial folks too. That’s wild.

The RASA 6 gives you a flat field and sub-arcsecond resolution across a whopping 3.8-degree field of view — that’s big — and it’s optimized for sensors up to 22mm in diagonal. And here’s the kicker: because the optics are so fast, you can often get away without using an autoguider. Just throw it on a decent mount, do a quick polar align, and you’re off to the races shooting deep-sky objects in no time.

Celestron RASA 6 inch telescope arrives: The magic of RASA 6 is in its speed

The optical system incorporates a Schmidt corrector, a high-precision primary mirror, and a three-element lens group made from rare-earth glass to reduce aberrations and deliver focused light to the sensor. A 2" clear filter is included to preserve the optical path when filters are added. All optical surfaces are treated with StarBright XLT coatings to enhance light transmission and field illumination.

The RASA 6 features an integrated filter drawer compatible with 1.25" and 2" filters, a 12V DC MagLev cooling fan to regulate temperature and reduce internal dust buildup, and an M42-threaded camera adapter for mounting a wide range of CMOS cameras. Additional accessories, such as a focus motor, dew shield, dew ring, and storage case, are available separately to expand the system's usability and protection. The RASA 6 is designed for imaging flexibility, offering a fast, wide-field option for astrophotographers seeking efficient data capture in a compact form.

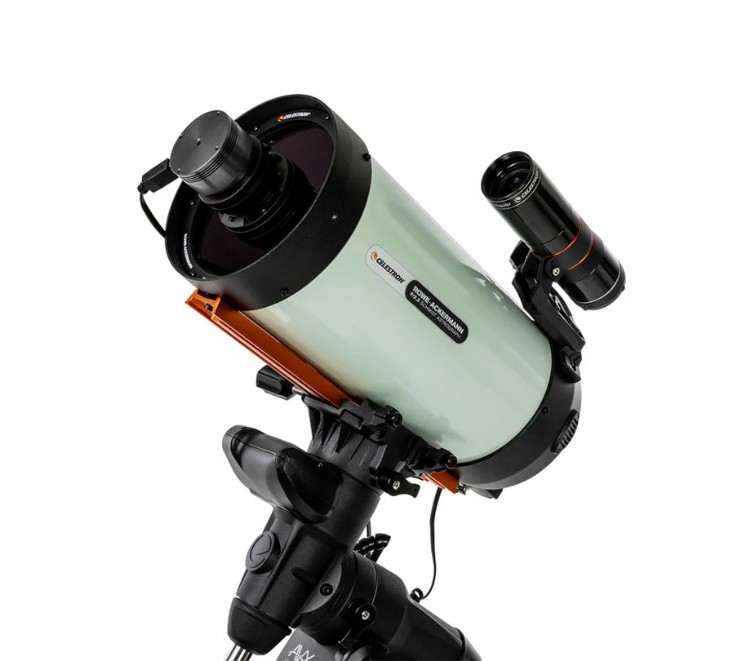

Celestron RASA 6 inch telescope specifications

• Optical Design: Rowe-Ackermann Schmidt Astrograph
• Aperture: 152mm (5.98")
• Focal Length: 335mm (13.18")
• Focal Ratio: f/2.2
• Central Obstruction Diameter: 77mm (3.03"), 46% of aperture diameter
• Light Gathering Power: 472x (compared to human eye)
• Resolution (Rayleigh): 0.91 arc seconds
• Resolution (Dawes): 0.76 arc seconds
• Image Circle: 16mm (0.63") diameter, 2.74°
• Useable Field: 22mm (0.86") diameter, 3.76°, minimal performance loss at field edge
• Wavelength Range: 400 - 700 nm
• Spot Size: < 1.5 μm RMS across image circle
• Optical Coatings: StarBright XLT
• Off-axis Illumination: 91% at 8mm (0.31") off-axis
• Back Focus with Included Camera Adapter: 17.5mm (0.69")
• Optical Tube Material: Aluminum
• Optical Tube Length: 609.6mm (24")
• Optical Tube Diameter: 177.8mm (7")
• Focuser: Standard Schmidt-Cassegrain focuser
• Finderscope: Not included
• Optical Tube Weight: 8.4 lbs (3.8 kg)
• Other Features: Air-cooling system, integrated filter mount
• Included Items:
• - 42mm (1.65") T-thread camera adapter
• - Fan battery pack
• - Filter drawer with 2" clear filter
• Dovetail: CG-5 Dovetail Bar
• Filter Drawer: Accepts 2" format filters, includes 1.25" filter adapter
• Clear Filter: 2" removable filter, AR coatings, 2mm glass thickness
• Cooling Fan: 12V DC, MagLev
• Camera Mounting Threads: M42


The Celestron RASA 6 delivers fast, lightweight imaging for astrophotographers

Celestron has expanded its lineup of fast astrographs with the introduction of the new Rowe-Ackermann Schmidt Astrograph 6" (RASA 6), a compact optical tube assembly aimed at users seeking high-speed, wide-field astrophotography in a portable form. Officially released for pre-order through High Point Scientific, the RASA 6 represents a notable move by Celestron to make its signature f/2.2 imaging technology accessible to a broader range of amateur astronomers, particularly those looking for a travel-friendly or grab-and-go system.

Celestron's RASA series is well-known for its fast focal ratios and flat-field optical designs, and the new 6" version continues this tradition. Featuring a 152mm (5.98") aperture and a focal length of just 335mm (13.18"), the RASA 6 achieves an ultra-fast focal ratio of f/2.2. This fast optical system allows for dramatically shorter exposure times, which benefits both experienced astrophotographers and beginners alike. With less time required per frame, more data can be captured in a single session, even under challenging conditions or when time under the stars is limited.

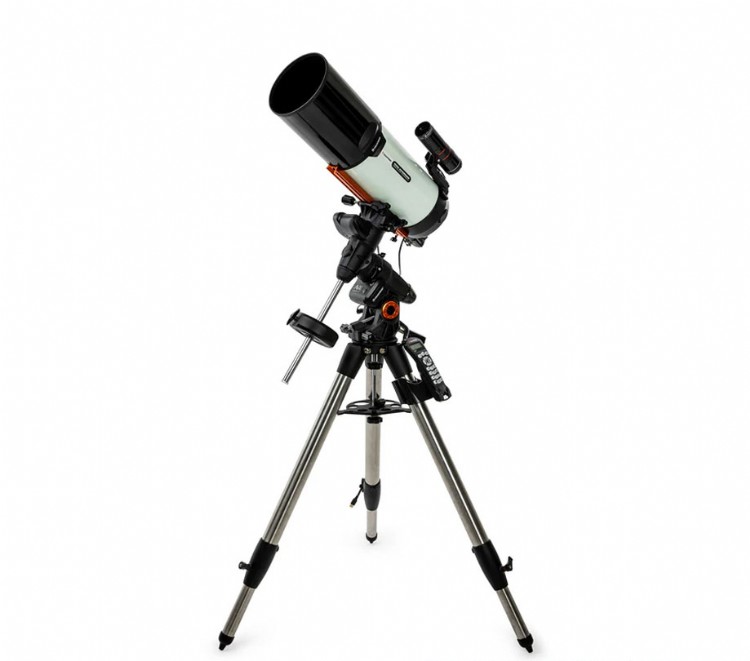

The optical tube weighs only 8.4 pounds, making it the lightest RASA model to date and opening the door to a wide variety of mount options. While not officially confirmed, its low weight suggests the potential for use with portable tracking mounts or star trackers, which could make the RASA 6 appealing for mobile astrophotography setups. For more traditional setups, Celestron is also offering the RASA 6 bundled with the Advanced VX (AVX) German equatorial mount. The AVX is fully compatible with Celestron's CPWI software, allowing for integrated computer control of both telescope and camera systems.

Cooling is handled by an integrated 12-volt DC fan located at the back of the optical tube. This fan helps reduce cooldown times by actively drawing ambient air through the optical assembly, allowing the scope to reach thermal equilibrium more quickly. This feature is particularly useful for those moving between indoor storage and outdoor nighttime use, helping to maintain image quality by reducing thermal distortion across the optics.

Celestron has optimized the RASA 6 for use with many of the most popular astronomical CMOS cameras on the market. Cameras like the ZWO ASI533, ASI585, and ASI294 are ideal pairings, offering good sensor sizes and sensitivity that match the RASA 6’s optical circle. While the primary imaging circle is optimized for a 16mm diameter sensor, sensors with a diagonal measurement of up to 22mm are also supported. This makes the telescope compatible with a wide variety of planetary and deep sky imaging cameras, though the use of DSLRs or large filter wheels is discouraged due to the scope’s short back focus and front-mounted design.

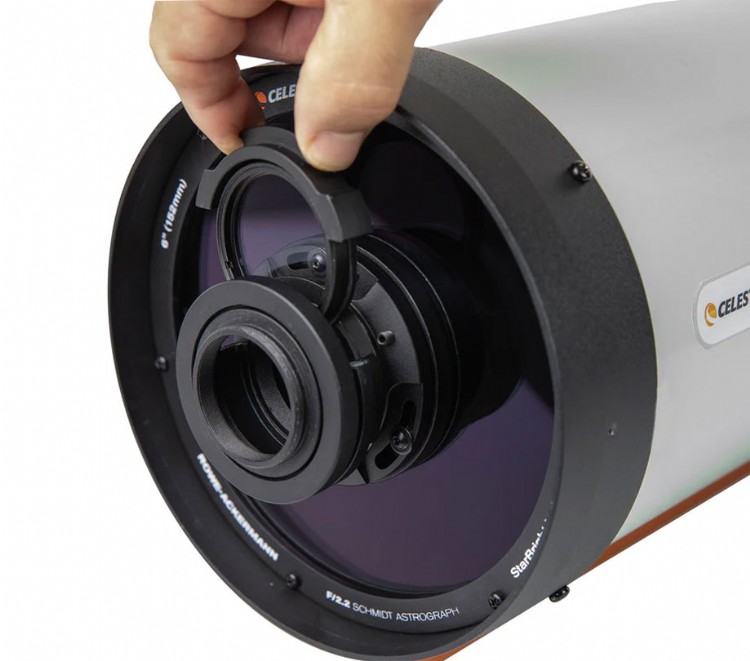

To address the need for filter use without compromising optical performance, Celestron has built an integrated filter drawer into the RASA 6. This drawer accepts both 2" and 1.25" filters, including narrowband and light pollution filters commonly used in astrophotography. The included 2" clear filter serves as an optical window, maintaining spacing and optical performance when no additional filter is in use. For users needing precise spacing to reach the required 17.5mm back focus, Celestron offers dedicated spacers designed to integrate seamlessly with the system and common camera adapters.

Celestron has also introduced a set of accessories to support the RASA 6, including a dew heater ring, a carrying case, and a Vixen-style dovetail rail. The dew heater ring helps to mitigate dew buildup during long exposure sessions, while the carrying case provides protection and ease of transport. The dovetail bar allows for compatibility with a wide range of mounting solutions, whether the scope is used on a traditional equatorial mount or an alternative support system.

RASA 6 combines proven optical design with portability and high-speed imaging

The RASA 6 brings the same optical design principles found in larger RASA models into a smaller package. The Rowe-Ackermann Schmidt design uses a combination of a Schmidt corrector plate, a precision spherical mirror, and a specially designed lens group at the front of the telescope. This configuration delivers a flat imaging field with minimal optical aberrations, even at the edges of the field of view. The system is fully coated with Celestron’s StarBright XLT multi-layer coatings, which enhance light transmission and overall image brightness. With the combination of fast focal ratio and high-quality coatings, the RASA 6 can capture detailed images of deep-sky objects in far less time than slower systems, making it an effective choice for users who want to maximize their imaging efficiency. Its compact size and low weight make it a practical choice for those who lack the space or desire to manage larger telescopes but still want the benefits of a fast optical system. The use of popular astronomy camera formats ensures broad compatibility and flexibility, allowing the RASA 6 to serve as either a primary imaging scope or a secondary setup for travel and field work.

Although some limitations remain, such as the inability to support DSLRs or large filter wheels, the RASA 6 offers a specialized solution for a specific type of astrophotographer. It is ideal for those using small to medium-sized CMOS cameras, looking to take advantage of short exposure times, and requiring a lightweight, wide-field imaging instrument. With the inclusion of built-in features like the cooling fan and filter drawer, along with optional accessories like the dew heater and carry case, Celestron has provided a complete ecosystem around the RASA 6 to support a variety of imaging scenarios.

Celestron’s RASA line has already been widely adopted in fields beyond amateur astronomy, including satellite tracking, space surveillance, and remote observatories. The RASA 6 extends this technology into the hands of a wider user base, offering a more affordable and transportable option without compromising the core benefits of the system. As the community awaits hands-on reviews and real-world imaging tests, early indicators suggest that this telescope will meet a growing demand for fast, high-quality imaging systems that can be set up quickly and taken on the go.

The launch of the RASA 6 reflects ongoing trends in amateur astronomy, particularly the rise of compact, electronically integrated systems that emphasize simplicity and performance. As more astrophotographers rely on lightweight mounts, CMOS cameras, and live-stacking software, telescopes like the RASA 6 serve as a natural extension of this technological shift. Its fast focal ratio means that users can achieve a near real-time imaging experience, especially when paired with sensitive sensors and software platforms designed for rapid frame capture and processing.

As the market for accessible high-speed imaging equipment continues to grow, the RASA 6 arrives at a time when interest in astrophotography is at an all-time high. Whether used in a permanent backyard setup or as a mobile observatory component, the telescope is likely to appeal to a wide range of hobbyists and semi-professional users alike. With its fast optics, lightweight build, and thoughtful integration of accessories, the RASA 6 represents a focused and practical solution for anyone looking to capture high-quality deep sky images without the logistical challenges of larger systems.

Celestron’s decision to make the RASA 6 compatible with many existing camera and filter setups shows an awareness of the needs of today’s astrophotography community. As users continue to prioritize flexibility, ease of use, and imaging efficiency, the RASA 6 offers a combination of features that address all three. While a full technical review is still forthcoming, early announcements and specifications provide a clear picture of what this telescope is designed to achieve and the audience it is meant to serve.

With its official availability through High Point Scientific, users now have the opportunity to pre-order the RASA 6 and prepare for its release. As production units begin to ship and testing results become available, further details on its real-world performance will emerge. Until then, the specifications and design philosophy behind the RASA 6 strongly suggest that it will become a valuable tool in the toolkit of many astrophotographers seeking speed, simplicity, and high-quality imaging in a compact form.
