RASA telescope filter wheel becomes reality with Wanderer FilterCube

Wanderer Astro has officially introduced the Wanderer FilterCube, a groundbreaking electronic filter switching system designed exclusively for prime focus telescopes, particularly targeting the RASA 11 and RASA 36 models. Astrophotography enthusiasts utilizing these fast, large-aperture optical systems have historically faced significant challenges when capturing images in monochrome. The traditional requirement of manual filter changes has long been a cumbersome process. Manually swapping filters not only interrupts the imaging session but also introduces the high risk of dust settling on the optical components, which can severely compromise flat calibration frames and lead to suboptimal final images. As a direct result of these inherent frustrations, many astrophotographers have felt compelled to abandon monochrome imaging altogether, switching to color cameras despite the associated sacrifices in overall efficiency and resolution that come with moving away from dedicated monochrome sensors. The introduction of the Wanderer FilterCube addresses this exact dilemma by providing an automated, highly efficient solution that eliminates the need for manual intervention during imaging sessions.

Innovative Features of the Wanderer FilterCube for RASA Astrophotography

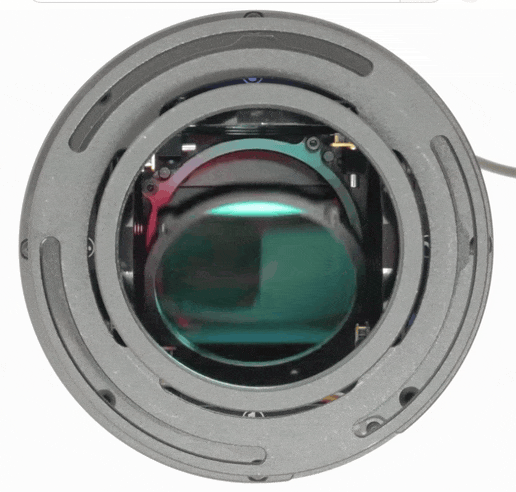

By integrating an advanced adaptive side flip filter switching system, the device allows each individual filter to be controlled by its own dedicated motor. When a specific filter is not required for the current exposure, the motorized mechanism safely flips it out of the way and stores it against the side of the housing unit. When that filter is needed, the motor seamlessly flips it directly into the optical path. Developing this seemingly straightforward concept into a functional product required engineers to overcome substantial design hurdles, particularly concerning the strict space constraints of the telescope design. For instance, the central obstruction diameter of the RASA 11 telescope measures exactly 114 millimeters. To ensure that the new filter system operates with absolute zero additional obstruction, the engineers meticulously designed the outer diameter of the unit to match this 114-millimeter specification perfectly. Furthermore, the exceptionally limited back focus tolerance inherent to these specific fast telescopes meant that fitting multiple motorized components into such a compact, specialized housing was a major engineering feat that has now been successfully achieved.


Technical Advancements in the Wanderer FilterCube for RASA Astrophotography

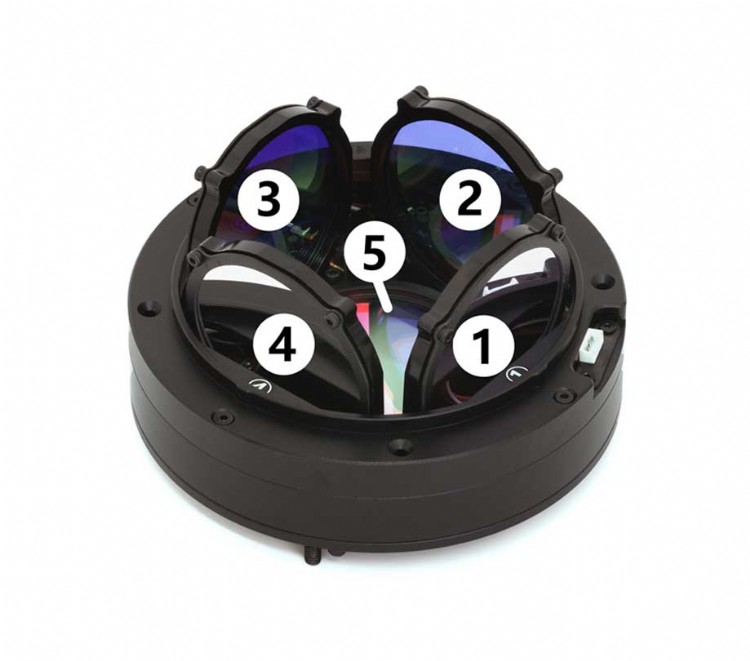

The internal architecture of the Wanderer FilterCube for RASA Astrophotography is designed to maximize utility without compromising the strict optical requirements of fast telescope systems. The unit smartly integrates four independent motorized flip mechanisms alongside a single permanent filter slot, creating a comprehensive five-slot system that accepts standard two-inch or fifty-millimeter unmounted filters. Engineers highly recommend utilizing the permanent slot for a luminance filter. Because a luminance filter functions essentially as a full-pass optical window, stacking other filters such as standard RGB or narrowband options on top of it via the flip mechanisms does not interfere with their respective bandwidths. While stacking filters does introduce a minimal shift in the required back focus, rigorous testing has demonstrated that this slight variation has a completely negligible impact on the final image quality. This configuration successfully covers the vast majority of imaging scenarios required by dedicated users. Another significant technical hurdle addressed by the design team is the management of internal reflections. When the unmounted filters are flipped to their resting positions along the inner wall of the cylindrical housing, improper alignment could lead to severe stray light artifacts. To mitigate this risk, the unit incorporates a highly precise mechanical structure that guarantees the stored filters remain entirely outside the active optical path.

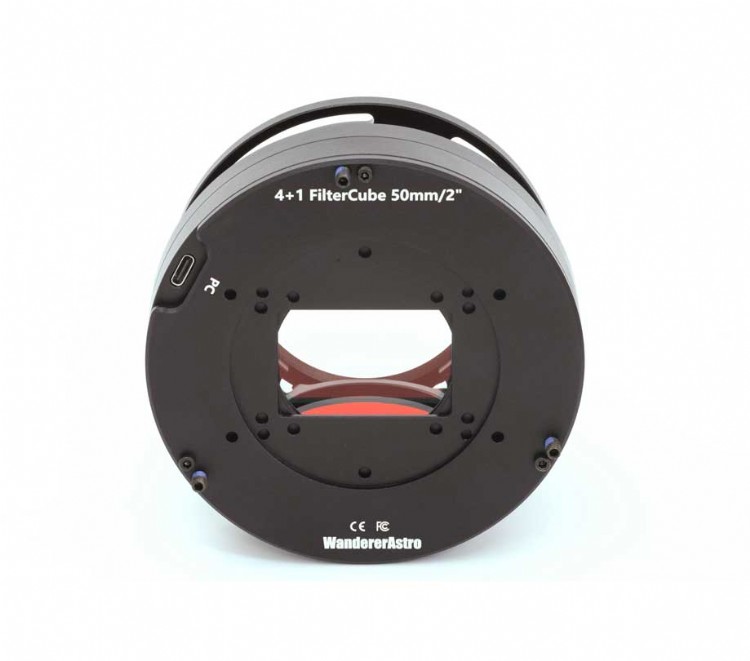

Additionally, an integrated protruding anti-reflection baffle has been implemented to actively eliminate stray reflections, further improving upon the inherent optical characteristics of the telescope once the original clear optical window is removed. The system boasts an effective thickness of 60.5 millimeters, which, when combined with a standard camera back focus of 12.5 millimeters, perfectly meets the strict 73-millimeter total back focus requirement of the RASA 11 platform. The device features a universal rear adjustment system, ensuring full compatibility with a wide array of popular camera brands including ZWO, QHY, ToupTek, and Player One, supporting sensor sizes ranging from full-frame and APS-C down to smaller formats. Installation has been significantly streamlined, requiring only the original manufacturer retaining ring to secure the unit, which simultaneously provides a fully functional camera angle adjuster for easy rotation and locking. Finally, thoughtfully placed access slots allow users to perform necessary collimation adjustments with a simple hex key without needing to remove the entire assembly, ensuring that the precision and convenience of the system remain uncompromised from setup through execution.
