Moravian CMOS cameras now available via Baader Planetarium

Baader Planetarium, a trusted European distributor of high-end astronomy equipment, has recently added Moravian CMOS cameras to its product catalog. While only the C1x and C5 series are currently listed on Baader’s website, this marks the beginning of a broader rollout, with more Moravian camera lines expected to follow soon.

Baader has already been using Moravian cameras extensively in their own professional observatory projects and reports high satisfaction with their performance and reliability. Although not all installations are currently documented on Baader’s public observatory map, several high-profile observatories do showcase Moravian imaging systems. For instance, the ATHOS Observatory in La Palma uses Moravian hardware inside a Baader 3.2-meter dome, and the Ole Rømer Observatory in Denmark employs Moravian cameras alongside a PlaneWave CDK 700 telescope. These real-world applications reflect Baader’s trust in the capabilities of Moravian cameras for serious scientific work.

• Click here to see the ATHOS Observatory - A remote installation in La Palma, equipped with a Baader 3.2-meter dome and advanced instrumentation for automated deep-sky imaging.
• Click here to see the Ole Rømer Observatory in Denmark - This facility features a PlaneWave CDK 700 telescope paired with Moravian camera systems, used for high-precision astronomical research. While the observatory’s dome is not a Baader product, Baader Planetarium supplied the advanced telescope system. On Baader's Observatory World Map, you can explore not only their domes but also their most advanced telescope installations worldwide.
• Another standout example is the recently completed IAC-ATLAS project at the Teide Observatory, where Baader installed 16 RASA 11" on four PlaneWave L-Mounts. This large-scale, highly complex installation demonstrates Baader's capability to deliver turnkey solutions for cutting-edge observatories. Click here to read the full article on the Baader Planetarium blog.


While Baader has initially published product pages for the C1x and C5 series, they also make use of a wider selection of Moravian camera lines than what is currently listed online. Additional models are expected to appear on their website soon, eventually rounding out a comprehensive offering of Moravian Instruments’ full imaging portfolio.

Moravian CMOS Cameras Now Available via Baader Planetarium

Built in Czechia, Moravian CMOS cameras are known for their high precision, low noise, and robust construction, making them ideal for both astrophotography and professional scientific use. Baader’s partnership with Moravian Instruments provides customers across Europe with access to this advanced imaging technology, supported by Baader's logistics, technical expertise, and reputation for quality service.

Moravian offers a wide range of camera families, each optimized for specific imaging needs:

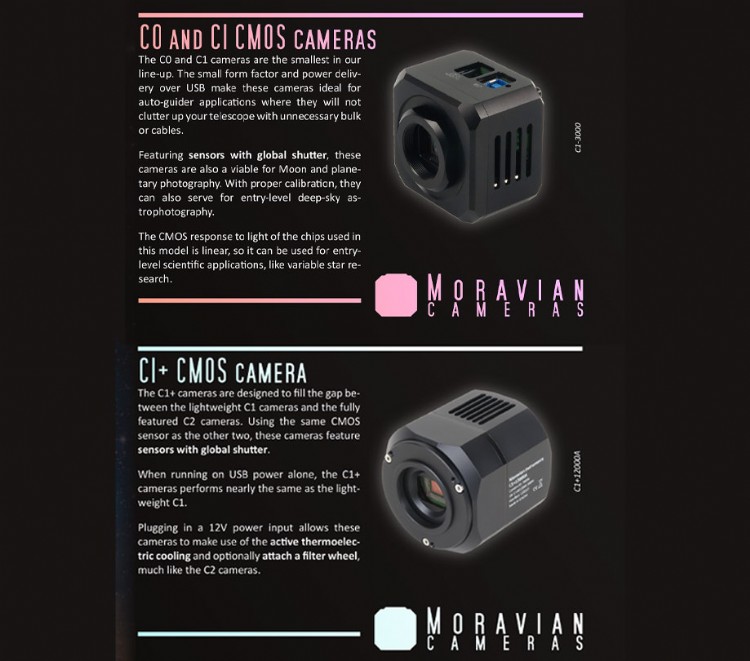

• C0 and C1 Series - Compact, USB-powered cameras ideal for autoguiding, planetary work, and small observatory builds. They feature global shutter sensors and minimal cabling.
• C1+ Series - Adds active cooling and filter wheel compatibility to the C1 platform, powered by an optional 12V supply.
• C2 Series - Primary imaging cameras with enhanced cooling, mechanical shutter options, and a form factor inspired by the G2 CCD models.

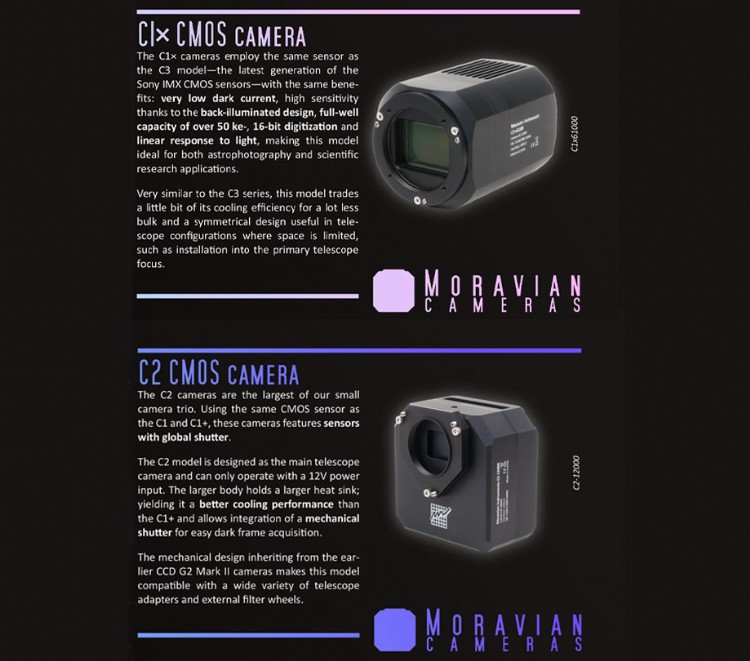

• C3 and C1× Series - Incorporate the latest Sony back-illuminated CMOS sensors with high sensitivity and ultra-low dark current. The C1× offers the same sensor performance as the C3 but in a more compact, symmetrical body ideal for tight spaces.

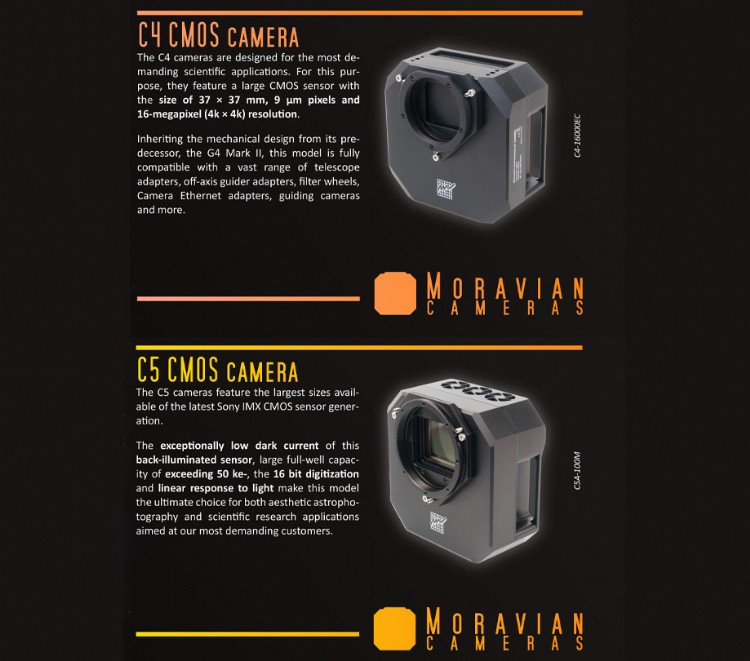

• C4 Series - Large-format sensors for scientific imaging, built on the robust mechanical platform of the earlier G4 CCD series.
• C5 Series - Moravian’s top-end CMOS cameras, supporting full-frame and large-format sensors like the Sony IMX455 and IMX571, ideal for demanding deep-sky imaging and research applications.


Each camera is housed in a rugged, CNC-machined aluminum body with precision internal components designed and manufactured in-house. These systems support a wide variety of accessories, including filter wheels, telescope adapters, off-axis guiders, and Ethernet camera modules, depending on the series.

Availability and sales

At present, Moravian cameras purchased through Baader Planetarium are available exclusively to customers within Europe. Baader does not offer commercial sales of these products to customers in the United States, neither directly nor through any US-based distributor. Baader has also confirmed that it has not been granted US sales rights for the Moravian lineup.

Any delivery to customers in the United States would need to be arranged directly through Moravian Instruments. As of now, it is unclear whether Moravian has established an official dealer or distribution partner in the US.

Baader’s gradual rollout of Moravian camera offerings will continue over the coming months, with additional models and product documentation expected to appear on their website. For astronomers and institutions based in Europe, this provides a valuable new source for acquiring advanced CMOS imaging gear that has already proven its reliability in observatory-class environments.

Moravian C1x series

The Moravian C1x series represents a high-performance family of cooled CMOS astrophotography cameras developed by Moravian Instruments in Czechia. These cameras are part of a broader modular camera system designed for both amateur and professional use in astrophotography and scientific imaging. The C1x series specifically is intended to provide top-tier image quality in a relatively compact, symmetrical form factor, making it ideal for integration into telescope configurations where back focus or space constraints are a concern. The C1x cameras share many characteristics with the larger C3 line but in a more adaptable format. Each camera is built with CNC-machined aluminum housing, high-efficiency thermal management, and long-term durability in mind.

These cameras feature the Sony IMX571 and IMX455 back-illuminated CMOS sensors, known for low noise, high sensitivity, and large dynamic range. The monochrome variants (ideal for scientific and LRGB imaging) and color Bayer versions (more user-friendly for casual astrophotography) are both available, each offered in standard and PRO industrial configurations. The PRO versions support observatory-grade continuous use and have improved cooling and thermal regulation. The C1x26000 models utilize the APS-C sized IMX571 sensor with a resolution of 6252 × 4176 pixels and a pixel size of 3.76 μm. The imaging area measures 0.93 × 0.62 inches (23.51 × 15.70 mm). The C1x61000 models use the larger full-frame IMX455 sensor, offering 9576 × 6388 pixels across an area of 1.42 × 0.95 inches (36.01 × 24.02 mm).

C1x cameras specifications

• Sensor models: Sony IMX571 (APS-C), Sony IMX455 (Full Frame)
• Resolution (C1x26000): 6252 × 4176 pixels
• Resolution (C1x61000): 9576 × 6388 pixels
• Image area (C1x26000): 0.93 × 0.62 inches (23.51 × 15.70 mm)
• Image area (C1x61000): 1.42 × 0.95 inches (36.01 × 24.02 mm)
• Pixel size: 3.76 × 3.76 μm
• Bit depth: 16-bit digitization
• Color mask: Bayer RGBG (color models), None (mono)
• Cooling: Regulated thermoelectric cooling system
• Interface: USB 3.0
• Power: 12V DC input
• Shutter: Electronic rolling shutter
• Optional GPS and Ethernet support
• Filter wheel compatibility: EFW-3L and EFW-3S models


The current prices for C1x cameras

• C1x26000 Mono: $4,125 USD (approx. from €3,660)
• C1x26000C Color: $4,125 USD (approx. from €3,660)
• C1x26000 PRO Mono: $4,970 USD (approx. from €4,515)
• C1x26000 PRO T Mono: $5,460 USD (approx. from €4,965)
• C1x61000 Mono: $6,655 USD (approx. from €6,050)
• C1x61000C Color: $6,655 USD (approx. from €6,050)
• C1x61000 PRO Mono: $7,690 USD (approx. from €6,990)
• C1x61000C PRO Color: $7,690 USD (approx. from €6,990)
• C1x61000 PRO T Mono: $8,460 USD (approx. from €7,690)


The C1x series supports a wide range of adapters and can be paired with filter wheels such as the EFW-3L-7-II or EFW-3L-9-II, priced around $790 USD. These cameras can be upgraded with a GPS module for $583 USD. USB 3.0 high-speed download capability, linear response to light, and software compatibility with ASCOM and INDI platforms further enhance their observatory readiness.

Moravian C2 series

The Moravian C2 series serves as the most advanced option among the company’s compact form-factor cooled CMOS cameras. These cameras are engineered to offer high-performance global shutter imaging while accommodating integration with larger filter wheels and mechanical shutters. Designed for use as a primary imaging camera, the C2 series delivers excellent thermal performance and flexibility, all while preserving compatibility with existing CCD G2-style telescope adapters. Compared to the C1 and C1+ lines, the C2 body is physically larger and must be powered by an external 12V DC source due to its more demanding cooling and control electronics.

The series supports a range of Sony CMOS sensors, IMX252, IMX250, IMX253, IMX265, IMX264, IMX304, IMX428, and IMX533, making it suitable for a variety of imaging tasks including planetary, lunar, deep-sky, and entry-level scientific imaging. Notably, many of these sensors use a global shutter, offering distortion-free imaging of fast-moving objects and compatibility with high-speed exposure requirements. The mechanical shutter, integrated in several models, simplifies acquisition of dark frames and flat calibration sequences.

Moravian C2 series specifications

• Sensor options: Sony IMX252, IMX250, IMX253, IMX265, IMX264, IMX304, IMX428, IMX533
• Resolution range: 2064 × 1544 to 4112 × 3008 (standard); 3008 × 3008 (square format, IMX533)
• Pixel size: 3.45 × 3.45 μm (standard), 4.50 × 4.50 μm (IMX428), 3.76 × 3.76 μm (IMX533)
• Image area (max): 0.56 × 0.41 in (14.19 × 10.38 mm); square format: 0.45 × 0.45 in (11.31 × 11.31 mm)
• Bit depth: 16-bit digitization
• Shutter: Global electronic shutter, mechanical shutter on select models
• Cooling: Active regulated thermoelectric cooling
• Interfaces: USB 3.0
• Power: 12V DC required
• Filter wheel compatibility: EFW-2S and EFW-2XS series (up to 2" filters)


The current prices for Moravian C2 series cameras

• C2-7000A Mono (IMX428): $1,925 USD (approx. from €1,750)
• C2-12000AC Mono (IMX253): $1,925 USD (approx. from €1,750)
• C2-9000C Color (IMX533): $1,740 USD (approx. from €1,585)


The C2 series is the ideal midpoint between compact planetary cameras and the larger, more expensive full-frame astrophotography systems. These cameras are perfect for astronomers seeking strong cooling performance, support for mechanical shutter operation, and filter wheel expansion, all in a more manageable and budget-conscious package. The integration of global shutter CMOS sensors further positions the C2 as a highly versatile choice for both aesthetic imaging and entry-level photometric research.

Moravian C3 series

The Moravian C3 series is a robust and versatile line of cooled CMOS cameras optimized for deep-sky imaging and scientific astrophotography. Utilizing the same high-sensitivity Sony back-illuminated sensors as the C1x and C5 series, the C3 cameras combine advanced thermal regulation with compatibility for internal filter wheels and observatory-class accessories. These cameras provide a more robust mechanical platform over the C1x models and are ideal for users who require greater cooling efficiency and system expandability in a symmetrical camera body.

C3 cameras are available in both color and monochrome versions, as well as industrial-grade PRO variants built for continuous duty cycles. These PRO models feature enhanced cooling systems and options for GPS modules, making them suitable for long-term, unattended imaging sessions in permanent observatory installations. Filter wheels compatible with the C3 line include the EFW-3L and EFW-3M series, allowing use of 2-inch round or 50 mm square filters depending on imaging needs.

Moravian C3 series specifications

• Sensor: Sony IMX571 (C3-26000), Sony IMX455 (C3-61000)
• Resolution (IMX571): 6252 × 4176 pixels (26 MP)
• Resolution (IMX455): 9576 × 6388 pixels (61 MP)
• Pixel size: 3.76 × 3.76 μm
• Image area (IMX571): 0.93 × 0.62 in (23.51 × 15.70 mm)
• Image area (IMX455): 1.42 × 0.95 in (36.01 × 24.02 mm)
• Bit depth: 16-bit digitization
• Shutter: Electronic rolling
• Cooling: Regulated dual-stage thermoelectric cooling
• Interfaces: USB 3.0, optional Ethernet and GPS
• Filter wheel compatibility: EFW-3M, EFW-3L, internal filter wheel models available


The current prices for Moravian C3 series cameras

• C3-26000 PRO EC Mono: $5,660 USD (approx. from €5,145)
• C3-26000 PRO EC Mono with GPS: $6,240 USD (approx. from €5,675)
• C3-61000 Mono: $7,070 USD (approx. from €6,425)
• C3-61000 PRO EC Mono: $4,095 USD (approx. from €3,720)
• C3-61000 PRO EC Mono with GPS: $8,635 USD (approx. from €7,850)


The C3 series delivers a compelling balance between cost, performance, and expandability. These cameras are widely used by dedicated amateur astrophotographers and institutional observatories alike. Their superior cooling system, GPS precision timing support, and internal filter wheel options allow them to meet the requirements of both scientific and aesthetic imaging applications. Whether capturing wide-field nebulae, conducting variable star photometry, or building a multi-camera remote observatory, the C3 series is well-suited for serious long-term deployments.

Moravian C5 series

The Moravian C5 series represents the top end of the company’s CMOS camera offerings, purpose-built for large format, ultra-high resolution astrophotography and advanced scientific imaging. These cameras are designed around Sony’s most advanced CMOS sensors: the IMX461 and IMX411, offering 100 and 150 megapixels respectively. Built for demanding environments, the C5 series comes in two formats: the asymmetrical C5A, which includes a mechanical shutter, and the symmetrical C5S, which omits the shutter for a more balanced optical profile suitable for Newtonians or other central-mounted telescope systems.

These cameras feature the latest back-illuminated sensor technology, with extremely low dark current, high sensitivity, and full-well capacities exceeding 50,000 electrons. They are ideally suited for aesthetic wide-field imaging, professional-grade research applications such as sky surveys, spectroscopy, and photometry, and integration into multi-camera institutional systems. Thermal control is managed through a powerful regulated thermoelectric system, and the cameras can be equipped with large-format external filter wheels such as the EFW-5XL series (supporting up to 65 × 65 mm filters).

Moravian C5 series specifications

• Sensor: Sony IMX461 (C5A/S-100M), IMX411 (C5A/S-150M)
• Resolution (IMX461): 11712 × 8750 pixels (102 MP)
• Resolution (IMX411): 14256 × 10656 pixels (151 MP)
• Pixel size: 3.76 × 3.76 μm
• Image area (IMX461): 1.73 × 1.30 in (44.04 × 32.90 mm)
• Image area (IMX411): 2.11 × 1.58 in (53.60 × 40.07 mm)
• Bit depth: 16-bit digitization
• Shutter: Mechanical (C5A only)
• Cooling: Advanced active thermoelectric cooling
• Interfaces: USB 3.0, optional Ethernet and GPS
• Filter wheel compatibility: EFW-5XL, EFW-5L series


The current prices for Moravian C5 series cameras

• C5A-100M Mono: $13,695 USD (approx. from €12,450)
• C5A-100M with GPS: $14,300 USD (approx. from €13,000)
• C5S-100M Mono: $13,695 USD (approx. from €12,450)
• C5A-150M Mono: $24,805 USD (approx. from €22,550)
• C5A-150M with GPS: $25,850 USD (approx. from €23,100)
• C5S-150M Mono: $24,805 USD (approx. from €22,550)


The C5 series is intended for serious astronomical institutions, observatories, and research facilities. With its enormous resolution and physical sensor size, it covers a much wider field of view than traditional astrophotography cameras. All C5 models support external triggering, GPS synchronization, and are compatible with professional filter wheels costing between $860 and $2,150 depending on slot and size configuration.

The C5 series' robust mechanical housing, advanced cooling design, and modular filter support make it the most powerful solution in Moravian's camera lineup. They are built for institutions needing the highest sensitivity and resolution available in the CMOS realm, with integration into long-term robotic observatories fully supported. Each camera is made to order, with delivery windows typically exceeding two months.

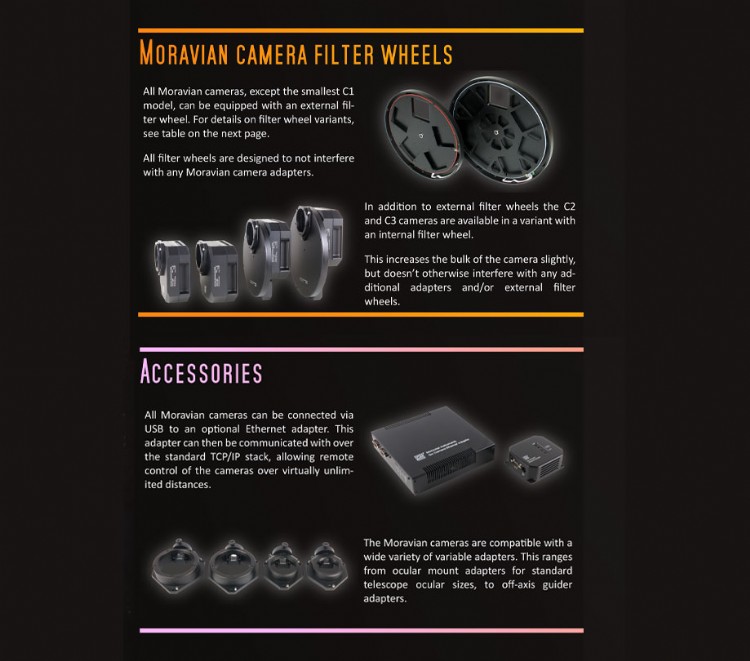

Morovian camera filter wheels and accessories
