Perfect guiding with the ZWO 2600MM DUO

Capturing sharp, detailed astrophotography images requires more than just a quality telescope and a clear night sky. One of the most critical yet often overlooked components of any imaging setup is precise guiding. Without it, even the best optics and sensors will produce blurred or distorted images due to the subtle but constant motion of the Earth. Traditionally, guiding has involved separate guide scopes or off-axis guiders paired with a secondary camera, a setup that increases complexity, requires additional calibration, and introduces mechanical challenges such as differential flexure.

The ZWO ASI2600MC/MM Duo camera addresses this long-standing challenge with a streamlined, all-in-one solution that integrates both imaging and guiding capabilities into a single compact unit. Designed with the same Sony IMX571 sensor found in the highly respected ASI2600 series, this camera offers all the performance benefits of a flagship monochrome or color astrophotography camera, while also including a secondary guiding sensor. This built-in guide chip, a Type 1/1.8 SC2210, is highly sensitive and eliminates the need for separate guiding hardware, reducing weight, cabling, and alignment issues.

Perfect guiding with the ZWO 2600MM DUO: Integrated guiding and imaging for advanced astrophotography

One of the key advantages of this integrated design is its ability to deliver sub-arcsecond guiding accuracy. With the guiding sensor mounted directly within the camera body, it shares the exact optical path and focus as the main imaging sensor. This eliminates errors caused by misalignment or flexure between a guide scope and the main telescope. The result is a guiding system that is more stable, more accurate, and easier to configure than conventional alternatives.

The SC2210 guiding sensor boasts a 1920×1080 resolution with 4μm pixels and excellent near-infrared sensitivity, reaching a quantum efficiency peak of 92% at 500nm. It features a low readout noise of just 0.6e, ensuring that even faint guide stars can be tracked with exceptional accuracy. This level of performance, especially when guiding through narrowband filters like Ha or OIII, enables long-exposure astrophotography with pinpoint stars and high fidelity in the final images.

The main imaging sensor, the Sony IMX571, delivers APS-C format resolution with 26 megapixels, 3.76μm square pixels, and a native 16-bit analog-to-digital converter. This allows the ASI2600MC/MM Duo to capture images with a dynamic range of 14 stops and a full well depth of up to 73ke in extended mode. The result is deep, high-contrast astrophotography with smooth gradients, low noise, and high signal integrity, even during long exposures at high gain.

Another major advantage of this camera is its design simplicity. With only one USB cable needed for both imaging and guiding, the Duo reduces cable clutter and power requirements. This not only improves setup speed and portability, but also minimizes potential points of failure. For imagers operating in remote or robotic observatories, or those managing tight setups with limited cabling options, this integration is a significant upgrade over traditional multi-device guiding solutions.

Thermal performance is also excellent, thanks to two-stage TEC (thermoelectric cooling) that can reduce sensor temperature by 30 to 35 degrees Celsius below ambient. This cooling capacity greatly reduces dark current and thermal noise, improving image quality during long exposure sessions. The camera also includes a polyimide anti-dew heater that prevents condensation or frost buildup on the sensor window, further ensuring consistent imaging performance throughout the night.

ZWO 2600MM DUO specifications

• Price Range: $1,799.00 - $2,299.00
• Main Sensor: Sony IMX571 (APS-C, 26MP, 3.76μm pixels, 23.5mm × 15.7mm)
• Guide Sensor: SC2210 (1/1.8", 1920×1080, 4μm pixels, QE peak 92%, readout noise as low as 0.6e)
• Native ADC: 16-bit with 14 stops dynamic range
• Full Well Capacity: Up to 73ke in extended mode
• Readout Noise: As low as 1.0e for main sensor
• Quantum Efficiency:
• MC Duo: Over 80%
• MM Duo: Over 91%
• Frame Rate: Up to 15 FPS at full resolution (RAW 8 mode)
• Cooling: Two-stage TEC, reduces temp by 30–35°C below ambient
• Buffer & Interface: USB 3.0 with 512MB DDR3 buffer
• Amp Glow: None - designed with zero amp-glow circuitry
• Anti-Dew Heater: 5W polyimide heater around sensor window (switchable)
• Design Benefit: Combines guiding and imaging in one body - no OAG or second camera needed
• Tilt Adjustment: Optional 3-point rear adjustment
• STARVIS Tech: Enhances sensitivity and noise reduction
• Filter Compatibility: Supports 2" filters, Nikon/Canon lens adapters available
• Warranty: 2-year free warranty

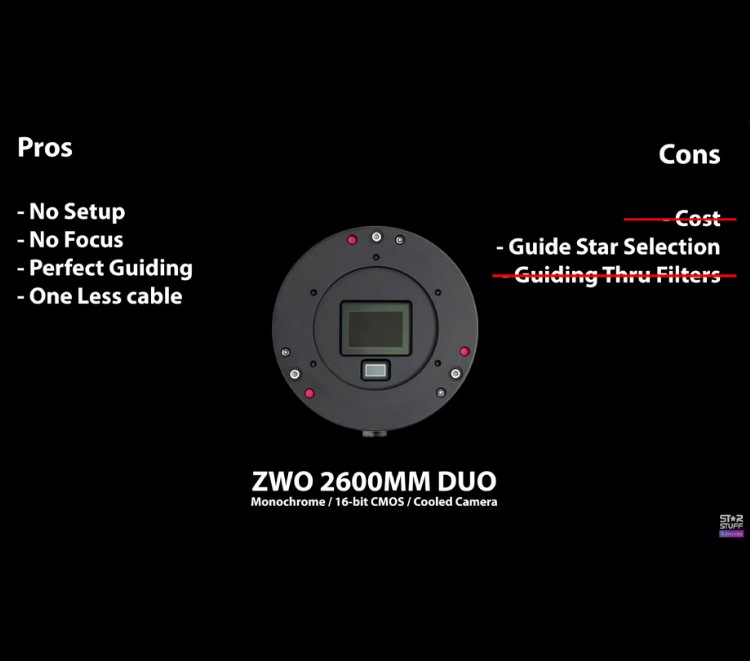

Pros / Cons ZWO 2600MM DUO camera

Capturing something as small as a quarter of a grain of rice from the vastness of the night sky requires not just sophisticated equipment, but an extraordinary level of precision. In a recent video from Dylan O’Donnell at the Byron Bay Observatory, he achieves exactly that, using a new imaging setup featuring the ZWO ASI2600MM Duo camera. This video isn't just another astrophotography diary entry. It’s a combination of equipment review, groundbreaking technical performance, and a fascinating update on a stellar phenomenon known as the Dragon’s Egg Nebula. O'Donnell brings both high-level expertise and personal excitement to the table, making it clear that what he’s captured and how he captured it are worth examining in depth.

At the heart of his breakthrough is guiding, an essential process in astrophotography that ensures a telescope stays locked onto a single star throughout a long exposure. Even tiny amounts of drift can ruin an image, especially when targeting celestial objects that appear minuscule even through a large telescope. Traditionally, guiding is done with a secondary telescope and camera or through an off-axis guider that splits off light from the main optical path. While effective, these setups are often complex and come with potential downsides, like flexure between guiding and imaging components. O'Donnell has long used such systems to achieve some of the best images of his career with his trusted QHY268M camera paired with a five-position QHY filter wheel. But that era, as he explains, has come to an end.

The QHY camera, which had served him faithfully for years, began to fail. In its place, O’Donnell chose the ZWO 2600MM Duo, a monochrome camera using the same sensor as his former QHY but with one major innovation: a built-in guide chip. This dual-sensor architecture effectively combines the main imaging sensor with a secondary guiding sensor in a single body. The implications are significant. With no need for an external guide scope or even an off-axis guider, the setup becomes not only physically simpler but also far less prone to mechanical problems or misalignments. There’s also one fewer cable and USB port involved, which further reduces complexity and potential points of failure. Once the main camera is in focus, the guiding chip is as well, eliminating yet another variable.

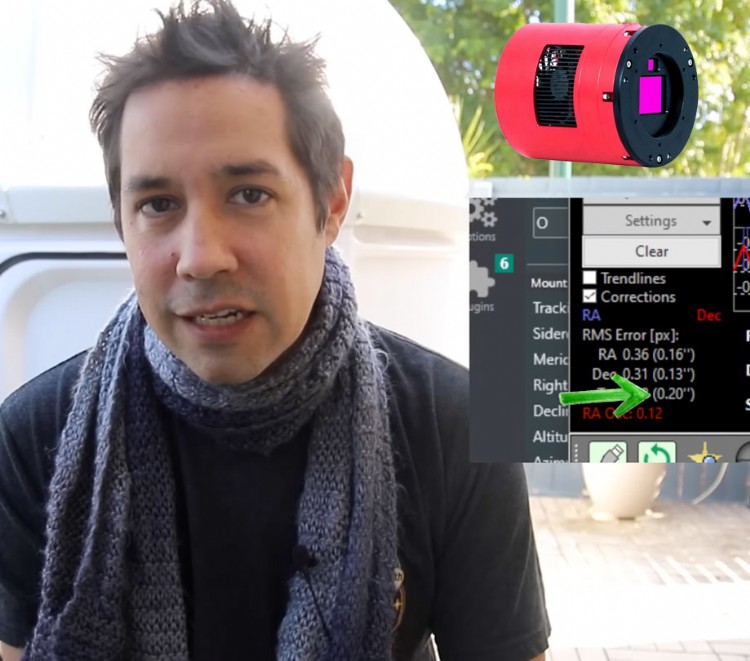

For O’Donnell, the results have been astonishing. He reports achieving guiding accuracy down to one-fifth of an arcsecond, a level of precision that defies belief. To put that into perspective, he likens the minute angular movement to viewing half a red blood cell held at arm’s length. This is not merely impressive, it’s a new personal best, and possibly one of the tightest guiding tolerances ever documented in his work. With this kind of performance, he’s able to capture faint, small-scale details that would otherwise be blurred by even the slightest tracking error.

While the advantages of the Duo setup are compelling, O’Donnell doesn’t ignore the possible downsides. One limitation is guide star selection. Because the guiding chip is fixed within the camera sensor, its field of view cannot be rotated independently. If no bright star falls within the chip’s detection area, it may be necessary to rotate the entire imaging frame, a compromise that could affect ideal framing for aesthetic or scientific purposes. Another potential concern is that the guide sensor works through the same filters as the imaging sensor. For narrowband astrophotography, this could theoretically present challenges, especially with dimmer stars or slower optical systems. But in practice, O’Donnell found no issues. Even guiding through narrowband filters like Hydrogen-alpha (Ha) and Oxygen-III (OIII) at a relatively slow focal ratio of f/11, the system performed flawlessly with three-second guide exposures.

A new era of astrophotography and a deeper look into the Dragon's Egg Nebula

As he transitions to this new gear, O’Donnell remains reflective about his prior workhorse setup, acknowledging the years of extraordinary results it delivered. But he is unequivocal in his assessment, the ZWO 2600MM Duo represents a leap forward in ease of use and technical capability. He states that if all cameras had onboard guide chips like this, it would revolutionize the way amateur and professional astrophotographers build their imaging trains.

Beyond the technical review, the video takes a turn toward scientific discovery. O’Donnell returns to an object he has imaged before, the so-called Dragon’s Egg Nebula, a relatively obscure but visually striking object overshadowed by the more famous Fighting Dragons of Ara nearby. He’s revisiting this region not just to capture it with his new setup, but to share newly published research that confirms and expands on theories he posited in earlier content.

Using resources from the NASA Astrophysics Data System, O’Donnell references a paper by Dr. Lim and colleagues that provides important updates on the nature of the outburst seen in the Dragon’s Egg. Previously, it was puzzling why such a young star exhibited a dramatic bipolar outburst. Older, massive stars like Eta Carinae are known for such behavior, often as they approach the end of their life cycles. But this star seemed too young for such activity. O'Donnell had speculated about the magnetic field orientation, initially suggesting a U-shaped structure seen from the side. New data from the European Space Agency's Gaia mission and observations from the Very Large Telescope (VLT) clarified the view: we’re actually looking directly down onto one of the star’s poles. This orientation offers an unobstructed look into its equatorial plane, where the outburst materials are ejected, giving rise to the clear bipolar shell structure observed.

What makes the discovery even more compelling is the identification of a massive binary star system at the heart of the nebula. The primary star weighs in at approximately 49 times the mass of our Sun, while the secondary star is about 34 solar masses. These two stars are in a highly elliptical, long-period orbit. Occasionally, their orbits bring them into close proximity, where gravitational and possibly material interactions trigger outbursts. This dynamic accounts for the layered shell structures seen in the surrounding nebulosity. The most recent outburst is estimated to have occurred 7,500 years ago, an event that aligns with the dawn of human civilization. Around that time, humans were transitioning from nomadic lifestyles to the establishment of early agricultural settlements during the Neolithic period. This temporal context lends a humbling scale to the image O’Donnell captured. While our ancestors were just beginning to plant crops and build rudimentary cities, a pair of massive stars were colliding and shedding layers of their outer atmospheres in a stellar dance that still echoes across space.

Interestingly, O’Donnell’s latest data wasn’t perfect. He notes that his OIII channel was marred by an optical artifact, likely due to overdriving his Celestron dew heater ring on an exceptionally damp night. The resulting asymmetry in diffraction spikes introduced an imperfection in what was otherwise a near-flawless dataset. But he presents this flaw transparently, underscoring both the challenges of astrophotography and the real-world conditions that even seasoned experts must work within.

As the video winds down, O’Donnell offers a final endorsement of on-axis guiding solutions, calling himself a convert and wishing more camera manufacturers would integrate similar features. His excitement is clearly genuine, not just about the sharp stars and smooth guiding, but about the new knowledge his imaging helped uncover.

While the video is deeply technical, it’s also personal. O’Donnell shares that his life is chaotic at the moment, though in a good way, and apologizes for the delay between content releases. As always, he signs off with his trademark blend of existential humor and philosophical depth, reminding viewers that everything is meaningless and we’re all going to die, a wink at the cosmic perspective that underlies his entire channel.

Through technical mastery, storytelling, and scientific curiosity, Dylan O’Donnell's video delivers a multilayered narrative. It’s about a camera and its guiding capabilities, but also about human exploration, the nature of binary star systems, and the fragile beauty of precision imaging. For those who appreciate both the science and the art of astrophotography, it’s a compelling update, and a reminder of how far a single image can take us, both in space and understanding.

Perfect Guiding & Perfect Stars - ZWO 2600MM DUO
