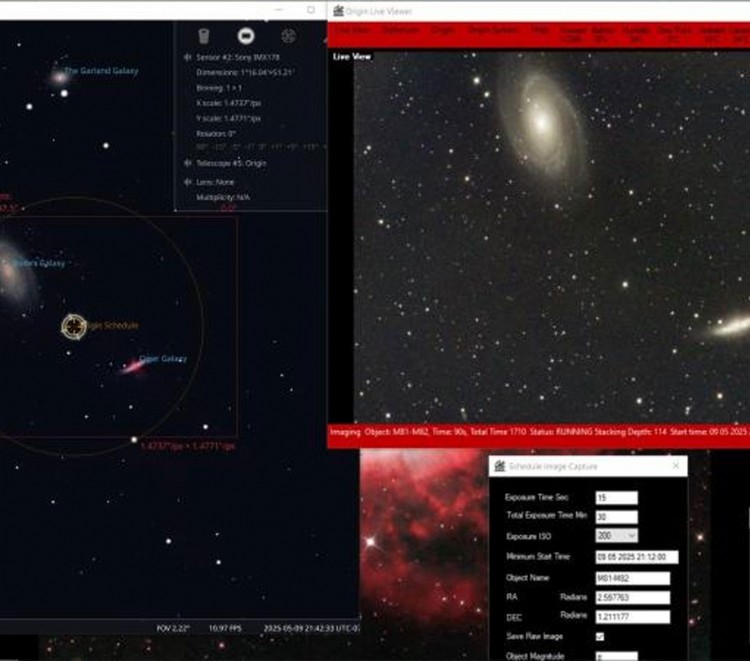

Origin Live View setup for Stellarium

Stellarium is a powerful open-source planetarium software used by astronomers and astrophotography enthusiasts alike. One of its valuable features is the ability to control telescopes, a functionality that has been part of Stellarium for years. This guide will walk you through the steps to set up Stellarium to work seamlessly with Origin Live View (OLV), allowing you to control your telescope and schedule imaging sessions efficiently.

Origin Live View setup for Stellarium: Initial configuration

Start by launching Stellarium. The first thing to do is access the configuration menu, which can be done by clicking the wrench icon on the left side of the screen or pressing the F2 key on your keyboard. This will open a new window where you can adjust various settings. From this window, navigate to the Plugins tab, which lists all available plugin functionalities.

Scroll down to find Telescope Control, which should be located near the bottom of the list. Make sure the Load at Startup option is checked. This ensures that the telescope control plugin will be loaded automatically every time you open Stellarium. Once checked, click on the Configure button to move to the next step.

Adding telescopes in Stellarium

To establish a connection between Stellarium and OLV, you will need to configure two telescopes within the plugin. To do this, click on Add New Telescope. The first telescope you set up should be named Origin. You will select External Software or Remote Computer as the control method.

In the configuration details, make sure the J2000 option is checked, as this ensures that the telescope coordinates are accurately aligned with the celestial coordinate system. Additionally, set a 0.5-second delay between updates to balance responsiveness and performance. The Start Connected at Startup option should also be enabled to avoid manually connecting the telescope every time Stellarium is launched.

For Connection Settings, use the Localhost option, which means Stellarium will communicate with the telescope on the same machine. The Default Port should be set to 10001. To help locate the telescope once it is connected, enable the Field of View (FOV) Indicator and set it to display a 1° circle around the telescope's location.

Configuring the second telescope

The second telescope you will add serves a slightly different purpose and will be used primarily for scheduling imaging sessions. Name this telescope Origin Schedule. Like the first telescope, it should be set as an External Software or Remote Computer. However, this telescope will operate on a different port, specifically 2002. This setting should also default to Localhost.

It is not necessary to enable the FOV Indicator for this telescope since it is primarily used for scheduling rather than live tracking. Once these settings are configured, you can freely connect and disconnect the telescopes as needed.

Understanding the OLV and Stellarium connection

In this setup, Stellarium acts as the client while OLV functions as the telescope server. This means that Stellarium sends position requests to OLV and receives data about the telescope's location in real time. This client-server relationship allows for smooth communication and accurate updates on telescope positioning.

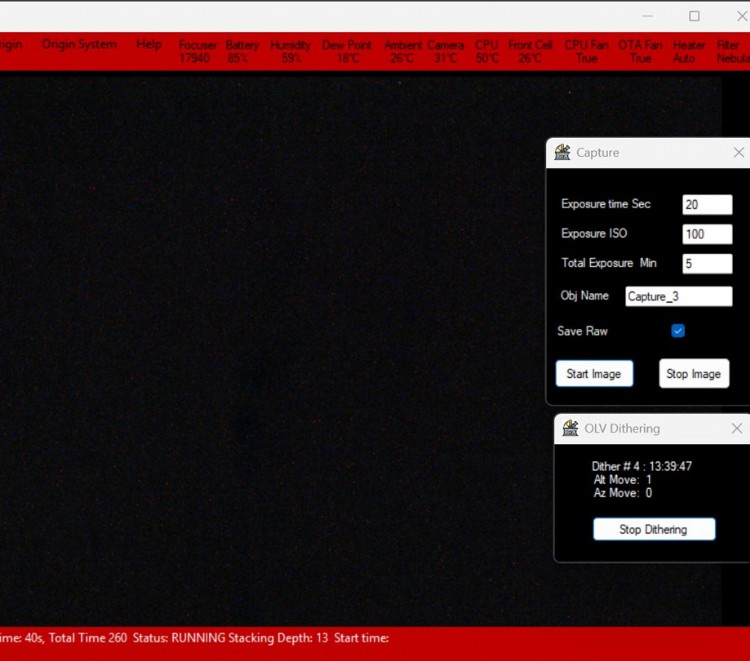

Origin Live Viewer

Setting your observation location

After configuring the telescopes, the next step is to ensure your observation location is correctly set in Stellarium. The location in Stellarium needs to match the one used by Origin, and it should be in decimal format. Setting the correct location is crucial for accurate positioning and telescope control.

To access the location settings, go to the Location tab within the configuration menu. From here, you can either choose a predefined location or manually enter your coordinates. Gene Hunter recommends using the decimal format as it aligns with how Origin processes the location data.

Optimizing the Stellarium display

Stellarium offers a customizable interface to make your observing experience as efficient as possible. One of the most useful settings when working with OLV is the Rising, Transit, and Setting Times display. This feature is particularly helpful when scheduling imaging sessions, as it shows you when a celestial object will rise, transit the meridian, and set.

To configure this, access the View Options window. Gene suggests keeping the interface uncluttered by limiting the displayed information to essential details. These include the Name, Catalog Number, Right Ascension, Declination, Magnitude, and Rise/Transit/Set Times. Reducing unnecessary details makes the interface more intuitive and helps focus on the most critical data when planning imaging sessions.

Saving your layout and settings

Once your interface is set up to your liking, it is important to save your settings to avoid reconfiguring Stellarium every time you launch it. Stellarium allows you to save your workspace layout so that the next time you open the application, it retains the same configuration.

To do this, go back to the Configuration menu and click Save View and Save Settings. One recommended layout for working with OLV is a half-screen window. By configuring Stellarium to always open in this compact layout, you can quickly access your telescope control without rearranging the interface each time.

Troubleshooting connection issues

Sometimes the connection between Stellarium and OLV may not work as expected. This can happen for several reasons, including firewall restrictions or port conflicts. Make sure that your firewall settings allow Stellarium to use the designated ports (10001 and 2002). Additionally, check that no other applications are using these ports on your system.

If you encounter connection errors, try restarting both Stellarium and OLV. Disconnecting and reconnecting the telescope within the plugin configuration can also help resolve minor connectivity issues.

Another common issue is incorrect location settings. Double-check that your coordinates are correctly entered and match the decimal format used by Origin. Incorrect location data can result in inaccurate telescope positioning and tracking errors.

Practical use cases

With Stellarium correctly configured for OLV, you can begin utilizing its features for observational astronomy and astrophotography. Whether tracking planets, deep-sky objects, or scheduling long imaging sessions, Stellarium provides a user-friendly way to control your telescope from your computer.

One practical application is scheduling imaging sessions based on the rising and setting times of celestial objects. Using the Transit and Rising Times feature, you can determine the optimal period for capturing high-quality images. This feature is particularly valuable when imaging objects with narrow windows of visibility.

Another use case is real-time tracking during live sessions. As the telescope moves, Stellarium updates the view, making it easier to monitor your target and make adjustments as needed. The 1° FOV Circle is particularly helpful for visually locating the telescope's position on the sky map.

Setting up Stellarium for Origin Live View may seem complex at first, but once you complete the initial configuration, the integration works seamlessly. The ability to manage telescope controls directly from your computer enhances efficiency and reduces the manual workload, especially when conducting extended imaging sessions.

By saving your layout and keeping the display simple, you can focus more on observing and less on navigating Stellarium. Make sure to periodically update both Stellarium and OLV to benefit from the latest features and improvements.

The combination of Stellarium’s robust planetarium features with OLV’s telescope server capabilities creates a versatile and powerful system for amateur astronomers and astrophotographers. With a properly configured setup, you can take advantage of the automated control, making your observational experience smoother and more enjoyable.
