Hybrid dovetail system launched

The Rouz Astro Hybrid Dovetail System was created for users who want more control over their telescope mounting hardware without carrying unnecessary weight. Designed for flexibility and compatibility, the system includes a CNC-machined aluminum bottom plate and an optional carbon fiber top plate. It supports a wide range of bolt patterns and hardware types, making it suitable for a variety of telescopes and accessory configurations.

Traditional dovetail plates often force compromises. They’re either heavy and inflexible or light and limited in strength or compatibility. Rouz Astro attempts to bypass this issue by offering a hybrid platform that reduces mass while retaining mounting options and mechanical reliability. Users can combine Losmandy and Vixen-style hardware, shift top components along a repeating bolt pattern, and rely on safety stops to prevent slippage during setup or breakdown.

Rouz Astro Hybrid Dovetail System

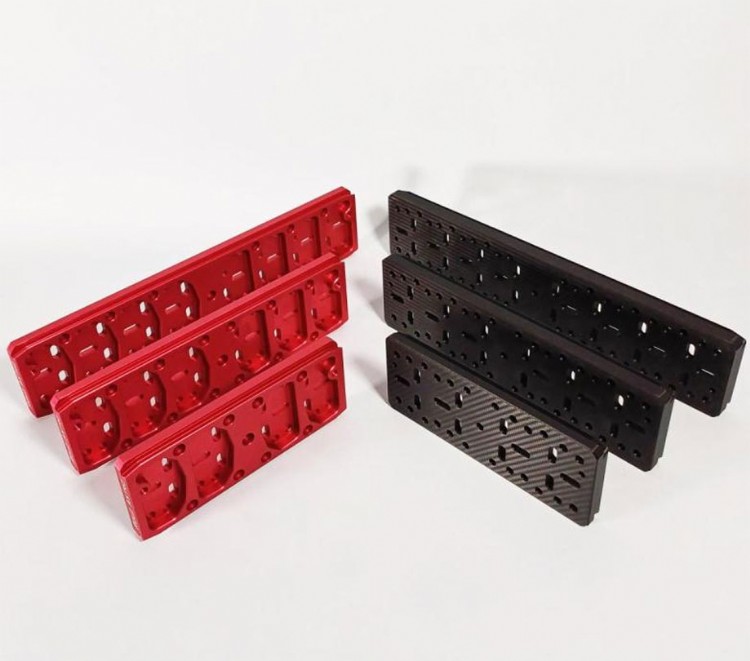

The system is modular. It comes in three lengths, 8 inch (196 mm), 11 inch (280 mm), and 14 inch (355 mm), to suit different optical tube assemblies, mounting rings, and balance preferences. The design accommodates portable rigs where lighter gear is necessary, but also supports permanent or semi-permanent observatory setups. Extensive CNC machining on the aluminum plate removes excess material while preserving rigidity. The end result is a base that’s up to 35 percent lighter than many competing dovetail plates.

The optional carbon fiber top plate is made for accessory mounting. It is not structural in the way the aluminum plate is, but it adds flexibility for attaching guidescopes, dew heaters, finder scopes, and similar gear. This top plate is made using high-modulus carbon fiber fused with polymer resin at over 540°F. No glue or epoxy is used in the process, which improves thermal stability and reduces the risk of delamination under load or in changing weather conditions. The hybrid approach, metal bottom, carbon top, gives users a path toward minimizing total payload weight without giving up necessary connection points or structural performance.

The aluminum bottom plates are made from T6-6061 aluminum alloy. All three sizes are anodized for corrosion resistance and wear protection. The 8-inch version weighs 0.9 pounds (400 grams), the 11-inch version weighs 1.25 pounds (535 grams), and the 14-inch version weighs 1.65 pounds (725 grams). Each includes a series of machined holes and slots compatible with common M6 and 1/4-20 bolts, spaced to match many third-party ring and accessory systems.

The top carbon fiber plates are significantly lighter, with the 8-inch model weighing just 0.2 pounds (100 grams), the 11-inch version at 0.35 pounds (155 grams), and the 14-inch at 0.5 pounds (255 grams). These carbon fiber plates are intended for light-duty accessories and are rated for a maximum load of 12 pounds (5.4 kg). The low weight makes them useful when balancing a rig or reducing strain on portable tracking mounts.

Bolt compatibility is a central feature of the Hybrid Dovetail System. It supports M6 and 1/4-20 bolts, making it directly compatible with accessories from brands like William Optics, Stellarvue, MoreBlue, and Astro-Physics. Bolt spacing support includes 1.25-inch and 2.0-inch configurations for tube rings, as well as several center slot dimensions: 20 mm, 35 mm, 50 mm (MoreBlue), 38.1 mm (1.5", William Optics and Stellarvue), and 60 mm (2.362", Astro-Physics and Stella Mira). This allows users to attach a wide range of accessories without drilling new holes or relying on adapter plates.

One key feature is the repeating 42 mm bolt pattern. This layout allows users to reposition the top plate forward or backward in fixed increments. If the payload changes, by adding a camera, filter wheel, or other accessories, the user can move the top plate and re-balance the rig without remounting everything from scratch. The pattern also supports users who swap between setups and need repeatable positions for guide scopes or other fixed-alignment accessories.

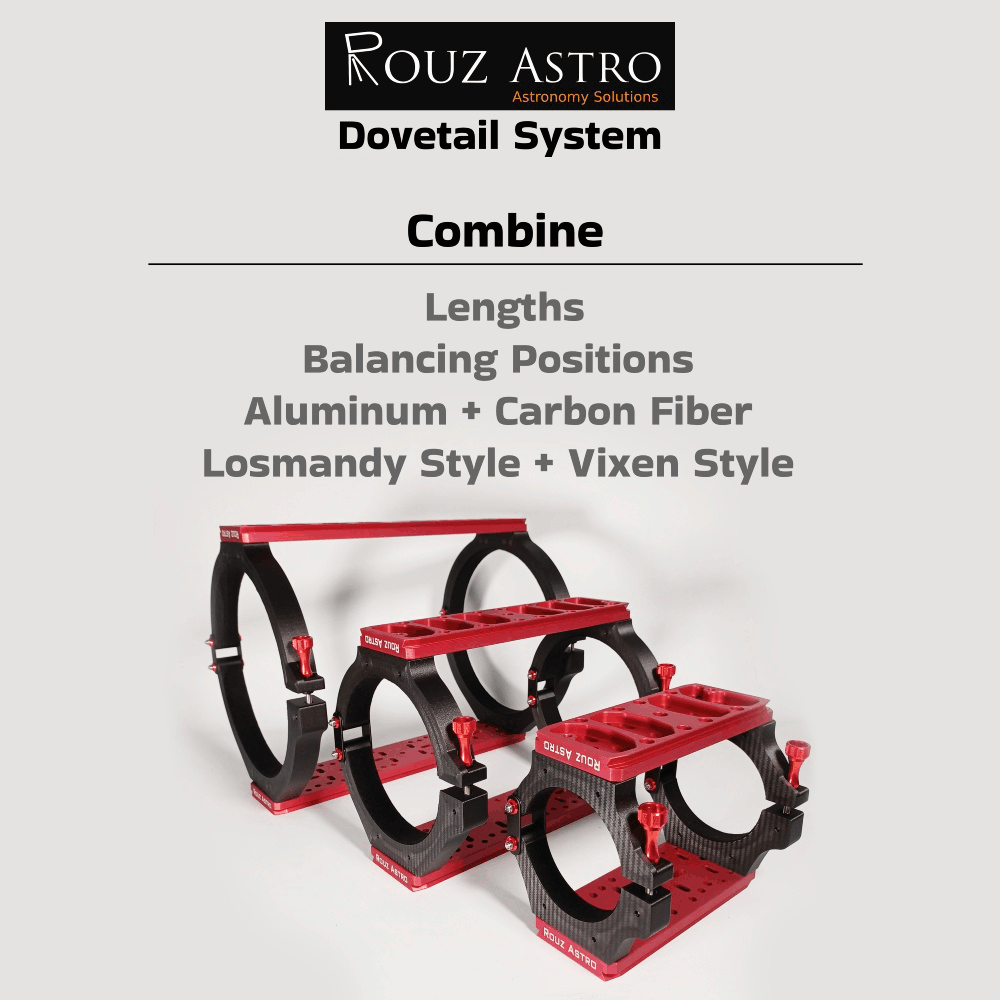

Another aspect of the system is its ability to mix top and bottom bar styles. For instance, users can run a Losmandy-style plate on the bottom while attaching a Vixen-style bar or ring set on top, or vice versa. This flexibility is useful for those with mixed-brand gear or older components that no longer match standard sizes. It also helps users consolidate their setups and avoid unnecessary hardware duplication.

To prevent accidents during setup or teardown, Rouz Astro includes provisions for M6 safety stop bolts at either end of the dovetail plate. These bolts act as barriers to stop the plate from sliding out of saddle clamps. It’s a simple feature but one that matters in both field and observatory environments. Equipment can slip when clamps are released, especially in the dark or when adjusting on uneven terrain.

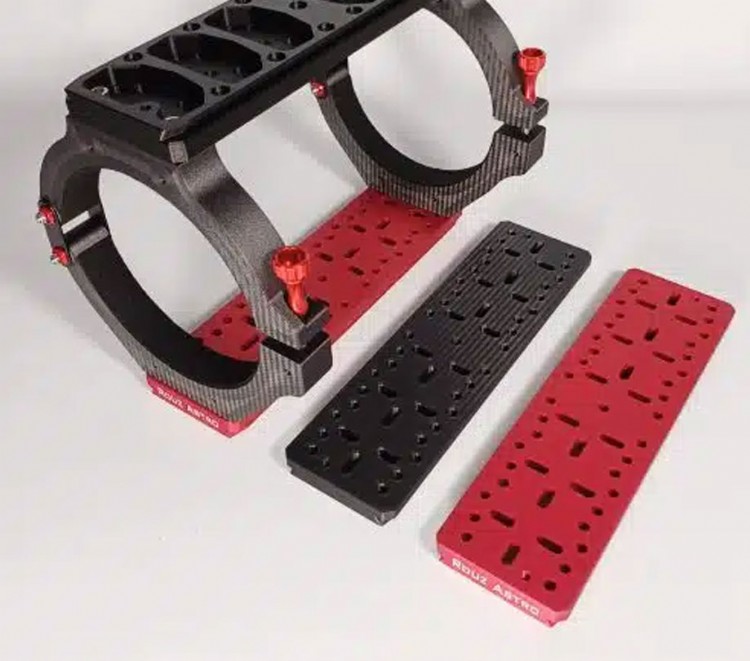

When combining the aluminum base with the carbon fiber top plate, users get an ultra-lightweight system suitable for compact tracking mounts or airline travel. For example, an 11-inch hybrid dovetail weighs only 1.6 pounds (aluminum plus carbon top), yet supports the mounting of both telescope rings and top-mounted accessories like a small guidescope or finder. For those pushing the limits of mount capacity or trying to save weight on imaging trips, this reduction in mass has practical value.

The carbon fiber top plate is optional but available at a discount when purchased as part of a combo. The same applies to extra aluminum plates, which can be swapped in to create multiple configurations. This approach supports modular rig builds where a user may alternate between setups depending on the target, season, or location. For example, a short 8-inch plate may be used with a wide-field refractor, while the longer 14-inch plate may be reserved for a longer focal length OTA.

Hybrid Dovetail System specifications

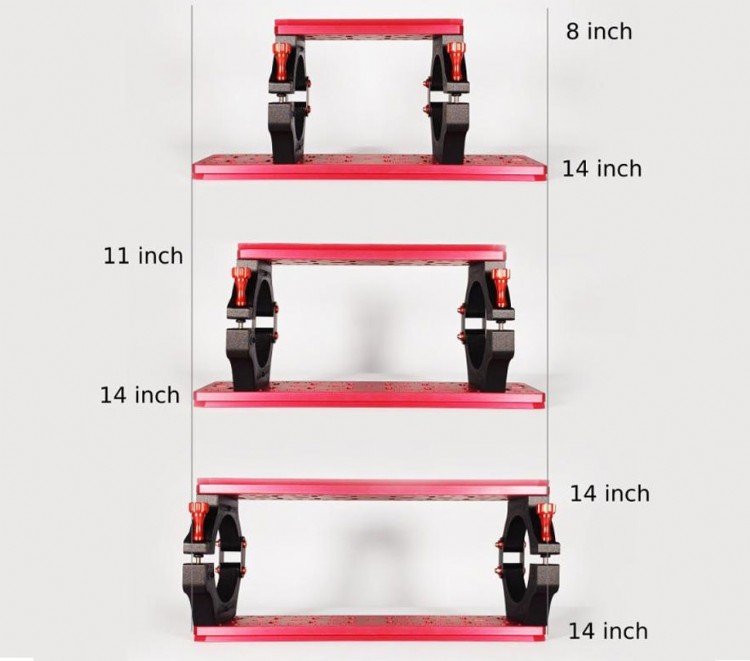

The Rouz Astro Hybrid Dovetail System is available in three lengths: 8 inches (196 mm), 11 inches (280 mm), and 14 inches (355 mm). The aluminum bottom plate is anodized red and designed to reduce weight through extensive machining. The weight of the aluminum plates is:

• 8": 0.9 lbs (400 g)
• 11": 1.25 lbs (535 g)
• 14": 1.65 lbs (725 g)


The optional carbon fiber top plate is made from high-modulus carbon fiber and polymers fused without glue or epoxy at over 540°F. It is intended for lighter accessories and has a weight of:

• 8": 0.2 lbs (100 g)
• 11": 0.35 lbs (155 g)
• 14": 0.5 lbs (255 g)


The system supports mixed top and bottom bar sizes and styles, including Losmandy and Vixen. A repeating 42 mm bolt pattern allows users to shift top plates forward or backward. The system is designed for compatibility with standard bolt spacing used by other brands, accepting M6 or 1/4-20 bolts. Supported spacing includes:

• 2.0" (Rouz Astro tube rings)
• 1.25"
• 20 mm, 35 mm, 50 mm (MoreBlue)
• 38.1 mm / 1.5" (William Optics, Stellarvue)
• 60 mm / 2.362" (Astro-Physics, Stella Mira) with low-profile bolt heads


CNC Machined Aluminum

• 8inch ( 196mm): Weight 0.9lbs (400 grams)
• 11inch ( 280mm): Weight 1.25lbs (535 grams)
• 14inch ( 355mm): Weight  1.65lbs (725grams)
• Various hole spacing to accept M6 or 1/4-20 bolts
• High strength T6-6061 (aircraft grade, anodized), CNC machined construction


Carbon Fiber Composite

• Light Duty -12 lbs (5kg) Payload for Accessories
• 8inch ( 196mm): Weight 0.2lbs (100 grams)
• 11inch ( 280mm): Weight 0.35lbs (155 grams)
• 14inch ( 355mm): Weight  0.5lbs (255grams)
• Various hole spacing to accept M6 or 1/4-20 bolts
• Carbon Fiber composite of high modulus carbon fiber & polymers fused at high temperatures over 540 deg F (no glue or epoxy is used)


Hybrid Dovetail System pricing

The system is priced from $59.50 to $89.50 depending on the selected size and whether carbon fiber tops or extra plates are added. These prices place it in a mid-range position compared to other dovetail hardware on the market, particularly given the weight savings and compatibility. The product fits into Rouz Astro’s broader lineup of tube rings, handles, and other mount accessories designed for amateur and advanced users.

This dovetail system is not tied to a proprietary mount or ring ecosystem. Instead, it offers a neutral, platform-agnostic solution that integrates into existing setups. This benefits users who own gear from multiple brands or who frequently update their rigs. Rather than locking into one format, the Hybrid Dovetail System keeps options open and minimizes the need for custom adapters.

Compared to heavier cast or extruded dovetail systems, the CNC-machined aluminum plate from Rouz Astro provides precise tolerances and a cleaner surface finish. The anodized layer adds durability for those using their rigs in dusty or humid environments. The material choice and machining strategy focus on mechanical strength without adding bulk.

The carbon fiber component brings other advantages. Because it lacks epoxy and uses high-temperature fusion, it avoids many of the failure points common in laminated or bonded composites. It is also thermally stable, which is useful during long imaging sessions when ambient temperatures drop and expansion or contraction could affect alignment or tracking.

As a product, the Hybrid Dovetail System addresses common requests from astronomy users: a modular plate that allows different bolt spacings, multiple bar styles, and weight savings across the board. Its compatibility with both metric and imperial hardware, and with standard brand layouts, makes it a versatile addition to most telescope kits.

For those transporting gear frequently, whether to star parties or remote imaging sites, the lower weight of the hybrid system makes it easier to stay under luggage limits and reduce setup strain. For those assembling observatory-grade equipment, it offers a clean layout, safe mounting, and compatibility with existing ring and saddle systems.

The price point reflects a balance between custom machining, modular parts, and durability without entering ultra-premium territory. It’s not the cheapest solution available, but the added features, compatibility, and weight optimization offer clear tradeoffs that will appeal to users building flexible and mobile rigs.

Rouz Astro Hybrid Dovetail System recap

The Rouz Astro Hybrid Dovetail System is a mounting platform with specific use cases in mind. It supports M6 and 1/4-20 bolts, fits multiple spacing patterns, and accommodates both Losmandy and Vixen-style bars. Its repeating 42 mm pattern allows easy adjustment of top plates. Safety stop bolts can be added to prevent accidents, and the entire system is available in 8", 11", and 14" lengths.

The aluminum plates weigh between 0.9 and 1.65 pounds, while the carbon fiber tops range from 0.2 to 0.5 pounds. The hybrid combination allows mounting of telescope rings on the base and accessory rails on top, with a total payload rating of up to 12 pounds for the carbon fiber section.

This system is built for users who want flexibility across rigs, weight reduction for travel, and compatibility with major telescope brands. It avoids proprietary locking mechanisms and adapter dependencies. Instead, it provides a neutral, modular format with useful features like shiftable plates, mixed bar style support, and safety measures.

The system is priced from $59.50 to $89.50, with combo discounts for additional plates. It integrates into Rouz Astro’s ecosystem but works just as well in mixed-brand environments. Every part of the design, from hole spacing to weight balance, serves a functional role in mounting telescope hardware securely without unnecessary bulk.

The Hybrid Dovetail System is intended for users who value control, compatibility, and weight efficiency in their gear. It is a direct response to limitations found in traditional plates. No marketing claims or premium branding, just modular hardware that does what it’s supposed to.
