The production of a Vixen telescope begins not with the glass, lenses, or electronics, but with a deep-rooted commitment to precision craftsmanship and optical clarity. As a Japanese company respected globally among astronomy enthusiasts, Vixen Co., Ltd. is renowned for creating telescopes that combine robust mechanical design with refined optics. The entire manufacturing process takes place in Japan, where attention to detail is paramount. The journey of creating a telescope starts at the machining phase, where raw materials begin their transformation into a tool capable of revealing the cosmos.

How a Vixen telescope is made: Inside the precision craftsmanship

The telescope’s optical tube, known in Japanese as “kyoto,” is the first major component to be fabricated. This cylindrical body serves as the housing for both lenses and mirrors, effectively forming the structural core that channels starlight through the instrument. It must be precisely cut and machined to exact tolerances to ensure optimal alignment of internal optical components. This process is largely automated but closely monitored by skilled technicians who inspect the parts for surface defects and dimensional accuracy. Once the optical tube is complete, the next step is to assemble the eyepiece section.

The eyepiece section is particularly critical because it represents the interface between the observer and the optical system. It is here that the eyepiece lens is carefully mounted. This lens is essential for magnifying the image created by the objective lens and must be secured within a smooth, precise mechanism that allows for easy adjustment. A delicate balance is struck between snug mechanical tolerances and the need for ease of movement. Before assembly, technicians apply a specialized grease to the sliding surfaces, ensuring the focus adjustment can be performed fluidly without play or stiffness. This grease must be worked in manually through repeated motion, gradually breaking in the component to ensure flawless operation. The same grease is also applied to gear teeth to maintain consistent mechanical response and minimize friction.

Once the eyepiece section is installed and tested for smooth operation, the assembly process proceeds to mounting the focus adjustment handle. This simple yet vital component allows the user to bring celestial objects into sharp focus. To enhance image contrast and eliminate stray light, the inside of the optical tube is painted black. This step is essential for minimizing internal reflections and maximizing the visibility of faint astronomical objects. Any reflective surface inside the telescope can degrade the image, so meticulous attention is paid to surface finishes and coatings.

Installing and testing the objective lens and preparing the mount assembly

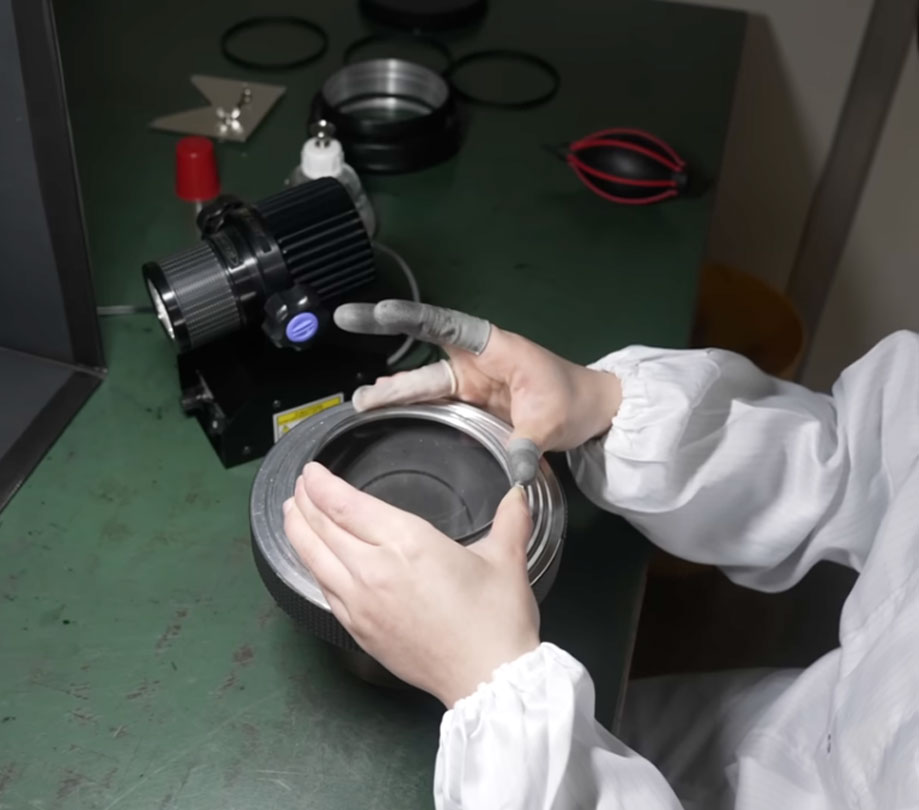

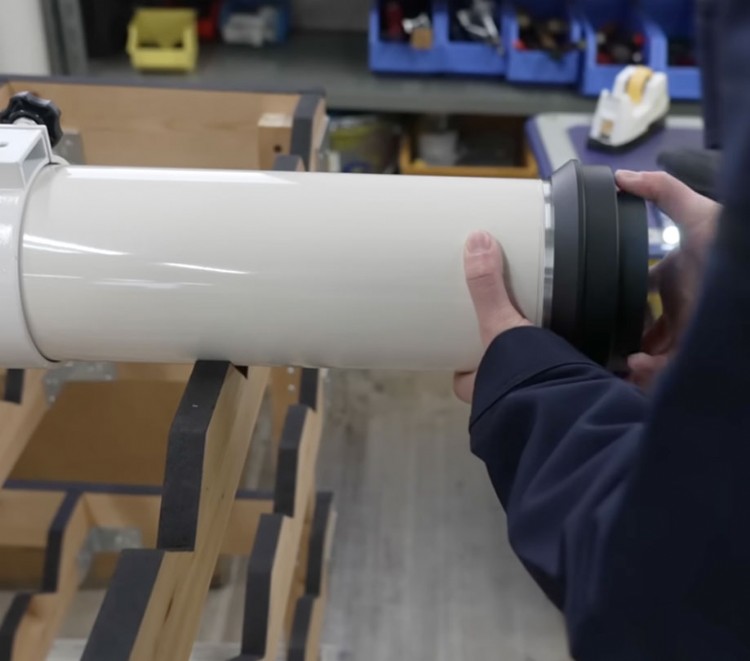

The next phase involves the cleaning and installation of the objective lens, which forms the heart of the telescope’s optical system. Positioned at the front end of the optical tube, the objective lens collects incoming starlight and focuses it to a point inside the telescope. Before installation, the lens is subjected to rigorous inspection. A powerful light is directed onto its surface to detect any smudges, dust particles, or scratches that might compromise image quality. Technicians handle the lenses with gloved hands and use specialized cleaning solutions to ensure a pristine surface. The objective system typically involves a doublet, two lenses stacked and carefully aligned inside a metal frame. This frame not only holds the lenses in place but also helps correct for chromatic aberration, ensuring that all colors of light focus at the same point.

After the lenses are securely mounted in the frame, they are fixed tightly to prevent any internal movement. Even slight shifts during use or transport can disrupt the precise optical alignment. Once the lens system is secure, it is fitted into the front end of the optical tube. At this point, technicians conduct an optical performance check. A common method involves using a steel ball placed about 25 meters away, illuminated by a bulb. The reflection from the ball is analyzed through the telescope to assess the image quality. An ideal result shows a clean, concentric ring around a central point of light. If necessary, fine adjustments are made to the eyepiece and focusing assembly to achieve optimal image clarity and response.

With the optical tube completed and verified, the telescope moves on to final finishing steps. Labels, identification marks, and other external features are applied. Additional mechanical parts are attached to complete the telescope tube assembly. Yet, an optical tube alone does not make a telescope. Equally crucial is the mount, particularly in the case of an equatorial mount, which allows the telescope to track celestial objects as they move across the night sky due to Earth’s rotation.

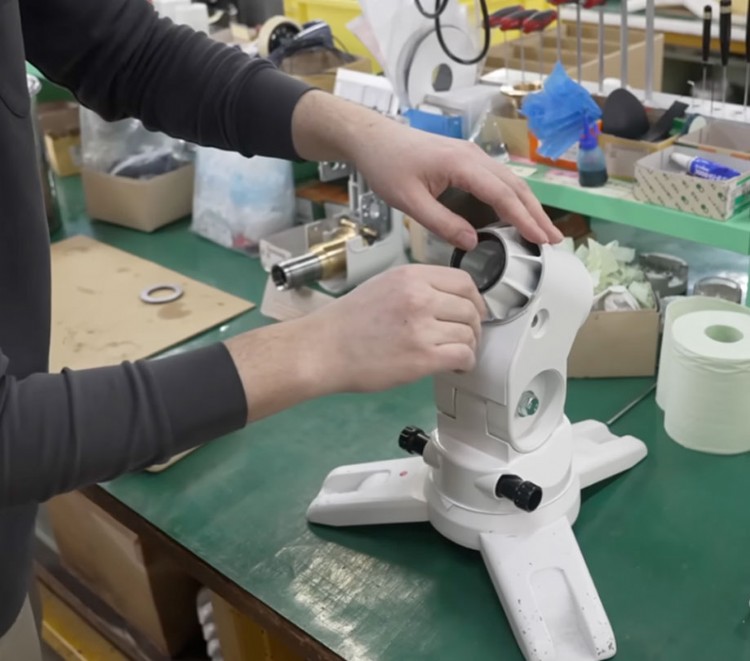

The equatorial mount comprises a number of complex assemblies, beginning with the main structure that supports the optical tube. This mount has two primary rotating axes: one aligned with Earth’s rotational axis (right ascension) and the other perpendicular to it (declination). These axes allow the telescope to move in synchronization with the heavens. To build this mount, Vixen engineers begin by assembling the clamp unit, which locks and releases the axis depending on whether the telescope is being moved or tracking.

Assembling and aligning the equatorial mount for precision tracking

The declination axis and body are next. Bearings, gears, and sliding components are assembled with the same careful application of grease used earlier in the telescope tube. Greasing not only improves smoothness but also prevents premature wear of critical parts. Each part is fit together with strict mechanical precision. Once the declination axis is completed, it is affixed securely to the main body. Torque values, alignment tolerances, and gear engagement are all checked as each component is fitted.

Following the declination components, the assembly of the polar axis begins. This axis must be aligned with the Earth’s rotational axis for accurate tracking. The polar axis is connected to the declination body, and the associated worm gear bracket is installed. These worm gears are what drive the telescope’s tracking motion. Each gear is adjusted and fine-tuned to minimize backlash and ensure that tracking is both smooth and precise.

Next comes the altitude adjustment screw section and the mount head, which allow users to fine-tune the telescope’s polar alignment. These adjustments are critical for long-exposure astrophotography and precise tracking over extended observation sessions. The polar axis body is then finalized, and the declination body is mounted to it. This completes the mechanical backbone of the equatorial mount.

To make the system fully functional, gear mesh is carefully adjusted by hand. Engineers rotate the system manually, listening and feeling for any irregularities. A motor assembly is installed to allow the mount to track automatically using electric power. The motor is connected to a circuit board and controller, which are used to calibrate the tracking functions. A final check using the controller ensures that all components respond correctly and that movement is smooth across all axes.

Another important aspect of the build is the polar axis telescope alignment. A polar scope is mounted inside the main polar axis and used to align the entire mount with the celestial pole. This alignment step is crucial for ensuring that the tracking motion matches the apparent motion of the stars. Once alignment is confirmed, the telescope is fully assembled and enters the final quality assurance phase.

Final packaging, demonstration, and the enduring craftsmanship of Vixen telescopes

The final step is packaging. Each telescope is carefully packed to protect it from shock and vibration during shipment. Special foam and packaging materials are used to cradle the optical tube and mount, ensuring that every component arrives in perfect condition. Once sealed, the telescope is ready to be shipped to its new owner, be it an amateur backyard observer or an educational institution.

A brief demonstration of the finished product showcases its capabilities. Images of stars captured through the assembled telescope reveal the culmination of all that painstaking labor. Crisp star points, faint nebulae, and the subtle glow of galaxies testify to the telescope’s optical and mechanical quality. Vixen’s meticulous approach to manufacturing, where nothing is rushed and everything is inspected, ensures that each telescope upholds a standard worthy of the night sky it was built to explore.

From raw material to fully operational instrument, the process of building a Vixen telescope is a masterclass in precision, patience, and craftsmanship. Each telescope is more than just a tool, it is the product of decades of experience, the culmination of careful human effort blended with modern engineering. In a world increasingly dominated by automation and disposability, Vixen’s approach reminds us that craftsmanship and attention to detail remain essential, especially when the goal is nothing less than bringing the stars a little closer.
