Tilt adjustments for astrophotography made easy

Sunday, August 3, 2025

Unlock the full potential of your telescope with the Wanderer ETA, where tilt adjustments for astrophotography result in pinpoint stars, preserved back focus, and automation that eliminates the frustration of manual sensor alignment forever.

Correcting tilt in an astrophotography setup can be one of the most frustrating, error-prone, and time-consuming aspects of imaging with a large sensor. The Wanderer Astro ETA (Electronic Tilt Adjuster) was designed to eliminate this headache entirely. While traditional tilt correction involves a manual cycle of test exposures, screw turns, and disassembly, the ETA promises an automated, electronically driven solution that achieves pinpoint star sharpness across the entire field of view, even with full-frame sensors on fast optical systems.

For imagers using large-format cameras or fast optics, even slight misalignment in sensor tilt can show up as elongated or distorted stars in the corners of the image. This ruins otherwise sharp and deep sky captures. Tilt correction becomes especially crucial when investing in premium scopes like the FSQ106 or the SkyWatcher Esprit series. Without precise tilt alignment, those expensive optics are underutilized.

Tilt adjustments for astrophotography made easy: Why tilt correction matters

The Wanderer ETA takes on this challenge by replacing manual screw-driven adjustments with three precision stepper motors and integrated encoders. These motors allow both manual and fully automated control over sensor tilt, accurate to within just 2 microns. With software support via NINA and the Hocus Focus plugin, this device analyzes your star field and makes the necessary micro-adjustments automatically. What once took hours and a lot of frustration now takes just minutes.

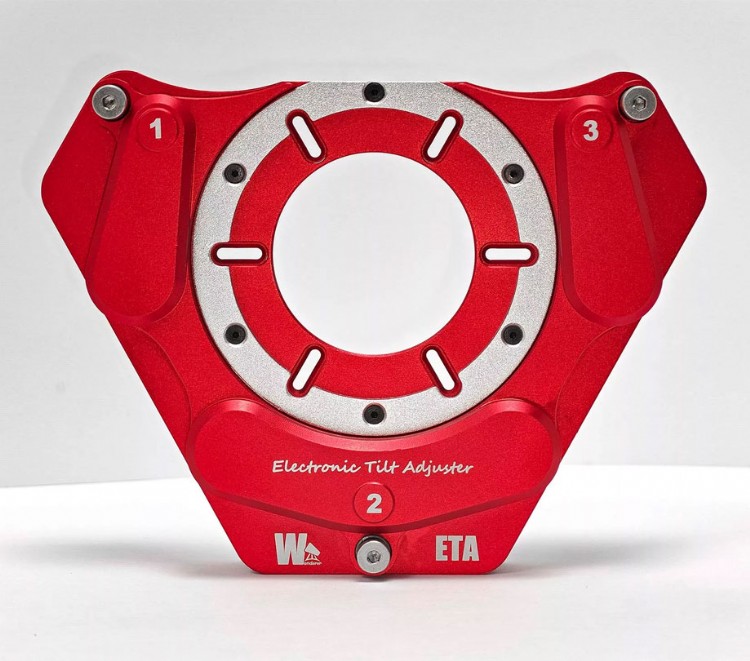

The device itself is a compact 5mm-thick component that can be threaded into the imaging train between your telescope and camera. It's equipped with an M54 interface and can integrate directly with filter wheels and off-axis guiders, maintaining the standard 55mm back focus required by many optical systems. Users can also install the ETA directly to their camera or imaging train using the provided screws and adapters, with or without an OAG.

Software control is handled through WandererEmpire, a desktop application designed for Windows PCs. It connects to the ETA via USB and interfaces with NINA’s Hocus Focus plugin to guide the automatic adjustment process. The software analyzes autofocus results from NINA’s aberration inspector, identifies tilt patterns, and translates those into precise corrections that are executed by the ETA’s motors.

Manual adjustments are still an option. Each of the three tilt points can be fine-tuned through the software, enabling electronic manual control without the need to physically handle the imaging train. Even back focus can be adjusted slightly, up to 1.3mm, by moving the whole unit forward or backward electronically, allowing for minor corrections without adding spacers or disassembling components.

Real-world testing

During real-world testing with a full-frame Sky 24 AC camera and the SQF55 telescope, a deliberate tilt was introduced using the camera’s adjustment plate. The goal was to simulate the kind of field curvature and star deformation commonly caused by misalignment. Before-and-after images confirmed the ETA’s capabilities, stars in all four corners of the image showed dramatic improvements in sharpness and symmetry after correction.

The bottom right corner, in particular, benefited the most. What began as an obviously out-of-focus and distorted cluster of stars was transformed into a clean, circular field post-adjustment. The ETA was able to correct tilt introduced across multiple axes, demonstrating that its automatic corrections were accurate even when tilt wasn’t evenly distributed.

In this test, it took two runs of the Hocus Focus autofocus + ETA correction routine to achieve near-perfect flatness. That kind of result, accomplished in under an hour with no mechanical fiddling, would normally require hours of trial and error with manual tilt plates.

The Wanderer ETA is especially useful for imagers who frequently switch imaging trains between scopes. Its software allows saving of multiple configuration profiles. So, if a user alternates between a refractor and a Newtonian or swaps out filter wheels or cameras, each setup can be recalled and reloaded instantly, minimizing downtime and eliminating rework.

It's also useful for those with setups that are permanently mounted but need occasional recalibration, such as after seasonal collimation shifts or focus train changes. The ETA’s precise motors and reliable repeatability make it ideal for both mobile and observatory-based astrophotographers.

Installation depends on the user's camera, OAG, and filter wheel setup. For QHY, Touptek, and ZWO imaging trains, the ETA integrates cleanly while maintaining the necessary back focus. A groove built into the ETA housing accommodates the stalk from an off-axis guider, and users are advised to consult the manual for optimal installation orientation.

The device also considers the camera sensor’s rotation relative to the tilt plate. During setup, the software requires users to input this angle accurately. The ETA software can measure and validate it by analyzing the results from autofocus tests, making sure that corrections are applied correctly across the sensor's geometry.

At $849, the ETA isn’t a casual purchase. For those who already understand and are comfortable performing manual tilt adjustments, the ETA might not justify its cost. But for those who have struggled with tilt correction, or who want a precise, repeatable, and time-saving alternative, the ETA can be a transformative upgrade.

The unit requires a Windows PC with NINA and the Hocus Focus plugin for full functionality. It is not compatible with simplified all-in-one imaging controllers like the ASIAIR, since it needs direct access to the software stack.

It also requires users to ensure they are using compatible camera gear, back focus spacing, and optical configurations. While the product page and manual are very clear, users are advised to double-check their own hardware against compatibility recommendations before purchasing.
