The TEC 180FL Review: 7 inches of apochromatic royalty

Like so many of you, I started with a small telescope. A Tasco 60 mm refractor to be exact, when I was 12 years old. That little telescope was not perfect. The mount shook. The eyepieces were nothing to brag about. The Moon looked good because the Moon is kind to beginners. Jupiter was small, Saturn was smaller, and deep sky objects were more idea than image. But it did something no expensive telescope can do better. It opened the door.

Forty years later, I find myself standing beside a TEC 180FL refractor, and there are still moments when I look at it and think I am not sure I am worthy to write these words. A seven inch fluorite refractor is not something you trip over on the way to buying a better diagonal. It is not an impulse purchase. It is not a status symbol if you have any sense at all. It is an instrument, and one that asks something from its owner.

Before anybody starts sharpening a pencil over the cost of such a telescope, let me say this plainly. I worked my way here. I traded equipment. I bought used. I sold things I liked. I found deals. I learned what mattered and what did not. I moved through telescopes the same way a person moves through life, one lesson at a time, sometimes wiser and sometimes just lighter in the wallet. Eventually, after years of this, I landed the coveted TEC 180FL.

So this is not a review written from a place of casual ownership. It is written from gratitude. Every millimeter of glass in this telescope means something to me. Every turn of the focuser means something. Every time I loosen a ring, slide a dovetail, balance the tube, or cap the objective, I know I am handling a piece of work made by people who cared about the result, and I also know this can easily come across as an "elite refractor snob" bragging article. So here goes my attempt at telling you what the TEC 180FL is really like.

From a 60mm Tasco to a 180mm TEC

There is a funny thing about starting small. It gives you respect for every gain that comes later - telescopes and other things in life I suppose. A 60 mm refractor teaches patience because it has no choice. It teaches you to look carefully. It teaches you that seeing is not the same as glancing. It teaches you that the sky does not owe you anything. And I should add -a "starter 60 mm refractor, not a RedCat 61, or Takahashi - I'm talking Walmart here, Tasco.."

Moving from that kind of beginning to a 180 mm apochromatic refractor 40 years removed is hard to describe without sounding like a fool, so I will try not to. The first thing you notice is not just that the TEC 180FL gathers more light. Of course it does. The aperture is three times that of the little telescope from my youth. But the change is not merely arithmetic. It is the combination of aperture, contrast, optical polish, color correction, mechanical stability, and confidence at the eyepiece or camera sensor.

A seven inch refractor has a way of making objects look, well..settled. The image does not feel like it is being fought into existence. It feels like the telescope is getting out of the way. That is one of the highest compliments I can give any optical instrument.

With lesser equipment, you sometimes spend the whole night wondering whether the problem is focus, collimation, tracking, tube currents, field curvature, tilt, seeing, or some little gremlin that moved in when you were not looking. With the TEC, the telescope is rarely the weak link. That is both comforting and inconvenient. It means the blame moves elsewhere. Usually toward the atmosphere. Sometimes toward me.

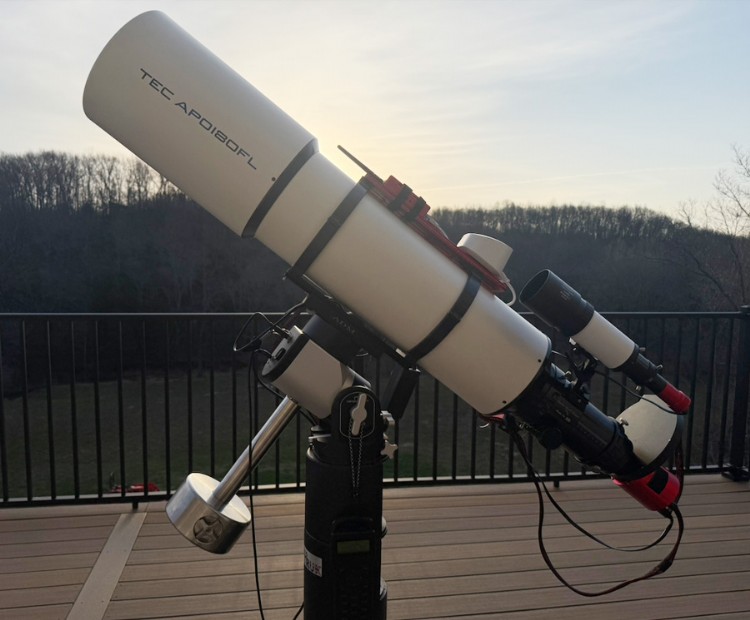

What The TEC 180FL Actually Is

The TEC 180FL is a 180 mm f/7 apochromatic refractor with a focal length of 1260 mm. It uses an oil spaced triplet objective with a fluorite middle element (the money part). The optical tube is about 45 inches long when retracted, and the bare tube weighs about 36.5 pounds. With rings, plate, handle, and imaging gear, the practical working weight climbs from there.

It comes with the kind of mechanical choices you expect on a telescope in this class. The 3.5 inch Feather Touch focuser from Starlight Instruments is not decoration, although it feels like it belongs. It is part of why this telescope works so well visually and photographically. A focuser on a long refractor carrying a serious imaging train is not allowed to be vague. It has to hold weight, stay square, move smoothly, and repeat focus with precision. On many occasions that focuser will hold a 6200MM camera with a full wheel of Chroma's on the end pointed straight up without slipping.

The TEC 180FL has been around long enough to have a reputation. Documentation from 2006 already shows the 180FL as a serious instrument, and the design has remained one of the more respected large portable refractors in amateur astronomy. Today, it remains available through Telescope Engineering Company at telescopengineering.com, though availability is not like ordering a common mass produced tube. You may wait. You may wait a long time. That is part of the reality.

The current instrument is not just a lens in a tube. It is a system. TEC offers rings, handles, adapters, flatteners, reducers, and supporting accessories. That matters because once a telescope reaches this size and value, guessing your way through mounting hardware is not clever. It is asking for trouble.

Why A Seven Inch Refractor Matters

A seven inch refractor sits in a rare place. Smaller refractors can be easy, sharp, and friendly. Large reflectors can gather more light for less money. But a seven inch apochromatic refractor brings together aperture and refractor behavior in a way that is hard to duplicate.

Refractors have no central obstruction. That matters. Not because central obstruction ruins a reflector, because it does not. Good reflectors are wonderful instruments. I own and use them. But the unobstructed optical path of a refractor gives a certain kind of contrast that is immediately noticeable on the Moon, planets, tight star fields, and faint structure in bright nebulae.

Every millimeter of clean refractor aperture increases reach. It gives more resolution, more light, and more working room before the image starts to give up. In a 180 mm instrument, that becomes serious. You are not playing at the edge of a small lens anymore. You are working with enough aperture to resolve fine detail while keeping the clean presentation that refractors are known for.

That is why seven inches feels different. It is not just larger than a 130 mm or 140 mm refractor. It is a meaningful step into another class. The image scale grows. The light grows. The authority of the view grows. Globular clusters begin to show more character. Lunar detail becomes less like looking at a photograph and more like studying a place. Planetary observing becomes dependent on seeing in a way that reminds you the telescope is ready before the sky often is.

TEC 180FL Review From The Owner’s Side Of The Camera/Eyepiece

There are reviews written from spec sheets, and then there are reviews written from cold fingers, missed sleep, cable snags, half charged batteries, dew straps, and the uneasy sound of wind moving through trees. This TEC 180FL review belongs to the second category.

Visually, the telescope is about as direct as astronomy gets. Put in a good eyepiece, aim at something worthy, and the view has a quiet steadiness to it. Stars focus down into hard points. The Moon takes magnification without becoming mushy when the air cooperates. Jupiter shows belts, zones, and subtle changes of tone with an ease that reminds you why people still love visual astronomy. Saturn is not just a ringed planet. It becomes a lesson in patience, seeing, and optical restraint.

A few people looking through a seven inch refractor for the first time tend to go quiet. That is usually the honest reaction. Not shouting. Not performing. Just quiet. The view does not need much help.

Through the TEC, an eyepiece feels less like an accessory and more like a final window. Good eyepieces show what they can do. Lesser eyepieces also show what they can do, which is not always a compliment. The telescope is not cruel, but it is honest. It rewards good diagonals, good eyepieces, careful focus, proper cooling, and steady air.

The Moon through this telescope is dangerous if you have other things planned. You can lose an hour just moving along the terminator. Crater rims, small ridges, floor shadows, and fine texture show up with that hard refractor contrast people talk about because it is real. On nights of good seeing, the view keeps taking power until common sense says you should stop, and then you try a little more anyway.

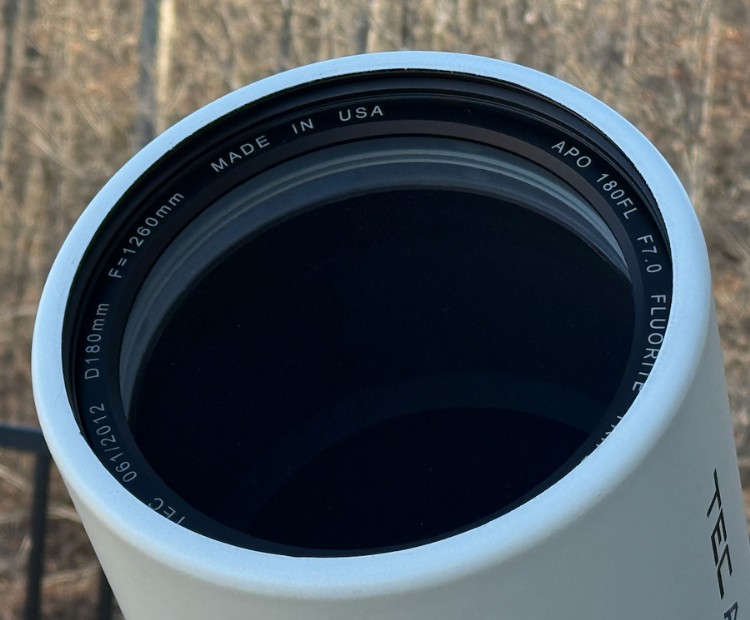

The TEC Optics Are Not Just Normal Glass

Fluorite matters. In telescope optics, calcium fluoride has special properties that make it useful for controlling color. When used properly in an apochromatic design, it helps bring different wavelengths of light to focus with very little visible color error. That matters in visual use, and it matters even more in imaging, where sensors are less forgiving than eyes.

The TEC 180FL uses a fluorite element in an oil spaced triplet objective. Oil spacing reduces the number of air to glass surfaces inside the objective compared with an air spaced design. Fewer internal reflecting surfaces can help transmission and contrast when the design is executed well. That last phrase matters. Design alone does not make a great telescope. Execution does.

Fluorite is not a marketing word here. It is part of why this telescope behaves the way it does. Bright stars do not wear purple coats. Focus is clean. Fine detail does not look smeared by secondary color. For astrophotography, this means less time fighting color fringing and more time working on exposure, framing, processing, and the usual mistakes we all pretend we do not make.

A good fluorite refractor does not make the sky better. It just stops adding its own problems. That sounds plain, but it is a big deal. The best optical systems are not the ones that announce themselves. They are the ones that leave you alone with the target.

Refractors Compared With Reflectors

I like reflectors. A good reflector is a practical, powerful, honest tool. My 12 inch RC class reflector can do things a refractor cannot do at the same cost or aperture. A Celestron 8 inch EdgeHD is a capable instrument with a lot of reach in a compact package. Reflectors and catadioptric telescopes are not lesser creatures. They are different tools.

But refractors have strengths that are hard to ignore. No central obstruction. No routine collimation. Fast setup compared with complex mirror systems. Stable optical alignment. High contrast. A clean light path. In a high end refractor, the whole experience feels less mechanical and more immediate.

That does not mean the TEC 180FL wins every contest. It is large, expensive, and long. It does not gather as much light as a large reflector. It asks for a serious mount. It has a long moment arm. Wind matters. Balance matters. The cost per inch of aperture is not kind.

Still, when the question is purity of image, the TEC makes a strong argument. I do not mean purity in some mystical sense. I mean the practical kind. Tight stars. Low scatter. Strong contrast. No fussing with collimation before every serious session. When a telescope repeatedly gives clean data and clean views, you stop arguing with it.

The Focal Ratio Is Part Of The Appeal

At f/7, the TEC 180FL lives in a useful middle ground. It is not so fast that spacing and tilt become unbearable. It is not so slow that imaging feels punishing. The native focal length of 1260 mm gives enough reach for galaxies, planetary nebulae, globular clusters, lunar work, and tighter framing on emission nebulae.

There is something balanced about f/7 in a refractor of this size. It is long enough to feel serious, yet still manageable. With a reducer, the telescope can move closer to 900 mm and become more flexible for larger targets. With Barlows or telecentric amplifiers, it can be pushed into very long effective focal lengths. There are examples online of TEC 180FL systems working at more than 7000 mm for lunar and planetary imaging. That is not everyday deep sky work, but it shows what the optic can tolerate when the rest of the system is up to the job.

The important point is not that everyone should run a 180FL at extreme focal length. The important point is that the glass has enough quality to let you choose. It does not fall apart the moment you ask more of it. When reduced properly, it remains clean. When amplified properly, it remains disciplined. That is what premium optics buy you.

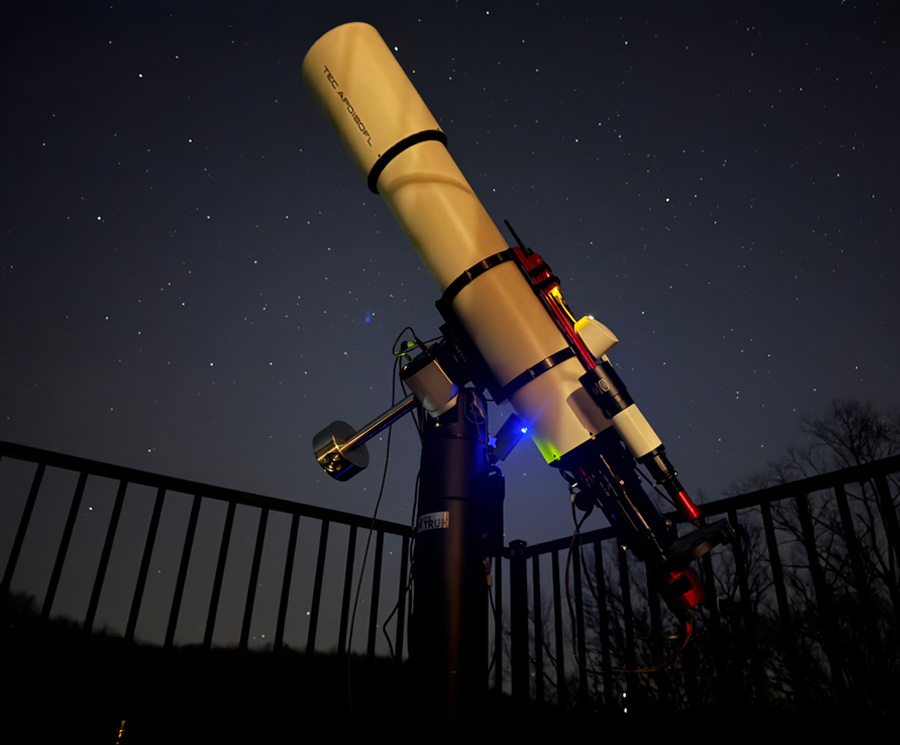

My Imaging Train And The Mount That Carries It

My TEC 180FL rides on a Rainbow Astro RST 300 harmonic drive mount. That still sounds slightly unreasonable when I say it out loud, because a seven inch refractor is not a small load. But with careful balance, solid mounting, and a practical respect for wind, the combination works.

On the back of the TEC I use a medium format ZWO 461 camera with a filter wheel and 2 inch square Chroma filters. That is a serious sensor behind a serious optic, and it shows why the focuser and rear end of the telescope matter so much. Big sensors do not forgive sloppy spacing, sag, tilt, or weak mechanics.

On top of the TEC rides a Takahashi FSQ 106EDX4, reduced down to about 380 mm. That gives me a wide field companion to the 1200 plus mm reach of the TEC. The two telescopes complement each other in a way that makes sense. The FSQ gives me the broad view. The TEC gives me the reach, contrast, and resolution.

There is a practical pleasure in having both fields of view available. The FSQ can frame large nebulae and sweeping structures. The TEC can go after smaller objects or tighter details. It is like having a wide brush and a fine brush on the same night.

Astrophotography With A 180 mm Refractor

Put a good camera behind the TEC 180FL and the first thing you notice is star quality. That sounds simple, but it is not. Stars are where telescopes confess. A telescope can make a nebula look good and still give away its sins in the stars. With the TEC, stars are tight, color is controlled, and contrast comes through in a way that makes processing feel less like rescue work.

The 1260 mm focal length gives enough image scale to make smaller targets interesting. Galaxies that feel too small in a short refractor begin to show structure. Planetary nebulae become more than dots. Globular clusters begin to separate with confidence. The Moon becomes a world of fine edges and tonal differences.

The TEC is also kind to modest cameras. That is worth saying. You do not need the most expensive sensor on Earth to benefit from a telescope like this. A good optical tube improves every camera behind it. A modest camera behind great glass can produce work that surprises people. A great camera behind poor glass mostly records poor glass in greater detail.

Of course, the telescope does not process images for you. It does not fix bad guiding, bad calibration frames, wrong spacing, poor polar alignment, bad seeing, or lazy processing. It simply gives you a better starting point. In astrophotography, that is not a small gift.

The Good Parts Nobody Has To Sell Me On

The optics are the center of the story. That is as it should be. The TEC 180FL produces the kind of clean, high contrast image that makes you trust the instrument. The color correction is excellent. The focal plane, with the right accessories, supports serious imaging. The tube is built with the kind of restraint I appreciate. It looks like a telescope, not a piece of science fiction furniture.

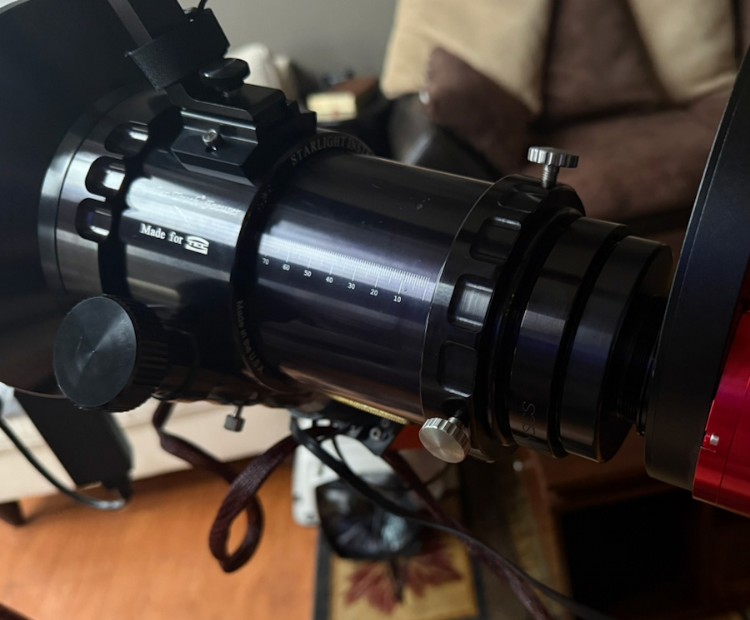

The focuser is excellent. A Feather Touch on the back of this telescope is exactly what belongs there. It handles load, feels precise, and gives confidence. When you are hanging a medium format camera, filter wheel, adapters, and cables off the rear of a telescope, confidence is not optional.

The build quality is also part of the pleasure. The tube feels solid. The lens cell inspires trust. The dew shield, rings, and overall fit do not feel like afterthoughts. This is one of those instruments where you can tell that the mechanical side was treated as part of the optical side. That is how it should be, because in the real world optics and mechanics are married whether the marketing department admits it or not.

The Bad Parts Are Mostly Reality

The TEC 180FL is expensive. There is no graceful way around that. It costs real money, and that money has other possible uses. Anyone pretending otherwise is selling something.

It is also large. Not observatory impossible, but not casual either. A 36.5 pound optical tube that is 45 inches long behaves differently than a compact telescope of the same weight. The moment arm matters. The mount matters. The tripod or pier matters. Wind matters. Your back matters. Your patience matters.

The wait can be long. Instruments like this are rare because they are not made like common consumer goods. That rarity is part of the appeal, but it is also part of the frustration. Waiting 18 months or longer is not unusual in this category, and sometimes the used market is the only practical path.

There is also the emotional burden of owning it. That may sound foolish until you own something like this. When rain is even mentioned, the telescope stays inside. If the forecast looks suspicious, I become suspicious. I use dew heaters. I sometimes wrap the tube for protection. I treat the telescope less like an object and more like something I have been trusted to care for.

That is not fear. It is responsibility. Well, maybe it is a little fear.

Rings, Balance, And The Responsibility Of Holding It Properly

A telescope like the TEC 180FL deserves proper rings. This is not a place to save a few dollars and hope for the best. The tube needs to be held securely without being abused. It needs to be balanced well. It needs a mounting system that does not flex, twist, or creep during a session.

TEC offers proper rings and accessories for a reason. The handle is not just convenient. On a tube this size, a good handle can keep a normal setup from becoming a circus act. The correct dovetail, rings, and hardware are part of owning the telescope responsibly.

When a telescope carries a second telescope on top, plus a camera system behind it, the mounting details become even more important. Flexure is not imaginary. It shows up in the data. A tiny movement that looks harmless in daylight can become elongated stars at night.

Good hardware does not make the telescope heavier in the way that matters. It makes the system safer, more predictable, and more repeatable. That is worth the weight.

M51 Galaxy by Richard Harris, captured with a TEC 180FL and ZWO 6200MM camera 2 hours total.

Compared With My Other Telescopes

I can compare the TEC 180FL directly with several instruments I know well. My Takahashi TOA-130-NFB is a serious refractor with strong color correction and a reputation that it earned honestly. The Takahashi Epsilon 160 ED class instrument brings more aperture and that familiar Takahashi discipline. The FSQ 106EDX4 is one of the great wide field imaging tools. The Celestron 8 inch EdgeHD is compact and useful. The 12 inch RC class reflector brings aperture and long focal length strength that no seven inch refractor can pretend to match on light gathering alone.

The TEC does not replace all of them. It occupies its own place.

Compared with the TOA 130, the TEC brings more aperture and more reach. Compared with the FSQ, the TEC is not trying to be wide field. Compared with the EdgeHD, the TEC feels cleaner and more immediate, though less compact. Compared with the 12 inch reflector, the TEC gives up aperture but gives back refractor contrast, stability, and simplicity.

This is why telescope comparisons can get silly. The question is not which telescope is best in all ways. The question is which telescope does what you need, in the way you prefer, under the sky you actually have.

For me, the TEC 180FL is a lifetime refractor. That does not mean it is the only telescope I need. It means it is one I cannot imagine casually replacing.

TEC, Takahashi, Astro Physics, And The Company It Keeps

A TEC 180FL belongs in rare company. Takahashi, Astro Physics, TEC, and a few others occupy a part of amateur astronomy where expectations are high because the cost is high and the reputations are earned slowly.

I know Astro Physics StarFire refractors that could sit beside the TEC without apology. I know Takahashi instruments that have the same quiet authority. These are not brand names to be tossed around like sports teams. They are different approaches to a common goal. Excellent optics, careful mechanics, long service life, and trust at the eyepiece or sensor.

Yuri Petrunin and TEC have built their reputation by making instruments that serious observers and imagers respect. TEC was founded in 1994, and over the years the company moved from optical materials and systems into some of the most respected apochromatic refractors available to amateurs. There is something personal about these telescopes. They do not feel anonymous.

That matters. When you buy a telescope like this, you are not just buying glass and aluminum. You are buying judgment. You are trusting the people who chose the design, figured the optics, built the cell, assembled the tube, tested the system, and decided it was good enough to carry their name.

Community Around A Telescope Like This

There is a community around instruments like the TEC 180FL, and it is different from ordinary gear talk. People who own these telescopes tend to know what they have. They also know what it took to get there. There is respect in that.

Not everyone who owns a premium telescope uses it well. That is true. Money and skill are not the same thing. But the people who buy a telescope like this and actually use it to its fullest are usually serious. They care about seeing, setup, balance, focus, temperature, filters, guiding, and the craft of observing or imaging.

There is a shared understanding among owners. You do not toss a TEC 180FL around. You do not leave it uncapped in blowing dust. You do not let a weak saddle hold it because you were in a hurry. You treat it as something that should outlast you if cared for properly.

I like that idea. I may own this telescope, but in another sense I am only its custodian. For a few decades, if I am lucky, it is mine to use, protect, and point upward.

Built Like A Tank, But Please Do Not Test That

The TEC 180FL feels solid in a way that reassures you. The tube, cell, focuser, rings, and accessories all give the impression of an instrument built for real use. Not display. Not conversation. Use.

That said, I have no intention of testing its durability in any dramatic way. If I dropped this telescope, my heart would stop, my soul would leave my body for a few minutes, and somebody nearby would have to remind me how breathing works. I suspect the telescope would survive more than I would, but I am not volunteering either of us for the experiment.

The point is that it feels dependable. It feels like it was built by people who knew it would be carried, mounted, cooled, heated, balanced, packed, unpacked, and used in darkness by people wearing gloves and making poor decisions at 2 in the morning.

That is real world design. Astronomy equipment lives in a harsh little corner of life. Cold, dew, cables, darkness, fatigue, and expensive glass do not always make a peaceful family. The TEC handles that world well.

Visual Use Still Matters

Astrophotography gets much of the attention now, and I understand why. Cameras let us record faint structures our eyes cannot see. Processing lets us study data long after the night is over. Sharing images helps bring people into astronomy.

But visual observing still matters. Looking through a seven inch refractor is not the same as looking at an image from one. There is a directness to visual astronomy that no camera replaces. The photons arrive, pass through the objective, move through the eyepiece, and end their trip in your eye. There is no processing workflow between you and the object.

Through the TEC, visual observing feels worth slowing down for. Double stars are clean. Lunar detail is crisp. Planetary views reward patience. Bright deep sky objects have structure and shape. Star clusters look alive in the simple sense that they are full of separate points, not smudges pretending to be points.

A telescope like this reminds me that visual astronomy is not a beginner stage. It is a different practice. It asks you to be present. It asks you to wait. It asks you to notice.

Imaging Strengths And Practical Limits

For astrophotography, the TEC 180FL gives reach, contrast, color correction, and mechanical confidence. That combination is valuable. At native focal length, it is a strong galaxy and smaller nebula instrument. Reduced toward 900 mm using the TEC reducer or the QuadTCC (if you can find one), it becomes more flexible for larger targets while still bringing the benefits of 180 mm aperture.

It also works well with high quality filters. My Chroma filters and medium format camera are able to take advantage of the clean optical path. Narrowband imaging benefits from tight stars and strong contrast. Broadband imaging benefits from color control and low scatter.

But the telescope does not eliminate practical limits. Seeing still rules. A 180 mm refractor can reveal bad seeing with brutal honesty. Guiding has to be good. Focus has to be managed. Temperature changes still matter. Cable management still matters. The mount still matters.

This is where experience becomes more important than the price tag. A beginner with a TEC 180FL can still make beginner mistakes. I know because none of us ever completely stops making them. The telescope raises the ceiling, but it does not remove the floor.

What Ownership Feels Like

Owning the TEC 180FL is a strange mix of pride, humility, nerves, and responsibility. I am proud to own it. I am humbled by it. I am sometimes nervous around it. I am always aware that it is rare.

That rarity changes how you treat it. The wait times can be long. The used opportunities are limited. The cost is high. Replacing one would not be simple. So I handle it carefully. I check the weather. I think about dew. I think about wind. I think about whether tonight is worth setting it up.

But I also do not want to become so protective that I fail to use it. Telescopes are meant to gather light. A perfect telescope sitting safely indoors is not doing its work. So the balance is care without fear. Respect without paralysis.

That may be the best way to own any fine instrument. Use it. Maintain it. Do not worship it. Do not neglect it. Let it do what it was made to do.

Final Thoughts On The TEC 180FL

The TEC 180FL is the finest refractor I have owned. It is not perfect because no telescope is perfect. It is expensive, large, rare, and demanding enough that it deserves a careful owner. But optically and mechanically, it is everything I hoped it would be.

The build quality is excellent. The optics are among the best I have seen. The focuser is worthy of the tube. The fluorite triplet design delivers the clean, high contrast performance that makes refractors so loved by visual observers and astrophotographers alike.

It also keeps company with the best instruments from Takahashi, Astro Physics, and other makers operating at this level. That is not a small statement. These are telescopes built for people who notice small things, and small things are where optical excellence lives.

For me, the TEC 180FL is more than a telescope. It is the long road from that Tasco 60 mm at 12 years old to a seven inch fluorite refractor that still makes me pause before I uncover it. It represents work, patience, trades, mistakes, lessons, and a lifetime of looking up.

I am proud to own it. More than that, I am grateful to be its custodian. If I get a few decades with this instrument under real skies, using it visually and photographically, sharing the views, making images, and learning from what it shows me, then I will consider myself fortunate.

A telescope like this does not make you a better astronomer by itself. It simply gives you fewer excuses. The rest is still on you. And honestly, that seems fair.
