SharpCap astrophotography tutorial

SharpCap is a powerful and widely used image capture application tailored specifically for astrophotography. Designed to work with a broad range of astronomy cameras, including CMOS and CCD models, it provides users with real-time control over camera settings, live image previews, and advanced capture features that are essential for photographing celestial objects. Whether capturing planetary close-ups, deep-sky nebulae, or lunar details, SharpCap allows for precise adjustments to optimize image quality. Its versatility and user-friendly interface make it popular among both beginners and experienced astrophotographers.

SharpCap astrophotography tutorial: How to capture stunning images with ease

One of SharpCap’s standout features is its ability to provide full manual control over key imaging parameters like exposure, gain, color balance, and frame rate. These controls are essential when imaging bright and fast-moving objects such as planets, where fine-tuning settings can make the difference between a blurry capture and a sharp, high-contrast result. The software also supports region-of-interest (ROI) cropping, allowing users to focus on a small area of the camera sensor to boost frame rates and reduce processing time. This feature is especially useful for planetary imaging, where detail in a compact part of the sensor is more valuable than wide-field coverage.

Beyond camera controls, SharpCap includes sophisticated focus and collimation tools to help users get the best performance from their optics. Real-time video display lets users see changes instantly as they adjust focus, while features like Bahtinov mask assistance and FWHM (Full Width at Half Maximum) analysis guide users toward sharper, more accurate focus. These tools are especially important in planetary work, where even slight focus errors can drastically reduce image quality. SharpCap’s collimation support, particularly for Newtonian reflectors, also plays a key role in maximizing the sharpness of planetary images.

SharpCap’s flexibility extends to its compatibility with a wide range of equipment. It supports USB-connected astronomy cameras from leading manufacturers such as ZWO, QHY, and Altair, and also works with video capture devices and webcams. Its support for both color and monochrome cameras, as well as various pixel formats like RGB24 and RAW8, ensures that users can tailor the software to their specific camera and imaging goals. In addition, it integrates with many common telescope control systems and filter wheels, offering a centralized hub for managing astrophotography sessions.

While SharpCap is free to download and use, there is also a paid "Pro" version that unlocks advanced features aimed at deep-sky imaging and more complex workflows. The Pro edition includes tools such as polar alignment assistance, live stacking, and flat frame capture automation. These additions enhance the software’s capabilities for those who want to move beyond planetary imaging into long-exposure astrophotography. However, even in its free form, SharpCap remains one of the most complete and reliable tools available for high-speed, high-detail planetary captures.

In addition to its technical capabilities, SharpCap is known for its stability and responsive performance. It is lightweight enough to run smoothly on most modern laptops, yet robust enough to handle high-speed data streaming from sensitive cameras during planetary captures. The software's streamlined interface helps users stay focused on their target rather than navigating complicated menus. With real-time feedback, easy file management, and thoughtful tools for every stage of the capture process, SharpCap has established itself as an essential application for anyone looking to explore the night sky through imaging.

Astrolavista's SharpCap astrophotography tutorial

Capturing high-quality planetary images can be one of the most rewarding aspects of amateur astrophotography. In a video tutorial created by Chris, also known as Astrolavista, viewers are introduced to the entire capture process for Mars using SharpCap, a free and accessible image acquisition tool. As Mars nears opposition and makes its closest approach to Earth, Chris takes advantage of the opportunity to demonstrate how to properly set up and capture planetary footage, guiding both beginners and seasoned hobbyists through the various steps involved. The focus of the video is on capture techniques, while processing and stacking are reserved for a separate tutorial.

Chris opens by acknowledging the interest in his camera settings, particularly while imaging Mars at opposition. He emphasizes that while he is sharing his personal setup, the precise settings in SharpCap will always depend on the telescope and the target object. No single configuration is universal, as variables such as telescope aperture, atmospheric seeing, and planetary brightness influence optimal settings.

Launching SharpCap, Chris begins by disabling updates to avoid interruptions, then navigates to the camera dropdown menu. Once his camera is connected, it appears in the list, and he selects it to begin. In this case, Chris is using the ZWO ASI462MC camera. For color space, he opts for RGB24, explaining that it's easier to process in post-production. However, he notes that users who want finer control might prefer the RAW8 format, which offers better data precision for advanced stacking and processing techniques.

With the camera selected and the initial setup complete, he increases the exposure time temporarily to visually locate Mars on the sensor. He defocuses the image to perform a quick collimation check on his Newtonian reflector. The presence of the secondary mirror centered in the defocused disc signals that his optics are well-collimated, which is crucial for achieving sharp planetary images. He reminds viewers that accurate collimation is especially important with Newtonian telescopes due to their sensitivity to misalignment.

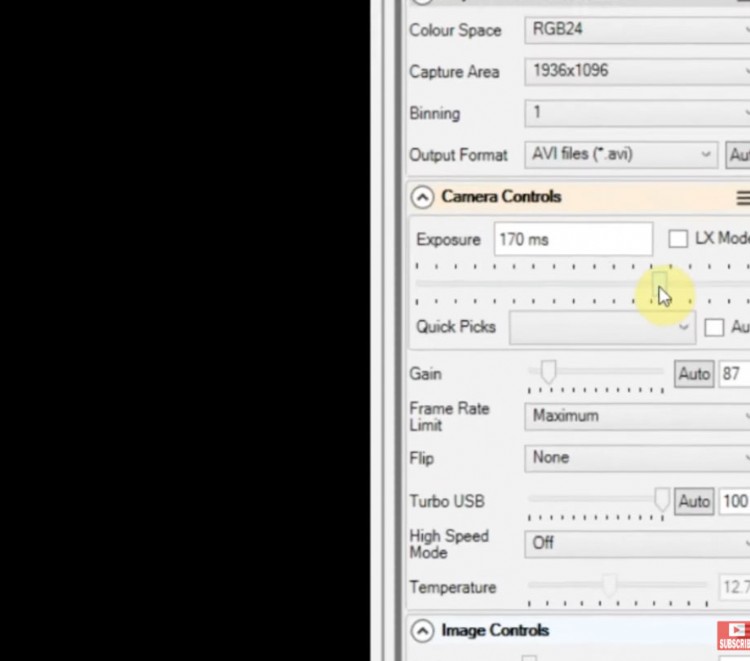

Dialing in exposure, gain, and focus for optimal capture quality

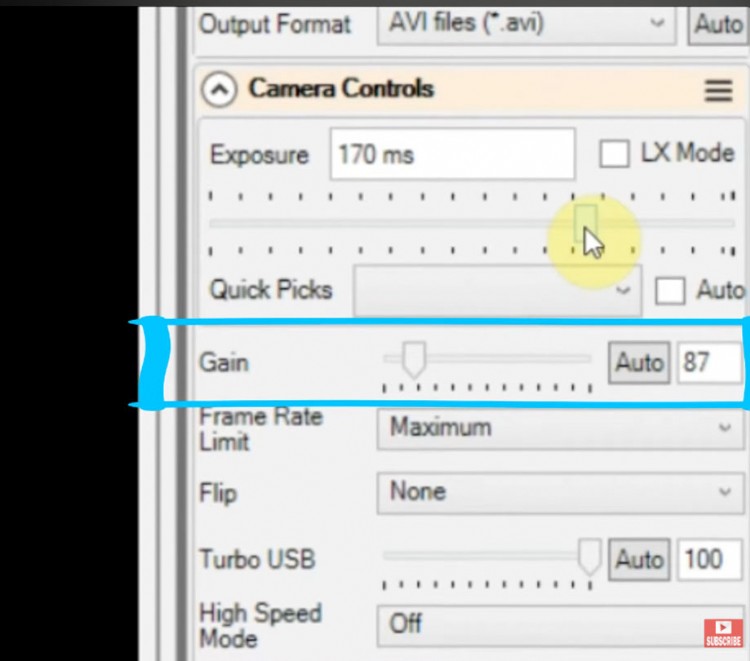

Next, Chris draws attention to the gain setting, found just below the exposure control in SharpCap. Gain is equivalent to ISO in conventional photography. A higher gain allows for shorter exposures, which in turn increases the frame rate—essential for capturing many frames quickly before planetary rotation introduces motion blur. This is particularly relevant for fast-rotating planets like Jupiter. However, Chris prefers cleaner video files and sets his gain relatively low, around 70. His approach balances signal-to-noise ratio and clarity while still allowing enough images to be captured for stacking.

As Chris begins to bring the planet into focus, he slowly reduces the exposure. The surface of Mars becomes visible with key features such as the triangular dark region known as Syrtis Major and the bright polar ice cap clearly standing out. He chooses to underexpose the bright side slightly to avoid blowing out highlights during post-processing. This step is critical because once highlights are overexposed, detail is irretrievably lost.

To enhance both focus and frame rate, Chris activates a smaller Region of Interest (ROI) around the planet. By focusing SharpCap's attention on a smaller portion of the sensor, the software can capture more frames per second since less data is being processed with each frame. He cautions that using a smaller ROI demands good tracking from the mount to ensure the planet stays centered throughout the capture. A well-aligned and motorized equatorial mount makes this step easier, especially during longer recording sessions.

Fine-tuning focus is done manually since Chris doesn’t have a Bahtinov mask or motorized focuser on this particular telescope. He notes that for users imaging Jupiter, one trick is to focus on the pinpoint stars of its moons, which act as good indicators for precise focusing. Alternatively, if the telescope has GoTo functionality, one can focus on a bright star before slewing to the planet.

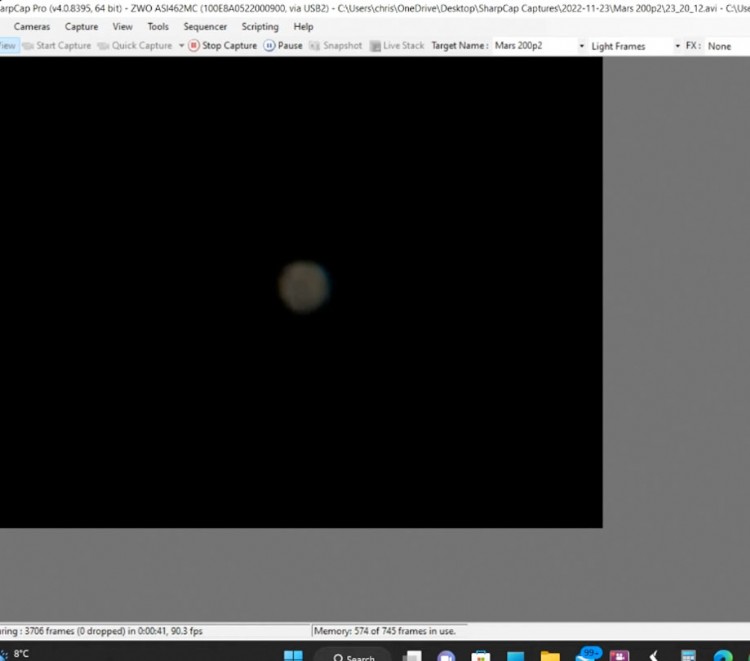

Once the focus is dialed in and the ROI is properly set, Chris begins the capture sequence. He selects a meaningful file name for the video, ensuring he can locate it easily later. The captured files are saved automatically to a designated folder on the desktop, and SharpCap shows a green banner indicating the save location once the capture is complete.

Chris explains that Mars rotates at a pace similar to Earth, with a day only slightly shorter than ours. This means there's a practical time window of a few minutes for capturing before rotational blur becomes a problem. His goal is to acquire several thousand frames in this window. The more frames available, the more data there is to select and stack the sharpest ones, which will ultimately yield a clearer final image. Even if only the top 25 percent of frames are used, having a large pool to draw from significantly improves image quality.

Wrapping up the capture and transitioning to processing techniques

The capture proceeds with Mars staying nicely centered in the frame. Throughout the segment, soothing music plays as the screen displays Mars in various states of atmospheric turbulence, a common challenge in planetary imaging. Chris allows the camera to run for several minutes, building a rich video file full of raw planetary frames. Once complete, SharpCap automatically displays where the video was saved.

With the capture finished, Chris concludes the tutorial by reminding viewers that the next steps—stacking and processing—will be shown in a separate video. He mentions that he will be using AutoStakkert for aligning and stacking the individual frames and RegiStax for sharpening and enhancing the final image. These tools are widely regarded in the planetary imaging community and are essential for turning a raw video into a stunning planetary portrait.

To give viewers a sense of what they can achieve, Chris shares the final processed image of Mars on-screen. The result is a sharp, detailed view of the planet, showcasing features like polar caps and surface markings that were barely visible in the original raw capture. The transformation from raw footage to final image is a testament to the power of stacking and post-processing.

Chris closes by thanking his channel members, including Dan the Man, Four Grapples, and Ziggy Friends, for their support. He encourages viewers who enjoyed the tutorial to subscribe and give the video a thumbs-up. With his usual good-natured humor, he signs off by reminding viewers to keep watching the skies and to tell the clouds to “sort off.”

This video stands as a practical and approachable guide for those interested in planetary imaging. Chris not only demonstrates how to capture planets like Mars using SharpCap but also builds confidence in beginners by showing that great results are achievable with methodical setup and careful attention to detail. By separating the capture and processing steps into different videos, he avoids overwhelming new users and keeps the learning curve manageable.

Through his casual and friendly teaching style, Chris makes astrophotography feel accessible and enjoyable. His decision to walk through the process in real-time, including focus adjustments and ROI selection, gives viewers a clear understanding of how much effort and experimentation goes into capturing even a few minutes of planetary data. Moreover, the tips he offers—such as focusing on stars, using smaller ROIs to increase frame rates, and tweaking gain settings for cleaner captures—are based on real-world experience and provide lasting value.

Ultimately, Chris’s tutorial is more than just a software walkthrough. It reflects the spirit of hands-on astronomy, where patience and persistence lead to stunning images of distant worlds. For anyone looking to begin their planetary imaging journey, this video serves as a perfect starting point, demonstrating that with the right tools and techniques, capturing the planets is well within reach.
