Reusing telescope photons for multi-filter astrophotography

Before we dig into this topic, I want to say up front that some of what follows leans into the philosophical side of science. It’s forward thinking, a bit like staring out at the night sky and wondering not only what’s there, but what might be possible if we push our tools just a little further. I’ve spent years working with everything from one-shot color cameras and DSLRs to monochrome sensors and even some of the odd interlaced frame designs that tried to give us shortcuts. Coming from the Ozarks, I’ve learned that you can’t shortcut nature, but you can sure enough learn to work with it if you take the time to understand it. So this is me sitting on the porch with you, talking plain, but also letting the mind wander a bit into Einstein territory.

Traditional Multi-Filter Imaging vs. a Single-Shot Approach

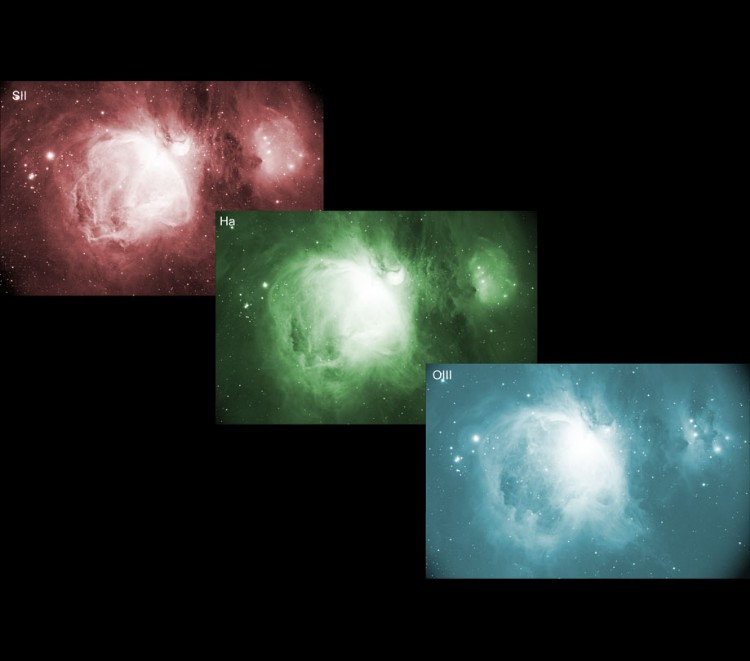

Astrophotographers usually capture images through multiple filters sequentially. For example, an amateur using a monochrome CCD might take separate exposures with red, green, and blue filters (or specialized narrowband filters like Hα, OIII, SII) and later combine them into a color image. This traditional approach ensures each filter only lets through the desired wavelength range, but it requires multiple exposures taken one after the other. Each filter change means additional imaging time, and any change in sky conditions or telescope alignment can affect the final result.

The new idea being proposed is to capture all necessary wavelength information in a single exposure – essentially reusing the same incoming light to produce multi-color (or multi-band) images. Instead of taking one photo through a red filter, then another through green, blue, etc., you would somehow split or duplicate the incoming photons so that one telescope exposure feeds multiple sensors or filters simultaneously. In principle, this could mean: one telescope collects light, and that light is divided into, say, a red, green, and blue channel (or into Hα, OIII, SII channels for narrowband) at the same time. The goal is that one exposure yields data for all filters, eliminating the need for sequential imaging. If achievable, this single-shot multi-filter astronomy imaging would be revolutionary for both amateurs and professionals – no more waiting for multiple nights to gather all your color data, and no worries about a passing cloud ruining one channel of your image.

But is this actually possible? To answer that, we need to understand what happens to photons in a telescope and camera, and what current technology allows.

Why Can't One Photon Do It All? (Physics of Photons and Detection)

When your telescope collects a photon of light and it hits your camera’s detector (CCD/CMOS sensor), something fundamental happens: the photon is absorbed and its energy is measured. The act of detection (whether it’s a chemical reaction on old photographic film or an electron signal in a digital sensor) consumes the photon – it doesn’t bounce off the sensor for you to use again. As one physics reference puts it, "the photon is absorbed by the detector, and doesn't survive as a localized photon." arnold-neumaier.at. In other words, you cannot catch the same photon twice; once it’s detected, it’s gone.

This has a crucial implication: you can’t just take the picture through a red filter and then somehow send the same photons through a blue filter. By the time you’ve recorded the red-filter image, those particular photons have been absorbed by the sensor. The only way to get a blue-filter image of the same object is to either collect new photons (i.e. take another exposure) or to have split the original photons into two groups before detection (so that some go to a blue filter and some go to a red filter simultaneously).

This is related to a fundamental principle in quantum physics called the no-cloning theorem, which basically says you cannot make a perfect copy of an arbitrary quantum state (like a single photon’s state) without altering the original. In practical terms, there’s no way to take one photon and make duplicate photons so that one could be used in multiple detectors. You either measure it (and it's gone), or you don’t. Therefore, any system that claims to reuse the “same” photons across multiple images must actually be splitting or sharing the incoming light before it reaches the final detector.

Splitting Light into Multiple Channels: Existing Techniques

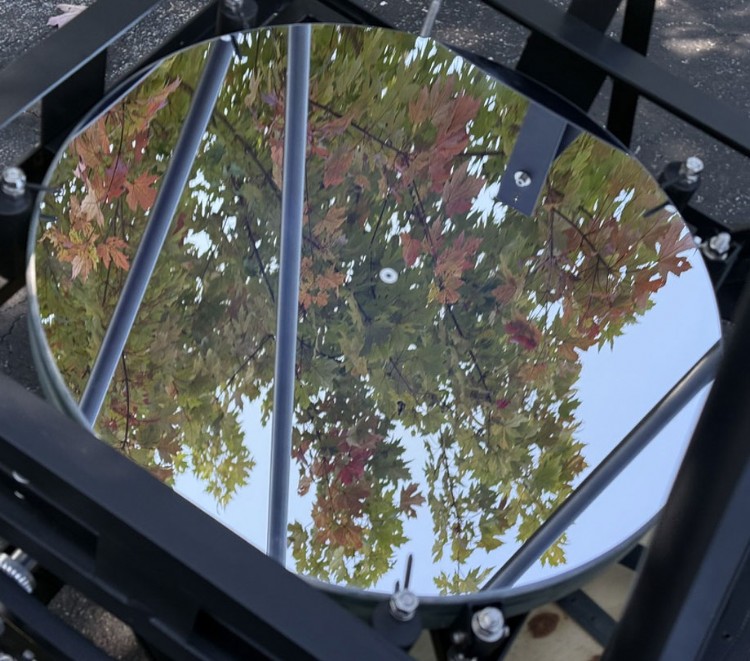

If we cannot reuse a photon after detection, another feasible approach is to split the incoming light into multiple parts before or at the point of detection. This is a well-known strategy in optics and is already used in some advanced astronomical instruments. The general term for this is simultaneous multi-band imaging – capturing images in different wavelength bands at the same time by dividing the light beam.

The GROND 7-channel imager mounted on a 2.2-meter telescope. GROND uses a system of beam splitters and filters to image the same astronomical scene in seven different wavelength bands simultaneously (four optical and three near-infrared). This multi-channel approach was pioneered to study rapid transients like gamma-ray burst afterglows.

One way to split light is using beam splitters – optical elements (like partially reflective mirrors or dichroic filters) that direct different portions of the spectrum in different directions. For example, a dichroic mirror can be coated so that it reflects, say, blue light but transmits red light. By arranging a series of dichroic splitters, you can send red, green, and blue light to three separate camera sensors at the same time. Many professional color video cameras historically used a prism with dichroic coatings to split incoming light into three sensors (one per color). In astronomy, there are instruments designed to do exactly this on telescopes:

- Multi-channel Imagers: A prime example is the GROND instrument on the 2.2m ESO telescope in La Silla. GROND uses a set of beam splitters to feed seven detectors at once, covering four optical filters (similar to Sloan g′r′i′z′ bands) and three near-infrared bands (J, H, K) simultaneously arxiv.org. With one exposure, GROND captures a complete set of multi-color data – something that would ordinarily require seven separate images with filter changes. This instrument was created to quickly record the full spectral energy distribution of fast-fading objects like gamma-ray burst afterglows.It demonstrates that single exposure multi-filter imaging is definitely possible with the right hardware.

- Simultaneous multi-band photometers: There are other research instruments (some referenced in astronomy literature) that use multiple CCD cameras and dichroic beam splitters to observe in (for example) ultraviolet, optical, and infrared bands at once. Even space telescopes use this idea; for instance, the James Webb Space Telescope’s NIRCam has a dichroic that splits the beam into short and long wavelength channels that are recorded on separate sensor arrays concurrently.

- Three-CCD (3CCD) Cameras: In the photography realm, some high-end or old video cameras had a beam-splitting prism that sent R, G, B light to three separate sensors. In amateur astrophotography, this concept isn’t commonly available as a product, but it’s the same principle that could be applied to make a “one-shot multi-filter” astro camera.

Another approach related to splitting light is using dispersive optics (like prisms or diffraction gratings) to spread out light into a spectrum. This is essentially how a spectrograph works – it takes the incoming light and separates all the wavelengths. Traditional spectrographs produce a spectrum (for example, a rainbow smear for each star), but integral field spectrographs (IFS) take this a step further. An IFS uses an array of tiny lenses or fibers to take a 2D patch of sky and break it into many spectra, capturing a data cube (x, y, λ) in one go. In theory, if you have the entire spectrum of each point in your image, you can reconstruct what the image would look like in any filter band after the fact. This is like the ultimate form of multi-filter imaging – you’re not limited to just a few filters, you have all the color information. Instruments like the MUSE spectrograph on the VLT or the SDSS MaNGAinstrument do this for professional astronomy. They are complex and expensive, but they illustrate the concept of capturing many wavelengths at once. The advantage is all your data is truly simultaneous, avoiding issues of changing conditions between exposures en.wikipedia.org.

For amateur astronomers, the most practical existing tech would be the beam-splitter and multiple-sensor approach. In fact, one can imagine a device that attaches to a telescope in place of a normal camera, containing a small dichroic prism assembly: it could split the light into (for example) three paths, feeding three smaller monochrome cameras each with a different filter. This way, you’d get three images (R, G, B or perhaps Hα, OIII, SII) at once. Such setups have been experimented with by advanced amateurs or researchers, but they are not commonplace. The complexity and cost tend to be high, which is why most amateurs simply stick to sequential filters or use multiple telescopes side-by-side if they truly need simultaneous capture (for instance, one friend’s rig might have two scopes on the same mount, each with a different filter and camera). A telling comment from one astrophotography forum: “"Looks expensive! Much easier and cost effective to do with multiple scopes/cameras." This hints that while the idea is feasible, it hasn’t been widely adopted in the hobby due to practical hurdles.

Potential Benefits of Single-Exposure Multi-Filter Imaging

If engineers and astronomers manage to implement a robust single-shot multi-filter system for telescopes, it could offer several exciting advantages:

- Time Efficiency: All required filters’ data are acquired in one go. This dramatically cuts down the total imaging time for a full color or multi-band image. An object that might require 3–6 separate exposures (for RGB or for R, G, B, Luminance, etc.) could be done in the time of one exposure. For faint deep-sky targets, this means in one night you could gather all color data, rather than needing multiple nights for different filters.

- Consistent Conditions: Because the images in each band are simultaneous, they are perfectly aligned in time. You avoid problems like the target moving or rotating relative to the camera between filter changes, or a change in seeing conditions/light pollution. All channels have the same seeing, focus, and atmospheric conditions, making processing easier. For example, you won’t get blurring in one color that isn’t in another, and you don’t have to throw out a blue frame because a cloud drifted through only during that one filter’s exposure – with simultaneous capture, either you got the data or you didn’t, but you wouldn’t have mismatched sets.

- Capturing Transients: Some astronomical phenomena change or evolve quickly (minutes to hours). Supernovae can have rapid color changes early on, or an occultation of a star by an asteroid might only last seconds. With sequential filters, you cannot get a true color snapshot of such events because by the time you take the second filter, the event might have changed. Single-shot multi-band imaging would allow true multi-color timing of variable events. This is exactly why instruments like GROND were built – e.g., catching a gamma-ray burst afterglow quickly in all bands before it fades. Amateurs could similarly capture, say, eclipsing binaries or planet transits in multiple wavelengths at once, potentially yielding more scientific information (like color-dependent light curve effects).

- Better Use of Big Telescopes: On professional telescopes (which cost thousands of dollars per hour to operate), doing one multi-band exposure instead of several sequential ones is economically beneficial. As one observatory article noted, taking filters one after the other is not efficient anymore, and simultaneous multi-band imaging is a solution. While amateurs don’t usually worry in terms of money per hour, they do worry about limited clear nights and darkness hours – so efficiency is a plus at all scales.

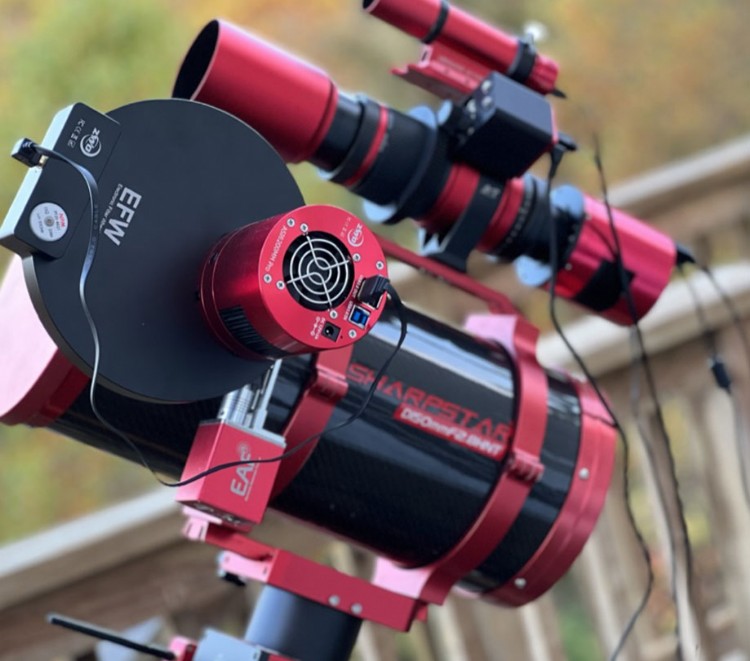

- No Need for Filter Wheel Movements: With multiple sensors or a special optical block, you wouldn’t need a rotating filter wheel for different exposures. That removes one mechanical complexity and also eliminates small shifts or distortions that sometimes happen when a filter is moved in and out. It’s essentially an electronic or optical version of a “one-shot color” camera but preserving the full detail of each color (since each color can still be captured with a full-resolution mono sensor dedicated to that band, rather than the lower-resolution Bayer pattern in DSLR/OSC cameras).

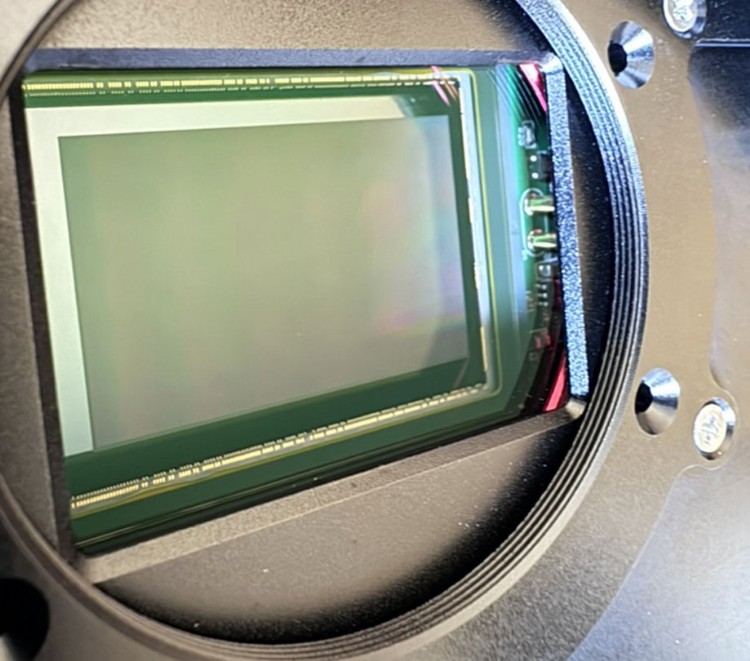

Technical Challenges and Why It Isn’t Common Yet

While the benefits are compelling, there are significant technical and practical challenges in implementing a photon-“recycling” or splitting system for astrophotography:

- Optical Complexity: Introducing beam splitters, prisms, or additional optical paths means the telescope’s light is no longer going straight into one sensor. Each additional element can introduce aberrations, need careful alignment, and complicate focus. A multi-channel splitter must ensure each wavelength path produces a sharp, focused image on its respective sensor, all focused simultaneously. Designing an optical system that splits into many channels without degrading image quality is non-trivial.

- Photon Budget: Splitting light means dividing photons. If you use a dichroic that reflects (for example) blue light to one camera and passes the rest to another, you are sending a fraction of the total light to each sensor. In an ideal dichroic, you might not lose much within each band (most blue photons go one way, most red go another), but no splitter is perfect – some light gets lost or the transitions between bands might be discarded. If you use a non-wavelength-specific beam splitter (like a 50/50 beamsplitter cube), you literally send half the photons to one camera and half to another, so each image gets only 50% of the light (thus you’d need longer exposure to reach the same signal-to-noise as an unsplit beam). Net result: Each channel might have lower signal or require more total exposure time to reach a given depth, compared to dedicating all photons to one sensor sequentially. In short, you don’t magically get something for nothing – you gain time simultaneity but could lose some sensitivity per channel.

- Cost and Hardware: A multi-sensor camera system is inherently more expensive. You need multiple sensors (which might mean multiple identical expensive astro cameras), plus custom beam-splitting optics. For narrowband imaging (like SII, Hα, OIII), you’d likely need high-performance interference coatings that can precisely separate very close wavelengths. For instance, SII is around 672 nm and Hα 656 nm – that’s a difference of only ~16 nm. Designing a dichroic that cleanly splits those apart (reflect one and transmit the other) at a 45° incidence angle is very challenging and costly. One experienced user noted that “for narrow band, it would be very hard (and very $$$) to get a dichroic for Hα/SII separation”. The filter coatings might introduce polarization effects or slight wavelength shifts at angles causing uneven response. This is technically solvable (companies like Chroma do make specialized dichroics), but it’s expensive and not perfect – such a system might suffer from halos, reflections, or reduced contrast because of the extra glass interfaces.

- Calibration and Data Processing: If you have multiple optical paths, each sensor might have slightly different image scale or distortion unless the optics are precisely made. Combining the images requires calibration to ensure they overlay perfectly. Additionally, each sensor could have its own noise characteristics and gain that you must calibrate (flats, darks) separately. It’s like running several cameras in parallel – more data files and processing effort (though this is a one-time inconvenience in exchange for saving imaging time).

- Weight and Balance: On the amateur side, attaching three or four cameras and a prism box to one telescope means added weight. Small alignment errors between the channels could show up as the images not matching exactly (think of the difficulty some have aligning RGB from separate nights – now it must be aligned in hardware in real-time). This demands a sturdy focuser and perhaps a purpose-built unit that holds all sensors rigidly in the right position.

- Limited Field of View: Some multi-channel designs in professional instruments use multiple small detectors or pick off a part of the field for each. It can be tricky to cover a wide field without making the beam splitter optics very large. Professional instruments like the one mentioned (GROND) or the newer projects manage a decent field (GROND covers about 10×10 arcminutes in optical, smaller in IR). For amateurs, one might need to ensure the splitting optics can handle the full image circle of the telescope sensor – potentially a large, expensive prism or beamsplitter.

- Existing Sensors: If one imagines a “magic sensor” that could do this without beam splitters – for example, a sensor that records the spectrum of each photon – that is essentially science fiction at the consumer level right now. There are “photon-counting spectral detectors” in labs, and technologies like Foveon X3 sensors (used in Sigma cameras) that have layered pixels to detect R, G, B colors per pixel. However, even the Foveon just has three broad color layers; it’s like having tiny filters in the silicon itself, and it still can’t isolate narrow bands like Hα separately from red continuum. True hyperspectral imagers exist in research (some use tiny filter arrays or micro-prisms on the sensor to get, say, ~50 wavelength bands), but they have low resolution or other limitations. For now, the most viable method for astronomy is using physical optics to split the light to multiple dedicated sensors.

Imagining Future Technologies

It’s worth speculating on what future or not-yet-existent technology might make single-exposure multi-band imaging easier:

- Advanced Beam-Splitting Modules: Ongoing projects (like the Optics4Space mentioned by Tautenburg Observatory) are developing more compact, efficient beam splitter units. Future amateur gear might offer an “all-in-one” multi-filter module. For example, a company could produce a sealed optics box with three CMOS chips inside and the necessary dichroic mirrors pre-aligned. You’d attach it to your telescope like a regular camera, and it might output three USB feeds – one for each channel. If this becomes plug-and-play, more people would use it. Miniaturization and cost reduction in optics will be key to making this accessible.

- On-Chip Spectral Imaging: There is research into CMOS sensors that incorporate microscopic diffraction gratings or filter mosaics that allow capturing a spectrum at each pixel (sometimes called snapshot spectrometric imaging). One could envision an astrophotography camera where each star’s light is dispersed into a tiny spectrum on the sensor itself, and software then reconstructs images in chosen bands. This is very complex and would likely trade off spatial resolution for spectral resolution, but it’s a concept being explored in remote sensing and could someday trickle down.

- Quantum Efficiency and Photon Counting: Another angle is extremely sensitive detectors that can count individual photons and tag their wavelength. Some photon-counting detectors (like superconducting nanowire detectors or MKIDs – Microwave Kinetic Inductance Detectors) can determine the energy (and thus approximate wavelength) of each photon that hits them. MKIDs have been used in astronomical research to do low-resolution spectroscopy on each photon. If such detectors become more common, you could in principle have a single detector that knows “photon #1 had wavelength X (so it contributes to the Hα image), photon #2 had wavelength Y (goes to OIII image)”. This is cutting-edge tech (in labs/prototypes for now), but it shows one possible future path to virtually splitting photons by their wavelength on the fly.

- Metasurface Filters or Tunable Filters: Perhaps a device that rapidly switches the filter electronically during one exposure (e.g., an LCD tunable filter or acoustic-optic tunable filter) could capture multiple bands in quick succession. While not truly simultaneous, if done fast enough (milliseconds), it might approximate it without needing multiple sensors. However, tuning filters often still means sequential frames rather than the exact same moment.

In summary, future innovations might either refine the optical splitting approach or develop new detectors that capture spectral information per pixel. Either route aims to achieve the same goal: capture more information from each photon that your telescope gathers.

Could This Revolutionize Astrophotography?

If single-shot multi-filter imaging becomes practical and affordable, it would indeed be a game-changer in astrophotography:

- For Amateurs: Imagine spending one night on a target and coming away with a complete LRGB set or a full narrowband trio (SHO) without having to devote separate hours to each filter. This means more objects imaged in a given time, or deeper integrations in multiple bands simultaneously. It reduces the frustration of, say, getting a great Hα image but then the weather turns and you never capture OIII – leaving a project incomplete. It could also lower the barrier for producing color images with monochrome-level quality: currently beginners often go for one-shot-color cameras for simplicity, but give up the quality of mono+filters. A multi-channel camera would offer the best of both – simplicity (one session, one combined dataset) and the quality of dedicated filtered mono data. In essence, it “democratizes” advanced techniques by simplifying the capture process.

- For Science and Pro-Am Collaboration: Amateur setups equipped with multi-band cameras could contribute more scientifically useful observations. For instance, simultaneous multi-band light curves of variable stars, or supernova color evolution data, could be gathered by skilled amateurs and provided to the scientific community. Right now, such data are hard to get because it requires either multiple observers each using different filters at the same time or a single observer rapidly cycling filters (with lower time resolution). A single observer with a multi-channel system becomes an entire mini-observatory capable of multicolor monitoring. This could increase amateur contributions to fields like exoplanet transit studies (monitoring transits in two wavelengths to detect atmospheric coloration effects) or asteroid occultations (where color might tell about star temperature or faint companions).

- Efficiency on Large Telescopes: At the professional level, as mentioned, instruments that do simultaneous imaging make surveys and follow-ups more efficient. The more this technology improves, the more we’ll see it in use. It’s already considered economically necessary for some large telescopes to avoid wasting time. Future surveys might employ arrays of beam splitters to map the sky in multiple colors at once, doubling or tripling survey speed. In time-domain astronomy (looking for things that change), having multi-band data is like having multiple eyes on the event. For gravitational wave follow-up, for example, a robotic telescope that can get a multi-color picture of a new transient event at once can immediately tell astronomers the object’s approximate temperature or composition (because different filters brightness give color information). That speed can be crucial.

- Inspiration and Innovation: Even the discussion of such ideas pushes the technology forward. As amateurs ask for multi-filter cameras, it creates a market – perhaps camera manufacturers will experiment with new designs (much like how demand for better sensors has led companies to create cooled CMOS astro cameras, etc.). We might even see modular telescope add-ons that allow two DSLRs to be attached with a splitter for instant bi-color imaging, or some creative DIY solutions from the community.

What Should We Call This Concept?

There isn’t yet a single standard name for this in amateur circles (since it’s not widely implemented), but a few terms capture the idea:

- Simultaneous Multi-Band Imaging is a general description used in professional astronomy for instruments that capture several filters at once tls-tautenburg.de.

- Single-Shot Multi-Filter Astrophotography is a descriptive phrase – emphasizing one exposure yields multiple filtered results.

- Multi-Channel Astrophotography or a Multi-channel Camera could also describe a system with multiple sensor channels for different wavelengths.

- For a catchy presentation, one might coin a term like “Polychromatic Integral Imaging” or “Spectral-Split Camera”, but it’s probably best to be descriptive for clarity. Phrases such as “photon recycling” or “reusing photons”are a bit misleading scientifically (since we aren’t literally reusing the identical photon, rather splitting the beam), so something like “beam-split multi-camera system” or “simultaneous multi-filter capture” tells it like it is.

If presenting the idea, you could say: “I propose a single-exposure multi-filter imaging system for telescopes, which would allow capturing (for example) red, green, and blue filtered images all at once, using one telescope and a specialized beam-splitter camera.” That sums it up in plain terms.

I'm done dreaming

The idea of recording photons once and then later applying different filters to that same recorded data is not possible without gathering spectral information – you can’t go back after a monochrome exposure and decide to see colors that weren’t originally separated. However, by splitting photons by wavelength in real-time, either with beam splitters into multiple sensors or with advanced spectral detectors, we can achieve the effect of one exposure producing multiple filtered images. This is already happening at professional observatories in specialized instruments, and it holds a lot of promise for revolutionizing astrophotography if it can be made accessible to amateurs.

While challenges of complexity and cost have so far kept these techniques out of the mainstream amateur toolkit, the rapid advancement of optical technology suggests that single-shot, multi-filter astrophotography is on the horizon. It has the potential to save imaging time, gather richer data, and open new possibilities for observing the universe. In the coming years, don’t be surprised if “multi-channel” astro cameras start appearing, bringing what was once a high-end capability down to backyard astronomers – allowing them to literally see the full picture in one snap.
