Modular Optical Ground Stations

The MOGS-40 and MOGS-20 modular optical ground stations developed by Sea West Observatories in collaboration with PlaneWave Instruments and Mynaric offer a robust, rapidly deployable solution for modern space communication and situational awareness needs. These stations are meticulously engineered to deliver high performance in challenging environments, combining advanced optical hardware with intelligent infrastructure and streamlined deployment logistics. The modular approach reflects a significant leap in how ground stations are conceptualized and implemented, moving away from traditional static installations toward flexible, relocatable systems that retain all the capabilities of permanent observatories.

Self-contained Modular Optical Ground Stations featuring gimbal precision and storage integration

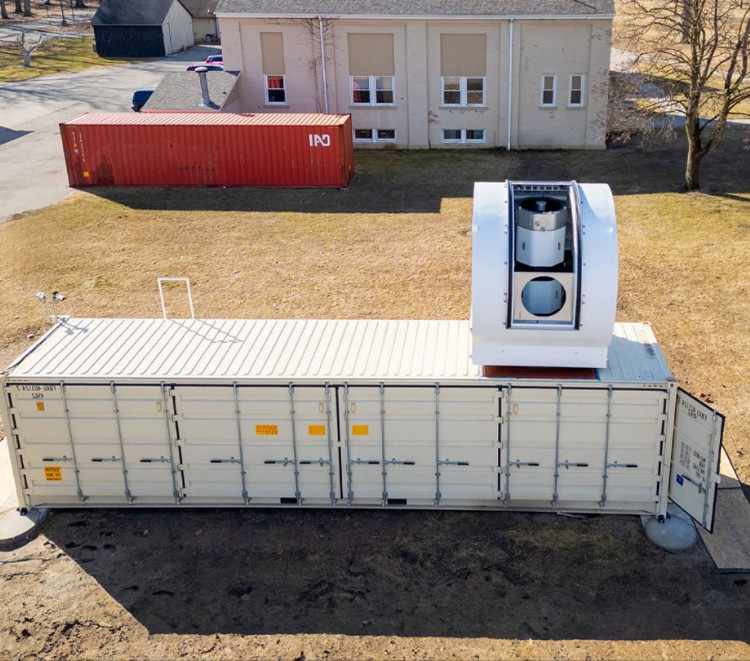

At the heart of both MOGS-40 and MOGS-20 lies a modular infrastructure built around ISO shipping containers, providing not only structural integrity and standardization for global transportation but also a controlled, secure environment for highly sensitive optical and communication equipment. The MOGS-40 utilizes a 40-foot shipping-certified container, engineered to store and transport all critical system components, including the dome enclosure, tracking gimbal, optical communication terminal, and the telescope itself. This self-contained unit allows operators to move an entire observatory from one location to another with minimal downtime, transforming previously fixed-site operations into dynamic mobile capabilities.

The MOGS-20, a more compact 20-foot version, offers similar advantages in a smaller footprint, with the dome and telescope shipped separately. While more compact, the MOGS-20 retains its classification as a fully functional modular optical ground station and is best suited to locations where space or infrastructure is limited but performance cannot be compromised. The ability to deploy either of these units quickly and reliably opens the door to new strategic opportunities in communications, observation, and data transmission.

Integrated gimbal precision, dome mechanics, and high-speed optical communication

Central to the rapid deployment features of both units is a custom-designed gimbal solution created by Sea West. This component features HMI (Human-Machine Interface) controls for precision alignment of the telescope’s pier, allowing users to achieve optimal instrument isolation with minimal manual effort. By isolating sensitive equipment from ground vibrations and mechanical disturbances, the gimbal ensures that optical performance is preserved regardless of the installation environment. With a single touch of a button, the system can align, stabilize, and isolate the telescope, streamlining both setup and maintenance routines.

Each MOGS-40 is equipped with a PlaneWave Instruments dome enclosure, which is specifically designed for demanding outdoor environments and supports high-speed slewing up to 50 degrees per second. This dome also features low-level software communication protocols that integrate seamlessly with automation systems and is optionally available with an independent robotic window frame, complete with an optical-grade window for enhanced performance in enclosed operations. The enclosure provides comprehensive protection from the elements while allowing the station to track fast-moving or non-sidereal targets with a level of precision necessary for today’s most demanding optical applications.

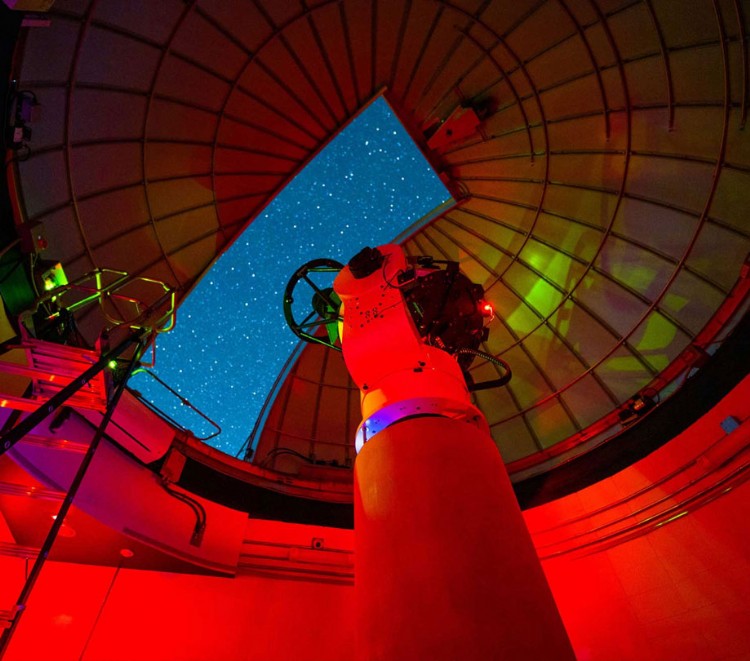

The telescope system integrated into MOGS-40 is a PlaneWave Instruments 0.7-meter optical tube assembly, featuring a direct-drive motor gimbal that enables both rapid slewing and pinpoint tracking. This high-end optical system ensures that even fast and irregularly moving space objects can be captured with clarity and accuracy. The choice of a 0.7-meter aperture reflects a balance between transportability and performance, offering significant observational capabilities while fitting within the self-contained containerized system.

The communications backbone of the MOGS-40 is the RHINO Mk2 Optical Ground Terminal from Mynaric. This terminal supports data rates of up to 2.5 Gbps and is compliant with the United States Space Development Agency (SDA) standards, a critical requirement for military and government use. For commercial clients with more demanding data needs, higher data rate versions are available, making the RHINO Mk2 a scalable and future-ready solution for a wide array of orbital communications. The integration of such a terminal directly within a modular unit emphasizes the station’s dual functionality for both passive observation and active communication, supporting everything from satellite telemetry to data uplink and downlink operations.

Infrastructure efficiency, climate control, and scalable deployment for modern optical ground operations

Climate control is a vital aspect of the station’s operational integrity. Both MOGS models are equipped with HVAC systems to maintain a stable internal environment, which is essential for temperature-sensitive equipment. The interior of the container is designed not only for storage but also as an operational space, providing a protected and climate-regulated area for control systems and support equipment. The standard 10×40-foot footprint of the MOGS-40, and the optional 10×20-foot configuration of the MOGS-20, include optimized layouts for ease of access, operational efficiency, and safety.

Installation requirements for the MOGS stations are remarkably minimal. The foundation consists of just three concrete pads, equivalent to a single truckload of concrete, and the stations can be installed in approximately three days, depending on location and logistical constraints. Electrical infrastructure is similarly streamlined, requiring only a 200-amp single-phase power panel. These simplified requirements further reduce deployment times and costs, making the MOGS systems ideal for both permanent installations and temporary field deployments where traditional observatory construction would be infeasible or too time-consuming.

The MOGS platforms are not only technologically advanced but also highly scalable and future-proof. Their modular design allows for customization and upgrading, with opportunities to integrate newer telescope systems, improved gimbal mechanics, higher-capacity terminals, or advanced software interfaces as these technologies become available. This approach ensures that investments in MOGS infrastructure will remain viable for years, adapting alongside the rapidly evolving space industry.

Strategically, MOGS units offer governments, research institutions, commercial satellite operators, and defense organizations a flexible solution for modern optical ground station operations. Whether deployed in remote regions for short-term data collection or as a long-term hub for continuous communication with orbital platforms, MOGS units provide a reliable and cost-effective platform. Their ability to be relocated, upgraded, and deployed quickly introduces a new paradigm in optical ground station design—one that prioritizes mobility, ease of operation, and resilience in diverse environmental conditions.

Sea West’s vision for mobile, scalable, and future-ready optical ground infrastructure

Sea West Observatories has positioned itself at the intersection of aerospace engineering, observational astronomy, and industrial design with these modular platforms. Working in close collaboration with leaders like PlaneWave Instruments and Mynaric, the company has crafted a product that meets both the performance and logistical challenges of next-generation space infrastructure. The inclusion of cutting-edge components within a rugged, field-ready package ensures that MOGS systems are not only technically capable but also practically deployable in real-world conditions.

The innovation behind the MOGS concept lies in its holistic integration of technologies into a single transportable unit. This is not merely a shipping container retrofitted with equipment—it is a purpose-built observatory, optimized for portability, protection, and performance. Every element, from the precision of the gimbal to the shielding of the dome and the efficiency of the HVAC system, reflects a deep understanding of the operational demands placed on ground stations today.

With the rise of satellite constellations, low-Earth orbit platforms, and space-based optical communication networks, the demand for adaptable and high-throughput ground systems is increasing rapidly. MOGS-40 and MOGS-20 directly address this demand, providing infrastructure that can be repositioned as needed, scaled to mission requirements, and upgraded without extensive downtime. This flexibility opens new avenues in satellite network architecture, enabling operators to reduce latency, expand coverage, and enhance system redundancy through a distributed network of MOGS units.

In a global context, where geopolitical instability or shifting strategic priorities may dictate rapid redeployment of assets, the MOGS platforms offer a uniquely agile solution. Their shipping-certified design ensures compliance with international transportation standards, and their plug-and-play nature allows operators to go from delivery to operation in a matter of days. This agility is particularly attractive to defense clients, research teams working in time-sensitive environments, or commercial operators seeking temporary coverage for launches, events, or emergency responses.

The MOGS-40 and MOGS-20 modular observatories stand as a new standard in mobile optical ground station technology. By consolidating high-performance optical systems, precision gimbal mechanics, advanced communication terminals, and climate-controlled infrastructure into a single relocatable package, Sea West Observatories has created a product that embodies both the vision and the practicality needed for today’s space-ground interface. Whether used as permanent observatories or deployed in dynamic mission environments, MOGS platforms offer a future-ready foundation for optical communications and space situational awareness in the twenty-first century.
