iPhone plate solving app AstroHelm launches

Astronomical plate solving is a process used in astrophotography and telescope control to determine exactly where a telescope or camera is pointed in the night sky.

Traditionally, this requires specialized software that takes an image from an astronomy camera, analyzes the pattern of stars in that image, and compares it against a massive database of known stars and star positions. Once it finds a match, the software can calculate the exact coordinates the telescope is pointing at with incredible precision.

For years, this kind of technology was mostly limited to dedicated astronomy software running on laptops or observatory computers.

Now, with a new app launched called AstroHelm, plate solving can be done directly from an iPhone. Instead of needing a full desktop setup, users can capture an image and quickly identify exactly where they are pointed in the sky right from their phone, making advanced telescope alignment and navigation far more accessible and portable than ever before.

The idea behind AstroHelm is relatively simple, but potentially very useful in practice. By turning the iPhone into an electronic finder, the app helps bridge the gap between traditional star hopping and fully automated mount control systems. Once AstroHelm recognizes the surrounding star field, it calculates the current sky position and displays directional guidance showing how far away the telescope is from the intended object. The user then adjusts the mount until the target is centered.

For many amateur astronomers, the slowest part of an observing session is often not imaging or observing itself, but the setup and acquisition process that comes beforehand. Even experienced observers can lose time verifying alignment, checking star fields, or confirming whether a faint object is actually the intended target. AstroHelm is aimed squarely at that problem by providing quick positional feedback directly from a device most observers already carry with them.

How AstroHelm Works In Practice

Using AstroHelm does not require a complicated installation or permanent telescope modification. The phone only needs to be mounted roughly parallel to the telescope’s optical axis, usually with a simple clamp or small bracket attached near the finder scope or dovetail bar. The alignment does not need to be perfect at first because the app includes a calibration process that refines the orientation between the phone and the telescope.

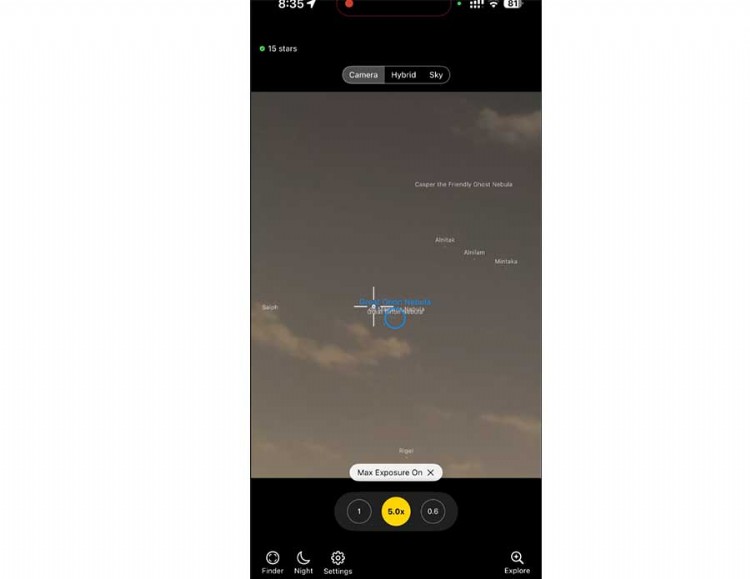

Once mounted, the process is straightforward. The user opens the app, searches for or selects a target, and starts a plate solve. AstroHelm captures the visible star field through the iPhone camera, compares it against a stored star catalog, and determines the exact coordinates of the field. Within moments, the app displays directional guidance and positional offsets showing how far the telescope is from the selected object.

For visual observing, this can function as a modern version of star hopping. Instead of relying entirely on printed charts or manually estimating movement across the sky, observers can use the app to verify their position and move more confidently toward the target. This can be especially useful in light-polluted areas where dim reference stars are difficult to see.

Imagers may find the app useful for speeding up framing and acquisition before transitioning to the primary imaging camera. Rather than spending several minutes adjusting framing through repeated test exposures, AstroHelm can help get the telescope onto the correct area of the sky much faster.

The app can also act as a quick verification tool for GoTo systems. Even when computerized mounts are properly aligned, observers sometimes want confirmation that a slew landed on the correct object, particularly in sparse fields or when imaging faint deep sky targets. AstroHelm provides another layer of confidence without adding significant setup complexity.

Built Around Real Observing Conditions

One of the more noticeable aspects of AstroHelm is that it appears designed around actual observing conditions rather than idealized demonstrations. Many astronomy tools work well indoors or during testing but become cumbersome once used in the dark, cold, or under changing field conditions. AstroHelm tries to keep the interface simple and readable in situations where users are often wearing gloves, working in low temperatures, or trying to preserve night vision.

The app includes a dimmable red night mode along with large status indicators that remain visible at the eyepiece without forcing users to navigate through dense menus. Rather than overwhelming the screen with technical data, the app focuses on a smaller set of information that is immediately useful while observing.

AstroHelm also reports solve confidence, estimated positional accuracy, and image scale information so users can judge whether a plate solve is trustworthy. If conditions are poor or the field is too narrow for a reliable solve, the app warns the user rather than presenting misleading information. In practice, this matters because observing conditions are rarely perfect. Thin clouds, dew, poor seeing, or limited field overlap can all affect solving reliability.

An aiming ring and centroid indicator help with framing adjustments and fine positioning, particularly during imaging sessions where repeatable composition is important. The calibration system is also intended to improve repeatability between sessions, allowing observers to remount the phone with less trial and error once the setup has been characterized.

Another practical feature is the app’s ability to function offline. Catalogs can be downloaded directly onto the device ahead of time, allowing plate solving to continue at remote observing locations without a data connection. Since many dark sky sites have little or no cellular coverage, this makes the app more useful outside suburban observing environments.

Importantly, the entire solving process runs locally on the device itself. Images and observing data are not uploaded to external servers, and the app does not rely on cloud processing to function. That approach not only improves responsiveness but also keeps the workflow relatively self-contained and dependable in the field.

Designed For Beginners And Experienced Observers

AstroHelm is positioned as a tool that can help both newcomers and experienced observers, though likely in different ways.

For beginners, one of the hardest parts of astronomy is often learning how to confidently locate objects in the sky. Even after a successful alignment, many new observers are unsure whether they are actually pointed at the correct target, especially when observing faint nebulae or galaxies that may only appear as subtle gray patches in the eyepiece. AstroHelm reduces some of that uncertainty by verifying position directly and showing how to correct small pointing errors.

More experienced observers and astrophotographers may appreciate the time savings and consistency the app provides. During long sessions with multiple targets, even small improvements in acquisition speed can make a noticeable difference. The ability to quickly confirm framing, check alignment drift, or validate mount positioning without switching between multiple devices can help streamline the overall workflow.

At the same time, AstroHelm does not appear to be trying to replace existing astronomy software ecosystems. It is not marketed as a full mount control suite or planetarium replacement. Instead, it focuses on a narrower role: helping users get onto targets faster and with greater confidence during the finder stage of observing.

Availability And Future Development

AstroHelm is available for iPhone through the standard app marketplace and includes a short onboarding process covering mounting suggestions, calibration, and general operation. The setup process is intentionally lightweight, with the goal of making the app usable within a few minutes rather than requiring extensive configuration.

According to the development team, future updates will continue focusing on practical observing improvements rather than adding unnecessary complexity. Planned enhancements include expanded catalog depth for both wide and narrow field setups, additional framing tools for imaging sessions, and improved calibration options for different mounting arrangements.

The team also says that community feedback is playing a major role in shaping development priorities. Real-world observing conditions tend to expose issues that are difficult to reproduce in testing, and much of the roadmap appears focused on refining reliability and usability based on field experience.

Rather than trying to reinvent astronomy software entirely, AstroHelm aims to solve a very specific problem in a simple and approachable way. For observers who spend too much time confirming alignment, second-guessing pointing accuracy, or hunting for faint targets at the beginning of a session, that focused approach may ultimately be its strongest feature.
