Flat Frames in Astrophotography

Flat frames play an essential yet often misunderstood role in astrophotography. Their purpose extends beyond technical calibration, they are the gateway to producing consistently clean, artifact-free images that reflect only the celestial objects you intend to capture. While many astrophotographers focus heavily on capturing long exposures and stacking techniques, it is the calibration frames, particularly flats, that determine the clarity and professionalism of the final image. They remove unwanted irregularities introduced by your optical system, including vignetting, dust motes, smudges, and uneven sensor illumination. The practical and visual importance of flat frames cannot be overstated. Without them, every tiny speck of dust or subtle brightness gradient can imprint itself across your final stacked result, regardless of how many hours you’ve spent acquiring deep-sky data.

Flat Frames in Astrophotography: Why they matter and how to use them

Flat frames work by capturing a reference image of the optical path as it appears to the imaging sensor when illuminated by a uniform light source. This reference image contains all the minor imperfections that might otherwise mar a deep-sky photo. These include shadows from dust particles on filters or the sensor cover glass, gradients caused by lens or filter vignetting, and variations in field illumination due to the telescope’s design or any light baffles. Flat frames capture this unique fingerprint of flaws, and image processing software uses it to normalize the light frame data during calibration. The result is a cleaner, more evenly illuminated image that isolates and emphasizes actual signal rather than artifacts.

A common question among beginners is whether flat frames are truly necessary, especially if their imaging gear appears clean or high-end. However, no optical setup is immune to the problems flats correct. Even in meticulously maintained imaging systems, tiny particles of dust can find their way onto filters or sensor surfaces. These particles create circular shadows, or "donuts," that are easily visible after stretching an image during post-processing. Flat frames allow these shadow patterns to be corrected uniformly across the entire field. Similarly, most telescope and camera combinations suffer from some degree of vignetting, where brightness falls off toward the edges of the image. This happens even with top-tier refractors, and flats are the only reliable way to eliminate this gradient effectively.

There’s also the matter of repeatability and environmental consistency. Many calibration issues only become visible after stacking and stretching, when subtle gradients and faint signals are amplified. Flat frames, when captured correctly, help to normalize these gradients and create a level background against which faint deep-sky objects can stand out. In scientific imaging, this normalization is critical for measuring brightness or structural details accurately. In aesthetic imaging, it's what enables you to produce those breathtaking, high-contrast, deep-space photographs that people associate with professional work.

Capturing flat frames, however, is not as simple as taking a picture of the sky. The key to success lies in using a diffuse and evenly lit source that matches the telescope’s field of view. A common beginner technique is to point the telescope at a bright section of blue sky and place a white t-shirt or light-diffusing cloth over the front aperture. This works to some degree but comes with inherent drawbacks. The brightness of the sky changes with time and weather, and capturing flats this way requires daylight and a cloud-free environment. It's difficult to replicate results across sessions, and the process itself becomes unreliable if consistent conditions can't be guaranteed. Moreover, cloth-based sky flats introduce their own light diffusion patterns and shadows, especially if the material is wrinkled or unevenly stretched.

A more consistent and professional solution is to use a dedicated flat panel. These panels produce a uniformly illuminated surface with adjustable brightness and are specifically designed to match the aperture and focal length of telescopes used in astrophotography. High-quality flat panels can be mounted directly on the telescope’s dew shield or placed in front of the optics when the telescope is slewed to point vertically toward the zenith. This orientation minimizes gravity-induced sag in the optical train and keeps the panel properly aligned with the imaging axis. When used correctly, flat panels generate a calibration frame that perfectly maps every optical and sensor imperfection in the system.

Modern flat panels come in a range of options, from simple LED light boxes to fully motorized units with built-in automation and control software integration. Some are designed to attach permanently to observatory setups and can open and close remotely, making them ideal for remote imaging sessions. Others are lightweight, portable, and more suitable for backyard astrophotography rigs. What they all share is the ability to standardize the lighting conditions needed to capture ideal flat frames. The brightness of these panels can usually be adjusted via software or manual control, allowing the user to match the camera's exposure and histogram levels for different filters, sensor gains, and binning modes.

When taking flat frames, consistency in camera settings is crucial. The same temperature, gain, offset, and binning settings used during light frame capture must also be used during flat frame acquisition. This ensures that any sensor-specific response characteristics, such as amplifier glow or fixed-pattern noise, are handled uniformly. Maintaining the same focus position and filter alignment is equally important, since slight changes in the optical path can alter the pattern of dust shadows or vignetting. This is especially relevant for systems using filter wheels or sliders, where each filter introduces subtle differences in transmission and light falloff. As such, a separate set of flat frames should be taken for every individual filter used during a session, and ideally, as soon as possible after the lights are captured to avoid changes in conditions.

The exposure duration of flat frames should be calibrated so that the resulting histogram falls in the center of the range, neither too dark nor too bright. An ideal histogram peak is usually around 50% of the maximum value. Too dark, and the flats won’t capture subtle gradients and dust shadows. Too bright, and the flats risk saturating the sensor and becoming unusable. Some flat panel systems and imaging software offer automated calibration tools that adjust exposure time or panel brightness dynamically until the desired histogram value is reached. These tools save time and ensure accurate results every time.

It’s important to remember that flat frames are just one part of the calibration process. Darks and bias frames are also commonly used, but unlike flats, they correct different types of noise, thermal noise and electronic readout patterns respectively. Flats are unique in that they account for physical imperfections in the optical path, which are specific to the exact setup, configuration, and conditions at the time of imaging. That makes them more sensitive to change, but also more critical for producing clean images.

In advanced workflows, the flat frames are often combined with dark flats, essentially dark exposures taken at the same length and settings as the flats themselves, to eliminate thermal and pattern noise from the calibration process. The result is a master flat that, when applied during calibration, corrects all light frames for uneven field illumination and dust shadows, yielding a uniform background that is easier to stretch, align, and stack. This not only improves visual quality but also enables more accurate background subtraction, object detection, and color balancing in post-processing.

Ultimately, flat frames are not optional, they are foundational. Whether you are capturing nebulae, galaxies, or wide-field Milky Way vistas, flats ensure that what you’re seeing is astronomical signal, not a fingerprint from your gear. They represent one of the most effective steps you can take to elevate your images from amateur to professional. Taking the time to understand and implement a solid flat frame workflow is an investment that pays off every time you process an image. The process might seem tedious at first, but as any experienced astrophotographer will tell you, flat frames are what separate clean, vibrant astrophotography from a cluttered, artifact-laden mess.

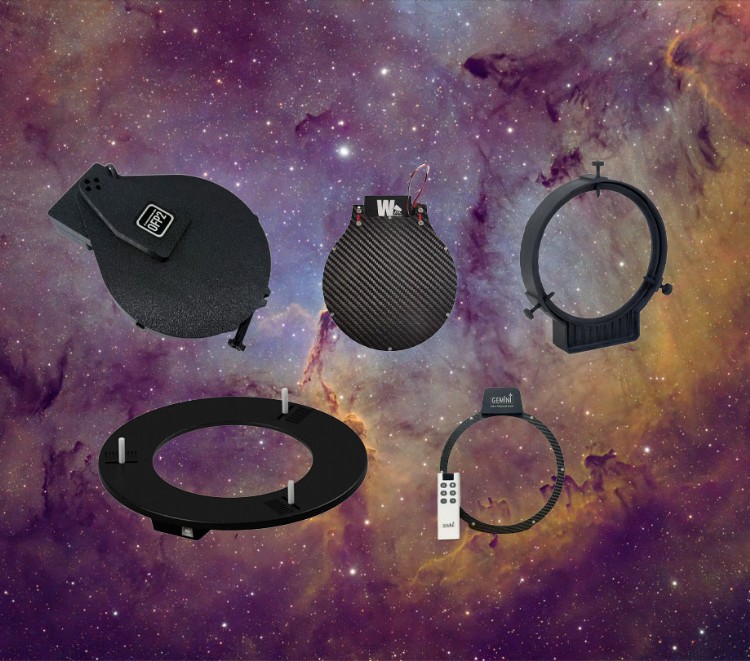

Flat panel producers and brands that manufacture or distribute flat field light panels for astrophotography:

• Deep Sky Dad – Offers manually controlled and automated flat panels, often compact and USB-controllable.
• Wanderer Astro – Known for reliable, motorized flat panels for small to mid-size OTAs with ASCOM and NINA integration.
• PrimaLuceLab – Offers high-quality, premium flat panels, including the Giant Flat Field Generator (GFlat) series.
• SpikaFlat (a product by Pegasus Astro) – Offers SpikaFlat panel with remote control capabilities and ASCOM support.
• Gerd Neumann Jr. – Renowned for the Aurora Flatfield Panels, which use electroluminescent technology for soft uniform light.
• ZWO – Offers their own flat panel solution compatible with ZWO ASIAIR and other automation setups.
• Optec Inc. – Makes larger flat field panels and flat boxes, especially for high-end and large-format telescope systems.
• Astrozap – Known for dew shields and also offers electroluminescent flat field panels.
• iOptron – Offers flat panels as part of their accessories lineup, often geared toward smaller scopes.
• Artemis Instruments (Atik Cameras) – Provides accessories including flat field light boxes compatible with their imaging systems.
• Alnitak Astrosystems – Makes the Flip-Flat and Flat-Man series, which are well-known automated flat field devices.
• NightSkies Network – Offers affordable light panels often used by DIYers.
• Teleskop-Service (TS-Optics) – Distributes flat field panels under their own TS brand, often sourced from European manufacturers.
• Sky-Watcher – Offers flat panel solutions bundled with some of their advanced astrophotography packages.
• Explore Scientific – Has occasionally offered branded flat field solutions for their scope lines.
• Baader Planetarium – Though not primarily a flat panel maker, they sometimes distribute flat field accessories in Europe.


Why flat frames are essential for removing dust, vignetting, and sensor artifacts

Flat frames are a cornerstone of professional astrophotography, yet for many, they remain a mysterious and often overlooked aspect of image calibration. In a detailed tutorial on the Astro Playground YouTube channel, Scott, also known as Astro Playground, breaks down not just what flat frames are, but also how to take them properly, what gear you need, and how to streamline the process using the Flats Wizard in NINA. His passion for clean, calibrated images and a streamlined workflow comes through clearly, and his explanations are both thorough and practical, aimed squarely at astrophotographers of all skill levels who want to take their images to the next level.

Flat frames are used to eliminate various optical artifacts from astronomical images, most notably dust motes, sensor vignetting, and any inconsistencies caused by the optical system. When done correctly, flats ensure that what you see in your final stacked image is pure astronomical data, free of these defects. Scott starts by exploring the historical and still-common practice of using a white t-shirt stretched over the telescope’s objective lens and pointed at a bright patch of blue sky. While this method can work in a pinch, it’s not ideal. It’s heavily dependent on weather conditions, requires daylight, and lacks consistency.

What gear you need to take high-quality flats?

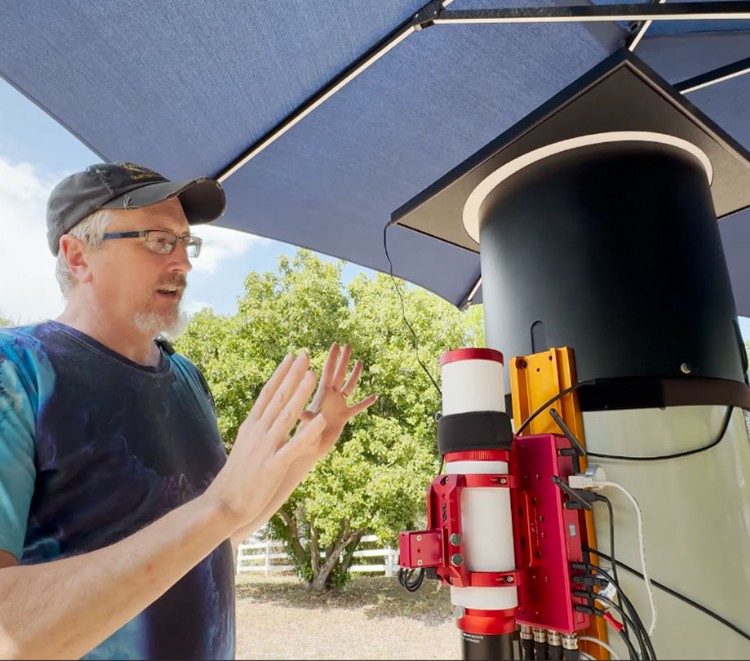

For better results and repeatability, Scott strongly recommends investing in a flat panel. Several types are discussed. Some are DIY panels made with LED lights and diffusers, while others are commercially available panels tailored specifically for astrophotography. He highlights models from Deep Sky Dad, SpikaFlat, and Wanderer Astro. Each has different strengths, some are simply bright, uniform light sources, while others offer full automation with the ability to open and close automatically and integrate with your imaging software. Automation is especially valuable when working with larger or more complex setups or when imaging from a permanent observatory.

Scott demonstrates how he uses an automated flat panel with his setup. His SpikaFlat unit mounts directly to the telescope and connects to his control hub, the Eagle computer, via USB and a 12-volt power supply. This makes capturing flats as easy as clicking a few buttons inside the house, without having to physically touch the telescope. He emphasizes that convenience like this not only saves time but also encourages consistent use of flats, something that many overlook out of inconvenience.

Using flats is not just about convenience, however. Their true value lies in how effectively they remove artifacts from your final image. Scott explains how flats help correct for sensor vignetting, which is especially noticeable when using filters. Each filter and each change to the optical train can introduce slight variations in how light is distributed across the sensor. This is why it's crucial to capture flats for each filter separately and as close to the imaging session as possible. Keeping the camera temperature and orientation the same is essential for accuracy. Flats should be captured immediately after the lights for each filter are done. If you image M51 with a luminance filter, for instance, you need to take flats for that filter while the telescope is still in the same state.

How to use the Flats Wizard in NINA to streamline your imaging workflow

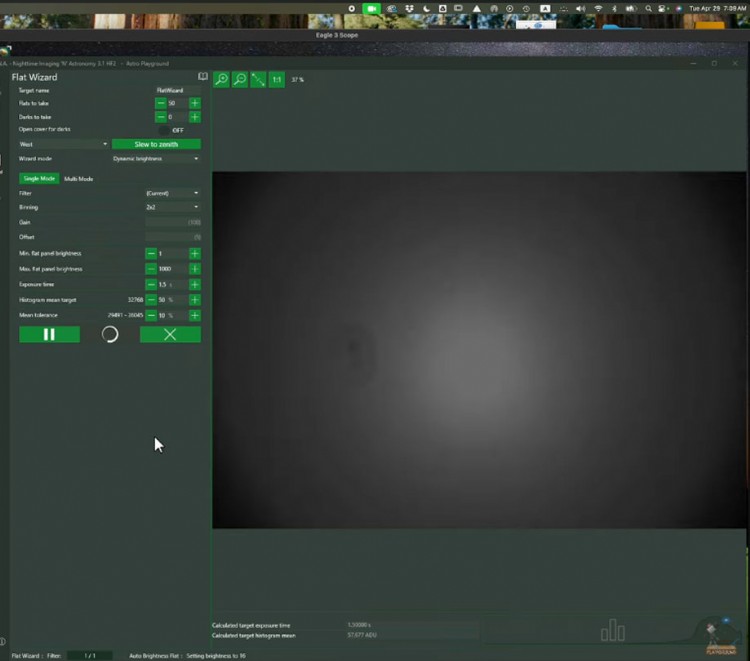

NINA’s Flats Wizard makes the entire process easier and more automated. Scott walks through how to use this tool effectively. The first step is slewing the telescope to the zenith. This ensures the flat panel can sit evenly on the dew shield and provide uniform illumination across the aperture. NINA has an option to automatically slew to the zenith, which is useful in both automated and manual setups. Once the telescope is pointing straight up, Scott places the flat panel on the dew shield and connects the power and USB controls.

With everything set, the Flats Wizard begins its job. Scott configures it to take 50 flats with a 1.5-second exposure. These values are chosen to produce a mean histogram value of around 50%, a sweet spot that avoids both underexposure and overexposure. Staying in the middle of the histogram ensures that all aberrations, from dust to vignetting, show up clearly once the flats are stretched in post-processing. He notes that the flats may look dark initially, but once processed and stretched, they will reveal all the imperfections in the optical train.

These imperfections can be surprising. Even with a well-maintained setup, dust motes and smudges sneak in, and flats are the only reliable way to identify and correct for them. For example, a dark circle seen in the flat could be a dust mote on the secondary mirror, a droplet on the corrector plate, or any other obstacle in the light path. Flats correct these by normalizing the brightness across the frame. When you subtract them from your lights, you're left with a clean, even image where the only features are celestial ones.

Once the flats are captured, NINA saves them as FITS files, which can be renamed and categorized by target and filter. Scott demonstrates how he renames his flats directory to something like “M51_Luminance” to keep his calibration files organized and easy to match during stacking. Each set of flats corresponds directly to the filter and session, reinforcing the point that flats are not one-size-fits-all. They are context-specific and must be captured anew every time the setup or conditions change.

Scott also dives into some of the finer points of NINA's Flats Wizard settings. He adjusts parameters like gain, offset, and binning to match those used during imaging. Matching these settings ensures that the calibration is precise. He prefers dynamic brightness over dynamic exposure, which allows the software to adjust the panel’s brightness to hit the target histogram value. This results in quicker and more consistent flat captures. He also shows how NINA integrates with the drivers for his automated flat panel, enabling full remote operation.

While Scott is an advocate for automation, he acknowledges that not everyone has this luxury. For those who image remotely or travel to dark-sky sites, he suggests always packing backup options. A few clean white t-shirts can make the difference between calibrated and uncalibrated data. While not perfect, sky flats with t-shirts are better than nothing and can save an imaging session in the event of a hardware failure.

As he concludes, Scott reflects on the importance of mastering flats in astrophotography. They are not optional extras or nice-to-haves, they are essential. Flats provide a way to eliminate distractions and artifacts so that the final image can truly shine. With tools like NINA and modern flat panels, the process is easier and faster than ever before. He encourages viewers to embrace the process, learn their equipment, and take calibration seriously.

He also calls attention to the hard work of the developers behind NINA, applauding the platform's usability and powerful features. He suggests a few improvements, such as making the histogram more visible and colorful, akin to the ones in Photoshop and Lightroom. These suggestions are rooted in a genuine appreciation for the software and a desire to make it even more user-friendly.

To wrap things up, Scott shares some closing thoughts and invites viewers to join the AstroWorld TV community, where enthusiasts meet twice weekly to discuss all things astrophotography. He also promotes AstroWorld Telescopes and encourages supporting his channel through affiliate links or a digital tip jar. More than just a tutorial, this video is a full-fledged guide to flat frame calibration, presented with a blend of technical depth and accessible instruction.

Scott’s message is clear, if you want better astrophotography results, you need to master the use of flat frames. By investing in the right tools, learning your workflow, and understanding how flats interact with your filters and optical setup, you can eliminate a major source of noise and inconsistency. The result is cleaner, more detailed images that reflect the beauty of the cosmos rather than the flaws of your equipment. With this episode, Scott not only teaches the how, but also convincingly answers the why. Flat frames are not just worth the effort, they’re indispensable.
