The ZWO ASI585MC Pro lands with a review from Trevor Jones

Cameras

The ZWO ASI585MC Pro lands with a review from Trevor Jones


Tuesday, June 11, 2024

Richard Harris Richard Harris

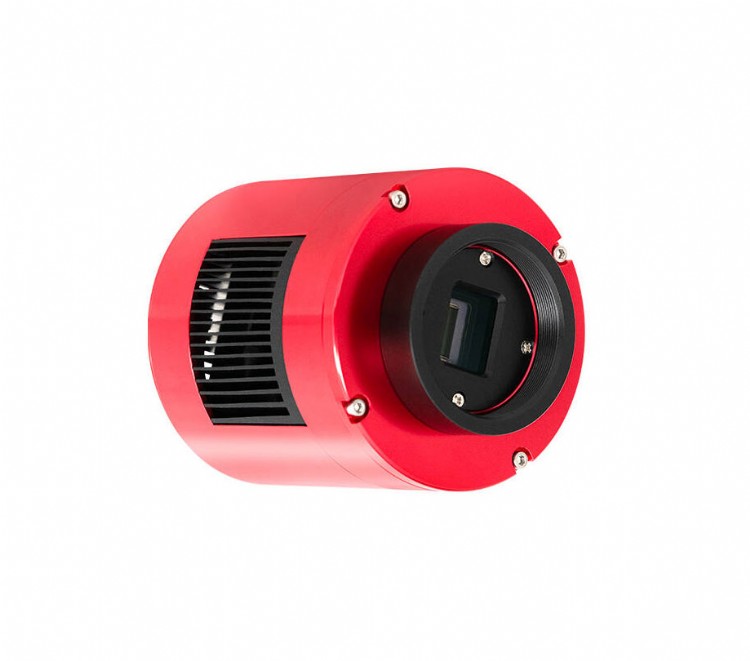

The ZWO ASI585MC Pro is a deep-sky camera featuring a 4K Sony CMOS sensor with 2.9μm pixels and high sensitivity. With 47fps at full resolution, zero amp glow, and advanced cooling, it's perfect for both deep-sky and planetary imaging, offering high performance at an affordable price.

The ZWO ASI585MC Pro is the latest addition to ZWO's line of deep-sky cameras. It's built around a 4K Sony CMOS sensor with a 1/1.2″ format and 2.9μm pixels, delivering a resolution of 3840x2160 (8.29MP). This camera offers high sensitivity and a fast frame rate, reaching 47 frames per second at full resolution.

ZWO ASI585MC Pro, deep-sky camera features

  • High Sensitivity: The ASI585MC Pro uses STARVIS 2 technology, enhancing its sensitivity and dynamic range. This allows for better performance in low-light conditions.
  • High Frame Rate: Capable of 47fps at full resolution, making it ideal for planetary imaging and live stacking.
  • Large Full Well Capacity: With a full well capacity of 40ke-, it effectively collects light, reducing the chance of overexposure and improving the signal-to-noise ratio.
  • Zero Amp Glow: Ensures clean and smooth images, even with long exposures and high gain.
  • Data Transmission: Features a USB 3.0 interface and 512MB DDR3 cache for stable and high-speed data transfer. Includes a USB 2.0 hub for connecting additional devices.
  • Two-Stage TEC Cooling: Can cool the sensor to 35 degrees Celsius below ambient temperature, reducing noise during long exposures.


Technical specs

  • Sensor: Sony IMX585 CMOS, 1/1.2″ format
  • Resolution: 3840x2160 (8.29MP)
  • Pixel Size: 2.9μm
  • Frame Rate: 47fps at full resolution
  • Cooling: Two-stage TEC, cooling up to 35°C below ambient
  • Power Requirements: 12V@3A~5A DC adapter or 11-14V lithium battery
  • Interface: USB 3.0 and USB 2.0 hub
  • Full Well Capacity: 40ke-
  • Read Noise: As low as 0.7e
  • Quantum Efficiency: Peak value of 91%


The ASI585MC Pro is suitable for both deep-sky and planetary imaging. Its high sensitivity and fast frame rate make it versatile for various astrophotography needs. It requires an external power supply for cooling, and users should use the recommended voltage to avoid damage.

With its advanced features and affordable price, the ZWO ASI585MC Pro is an excellent choice for amateur and professional astrophotographers looking for a reliable and high-performance camera.

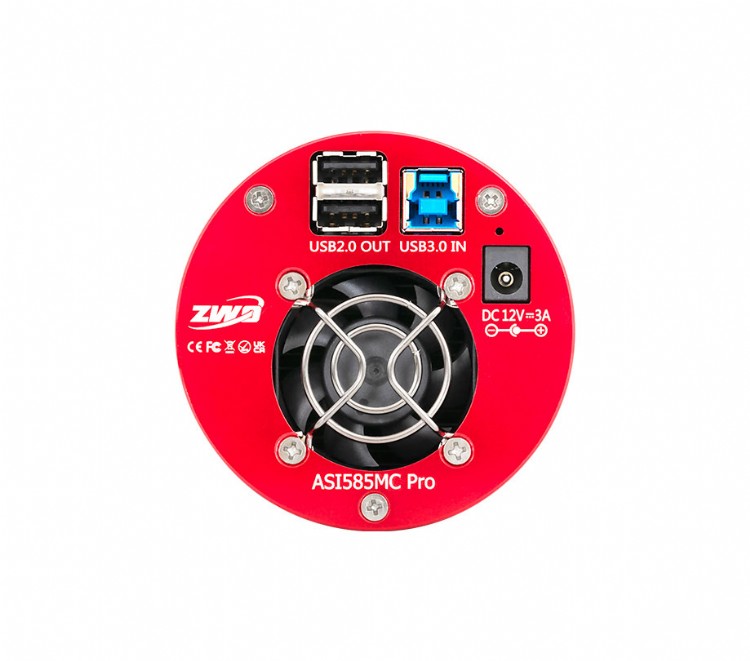

ZWO ASI585MC Pro specifications

ZWO ASI585MC Pro specifications

  • Sensor Type: Sony IMX585 CMOS
  • Sensor Size: 1/1.2 inch
  • Resolution: 3840 x 2160 (8.3 megapixels)
  • Pixel Size: 2.9μm x 2.9μm


Performance

  • Read Noise: 0.7e-2.7e
  • Dynamic Range: 12-bit ADC
  • Full Well Capacity: 20ke-


Connectivity

  • Interface: USB 3.0
  • Power Requirement: 5V via USB


Cooling

  • Cooling System: Thermoelectric cooler (TEC)
  • Cooling Capability: -35°C below ambient


Optical

  • Shutter Type: Rolling Shutter
  • Back Focus Distance: 17.5mm
  • Mounting Interface: M42 x 0.75
  • Optical Window: AR coated


Control and compatibility

  • Software: ASIStudio, third-party software compatible via ASCOM drivers
  • Operating Systems: Windows, macOS, Linux


Additional features

  • ROI Support: Yes
  • Binning: 1x1, 2x2
  • Exposure Range: 32μs - 2000s
  • Guide Port: ST4 guide port


Mechanical

  • Dimensions: 78mm diameter, 65mm length
  • Weight: 410g
  • Environmental
  • Operating Temperature: -5°C to 45°C
  • Storage Temperature: -20°C to 60°C


Package contents

  • Camera Body
  • 1.25" Nosepiece
  • 2m USB 3.0 Cable
  • ST4 Cable
  • Desiccant Tubes
  • Quick Start Guide

ZWO ASI585MC Pro review by Trevor Jones ScopeTrader

ZWO ASI585MC Pro review by Trevor Jones

Trevor Jones delves into the ZWO ASI585MC Pro, a cooled astronomy camera celebrated for its high-quality images and affordability. Despite its smaller sensor and 12-bit ADC, which might limit the field of view and dynamic range compared to DSLRs, Jones highlights the camera's high sensitivity and ability to capture 50 frames per second, making it ideal for planetary imaging and live stacking. He shares his initial experiences with the camera, capturing images of the Sharpless 112 nebula and the Crescent nebula.

Jones acknowledges some challenges, such as noticeable gradients and potential calibration issues, especially when shooting during a full moon and in city lights. However, he expresses excitement about the camera's potential for deep-sky astrophotography. He plans to use further processing tools to enhance image details.

When discussing the Crescent nebula, Jones praises the camera's performance but notes some odd artifacts and brightening events in the subframes. Despite these anomalies, he achieves a great image and encourages other users to share their experiences with the camera.

Overall, Jones believes the ZWO ASI585MC Pro is a promising option for astrophotographers seeking an affordable and dedicated astronomy camera. Watch the full video below.
