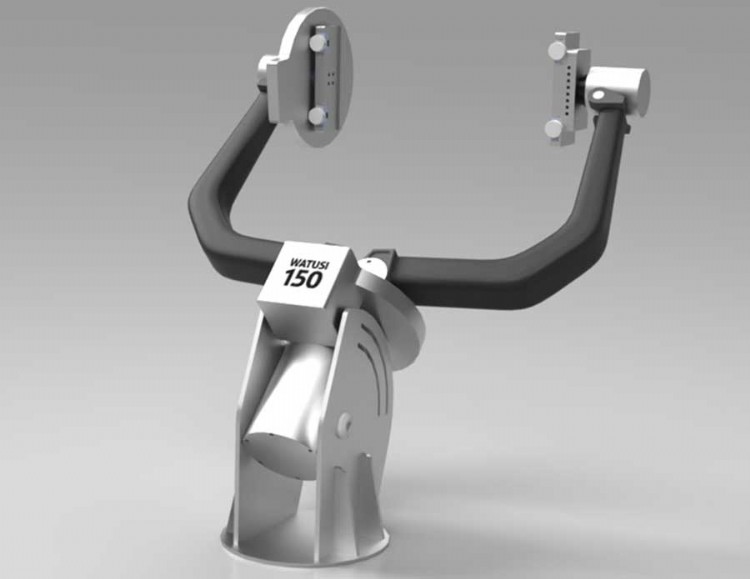

Watusi 150 equatorial fork mount for advanced astronomy

If you have carried a bag of counterweights across a dark field, you know their special brand of gravity. They are reliable in only one way. They always feel heavier by the minute. So when a well executed equatorial fork shows up with carbon fiber arms and no counterweights, that deserves attention from anyone who cares about clean tracking, quick setup, and the kind of predictability that lets you focus on the sky instead of the hardware. This is not about novelty. It is about shedding mass and complication while keeping stiffness and balance where you need it most.

The Watusi 150 sits firmly in the observatory-class category, with a payload capacity up to approximately 330 lbs (150 kg) depending on configuration. That alone changes the conversation. This is not a lightweight experiment in alternative mounting. It is a serious platform built to carry large astrographs, CDKs, refractors with long moment arms, and fully instrumented imaging trains without compromise.


An equatorial fork, executed at scale

An equatorial fork is a simple idea that grows into a very practical machine. Cradle the telescope between two rigid arms, align the main axis with the pole, and let the rig move with the sky. The counterweight problem goes away when the center of gravity sits close to the right ascension axis by design. The reward is less inertia, fewer parts, and a calmer tracking graph. It feels like setting your kit down on a quiet patch of ground where the wind does not meddle as much.

On the Watusi 150, that simplicity is reinforced with large diameter precision axes, high-load bearings, and a worm-driven system engineered for smooth motion under heavy payloads. The scale matters. When you combine fork geometry with this level of mechanical capacity, the result is not just convenience. It is stability that holds through long integrations.


Carbon fiber where it counts

Carbon fiber is not a fashion statement here. It is a structural choice. High stiffness to weight means the fork arms can be lighter yet more resistant to flexure under changing load angles. Thermal expansion is small and consistent, which keeps alignment steadier through temperature swings. The material also damps vibration faster than many metals.

On a mount carrying upwards of hundreds of pounds of optical and imaging equipment, reducing flexure at the arm level directly improves guiding consistency. The Watusi 150 leverages this with carbon fiber fork arms paired to precision-machined metal interfaces, balancing rigidity with manageable weight.

That can shave settle time after a focus tweak or a gust. If you shoot long focal length, every second saved is one less frame you discard and one more frame your stack can use. Write it plain, then say it better in the pictures you bring home.

No counterweights, fewer compromises

The most obvious benefit shows up before the first exposure. Setup is faster because you do not juggle sliding masses to hit perfect balance. The mount itself can be lighter relative to its capacity, and your pier is not asked to absorb a long lever arm of metal plates hanging off one side.

Guiding can improve because there is less total inertia to correct, which makes small pulses more effective. Safety improves in tight spaces. There is less to clip with a sleeve in the dark.

With the Watusi 150, the advantage scales with payload. Removing counterweights from a 150 kg-class system is not a small ergonomic win. It fundamentally changes transport, installation, and observatory layout planning.

The meridian flip you do not have to do (and won't miss)

A good fork keeps the telescope nestled, so passing the meridian is just another minute of time and not a gymnastics event. No flip means guiding calibration holds, cable strain stays predictable, and multi hour sequences remain intact.

This is particularly valuable for:
Long narrowband integrations
Photometric time-series observations
Automated survey work

The Watusi 150's clearance-focused fork geometry is designed to accommodate modern imaging trains, including rotators, filter wheels, and extended dew shields, without collision during meridian passage.

The absence of a flip is one of those quiet features that pays back every clear night without fanfare.

The geometry of balance and the limits to respect

No counterweights does not mean no balance. It means balance is earned through geometry rather than hardware. The optical axis must sit near the centerline of the fork and the right ascension axis must carry the combined mass so torque stays low.

The Watusi 150 supports this with:
Adjustable saddle systems and mounting plates
Customizable configurations for different optical tubes
Cable routing channels to maintain symmetry and reduce drag

Long newtonians may run into clearance issues between the arms. Very asymmetric loads can still test declination bearings. Plan your camera train, dew control, filter wheels, and focusers with symmetry in mind.

The lesson is simple. You trade constant fussing with iron for an up front commitment to layout.

Tracking, guiding, and the developer mindset

Smooth tracking is a conversation between mechanics and software. I look at a mount like this the way I look at a mature app framework. Reliability comes from clean interfaces.

The Watusi 150 integrates with ASCOM and INDI ecosystems, allowing full compatibility with modern imaging stacks:
Sequencers
Plate solving systems
Guiding software
Remote observatory platforms

Optional high-resolution encoders and advanced control configurations can further improve pointing accuracy and repeatability for research-grade workflows.

When you combine low inertia with high stiffness, guiding corrections land where they are sent, not smeared by flexure. To put it in developer language, the mount is deterministic. It does what it says with the same inputs every time.

Vibration, wind, and real world behavior

The fork format helps raise the first natural frequency of the system because the load sits close to the bearings and the limbs resist bending as a pair. Carbon fiber pushes that frequency higher while adding internal damping. The result is shorter ringing after a touch and less blur from mild wind. Pitch any mount into enough breeze and it will lose, but the threshold moves in your favor. This is exactly the sort of practical improvement that shows up not in a spec sheet, but in rounder stars across more frames.

Workflow gains that add up

Less mass to haul, no counterweights to slide, no flip to plan around, fewer cables moving as the night turns. Those are small wins that add up across a season. They mean you will actually start that mosaic. You will finish that faint integrated flux region. You will risk a longer focal length on a marginal forecast because teardown is simpler. Over time, the mount fades from the story and your data becomes the point. That is the proper endgame for any piece of astronomy gear.

Maintenance and longevity

Carbon fiber does its part, but the junctions where composite meets metal deserve care. Keep fasteners torqued correctly. Avoid harsh solvents on bonded parts. Protect bearings from dust and grit. When you do need to tweak something, note that lighter arms mean you can handle the assembly without feeling like you are wrestling a gym machine. Thoughtful design reduces the chance of bumps that put things out of square.

Who is the Watusi 150 Equatorial Fork Mount for

If you are an imager who values long unattended runs, steady guiding, and a clean setup, a carbon fiber equatorial fork with no counterweights makes clear sense. If you own a heavy long tube that pushes arm clearance or a rig with deeply asymmetric accessories, evaluate dimensions and center of gravity first. For most modern refractors and compact astrographs, the pairing is natural. For citizen scientists chasing variables or transients, the lack of a flip and the fast stabilization shorten the path between opportunity and usable data.

Specifications and pricing

At this level, specifications are not just numbers. They define the role the mount plays in your system:

Payload Capacity: 330 lbs (150 kg)
Mount Type: Equatorial fork
Drive System: Precision worm gear with high-load design
Control: ASCOM / INDI compatible
Options: Encoders, custom saddles, observatory integration
Installation: Pier or heavy-duty tripod
Price: 15,430.14 (13,350.00 Euros)

A grounded conclusion

The Watusi 150 sits in that small class of ideas that do not try to impress with novelty. It refines an old geometry with modern materials and a clear goal. Reduce mass, increase stiffness, keep the telescope where the sky wants it, and stop asking the user to move iron around the room.
