Pan-tilt head altazimuth mount from 2047STUDIO

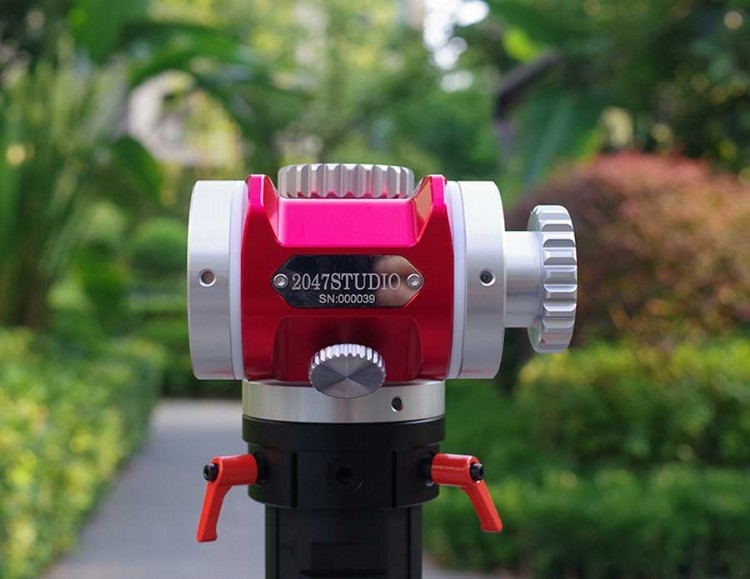

2047STUDIO has introduced a heavy-duty altazimuth mount and pan-tilt head designed for use with telescopes, binoculars, and related optical instruments. The equipment is manufactured from full aluminum alloy, processed with high-precision CNC machining, and surface anodized primarily in red with black accents.

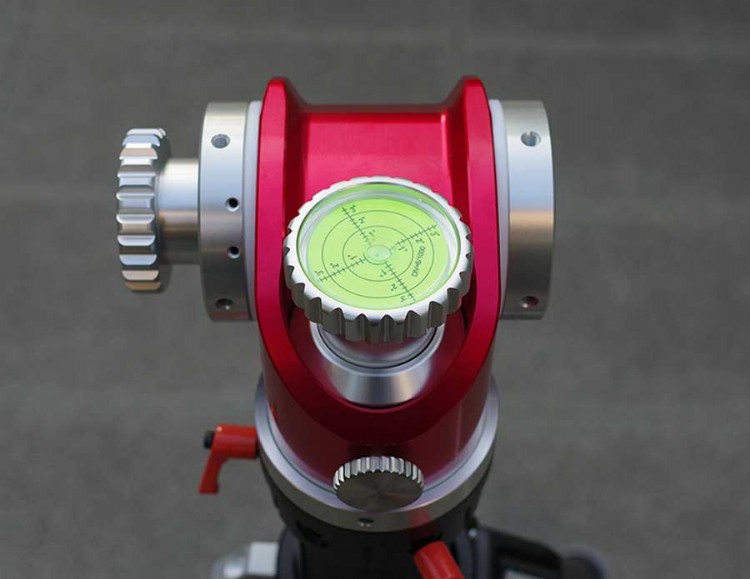

The mount replaces direct metal friction with multiple bearings to support higher load capacity and improve stability. Adjustments are made using two large hand-tightened nuts, while a 50-millimeter diameter spirit level provides accurate leveling reference during setup.

With its engineering focus on durability and functionality, the mount is aimed at astronomers and astrophotography enthusiasts who require stable support for heavy optical equipment.

Construction and damping system

The mount’s structural integrity comes from aluminum alloy components, paired with stainless steel connections at key points. Its damping system is designed to be linear, giving users the ability to fine-tune movement resistance on both axes.

Both the horizontal and vertical axes incorporate Teflon friction discs for added support. The horizontal disc measures 80 millimeters in diameter, while the vertical disc is 90 millimeters. These discs work in conjunction with the adjustable damping system to balance smooth tracking with secure positioning, even under heavier loads.

The design allows users to set the level of friction required for precise adjustments, preventing sudden shifts in position. This makes it practical for extended observation sessions or imaging setups that demand consistent alignment.

Tripod and accessory compatibility

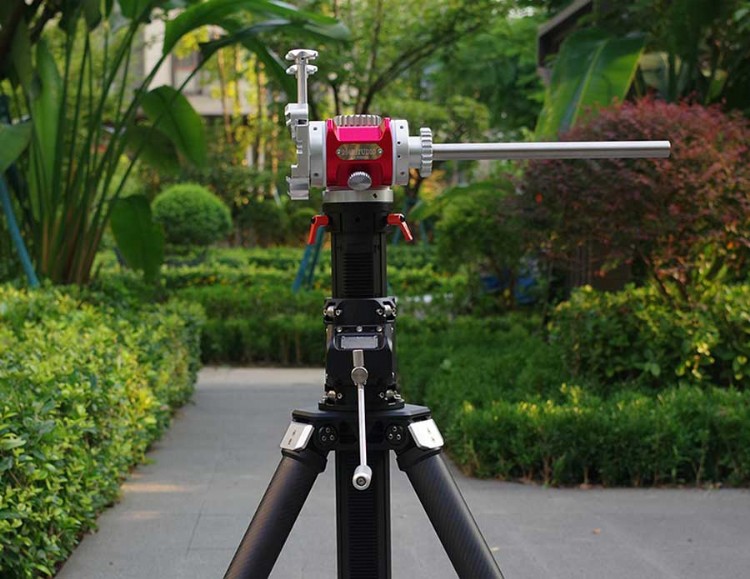

Compatibility with different tripods and accessories has been factored into the mount’s design. The base includes a stainless steel 3/8 screw hole and six M6 screw holes set at a 60-millimeter diameter. This configuration enables attachment to a wide range of tripods and mounting platforms.

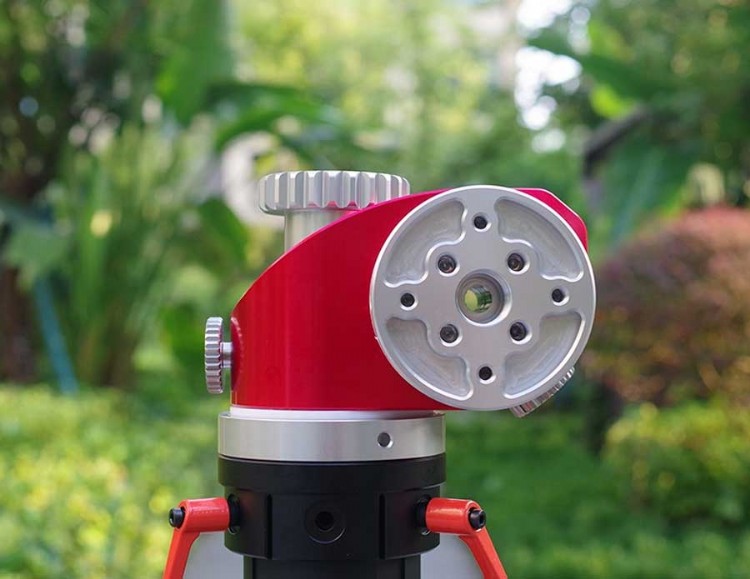

The horizontal axis friction disc also includes mounting points compatible with dovetail grooves. It supports M8 screw holes spaced 35 millimeters apart and M6 screw holes spaced 38 millimeters apart. These options allow users to connect various optical accessories or dovetail plates commonly used in astronomy setups.

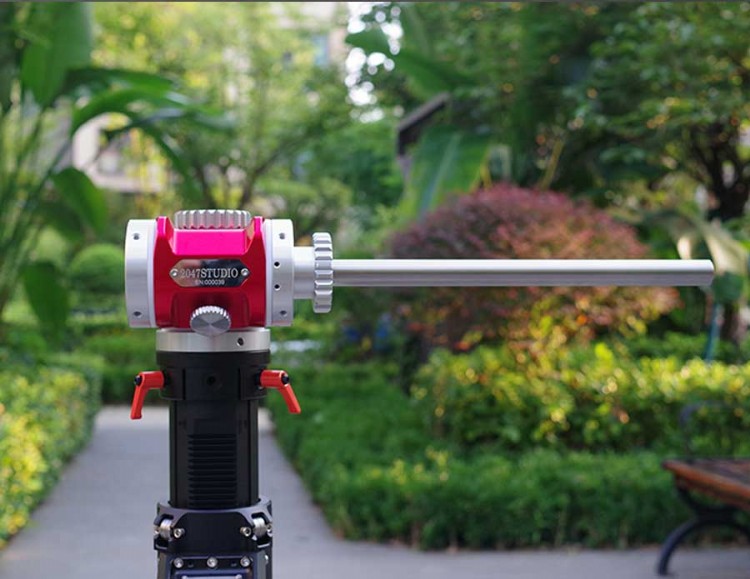

For those requiring additional balance, the system supports a 20-millimeter counterweight rod with M20*1.5 threading. This rod allows users to add counterweights for stability when supporting heavier optical instruments.

Weight and load capacity

The mount itself weighs approximately 2.3 kilograms, excluding the counterweight rod. Despite its relatively modest weight, the mount is engineered to support recommended loads exceeding 20 kilograms. This balance of portability and strength makes it suitable for a wide range of instruments, from medium-sized refractors to larger binocular systems.

Load-bearing capacity is achieved through the combination of precision machining, use of multiple bearings, and reinforced axis support. This construction reduces wear over time and ensures consistent performance during use.

Practical applications in astronomy and imaging

Astronomers using refractor or reflector telescopes can benefit from the mount’s ability to stabilize larger optical systems, particularly when paired with heavy eyepieces or cameras. The damping system is particularly useful for long-duration planetary viewing or deep-sky imaging, where even minor shifts can affect results.

Binocular users also gain advantages. Large-aperture binoculars, often weighing over 5 kilograms, require firm yet smooth control for scanning the night sky. The altazimuth mount offers this balance, making it easier to track celestial objects across wide arcs without introducing vibration.

The option to add counterweights extends its flexibility for astrophotographers. With imaging setups that combine cameras, filters, and adapters, weight distribution becomes critical. The mount’s threaded rod system allows for fine balancing, which helps maintain stability and prevents strain on tripod legs.

Price and availability

The mount is offered in two primary configurations:

Mount with counterweight rod priced at $399 US dollars

Mount with counterweight rod and dovetail groove priced at $499 US dollars

Shipping costs are listed at $99 US dollars, with an additional $36 US dollars to cover U.S. tax, bringing the total shipping-related expense to 135 US dollars for international buyers.

Other products are available through the 2047STUDIO store on Taobao, where the manufacturer offers telescope accessories and precision-machined components.

Reputation in the astronomy community, the pan-tilt head altazimuth mount from 2047STUDIO comes from a proven innovator

2047STUDIO has established itself within the amateur astronomy community as a supplier of custom-made telescope and binocular equipment. The company’s products are frequently discussed on forums such as Cloudy Nights and AstroBin, where users highlight their durability and machining precision.

Enthusiasts note that the company’s accessories often bridge the gap between mass-market mounts and high-end custom solutions. While 2047STUDIO products are not widely distributed through mainstream retail channels, their reputation has grown steadily among dedicated observers seeking reliable gear.

The mount joins a broader line of precision accessories that include dovetail plates, adapters, and counterweight systems. Collectively, these components allow astronomers to configure setups suited to both casual stargazing and advanced astrophotography.

The new telescope altazimuth mount and pan-tilt head reflects 2047STUDIO’s emphasis on precision machining and functional design. By combining CNC aluminum construction, bearing-based movement, and adaptable damping, it provides a balance between strength and adjustability. With its compatibility for various tripods, dovetail systems, and counterweights, it is positioned as a reliable option for those seeking stable telescope or binocular support.
