MLAstro SHG 700 reviewed by Cuiv

Friday, June 27, 2025

With ultra-narrowband resolution, flat-field compound lenses, and a 2400 l/mm diffraction grating, the MLAstro SHG 700 reviewed by Cuiv the Lazy Geek delivers sharp, full-disk solar images and starts at $880 fully preassembled for convenience.

There’s something quietly humbling (a terrifying) about pointing a tele at the Sun. Not for the glare or the danger—though there’s plenty of both—but because you start to realize just how much is going on up there that we never notice. The Sun isn’t just a ball of fire in the sky; it’s a living, breathing storm system the size of a million Earths. With the right gear, you don’t just see light—you see movement, texture, tension. You see history being written in plasma. And for those of us who’ve stared long enough, it starts to feel less like astronomy and more like listening in on a conversation we were never supposed to hear. It's wild to think that buried in that searing brightness are whisper-thin threads of hydrogen, arching prominences that rise and fall like breath, and magnetic fields that twist themselves into knots before letting go. You don’t need to be a physicist to feel it. You just need a good setup and a quiet afternoon. The rest kind of takes care of itself.

The MLAstro SHG 700 is a preassembled, high-performance solar spectroheliograph designed to deliver full-disk solar scans with exceptional resolution and optical quality. Priced at $880, the SHG 700 is part of MLAstro's ongoing production runs, with preorders for the fifth batch now open and an estimated shipping date set for late July to early August. The fourth batch has completely sold out, reflecting the strong demand for this precise and accessible spectroheliograph. Due to the limited size of the fifth production run, prospective buyers are encouraged to reserve their unit promptly. While new units are on preorder, some authorized dealers may still have available stock from earlier batches.

MLAstro SHG 700: Preassembled solar spectroheliograph with ultra-narrowband full-disk imaging capability

The SHG 700 represents a significant evolution from traditional do-it-yourself spectroheliographs, such as the well-known Sol'Ex or Star'Ex devices pioneered by Christian Buil. The MLAstro SHG 700 takes inspiration from those designs but packages the system in a professionally assembled, pre-calibrated, turnkey product that eliminates the mechanical challenges and inconsistencies often faced by amateur builders. Rather than requiring 3D printing, individual component sourcing, and complex manual alignment, the SHG 700 arrives ready to use with all necessary optical elements preinstalled and tested.

The standard configuration of the MLAstro SHG 700 includes several carefully selected optical components designed for optimal image quality and precision. At the heart of the device are two MLAstro 72mm flat-field compound lenses. These lenses provide a corrected, aberration-free optical path that ensures sharp, high-contrast solar images. Their flat-field design mitigates field curvature, allowing for consistent image sharpness across the entire field of view. Combined with these lenses is a 2400 lines-per-millimeter holographic grating measuring 25mm by 25mm by 6mm. This diffraction grating is a critical element in dispersing the incoming solar light into its spectral components, allowing for detailed imaging of specific wavelengths such as H-alpha or calcium K lines.

To achieve the narrow spectral band selection required for solar spectroscopy, the SHG 700 employs a precision-machined quartz slit that measures 7mm in length and 7 microns in width. The quartz slit enables fine control over the spectral resolution and plays a vital role in isolating the desired wavelength range during image acquisition. The combined optical assembly supports full-disk solar scans with telescopes of up to 730mm focal length in a single pass, making it suitable for a wide range of amateur and semi-professional solar imaging setups.

In terms of accessories, the SHG 700 is offered in several package variations to accommodate different needs and preferences. The base model, priced at $880, includes the SHG 700 packaged in a protective cardboard box. For those seeking enhanced durability and convenience for transport, an option is available to purchase the SHG 700 bundled with a robust aluminum carrying case. In addition to these standalone configurations, MLAstro also offers complete kits that pair the SHG 700 with a compatible monochrome camera. The recommended camera for this setup is the Touptek G3M678M, a compact, sensitive monochrome camera well-suited for solar spectroscopy. Buyers can opt for the SHG 700 and Touptek G3M678M bundle with either the standard cardboard packaging or the upgraded aluminum carrying case. All options are designed to provide a ready-to-use, reliable, and portable solar spectroheliograph system.

The SHG 700 requires two additional standard accessories to complete its integration with a telescope and camera system. These are a T2 (M42) to 1.25-inch adapter, used to connect the camera to the SHG, and a 2-inch to M42 nosepiece for attaching the SHG to the telescope. Users who already own these components from other optical equipment can reuse them without issue, while those who do not can purchase them separately from MLAstro at a reasonable price point.

While the SHG 700 is designed to be user-friendly and arrives fully assembled, it remains a sophisticated scientific instrument that demands careful handling and operation. MLAstro strongly advises that beginners unfamiliar with solar spectroheliographs educate themselves thoroughly before purchase. Several resources are recommended, including Christian Buil's comprehensive Sol'Ex presentation, which provides in-depth technical background on the design, operation, and scientific applications of devices like the SHG 700. Additionally, MLAstro provides an extensive Frequently Asked Questions section, as well as a detailed quick start guide to assist users in setting up and operating the device correctly.

For those interested in expanding the SHG 700's capabilities beyond solar imaging, MLAstro offers an optional guide kit. This accessory enables the SHG 700 to function as a high-resolution stellar spectrograph for observing stars and other astronomical targets beyond the Sun. The guide kit must be purchased separately and is ideal for users looking to broaden the device's scientific utility.

The SHG 700's optical configuration and performance specifications are designed to deliver high-fidelity, narrow-band solar images with excellent detail and clarity. The inclusion of dual flat-field compound lenses ensures minimal chromatic aberration and excellent image sharpness, while the 2400 l/mm holographic grating provides precise spectral dispersion critical for isolating solar features such as prominences, filaments, and active regions. The 7-micron-wide quartz slit allows for fine spectral resolution, supporting advanced imaging techniques such as Doppler shift mapping and velocity field analysis of solar structures.

MLAstro provides sample data to demonstrate the SHG 700's capabilities. For example, raw SER files captured with a 600mm focal length telescope and the SHG 700 are available for review. These files illustrate the system's ability to capture high-resolution, full-disk solar images with excellent spectral purity and minimal optical distortion. The SHG 700 is compatible with telescopes of up to 730mm focal length for full-disk imaging in one pass, making it a versatile solution for a wide range of solar observation setups.

The MLAstro SHG 700's price of $880 represents a competitive offering in the solar spectroscopy market, particularly when considering its preassembled, ready-to-use nature and the high-quality optical components included. Traditional DIY spectroheliograph projects often require users to source individual parts, manage complex assembly, and perform tedious manual alignment, all of which can introduce inconsistencies and frustration, particularly for beginners. The SHG 700 eliminates these obstacles by providing a professionally engineered, calibrated, and assembled system, allowing users to focus on scientific observation rather than hardware construction.

MLAstro's ordering process is straightforward, with buyers able to add the SHG 700 and any accessories to their online shopping cart. Custom requirements, such as special shipping declarations or specific order notes, can be specified during checkout to accommodate individual needs. The company's return and warranty policies are clearly outlined to provide customers with peace of mind regarding their investment.

The ongoing demand for the SHG 700 reflects the growing interest in high-resolution solar spectroscopy among amateur astronomers and scientific institutions alike. The device's compact design, precision optical system, and turnkey operation make it an attractive option for solar observers seeking to capture narrow-band images of the Sun without the complexity and variability associated with DIY builds. The availability of optional bundled cameras and accessories further enhances the SHG 700's value as an all-in-one solution for solar spectroscopy.

In conclusion, the MLAstro SHG 700 offers a refined, accessible, and high-performance platform for solar spectroheliography. With its carefully engineered optical system, professional assembly, and compatibility with a wide range of telescopes, the SHG 700 delivers exceptional image quality and ease of use. Its competitive price, combined with the option to expand functionality through additional accessories and guide kits, positions it as a leading choice for both novice and experienced solar observers. The current fifth batch preorder presents a time-sensitive opportunity for interested customers to secure this in-demand instrument, with estimated shipping scheduled for late July to early August. As with any scientific equipment, prospective buyers are encouraged to review the available technical resources, familiarize themselves with the operational principles of the SHG 700, and ensure they have the necessary telescope and camera components to complete their setup. With careful preparation and proper use, the MLAstro SHG 700 provides an outstanding tool for exploring the dynamic and fascinating world of solar spectroscopy.

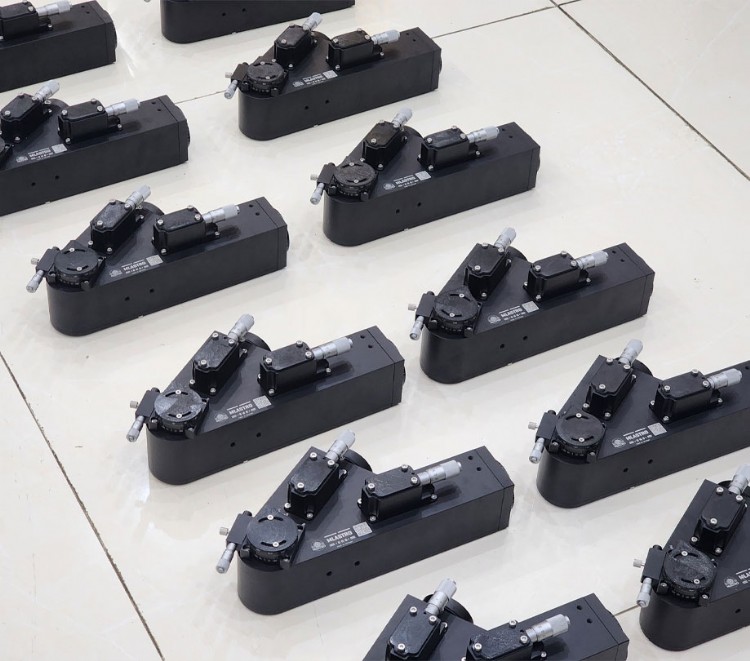

MLAstro SHG 700 specifications

Product: MLAstro SHG 700 Preassembled Solar Spectroheliograph
Price: $880.00 (Base model, cardboard box)
Available Package Options:
MLAstro SHG 700 in cardboard box
MLAstro SHG 700 in aluminum carrying case
MLAstro SHG 700 + Touptek G3M678M camera in cardboard box
MLAstro SHG 700 + Touptek G3M678M camera in aluminum carrying case
Estimated Ship Date (5th Batch): Late July to early August
Optical Components Included:
2x MLAstro 72mm flat-field compound lenses
1x 2400 l/mm, 25x25x6mm holographic diffraction grating
1x 7mm long, 7-micron wide quartz slit
Performance Capabilities:
Full-disk solar scans with telescopes up to 730mm focal length in a single pass
Effective resolution between 0.06 and 0.1 Angstrom per pixel
Ultra-high contrast, narrowband imaging without parasitic light leaks
Uniform contrast and sharpness across the entire field of view
Multi-wavelength capability (H-alpha, CaK, He D3, Sodium, H-beta, visible spectrum)
Additional Requirements (not included):
T2 (M42) to 1.25-inch adapter for camera connection
2-inch to M42 nosepiece for telescope connection
Optional Accessories:
Aluminum carrying case
Touptek G3M678M monochrome camera
High-resolution stellar spectrograph guide kit (sold separately)
Other Features:
Fully assembled and factory calibrated
Compatible with most standard telescope and camera setups
Ready for immediate use upon delivery
Requires video-based imaging and software reconstruction (not for visual observation)
Ordering Notes:
5+ units currently in stock for preorder
Smaller 5th production run, high demand expected
Optional custom declarations or special requirements accepted during order
Price Comparison:
SHG 700 entry price approximately half the cost of basic solar H-alpha etalon filters
Significantly narrower bandpass than typical etalon filters
Advantages Over Etalon Systems:
No "sweet spot" effect, uniform FOV performance
Avoids unit-to-unit performance variation seen in etalon filters
Consistent results with under 0.1 Angstrom resolution
Limitations:
Requires learning curve for proper operation and alignment
Not recommended for telescopes over 1000mm focal length without excellent seeing conditions

What is a spectroheligraph and how does it work?

A spectroheliograph is a scientific device designed to capture high-contrast, narrowband images of the Sun by isolating specific wavelengths of light. This instrument has a long history, tracing its origins back to the 1890s when it was independently invented by George Ellery Hale and Henri-Alexandre Deslandres. Over the years, the device has evolved significantly, with one of the most notable advancements occurring in 1932 when Robert R. McMath modified it to record solar motion pictures. Modern spectroheliographs, like those offered by MLAstro, build upon this foundation but integrate advanced digital components and software tools, revolutionizing how solar images are captured and processed.

At the core of the spectroheliograph's operation is the principle of spectral imaging. The device uses a narrow slit to capture a thin slice of sunlight. This light then passes through a collimator, a lens system designed to turn the incoming rays into parallel beams. Once collimated, the light encounters a diffraction grating, a finely structured optical element that separates the light into its constituent wavelengths, producing a spectrum. The dispersed light is then refocused by another lens onto a camera sensor. By tilting the diffraction grating, the user can select which part of the spectrum is projected onto the sensor, allowing imaging at precise wavelengths, including popular options like hydrogen-alpha, calcium K, sodium D, or helium D3.

Unlike traditional solar telescopes that rely on visual observation, a spectroheliograph like the MLAstro SHG operates exclusively through imaging. The Sun's image is effectively "scanned" across the slit as the telescope's mount slowly slews during data capture. The camera records a high-frame-rate video, where each frame represents a narrow slice of the Sun at the chosen wavelength. Specialized software then reconstructs these sequential slices into a complete, high-resolution solar image. This digital reconstruction process is essential because the Sun is never visible directly through the spectroheliograph's optics, making real-time visual observation impossible and, depending on the type of energy rejection filter used, potentially dangerous.

One of the most significant advantages of a spectroheliograph is its ability to deliver exceptionally high-contrast, narrowband images that outperform many conventional etalon-based solar filters. High-end etalon filters typically achieve a full width at half maximum (FWHM) bandwidth of around 0.5 angstroms, with the most expensive models reaching as narrow as 0.3 angstroms. These filters can cost tens of thousands of dollars. In contrast, a well-constructed spectroheliograph like the MLAstro SHG 700 routinely produces images with an effective resolution between 0.06 and 0.1 angstroms per pixel, offering remarkable contrast and detail without the significant parasitic light leaks common in single-stack etalon systems. This level of performance allows for observing solar features with unmatched clarity.

The uniformity of the image produced by a spectroheliograph is another key strength. Etalon-based filters often suffer from "sweet spot" effects, where the best contrast and detail are limited to a specific area of the field of view, with image quality degrading toward the edges. The SHG, however, provides consistent contrast, sharpness, and detail across the entire solar disk, making it ideal for full-disk solar imaging. With a single device, observers can capture high-quality images without worrying about uneven performance across the image plane.

Another major advantage of the spectroheliograph is its wavelength versatility. With etalon systems, observing the Sun at multiple wavelengths requires purchasing separate, often expensive, filters for each spectral line of interest. The SHG simplifies this process by allowing the user to tune the diffraction grating to any desired wavelength within the visible spectrum and then refocus the optics. This flexibility enables imaging of various solar features across wavelengths such as hydrogen-alpha, calcium K, helium D3, sodium, or even H-beta, all with the same device. This adaptability makes the spectroheliograph an excellent educational and research tool, providing comprehensive access to the Sun's diverse spectral characteristics.

Beyond producing visually striking images, spectroheliographs also serve as valuable scientific instruments capable of revealing important physical information about the Sun. One such capability is the measurement of Doppler shifts, which allows the user to determine the motion of solar plasma. By analyzing how specific absorption lines shift in wavelength, it is possible to calculate the speed and direction of plasma flows on the solar surface or in the atmosphere, determining whether material is moving toward or away from Earth and at what velocity. This functionality effectively turns the SHG into a cosmic speedometer.

Spectroheliographs can also be used to investigate the Sun's magnetic fields through phenomena like the Zeeman effect. The Zeeman split occurs when a magnetic field causes the splitting of spectral lines, providing insight into magnetic activity within the Sun's atmosphere. By detecting and analyzing these splits, observers can generate magnetograms, which map the Sun's magnetic structures and contribute to understanding solar activity cycles, sunspots, and other dynamic processes.

From a cost perspective, spectroheliographs like the MLAstro SHG 700 offer a more affordable entry point into narrowband solar imaging compared to etalon-based systems. While basic etalon filters start around $1300 and high-end models can cost significantly more, the SHG 700 provides similar or superior imaging capabilities at roughly half the price of a basic etalon filter. Furthermore, with an inexpensive upgrade kit, the SHG 700 can be converted into a high-resolution stellar spectrograph for nighttime observations, expanding its versatility beyond solar imaging. This additional functionality enhances the device's value and makes it a cost-effective choice for astronomers interested in both solar and stellar spectroscopy.

One of the hidden drawbacks of purchasing etalon filters, especially budget models, is the "etalon lottery." Due to variations in manufacturing quality, the performance of individual filters can differ widely. Some filters may exhibit excellent contrast and narrow bandwidths, while others may perform poorly, leading to frustration and additional costs for users who unknowingly purchase subpar units. The SHG, by contrast, offers consistent, repeatable performance across all units. Thanks to precise engineering and factory calibration, each spectroheliograph delivers the same high-resolution, narrowband imaging capability, eliminating uncertainty and ensuring reliable results.

Despite these advantages, spectroheliographs are not without their limitations. The operation of an SHG differs significantly from that of conventional telescopes, introducing a learning curve for new users. While looking through an eyepiece with an etalon filter provides an intuitive, direct-viewing experience, using an SHG requires familiarity with specific imaging procedures. The user must properly orient the device, accurately slew the telescope mount to scan the Sun across the slit, and carefully adjust focus. Though preassembled and calibrated SHGs like the MLAstro SHG 700 simplify these processes, some practice and patience are still required to achieve optimal results.

One common artifact seen in SHG images is jagged or irregular edges along high-contrast solar features. These occur when successive image slices captured during scanning do not perfectly align, often due to atmospheric seeing conditions or minor vibrations in the telescope mount. To minimize these artifacts, it is essential to use a stable, high-quality mount, optimize scan speed, and ensure proper alignment of the telescope, SHG, and counterweights. Imaging under favorable seeing conditions further reduces these effects, and stacking multiple frames during post-processing can significantly improve image smoothness.

The slice-by-slice image construction method of the SHG also imposes practical limits on achievable spatial resolution, particularly at high magnifications. Unlike etalon-based systems, which can benefit from techniques like lucky imaging to capture sharp, high-resolution details, SHG images are more susceptible to blurring from atmospheric turbulence. As a result, fine details may appear softened, especially when using long focal length telescopes exceeding 1000mm. For the best results, it is generally recommended to use SHGs with telescopes of moderate focal lengths and under stable atmospheric conditions.

In summary, the spectroheliograph remains one of the most powerful tools available for narrowband solar imaging. Modern devices like the MLAstro SHG 700 combine historical principles with cutting-edge technology to deliver exceptional image quality, high contrast, and detailed spectral analysis of the Sun. Their affordability, consistent performance, and wavelength flexibility make them a superior alternative to traditional etalon filters for many observers. With proper setup, familiarity with the imaging process, and attention to environmental conditions, spectroheliographs enable amateur and professional astronomers alike to explore the Sun's dynamic atmosphere in remarkable detail.

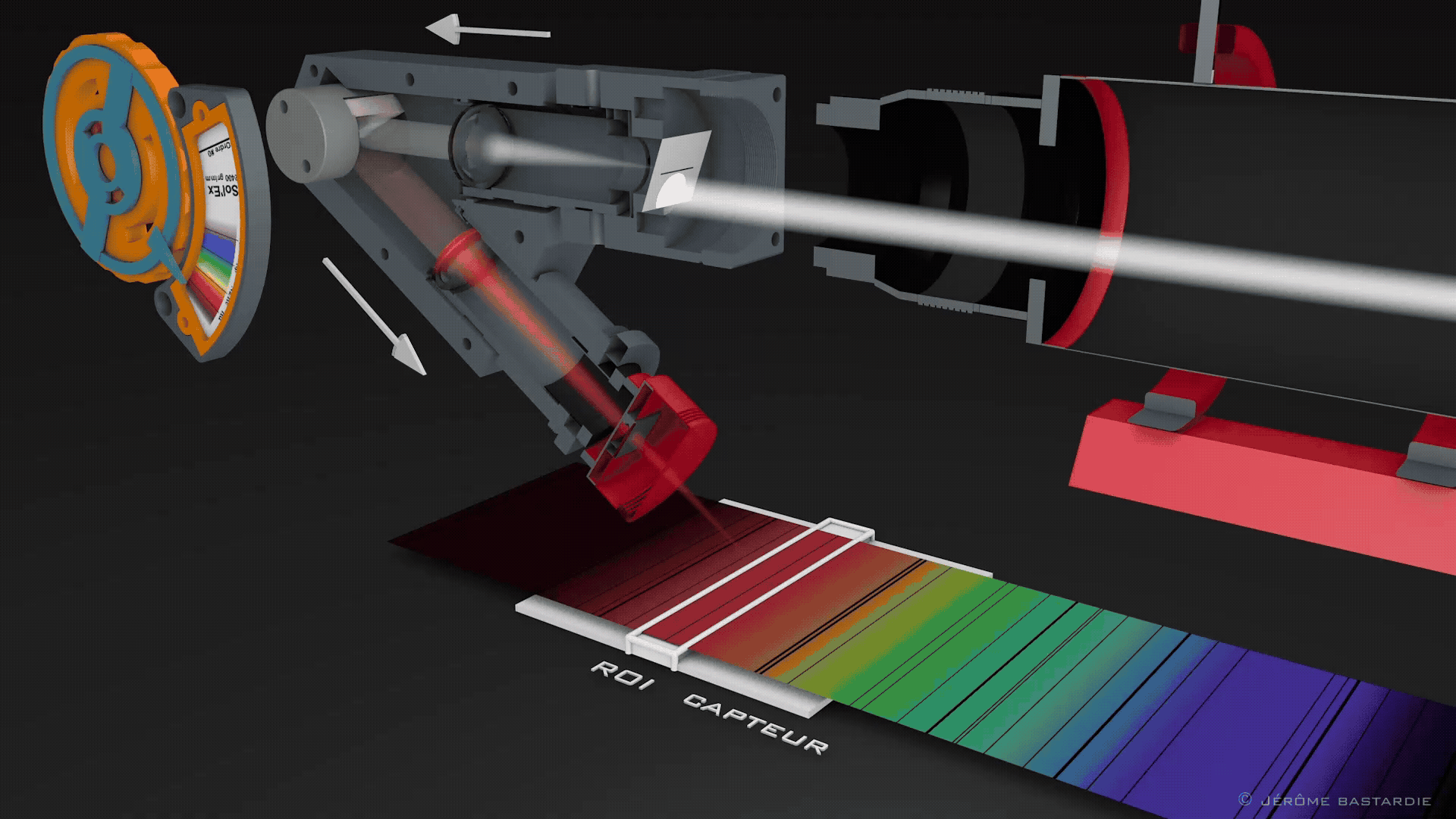

Animation by Jerome Bastardie that demonstrates how an SHG works

Spectroheliography is INSANE, but EASY with this! MLAstro SHG 700 first impressions + tutorial

MLAstro SHG 700 reviewed by Cuiv the Lazy Geek: First impressions and tutorial of the MLAstro SHG 700

Cuiv the Lazy Geek’s in-depth first impressions and tutorial of the MLAstro SHG 700 offer a detailed, hands-on exploration of this unique solar imaging device, blending practical advice with personal insights about how this system differs from traditional solar photography tools. The MLAstro SHG 700, as Cuiv repeatedly emphasizes, is not just another solar telescope or hydrogen-alpha filter. Instead, it is a highly specialized spectroheliograph, an instrument designed to scan the Sun and reconstruct high-resolution images by analyzing its spectral lines. Cuiv describes the device as a kind of black magic, both in its functionality and in the stunning results it can produce with surprisingly little effort once properly set up.

Right from the start, Cuiv explains that the MLAstro SHG 700 operates on principles fundamentally different from conventional solar telescopes. The front of the device contains what appears to be a mirror, but is actually a diffraction grating combined with an ultra-narrow slit. This slit allows a fine slice of sunlight to pass through, which the grating then spreads into its constituent wavelengths. The result is a broad, high-resolution spectrum that the device projects onto a connected camera. A selector mechanism allows users to adjust the position of the spectrum so the wavelength of interest, such as hydrogen-alpha, falls precisely onto the camera sensor. Unlike visual observation, which is impossible and dangerous with this system, the SHG 700 records video data that specialized software later reconstructs into detailed solar images.

One of Cuiv’s initial concerns about the SHG 700 was its complexity. Coming from a deep sky astrophotography background, he expected a steep learning curve, particularly given that the device doesn’t take a simple photo of the Sun but rather scans across it, recording spectral information slice by slice. However, after trying the device himself, Cuiv was surprised by how accessible the process was, even for those unfamiliar with spectroheliography. The SHG 700 is based on the Sol'Ex open-source design by Christian Buil, but it improves on the DIY concept by incorporating precision metal construction, refined optics, and user-friendly micrometer adjustments, making it far easier to assemble and calibrate.

In his demonstration, Cuiv uses the MLAstro SHG 700 with a 102mm f/7 refractor telescope and a Touptek G3M678M monochrome camera, which he recommends for its 2-micron pixels and sufficient sensor size to capture the full solar disc in a single scan. He emphasizes that the SHG 700 is intended strictly for refractor telescopes and only those compatible with its optical requirements. During the setup, Cuiv shows how to insert the camera using a required M42 to 1.25-inch adapter and outlines a multi-stage focusing procedure critical for sharp, usable images.

The first part of the setup requires alignment without the Sun, using daylight or a cloudy sky to rotate the camera so that spectral lines appear horizontal. Precise focus adjustments are then made to sharpen these lines, followed by fine-tuning of the spectrum's edge to ensure uniform sharpness across the field. These steps, Cuiv points out, are well documented by MLAstro and can be followed systematically, making what initially seems complicated quite manageable.

Once mounted on the telescope, additional alignment is required to ensure the diffraction grating and telescope optical axis are parallel. Cuiv mentions that achieving proper focus may require extension tubes, depending on the telescope. After final adjustments to the telescope focus and ensuring the hydrogen-alpha line is centered, the system is ready to capture solar data.

Cuiv demonstrates the scanning process by slewing the telescope in right ascension while recording video of the hydrogen-alpha absorption line. Specialized software, such as the free Sol'Ex tools, reconstructs these videos into high-resolution solar images. Despite shooting from a windy rooftop with poor seeing conditions, Cuiv successfully produces full-disc solar images, complete with the Sun's corona and fine hydrogen-alpha details. He acknowledges that better results are possible under calmer conditions but remains impressed by the quality achievable even in suboptimal environments.

The SHG 700's ability to generate Doppler images of the Sun particularly excites Cuiv. These images reveal solar rotation, showing which regions of the Sun are moving toward or away from Earth. Additionally, prominences and other solar features can be analyzed for Doppler shifts, providing insights into their 3D structure and motion. Cuiv admits that the scientific applications of these features extend beyond his current understanding but recognizes their value for serious solar researchers.

Cuiv also highlights the affordability and performance of the SHG 700 compared to traditional solar imaging systems. With a price of approximately $880, the SHG 700 undercuts many dedicated solar telescopes and high-end hydrogen-alpha filters, some of which cost thousands of dollars. While a DIY Sol'Ex build might be cheaper, Cuiv argues that the SHG 700's factory assembly, precise metal construction, and integrated adjustments justify its premium, eliminating the uncertainties and frustrations of building and aligning a device from scratch.

During his testing, Cuiv performs multiple scans in both directions across the Sun, later stacking the resulting images to enhance detail and reduce atmospheric distortion artifacts. He notes that vibrations from wind and telescope movement can introduce vertical banding in images, a known drawback of the slice-by-slice scanning method. However, by imaging in calmer conditions, especially during mornings with minimal wind, users can significantly improve image quality.

One of Cuiv's key takeaways is how fast the SHG 700 can produce results. From unboxing to capturing usable solar images took him less than an hour, provided that the user is familiar with their telescope, camera, and basic software like SharpCap. The setup process, while requiring attention to detail, follows a logical, repeatable sequence, making it accessible even to those new to solar spectroscopy.

Cuiv contrasts this with his experience using dedicated solar telescopes and Quark eyepieces, where achieving optimal tuning and focus often felt like guesswork. The SHG 700, in contrast, provides clear, measurable adjustment points for focus, spectrum alignment, and wavelength centering, resulting in a more transparent and controlled imaging process.

Toward the end of his tutorial, Cuiv shares processed images that include not only traditional hydrogen-alpha views but also negative images, Doppler maps, and colorized composites revealing solar prominences and atmospheric activity. He points out that this level of detailed solar imaging was previously inaccessible to him, even with more expensive equipment, underscoring the SHG 700's remarkable value.

Finally, Cuiv reflects on the SHG 700 as both a scientific tool and a highly enjoyable astrophotography accessory. He acknowledges its limitations, particularly sensitivity to wind and seeing, but remains impressed by its performance, ease of use, and price point. He encourages viewers to consider the SHG 700, especially as a way to stay active in astrophotography during daytime hours or when nighttime observing is hampered by clouds.

Cuiv frames the MLAstro SHG 700 as a groundbreaking yet accessible way to explore solar imaging and spectroscopy. With its thoughtful design, premium construction, and user-friendly operation, the SHG 700 provides both amateur and experienced astronomers with the opportunity to capture scientific-grade solar images with relative ease. Despite initial hesitations, Cuiv's hands-on experience convinces him of the SHG 700's capabilities and value, ultimately making it a highly recommended tool for anyone interested in the Sun's dynamic and constantly changing face.

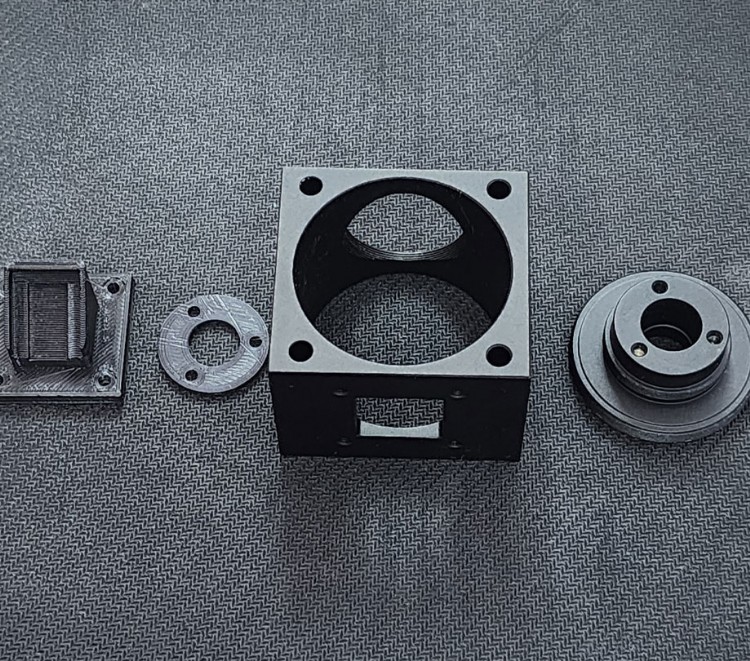

Guide kit for MLAstro SHG Housing

MLAstro SHG 700: Focus Refinement Procedure

The Guide Kit for the MLAstro SHG Housing is a precision accessory that converts the standard solar spectroheliograph into a fully capable, high-resolution stellar spectrograph for nighttime spectroscopy. Priced at $60, this kit provides users with an affordable, modular upgrade pathway to expand the functionality of the MLAstro SHG 700 beyond solar imaging. By integrating the guide kit, astronomers can repurpose their SHG housing to capture detailed stellar spectra, transforming it into a versatile tool suitable for both daytime and nighttime spectral research.

The guide kit is offered in two primary configurations, allowing users to choose the level of completeness that suits their existing equipment and specific needs. The first option is the Guide Kit Body Only package. This version includes all the essential mechanical components required to add a guiding system to the SHG housing, excluding the optical elements. Specifically, the body-only kit contains a guide cube, a guide adapter, a 3D printed mirror support, and a 3D printed optics retainer. These components form the structural framework necessary to mount and align the guiding system with the SHG assembly. This version is ideal for users who already possess compatible optical components, such as Shelyak’s guide optics, or for those who wish to source or customize their own optical elements.

The second configuration is the Guide Kit Body combined with the Optical Guide Kit. This complete version includes everything from the body-only package, along with the required optical elements to fully equip the guiding system. The optical components supplied with this version consist of two 12.7mm diameter doublets with 50mm focal length, which are responsible for collimating and refocusing the incoming starlight within the guide path. Additionally, a 15mm x 15mm x 3mm dielectric mirror is included, ensuring efficient light redirection with high reflectivity and minimal loss. To maintain precise spacing and alignment, a 3D printed spacer ring is provided. This all-inclusive option eliminates the need for separate optical purchases, delivering a ready-to-assemble, fully functional guide system for the SHG housing.

Both guide kit options are engineered for seamless compatibility with Shelyak’s ES0030 guide optical kit, ensuring that users can integrate the MLAstro system with existing components from other manufacturers without modification or compatibility concerns. All necessary screws and mounting hardware are included, simplifying assembly and allowing users to install the kit themselves without the need for specialized tools or technical expertise.

To operate the guide kit properly, users must also equip their system with either a helical focuser or a 1.25-inch to T2 adapter to secure the guide camera in place. These accessories are essential to achieving precise focus and alignment of the guide camera within the optical path. MLAstro offers both of these components in their accessories catalog, providing a one-stop solution for building a complete, high-performance nighttime spectrograph.

In terms of design, the guide kit incorporates durable materials and practical 3D printed elements that contribute to both precision and ease of assembly. The mirror support and optics retainer, produced with 3D printing technology, are lightweight yet rigid, providing the necessary structural integrity to maintain alignment during operation. The overall design emphasizes user convenience, allowing for straightforward installation while preserving the optical performance standards expected from MLAstro products.

The ability to upgrade the MLAstro SHG housing into a stellar spectrograph significantly increases the scientific value and versatility of the system. With the guide kit installed, users can perform high-resolution spectroscopy of stars and other astronomical objects at night. This allows for the detailed analysis of stellar composition, radial velocity measurements, and the detection of phenomena such as Doppler shifts and spectral line splitting, providing a broader platform for astrophysical research beyond solar observations.

Overall, the Guide Kit for the MLAstro SHG Housing represents a well-engineered, cost-effective solution for astronomers seeking to expand the functionality of their existing solar spectroheliograph. Whether purchased as a body-only kit for those with existing optics or as a complete optical package, the guide kit delivers professional-grade performance and seamless integration, making it an essential accessory for users interested in both solar and stellar spectroscopy.
