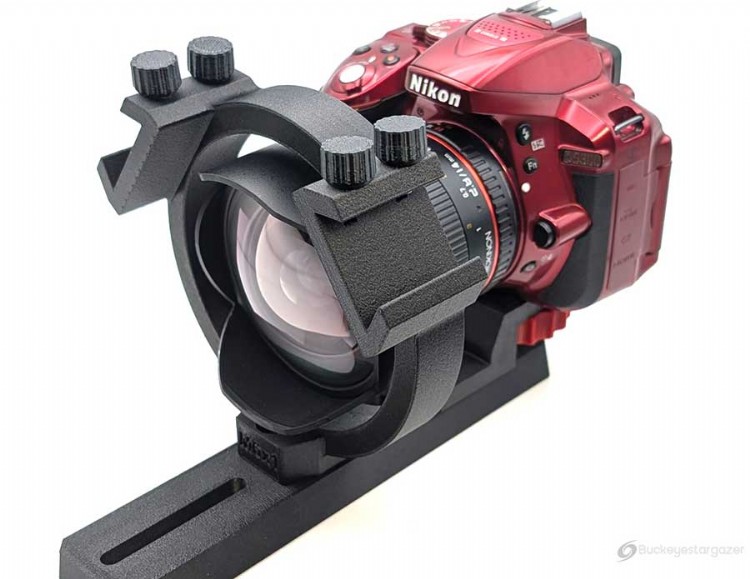

Lens support system from Buckeyestargazer lands

A telephoto lens and camera can make beautiful deep sky images, but the setup lives or dies by how well it is mounted-as many of you know. If the lens flexes a little when you slew, if the camera tilts a hair when you focus, your stars will tattle. The difference between soft ovals and tight circles often comes down to one simple idea: treat the lens and everything around it as a single solid body. That is where a purpose-built lens support system earns its keep.

The Buckeyestargazer system takes that principle and executes it with a modular, ring-based support design built for astrophotography rigs using telephoto lenses. It is not just a bracket. It is a structural solution designed to reduce flexure across the imaging train.

The approach is straightforward. Make the lens and camera behave like a small refractor, then give that unit a clean, balanced interface to your mount.

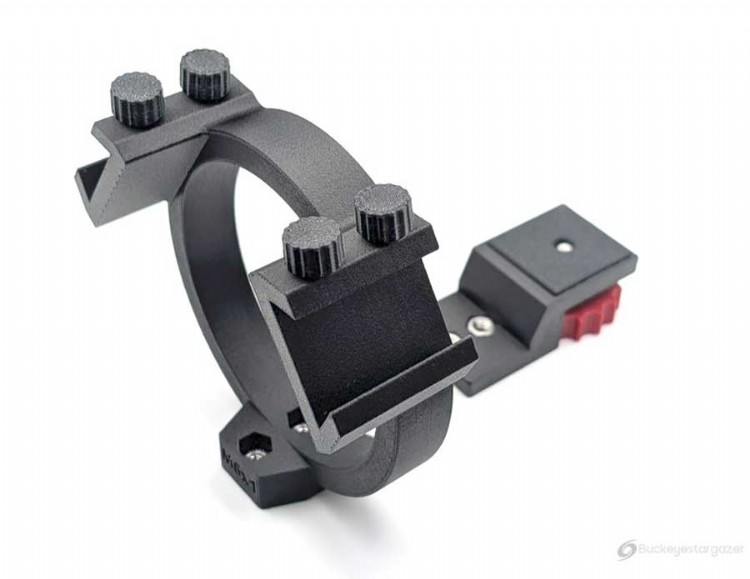

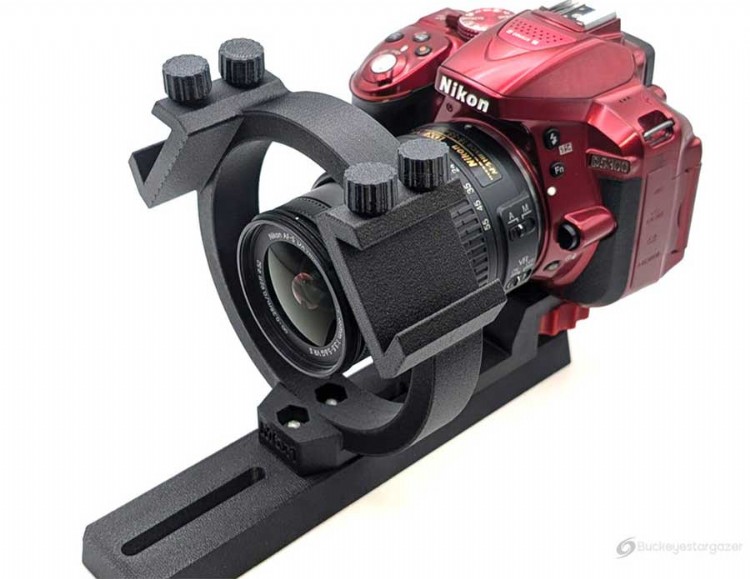

A single fixed lens ring cradles the lens barrel and provides a rigid anchor point. Integrated into the ring are two Synta-style finder shoes, allowing you to mount accessories such as a guide scope or other gear directly to the same structure. The camera side is supported with an adjustable rear support, helping ensure the imaging train does not sag under its own weight.

Key system elements include:
Single fixed lens support ring (non-adjustable)
Two Synta-style finder shoes for accessory mounting

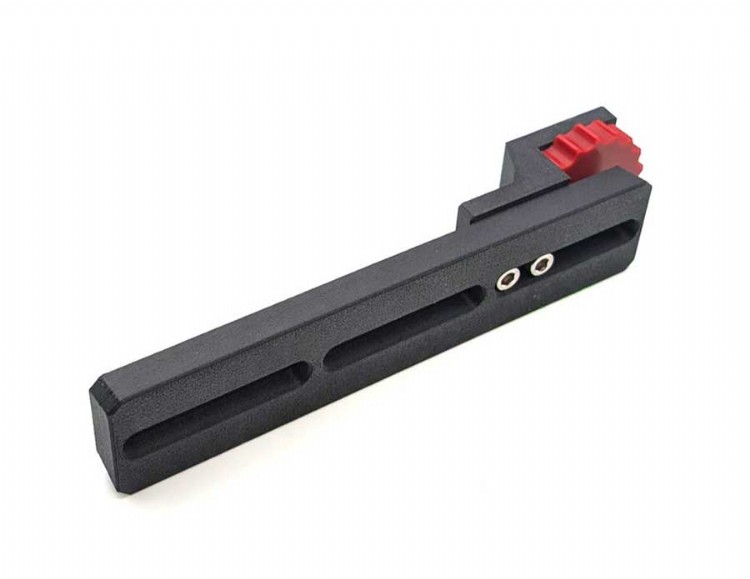

Rear camera support to reduce tilt and sag
Mounting via standard dovetail bars with center slot compatibility (M6 or 1/4-20)
Configurable layout to accommodate different lens setups

The result is a compact rig that guides and focuses without the usual gymnastics.

The Real Cost of Flexure

Differential flexure is the quiet thief of sharp data. Your guide scope reports perfect tracking while the imaging lens drifts on its own path. Over a few minutes you get egg-shaped stars and you blame polar alignment or seeing.

The Buckeyestargazer system addresses this by keeping everything tied to a shared mechanical structure. With accessories mounted directly to the ring via the finder shoes, the likelihood of independent movement is reduced.

This is where the system earns its value. It removes a whole category of troubleshooting from your workflow.

Balance and Moment Arms in Plain Speak

A typical lens collar places the load at a single point, often leaving the camera and accessories hanging off the back. That introduces torque and invites subtle rotation.

The Buckeyestargazer system improves this by supporting both the lens and the camera, reducing leverage effects and keeping the imaging train more stable overall.

Because the components mount directly to a standard dovetail bar, you can position them along that bar to achieve proper balance for your specific setup. That translates directly into:
Smoother tracking
Less strain on motors
More responsive guiding corrections

It is amazing how quiet a mount becomes when you stop asking it to fight torque on every move.

Focus Without Moving the Goalposts

Fast lenses are unforgiving. A small focus adjustment can introduce tilt if the system is not well supported.

The rear camera support helps stabilize the imaging train, keeping the sensor plane more consistent during focus adjustments. By supporting the weight of the camera and attached accessories, it reduces the chances of tilt or sag as you make fine focus changes.

If you add a focus motor, careful mounting and cable management help avoid introducing new sources of flex elsewhere in the system.

You change focus and the framing stays more consistent. Late-session tweaks become far less risky.

Guide Scope and Accessories

Instead of a top rail system, the Buckeyestargazer design uses dual Synta-style finder shoes mounted directly to the lens ring. This provides a simple and widely compatible way to attach guide scopes or other accessories.

Keeping accessories mounted directly to the same structure as the lens helps reduce independent movement and keeps your guiding setup more reliable.

Field Workflow That Feels Repeatable

A good support system makes setup feel like muscle memory. The ring secures the lens quickly, the unit mounts onto your dovetail bar, and the rear support meets the camera in a consistent position.

You polar align, plate solve, check tilt if needed, and start imaging.

When a rig is consistent, you notice the changes that matter. Switching cameras or adding accessories does not force you to rebuild your entire setup from scratch.

Choosing the Right Setup for Your Lens

Lenses vary widely, and planning your configuration still matters.

Consider:
Lens barrel diameter for proper ring fit
Clearance near the camera for rear support
Dovetail compatibility (requires center slot for M6 or 1/4-20 bolts)
Accessory mounting via finder shoes

The system is flexible, but the best results come from building a balanced setup from the start.

Evidence You Can See in Your Subframes

Before installing any support system, establish a baseline. Check star shapes and consistency across your frame.

After installation, you should see:
More consistent stars edge to edge
Reduced directional elongation
Improved stability during slews

If issues remain, small adjustments in balance or support tension can make a noticeable difference.

Specifications and Pricing

The Buckeyestargazer Astrophotography Lens Support System is designed as a lightweight, modular solution with the following characteristics:

Material: 3D printed PET-CF (carbon fiber reinforced nylon filament)
Support System: Single fixed lens ring + rear camera support
Mounting Compatibility: Attaches to dovetail bars with center slot (M6 or 1/4-20)
Accessory Support: Two integrated Synta-style finder shoes
Design Focus: Flexure reduction, balance improvement, modular adaptability
Pricing: Approximately $20 to $48 depending on configuration

For what it solves, that places it firmly in the category of high-impact, low-cost upgrades compared to mounts, cameras, or optics.

A Quiet Confidence Under the Night Sky with Buckeyestargazer Lens Support System

A lens support is not glamorous, but it is one of those rare upgrades that pays off every clear night. It helps turn a telephoto setup into something closer to a purpose-built astro instrument.

The Buckeyestargazer system does this not through complexity, but through smart, practical design choices. By reducing flexure and stabilizing the imaging train, it removes uncertainty from your workflow.

If you value clean stars, reliable guiding, and repeatable results, this is the kind of upgrade that quietly earns its place in your kit.
