ASI2600MM vs ASI6200MM vs ASI461MM: Sensor Sizes

There is a surprising amount of confusion surrounding astronomical camera sensor sizes. I regularly hear one group argue that full frame is automatically better, while another insists that larger sensors are basically identical to smaller ones except for the amount of sky they capture. Neither position tells the whole story. A larger sensor does not automatically produce a better image, and cameras built around similar pixels are not necessarily interchangeable. When you look deeper, you find significant differences in the sensors, camera bodies, optical requirements, data streams, and ultimately the nature of the acquisition itself.

Shared pixels do not make identical cameras

The ZWO ASI2600MM, ASI6200MM, and ASI461MM are built around Sony’s IMX571, IMX455, and IMX461 monochrome CMOS sensors. All three employ 3.76-micron photosites, back-illuminated construction, rolling shutters, high quantum efficiency, and 16-bit analog-to-digital conversion.

That shared technological foundation is probably where the confusion begins. At the same telescope focal length, their identical pixel pitch produces essentially the same image scale in arcseconds per pixel. Someone comparing only pixel size, read noise, and quantum efficiency might therefore conclude that these are simply three differently sized versions of the same camera.

They are not.

These are separate monolithic detectors with different die geometries, pixel counts, package footprints, readout organizations, operating modes, mechanical interfaces, and thermal requirements. Sony did not manufacture one enormous sensor and cut it into three convenient sizes.

Each device required its own photolithographic floor plan, column-readout organization, clock and power distribution, output routing, packaging, thermal design, and manufacturing-yield strategy.

A 102-Megapixel Single-Frame Example: IC 1396

(IC 1396 – The Elephant’s Trunk Nebula – Richard Harris)

To demonstrate the extraordinary amount of data captured in a single exposure field - not a mosaic - you can download and explore the full-resolution image below. I invite you to pixel-peep, I promise you'll get lost in the field.

Download the full resolution 100 megapixel JPEG
Please note that the compressed file is over 130 MB.

An uncompressed TIFF version is available upon request for research or high quality printing.

The sensors were created for different format classes: ASI2600MM vs ASI6200MM vs ASI461MM: Sensor Sizes

These sensors belong to approximately the same technological generation, but they were developed to occupy different imaging categories.

Sony publicly listed the APS-format IMX571 and medium-format IMX461 in 2018, while documentation for the full-frame IMX455 appeared around 2019–2020. This is important because they should not be viewed as a simple evolutionary ladder in which each newer sensor replaced the previous one. They are related devices designed around different focal-plane formats and acquisition priorities.

The IMX571 occupies the APS-C, 26-megapixel still-camera class. It provides a relatively compact balance of resolution, readout speed, cost, and mechanical practicality.

The IMX455 occupies the 35-mm full-frame, 61-megapixel class. Sony designed variants with demanding still-image and high-resolution video capabilities, including specialized readout modes for 8K and 4K operation.

The IMX461 extends the same general 3.76-micron pixel generation into a roughly 55-mm-diagonal, 102-megapixel medium-format detector. Its purpose is to provide an enormous focal-plane footprint and extremely high spatial resolution, even though doing so requires a larger package, wider optical path, greater data volume, and more demanding supporting hardware.

Even Sony’s published operating descriptions reveal differences in all-pixel readout, parallel ADC operation, digital-overlap drive, subsampling, and weighted-binning modes. The sensors may share a photosite pitch and several underlying technologies, but the infrastructure required to address and extract 26, 61, or 102 million pixels is not identical.

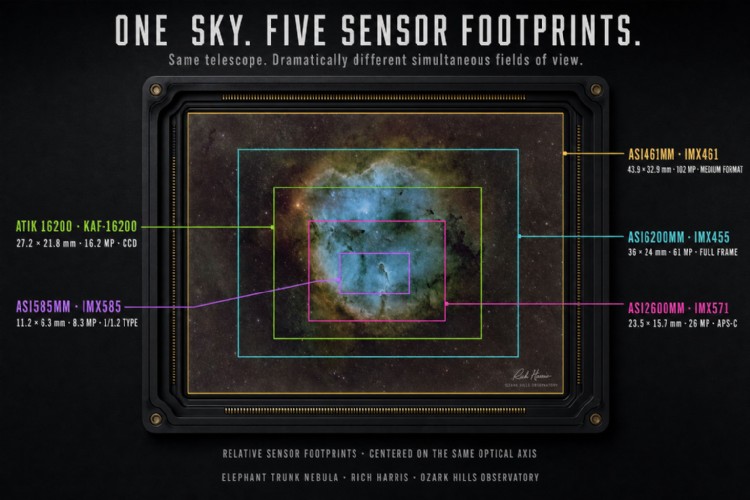

Field of view changes the acquisition

Field of view is the most obvious difference, but it should not be dismissed as merely “more picture around the edges.”

At a fixed focal length, each 3.76-micron pixel covers approximately the same angular area of sky. The larger sensor therefore does not necessarily place more photons from the same small astronomical feature into each pixel. Instead, it simultaneously samples a much larger angular extent of the telescope’s focal plane.

That means a larger sensor can record more stars, more nebulosity, more background sky, more gradients, and more spatially independent photon measurements during every exposure.

You are not necessarily collecting more light from the same object per pixel. You are collecting more light collectively across the entire focal surface, all at the same time.

That distinction is fundamental.

The ASI461MM contains almost four times as many pixels as the ASI2600MM. An individual exposure therefore records almost four times as many spatial samples. Those additional samples contain real astronomical and optical information—not empty padding around an otherwise identical image.

Simultaneous coverage is different from a mosaic

It is sometimes argued that a smaller sensor can reproduce the larger sensor’s field of view by creating a mosaic. Geometrically, that is true. From the standpoint of acquisition, however, the datasets are not identical.

A mosaic records its panels at different times. Seeing, transparency, atmospheric extinction, sky brightness, focus, guiding accuracy, wind loading, passing clouds, light pollution, and sensor temperature can vary between panels. Transient phenomena may appear in one exposure and disappear before the next panel is recorded.

A large sensor records its entire field during the same atmospheric and mechanical interval. Every region is acquired under a temporally correlated set of conditions.

This changes the data stream in a way that a smaller detector cannot reproduce in one exposure. The larger detector produces a simultaneous radiometric map of a greater solid angle of sky. A mosaic can approximate the final composition, but it does not preserve the same simultaneity.

For wide-field surveys, variable-star measurements, moving objects, transient detection, integrated flux comparisons, and large structures surrounded by complex backgrounds, that simultaneity can be scientifically and aesthetically valuable.

The sensor does not exist independently of the camera surrounding it. As detector area increases, the camera must accommodate a larger optical chamber, protective window, mounting aperture, cooling system, tilt mechanism, electronics, and heat-removal structure. The Atik 16200 further demonstrates the physical demands of an older large-format CCD architecture, including its heavier housing and mechanical shutter. At the opposite extreme, the compact IMX585 requires only a fraction of the active focal-plane area. The exposed-sensor lineup makes the difference unmistakable: these are not merely similar cameras producing differently cropped photographs, but substantially different physical and electro-optical systems.

A larger sensor measures more of the telescope

A larger detector does not only capture more sky. It examines more of the telescope’s focal surface.

The ASI2600MM measures the central APS-C portion of the image circle. The ASI6200MM reaches the full-frame periphery. The ASI461MM extends into medium-format territory, where the telescope, corrector, filters, adapters, and mechanical alignment must perform across a 54.8-mm diagonal.

As the sampled field expands, the system becomes more sensitive to:

- Field curvature

- Coma and astigmatism

- Lateral chromatic aberration

- Distortion

- Sensor tilt and orthogonality errors

- Chief-ray incidence angle

- Microlens angular response

- Cos⁴ illumination falloff

- Filter and adapter vignetting

- Protective-window reflections

- Flat-field calibration residuals

A telescope can produce excellent stars on an APS-C detector while showing elongated stars, vignetting, or field curvature on full frame. That same telescope may be entirely incapable of illuminating or correcting a medium-format sensor.

The larger camera has not damaged the optical performance. It has simply measured areas of the focal plane that the smaller sensor never saw.

This imaging footprint can be clearly visible in the resulting photograph. The outer field reveals the performance of the complete optical system. In that sense, a larger sensor is not merely collecting a wider composition, it is conducting a more extensive examination of the telescope.

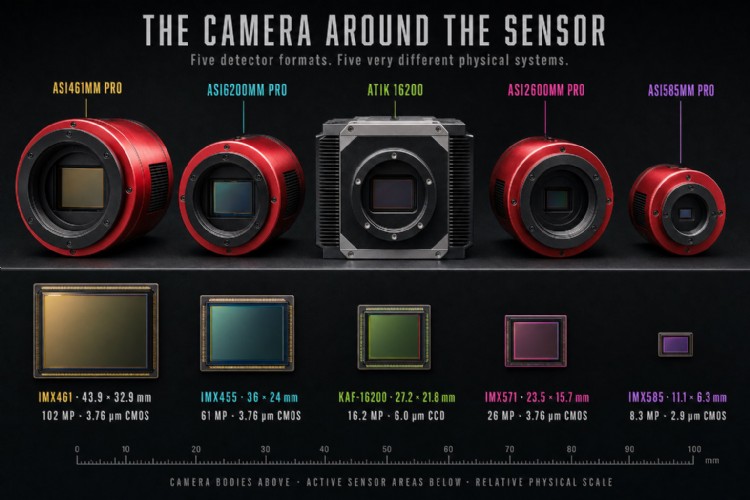

The physical cameras and imaging trains change

Sensor format also influences the camera’s construction - obviously right?

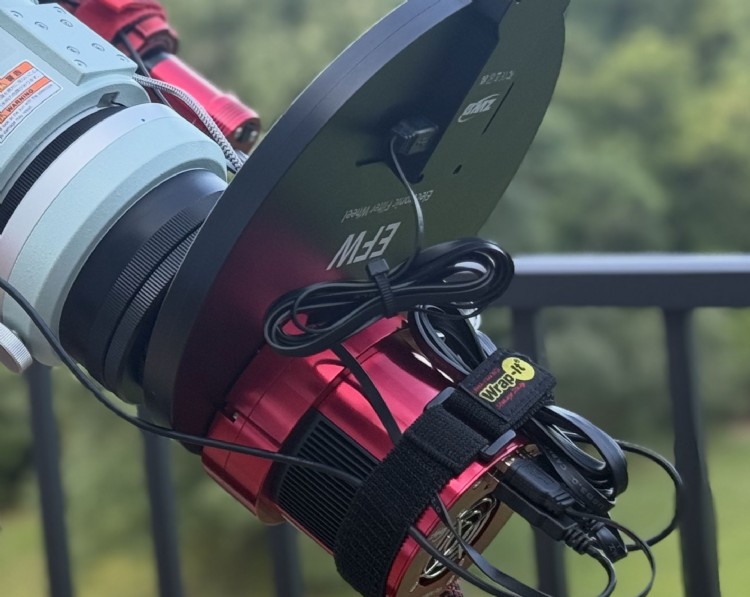

A larger detector requires an appropriately sized sensor package, optical chamber, protective window, front opening, tilt mechanism, desiccation system, and heat-removal path. The mechanical assembly must hold a larger focal plane with sufficient rigidity and orthogonality while maintaining controlled cooling.

The ASI2600MM and ASI6200MM may appear superficially similar, but their required optical ecosystems are different. The ASI461MM is a substantially larger physical platform with a wider protective window and M68-class front interface.

The supporting equipment must scale with the detector:

- Larger filters and filter wheels

- Wider adapters and extension tubes

- Larger off-axis guiders

- Greater focuser rigidity

- More precise tilt adjustment

- A larger corrected image circle

- Greater reducer or flattener clear aperture

- More demanding cable and weight management

An APS-C camera can often work successfully with 36-mm filters and relatively compact adapters. Full frame generally benefits from 2-inch or 50-mm-class filters and wider connections. Medium format pushes the entire imaging train into another mechanical category.

These are not cosmetic differences. They determine whether the sensor can receive an unobstructed, corrected, and properly focused wavefront.

The data stream becomes much larger

I have sort of grown with this one, starting many years ago with 1mp images, graduating to 204mb images took some serious beef for my Mac to catch up - even with an M5 CPU in a MBP.

The electronics and computational workflow also change substantially.

At 16 bits, an uncompressed ASI2600MM exposure contains approximately 52 MB of pixel data. The ASI6200MM produces roughly 122 MB, while the ASI461MM approaches 204 MB per exposure before additional software or metadata overhead.

A single 100-frame integration can therefore represent approximately:

- 5.2 GB from the ASI2600MM

- 12.2 GB from the ASI6200MM

- 20.4 GB from the ASI461MM

Add separate luminance, red, green, blue, hydrogen-alpha, oxygen-III, and sulfur-II integrations—as well as darks, flats, flat-darks, rejected frames, intermediate files, and processed masters—and the difference becomes enormous.

This affects buffer occupancy, download cadence, storage bandwidth, calibration time, image registration, local normalization, statistical rejection, memory consumption, integration time, and archival requirements.

More importantly, those additional bytes represent additional simultaneous measurements. They contain stars, photon statistics, background structure, gradients, aberrations, satellite trails, cosmic-ray events, and possibly transient astronomical phenomena distributed across a much larger field.

It is not merely a bigger file. It is a wider stream of spatial information.

Larger is not automatically better

None of this means that full frame or medium format is automatically superior.

If the intended target fits comfortably inside an APS-C field, the larger detector may provide no meaningful improvement in image scale or per-pixel signal-to-noise ratio. It may instead introduce greater cost, larger filters, more difficult tilt correction, heavier equipment, slower processing, and increased demands on the telescope’s corrected image circle.

The ASI2600MM can therefore be the better camera for many systems. Its APS-C format is easier to illuminate and correct, its files are more manageable, and its 3.76-micron pixels provide the same sampling as the larger cameras at a given focal length.

The correct question is not, “Which sensor is bigger?”

The correct question is, “Which detector format best matches the telescope, target, image circle, observing conditions, mechanical system, and intended acquisition?”

It is more than chip size

Saying these cameras differ only in chip size is similar to saying two telescopes differ only in aperture. Aperture is a physical dimension, but changing it affects resolution, light-gathering capacity, diffraction, focal geometry, mechanical stiffness, thermal behavior, atmospheric sensitivity, and observational capability.

Sensor size behaves the same way. It propagates through the complete optical, mechanical, thermal, electronic, computational, spatial, and temporal transfer function of the imaging system.

The ASI2600MM, ASI6200MM, and ASI461MM share important technological DNA, but they are not interchangeable cameras. They create different fields of view, impose different optical and mechanical requirements, produce dramatically different data volumes, and capture different quantities of spatial information simultaneously.

It isn’t merely more chip. It is a different imaging footprint, a different collective photon-acquisition regime, and ultimately a different kind of astronomical acquisition.

Technical sources

Sony IMX571 product information

Sony IMX455 product information

Sony IMX461 product information

ZWO ASI2600MM specifications

ZWO ASI6200 manual

ZWO ASI461MM specifications



Celestial Profile: The Elephant’s Trunk Nebula used in this article.

Common name: Elephant’s Trunk Nebula
Primary designation: IC 1396A
Associated designations: vdB 142; IC 1396; Trumpler 37
Object type: Dark, bright-rimmed globule embedded within an emission nebula and active stellar nursery
Constellation: Cepheus
Distance: Approximately 2,400 light-years
Apparent magnitude: Approximately 5.6 for the associated complex, although its low surface brightness makes it far more difficult to see than that number suggests
Estimated length: More than 20 light-years

The Elephant’s Trunk is not the entirety of IC 1396 - as seen in examples above. It is the dense, elongated cloud designated IC 1396A, silhouetted against the much larger IC 1396 ionized-gas complex. Intense ultraviolet radiation and stellar winds from the massive O-type star system HD 206267 sculpt and erode the cloud’s bright rim, compressing pockets of gas and dust where new stars continue to form.
