Automatic polar alignment for telescopes just got real

Polar alignment is a nuts-and-bolts procedure - an unglamorous but unavoidable step if we want precise tracking of the night sky with our telescopes. There’s nothing particularly elegant or mysterious about it. You’re simply aligning the polar axis (RA) of your mount as accurately as possible with the celestial pole of the planet you’re standing on...Earth of course!

Over the years, software (and some good hardware) has helped shorten this process, but the physical act of adjusting altitude and azimuth has largely remained unchanged.

Enter, a new DIY concept from AstrophilosLab, known as the APA (ahem, the "Automatic Polar Alignment"), that aims to make polar alignment automatic. There are actual commercial options out there already for this, Avalon Intruments for example, but this is a DIY kit you can make yourself at a fraction of the cost.

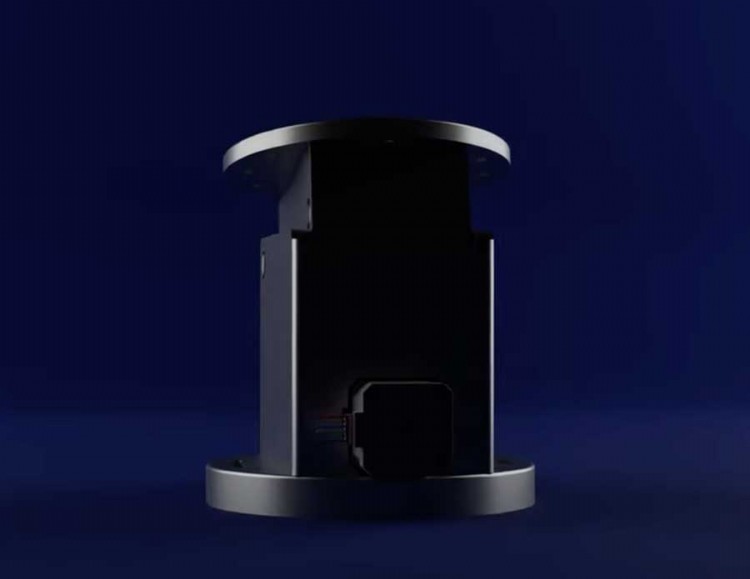

The APA is not a mount, nor is it an accessory that replaces existing alignment tools. Instead, it functions as a motorized pier that sits between tripod and equatorial mount. Its role is narrow and clearly defined: take a roughly aligned system and complete polar alignment automatically using software many astrophotographers already trust. The idea is not to add complexity, but to remove friction at the point where patience is often thinnest.

A focused concept from AstrophilosLab: How automatic polar alignment for telescopes could be here!

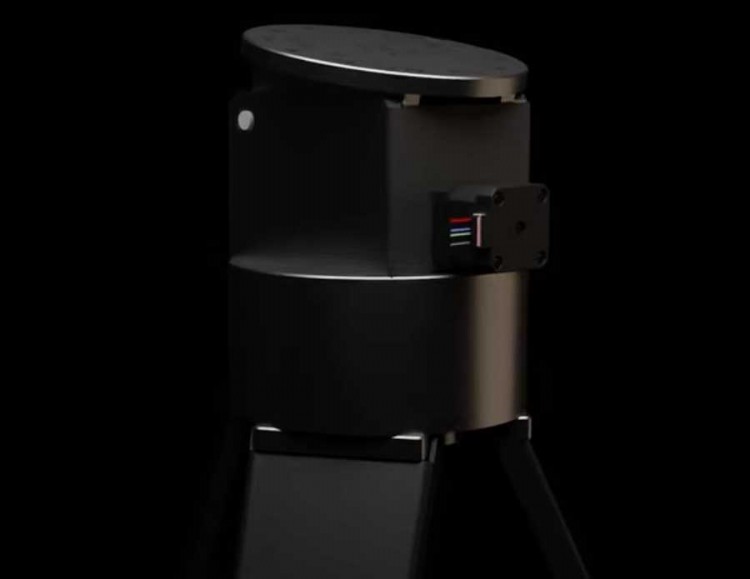

AstrophilosLab has positioned the APA as a practical extension of existing workflows rather than a disruptive replacement. The system is placed on top of a standard tripod, with the user mounting their equatorial head above it. Initial alignment is intentionally crude, performed with a compass or simple visual reference. Precision is not required at this stage.

Once connected to a computer running NINA, the APA works with NINA TPPA to complete polar alignment autonomously. Demonstration footage shows the system correcting an initial error of approximately 15 degrees down to arcseconds in under three minutes. The speed is notable, but the real value lies in consistency. The process does not depend on manual adjustments or repeated iterations. It follows the same steps every time, which is often what observers value most during limited clear nights.

Power when needed, passive when not

One of the more cool design choices from AstrophilosLab is how the APA behaves after alignment is complete. Once polar alignment finishes, the device no longer requires power. The motors disengage, and the unit functions as a passive pier for the remainder of the imaging session.

This approach reflects an understanding of real-world field use. Power distribution is a constant concern for portable astrophotographers, especially those running cooled cameras, dew heaters, and computers from battery supplies. Removing an active device from the power chain once its task is done simplifies setup and reduces the chance of unexpected interruptions later in the night.

Mechanical range designed for forgiveness

Mechanically, the APA provides plus and minus 10 degrees of movement on the altitude axis, for a total of 20 degrees of freedom, along with a full 360 degrees of rotation on the azimuth axis. This generous range allows the mount to be placed almost anywhere within reason and still be corrected automatically.

The intent is not to eliminate understanding of polar alignment, but to make the starting point far less critical. For backyard astronomers setting up on familiar ground, this can turn a routine task into a predictable one. For those imaging from darker sites or uneven terrain, it removes some of the stress that comes with hurried setup before darkness falls.

Dimensions, weight, and practical considerations

In its full metal configuration, the APA weighs approximately 12.1 lb (5.5 kg). It measures about 6.3" (160 mm) in diameter and stands roughly 7.9" (200 mm) tall. These dimensions place it squarely in the category of substantial accessories rather than lightweight travel gear.

That weight is intentional. AstrophilosLab has designed the system to scale with the payload above it, prioritizing rigidity and stability over portability when needed. The APA is not aimed at ultralight rigs, but at serious imaging setups where mechanical flex and repeatability matter.

Modular construction for different payloads

A defining characteristic of the APA is its modular construction. Depending on the weight of the imaging system, builders can choose between fully 3D printed components, hybrid assemblies combining plastic and metal, or fully machined aluminum parts.

For very light setups, an entirely printed version may be sufficient. Mid-range rigs can benefit from a hybrid approach, balancing strength and cost. For payloads exceeding 33 lb (15 kg), AstrophilosLab recommends a full aluminum build, with examples given for systems reaching 66 to 77 lb (30 to 35 kg). This flexibility reflects a DIY philosophy that assumes users understand their equipment and are willing to tailor the build accordingly.

Files instead of finished hardware

The APA is currently offered as a DIY project rather than a finished commercial product. AstrophilosLab plans to sell the complete design files, allowing users to manufacture and assemble the system themselves. The files are provided in STEP format, which supports machining, third party fabrication, and customization.

The stated price for the full file set is $44.99. This includes all components needed to build the device. While that figure may initially seem high for just files, it reflects the complexity of the mechanical system and the reality that this is not mass-produced hardware. It is intended for users comfortable investing time and resources into building equipment tailored to their needs.

Open source software and community validation

In keeping with the DIY approach, the APA software is planned to be open source and free to download. Users are encouraged to modify and adapt it, whether to integrate additional features or experiment with alternative workflows.

AstrophilosLab points to prior experience with community-driven projects, notably the VTRI equatorial mount. More than 110 people purchased those files, with over 70 actively using the mount as their primary system today. That track record provides context for the APA as part of a longer-term effort rather than an isolated experiment.

A structured rollout is planned, including three dedicated videos covering real-world operation, full assembly, and live sky testing under deliberately poor initial alignment conditions. Additional units are expected to be shared with astrophotography-focused creators for independent evaluation.

Automatic polar alignment for your astrophotography

Rather than chasing novelty, the APA from AstrophilosLab focuses on one of the most persistent friction points in imaging and addresses it with mechanical clarity and open design. It respects existing software, familiar mounts, and the hands-on mindset of the amateur astronomy community.

The APA isn’t available yet. But for astrophotographers who value control, repeatability, and thoughtful engineering, the concept offers a glimpse of how automation can coexist with DIY craftsmanship. It’s a small look into the crystal ball of innovation, one that lets amateurs like us peer a little closer to the photons we’re trying to capture, and removes yet another task from the long checklist.
