Terrans PowerBoxGo V2

Terransindustry is proud to introduce the PowerBoxGo V2, a high-performance telescope photography management box designed for private observatories and remote astronomical photography. Priced at $197.30, this versatile device simplifies power and data management for astronomy enthusiasts by offering an easy and efficient way to control power supply and USB communication for connected devices. The PowerBoxGo V2 is equipped with a variety of advanced features, providing a solution to the complexity often associated with managing multiple astronomical devices.

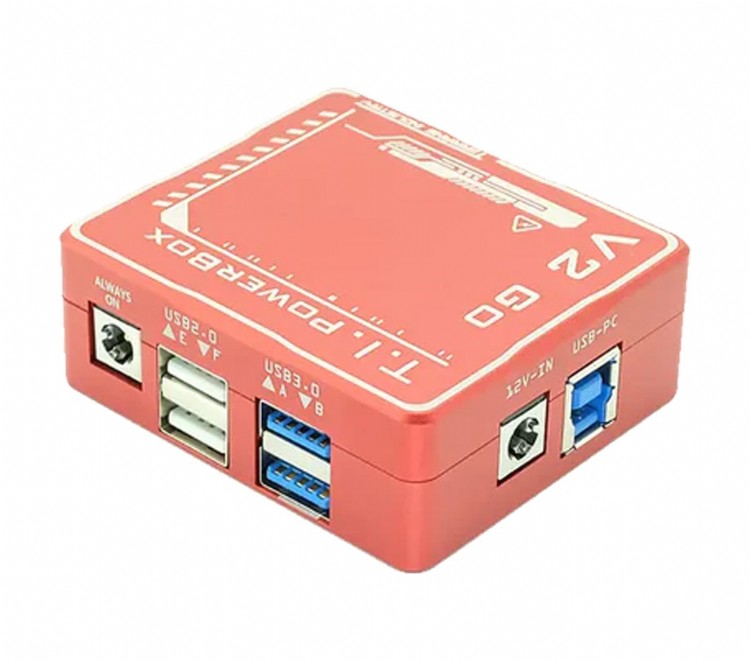

Terrans PowerBoxGo V2

The PowerBoxGo V2 is designed to meet the power and data needs of users working in remote observatories. It comes with two USB 3.1 SuperSpeed ports and two USB 2.0 ports, allowing for efficient data transfer and control of connected devices. Additionally, it features five 12V DC power output ports and one 12V Always ON port, providing ample power for various devices that are often required for astronomical operations. The device supports a maximum power output of 120W, which is sufficient to meet the power demands of most astronomical devices and cameras. The PowerBoxGo V2 is a solution to the often challenging task of managing multiple cables and power sources in an observatory setting, providing users with the convenience of simplifying their connections to just one power cord and one USB cable.

The PowerBoxGo V2 offers exceptional flexibility and ease of use with its individual power switches for each port. This allows users to control each device independently. Each USB port of the device supports up to 2A of current output, and the integrated management chips from Texas Instruments ensure smooth, reliable data communication. The USB 3.1 ports are capable of delivering high-speed data transfer, while the USB 2.0 ports provide reliable communication for lower-speed devices. Additionally, the device’s remote observatory station software allows users to quickly reset a device remotely if it becomes unresponsive or exhibits any abnormal behavior. This feature enhances the device's usability, especially in remote locations where quick physical access to the equipment might not be possible.

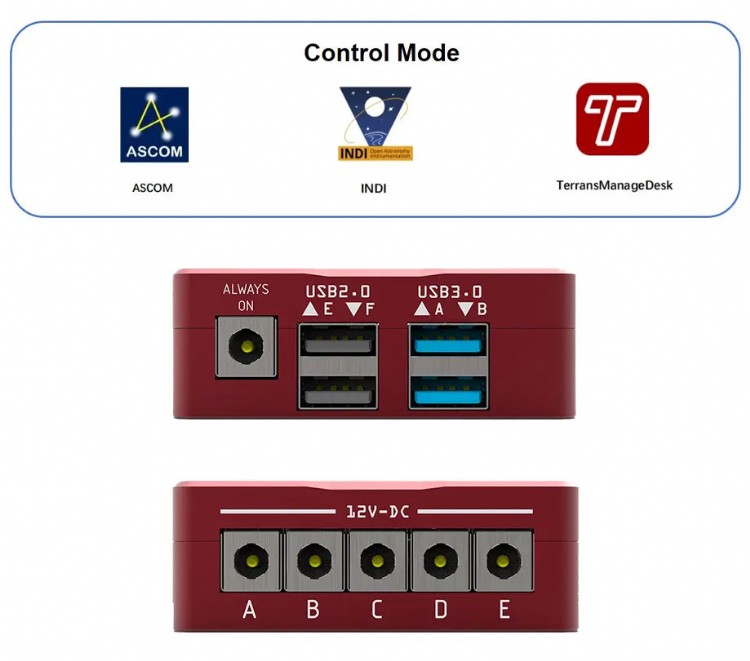

Control mode and ports

One of the key highlights of the PowerBoxGo V2 is its advanced DC power management system. It is equipped with five 12V DC power output ports, each featuring an independent power management chip to ensure the safety of all connected electrical devices. These ports can each support a maximum current output of 8A, making them suitable for devices that require higher power. Additionally, the 12V Always ON port supports a maximum output of 5A, with built-in reverse connection protection to prevent any potential damage caused by incorrect wiring. The device ensures the safe operation of all connected equipment, thanks to its short circuit protection system. If any port experiences a short circuit, the power management chip will immediately cut off power to that port, leaving the rest of the system unaffected.

The device is designed with safety in mind, offering comprehensive protection features. For example, when the input voltage falls outside the safe operating range of 10V to 14V, the PowerBoxGo V2 automatically disables all power outputs and triggers an alarm to alert the user. This feature helps prevent damage to both the device and the connected equipment. The maximum input current supported by the device is 10A, and when the input voltage is 12V, the maximum output power is 120W. This ensures that the PowerBoxGo V2 can supply reliable power to a range of devices commonly used in astronomical photography.

Another key feature of the PowerBoxGo V2 is its ability to monitor and display real-time data on input voltage, input current, and power output. The device's software provides users with detailed insights into the power consumption of their connected devices, making it easier to monitor the overall performance of the system and ensure efficient operation. The real-time monitoring helps prevent power issues by alerting users to any irregularities or potential problems with the power supply, making the device a reliable companion for users working in remote observatories.

The PowerBoxGo V2 also features advanced protection mechanisms for its USB ports. Each USB port is equipped with an independent power switch and is protected with overcurrent and short circuit protection. In addition, the device provides reverse current blocking to prevent damage from abnormal electrical devices, and it includes overheat protection that shuts down the power supply when the temperature of the power supply chip exceeds 135°C. This ensures the device remains safe to use even in challenging conditions.

The 12V DC adjustable output is another feature that sets the PowerBoxGo V2 apart. This output is non-switchable and always ON, providing a consistent power source for devices such as PCs. It also supports reverse connection protection, ensuring safe and reliable operation. The PowerBoxGo V2 also offers voltage and current detection, enabling users to monitor the health of their power supply and ensure that their equipment is receiving the correct voltage and current for optimal performance.

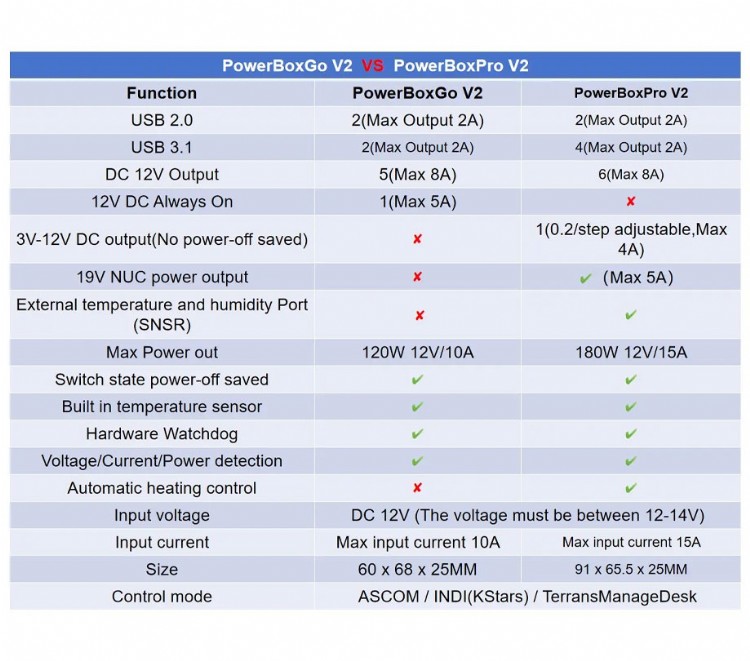

PowerBoxGo V2 vs PowerBoxPro V2 Function Comparison

USB 2.0 Ports:

• PowerBoxGo V2: 2 (Max Output 2A)
• PowerBoxPro V2: 2 (Max Output 2A)


USB 3.1 Ports:

• PowerBoxGo V2: 2 (Max Output 2A)
• PowerBoxPro V2: 4 (Max Output 2A)


DC 12V Output:

• PowerBoxGo V2: 5 (Max 8A)
• PowerBoxPro V2: 6 (Max 8A)


12V DC Always On:

• PowerBoxGo V2: 1 (Max 5A)
• PowerBoxPro V2: 3V-12V DC output (No power-off saved, 1, 0.2/step adjustable, Max 4A)


19V NUC Power Output:

• PowerBoxGo V2: Yes (Max 5A)
• PowerBoxPro V2: No


External Temperature and Humidity Port (SNSR):

• PowerBoxGo V2: No
• PowerBoxPro V2: Yes


Max Power Output:

• PowerBoxGo V2: 120W (12V/10A)
• PowerBoxPro V2: 180W (12V/15A)


Switch State Power-Off Saved:

• PowerBoxGo V2: Yes
• PowerBoxPro V2: No


Built-In Temperature Sensor:

• PowerBoxGo V2: Yes
• PowerBoxPro V2: Yes


Hardware Watchdog:

• PowerBoxGo V2: Yes
• PowerBoxPro V2: Yes


Voltage/Current/Power Detection:

• PowerBoxGo V2: Yes
• PowerBoxPro V2: Yes


Automatic Heating Control:

• PowerBoxGo V2: Yes
• PowerBoxPro V2: Yes


Input Voltage:

• PowerBoxGo V2: DC 12V (Between 12-14V)
• PowerBoxPro V2: DC 12V (Between 12-14V)


Input Current:

• PowerBoxGo V2: Max Input Current 10A
• PowerBoxPro V2: Max Input Current 15A


Size:

• PowerBoxGo V2: 60 x 68 x 25MM
• PowerBoxPro V2: 91 x 65.5 x 25MM


Control Mode:

• PowerBoxGo V2: ASCOM / INDI (KStars) / TerransManageDesk
• PowerBoxPro V2: ASCOM / INDI (KStars) / TerransManageDesk

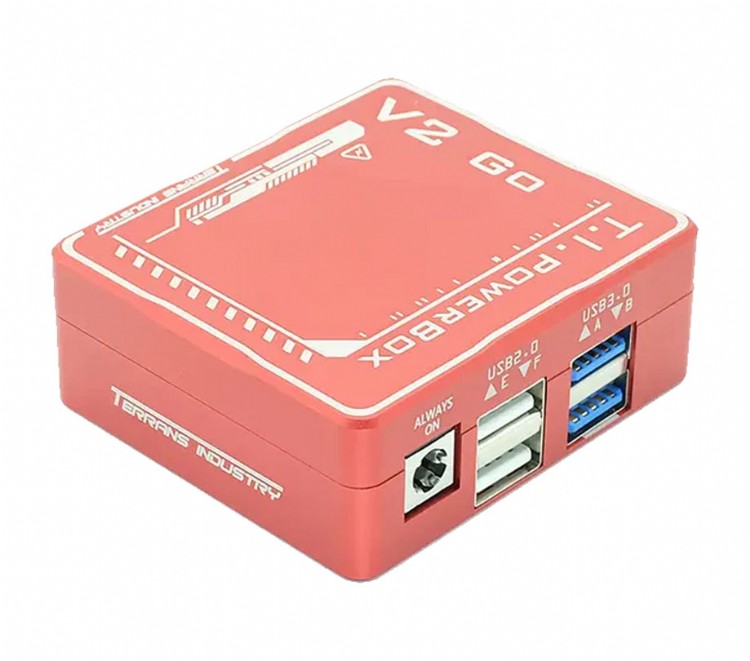

Designed for private observatories

Despite its advanced capabilities, the PowerBoxGo V2 maintains a compact form factor, making it easy to integrate into existing observatory setups. Measuring just 60 x 68 x 25MM, the device is designed to be both powerful and portable. The PowerBoxGo V2 is an ideal solution for private observatories, offering everything needed to manage power and data in one compact, user-friendly device.

The device is fully compatible with ASCOM, INDI (KStars), and TerransManageDesk control software, giving users the flexibility to integrate the PowerBoxGo V2 into their existing workflows. Whether users are conducting imaging sessions or managing telescope operations, the PowerBoxGo V2 streamlines the process by providing an all-in-one power and data management solution.

In conclusion, the Terransindustry PowerBoxGo V2 is a powerful, efficient, and reliable solution for managing power and data in private observatories and remote astronomical photography setups. With its variety of ports, advanced protection features, and real-time monitoring capabilities, it is the ideal tool for astronomers who require a streamlined, user-friendly solution for controlling their equipment. At a price of $197.30, the PowerBoxGo V2 offers exceptional value, combining high performance with ease of use to meet the demands of serious astronomy enthusiasts. Whether you are looking to simplify your power connections or improve the reliability of your remote observatory setup, the PowerBoxGo V2 is a product designed to deliver performance and convenience in one compact package.
