At a Glance The Telescope Control Center Platform from Rouz Astro offers a lightweight, modular solution for setting up telescope control systems. It supports multiple devices, efficient cable management, and is made from high-strength carbon fiber composite material.

The Telescope Control Center Platform from Rouz Astro was designed for Losmandy or Vixen type dovetails. This platform enables users to set up a comprehensive telescope control center with ease. Its modular design supports configurations with mini PCs, ZWO ASIAIR devices, and power distribution hubs, allowing for customized setups.

Telescope Control Center Platform key benefits:

  • Single Unit Flexibility: This platform can be effortlessly transferred between telescopes without the need for rewiring.
  • Lightweight Construction: The platform's design minimizes the use of multiple clamps and brackets, reducing overall weight and improving mount performance and image quality.
  • Efficient Cable Management: The compact layout ensures neat wiring with short cables, reducing the risk of snags.
  • Multiple Mounting Options: It offers nine mounting positions, allowing devices to be oriented in any direction.

Telescope Control Center Platform from Rouz Astro

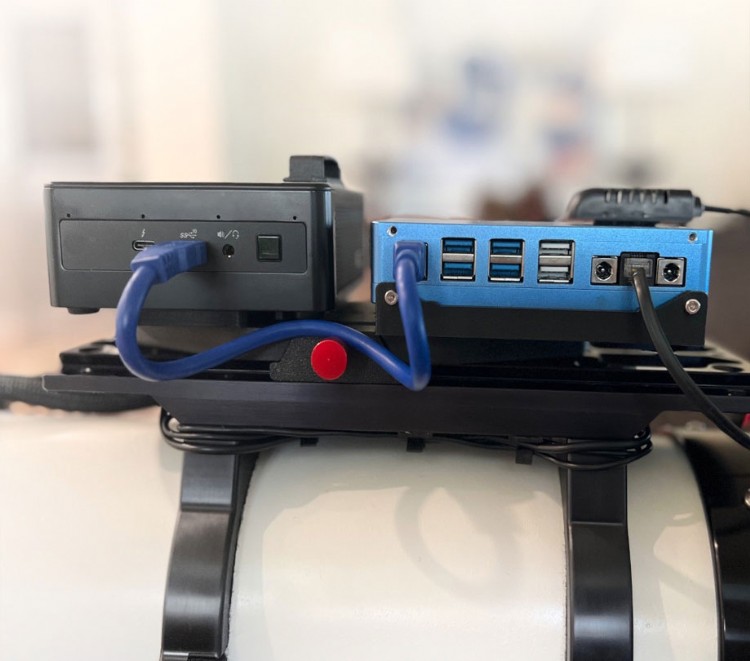

Telescope Control Center bracket options

Telescope Control Center bracket options

  • Mele Quieter Mini PCs
  • Pegasus Ultimate Power Box (UBPV2 & UBPV3)
  • Pegasus Powerbox Micro
  • Pegasus USB Control Hub
  • Pocket Powerbox Advance 2 (PPBADV2)
  • Intel NUC
  • BeeLink Mini PC
  • Optec Controllers (Gemini, Leo, Sagitta)
  • ZWO ASIAIR (Mini, Pro, Plus) - direct bolt-on, no bracket needed
  • WandererBox Controllers - direct bolt-on, M4 bolts included
  • Standard Finder Shoe (Orion/Synta)
  • All-Sky Camera Mount (1.25" Camera Holder)
  • Versa Mount 75x75 + 100x100

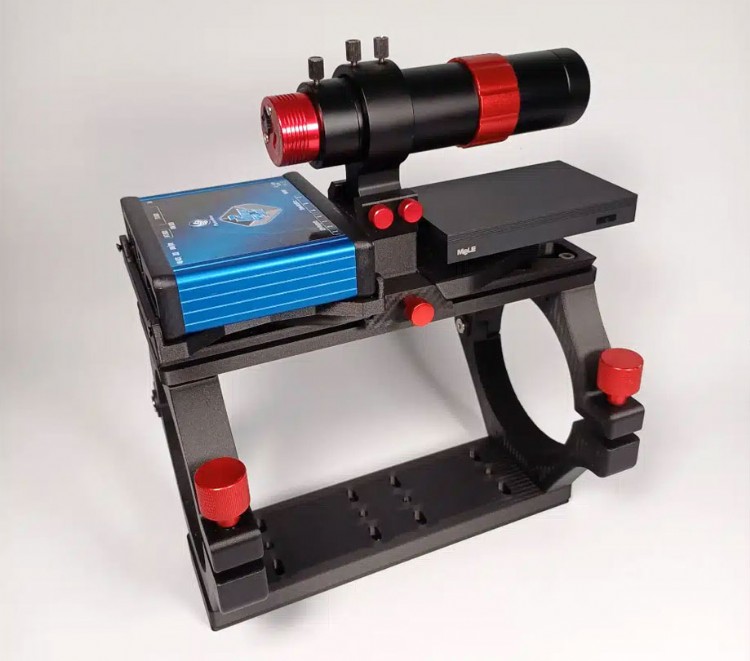

Telescope Control Center mechanical features

Telescope Control Center mechanical features

  • The platform is CAD-designed and FDM printed, utilizing a robust carbon fiber composite material that provides superior strength and lightweight characteristics.
  • The composite material used is a blend of polymers and carbon fiber, fused at temperatures exceeding 500°F, eliminating the need for glue or epoxy.
  • It features a machined aluminum knob with stainless steel hardware and a spring-loaded mechanism for secure attachment.

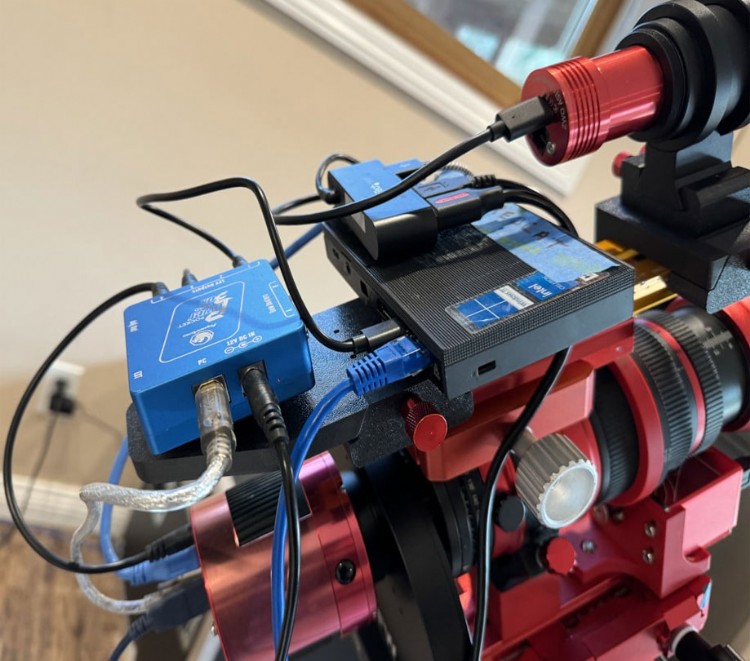

Telescope Control Center specifications

Telescope Control Center specifications

  • Weight: Approximately 130 grams (0.3 lbs.)
  • Length: 218mm (8.5 inches)
  • Material: Carbon fiber composite, FDM printed
  • Knob: CNC aluminum (red)
  • Resistance: High resistance to UV, water, and temperatures up to 60°C (140°F)


This platform's nine mounting positions and compatibility with various control devices make it a versatile choice for astrophotographers. With its durable carbon fiber build and lightweight design, it enhances performance and simplifies setup for any telescope.
