NEEWER LS-T22 Electronic Telescope Eyepiece

The NEEWER LS-T22 1.25" Electronic Telescope Eyepiece is designed to make digital stargazing more accessible and user-friendly than ever. Built to fit any telescope with a standard 1.25-inch focuser, this compact device replaces the traditional eyepiece with a digital imaging system. Instead of squinting through glass, observers get a live 1080p image streamed directly to their phone or tablet through a wireless connection. Its built-in low-light CMOS sensor captures clear views of the Moon, planets, and bright deep-sky objects. You simply power it on, connect to the eyepiece’s Wi-Fi hotspot, and launch the NEEWER app, from there, you can view, record, and save what your telescope sees, right on your device.

1.25" NEEWER LS-T22 Electronic Telescope Eyepiece with App Control

Ease of use is one of the LS-T22’s biggest selling points. There's no need for cables, adapters, or computers. The entire experience runs wirelessly, powered by a built-in rechargeable battery with about 2.5 hours of operating time. Once it's inserted into the telescope, you handle everything else from the app, including live preview, brightness adjustments, and capturing photos or videos. The sensor is optimized for lunar and planetary imaging, offering excellent contrast and clarity for the Moon's surface and planets like Jupiter or Saturn. While it isn't designed for deep-sky astrophotography, it handles bright objects well enough to satisfy beginners or casual observers. For public demonstrations, outreach, or educational purposes, this eyepiece shines, literally projecting the cosmos onto a screen for everyone to enjoy.

Beyond the optics and electronics, the LS-T22 is also a well-thought-out piece of gear from a design standpoint. It weighs just 4.9 ounces, making it easy to transport and mount without throwing off telescope balance. The body combines durable ABS plastic with metal components for a lightweight yet sturdy feel. It comes with a USB-C charging cable and dust cap, though there’s no included case. While it lacks advanced features like gain or exposure control, its simplicity is the point. This is a device made for beginners, students, and hobbyists who want to see the Moon in HD on their phone or share Saturn’s rings on social media with a single tap. With a current price around $100, it’s a compelling alternative to more complex and expensive imaging setups.

NEEWER LS-T22 1.25" specifications

• Eyepiece Type: Electronic digital eyepiece
• Barrel Size: 1.25 inch (standard telescope size)
• Sensor Resolution: 1920 x 1080 (Full HD)
• Output Format: Digital stream to mobile device
• Connectivity: 2.4 GHz Wi-Fi hotspot (internal)
• Control Interface: NEEWER app (iOS and Android)
• Power Supply: Built-in rechargeable battery
• Charging Port: USB Type-C
• Housing Material: Metal and ABS plastic
• Weight: 4.9 oz (just under 1/3 lb)
• Color: Black


Optical and Imaging Details

• Sensor Type: Low-light CMOS imaging sensor
• Video Capture: 1080p real-time streaming
• Photo Capture: Still image capture via app interface
• Live Preview: Real-time viewing with adjustable resolution and brightness
• Focus Control: Manual, using the telescope’s focuser


App & Control Features

• App Name: NEEWER Telescope App (free download)
• Device Compatibility: Android and iOS smartphones/tablets
• Control Functions: Live video preview, Photo and video capture, Real-time adjustment of image brightness, Local storage of captured files on the mobile device
• Connection Method: The LS-T22 generates a self-contained Wi-Fi signal, Mobile device connects directly, no router or internet required


Telescope Compatibility

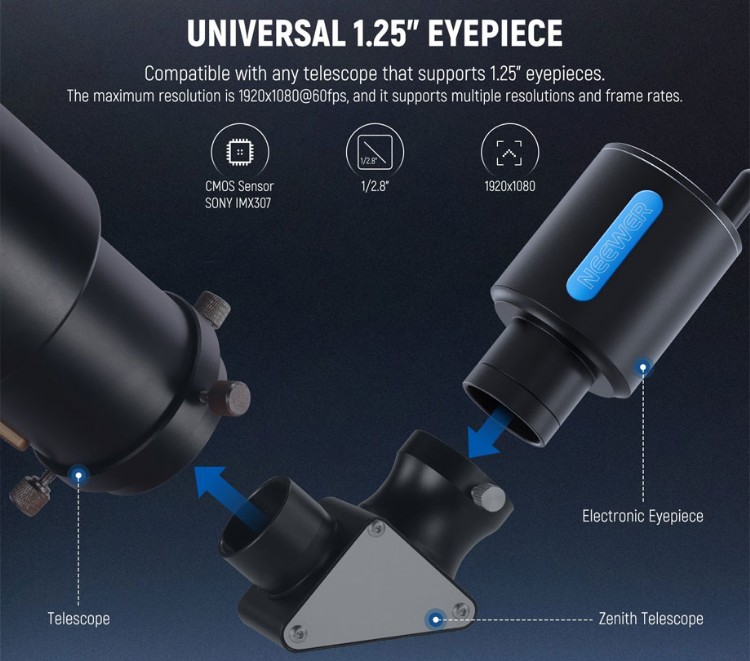

• Fits any telescope with a standard 1.25" focuser or diagonal
• Works with refractors, reflectors, and compound telescopes
• Ideal for focal lengths between 400mm and 2000mm for best results


Device Compatibility

• Works with most current Android and iOS devices
• Some older phones may struggle with high-resolution streaming


Limitations

• No Manual Exposure Control: The app controls basic brightness but lacks advanced image settings like gain or exposure time.
• Not Suitable for Deep-Sky Imaging: The sensor is optimized for bright objects. Faint galaxies or nebulae are not easily captured.
• No Direct PC Support: Entirely app-based; no USB video output or desktop control.

Physical Design

• Compact and Portable: Easily fits into telescope accessory cases or pockets
• Build Quality: Mix of metal and plastic for weight reduction without feeling flimsy
• LED Indicators: Power and connection status indicators on the eyepiece body


Battery and Charging

• Battery Life: Up to 2.5 hours of continuous operation on a full charge

• Charging Time: Approximately 90 minutes via USB-C
• Power Source: Internal lithium-ion battery (non-removable)


Package Contents

• LS-T22 Electronic Eyepiece
• USB-C Charging Cable
• Protective Dust Cap
• Quick Start Guide
• (No carrying case or adapters included)


Pricing (as of March 2025)

• MSRP: $129.99 USD
• Current Sale Price: ~$99.99 USD (from NEEWER official store)

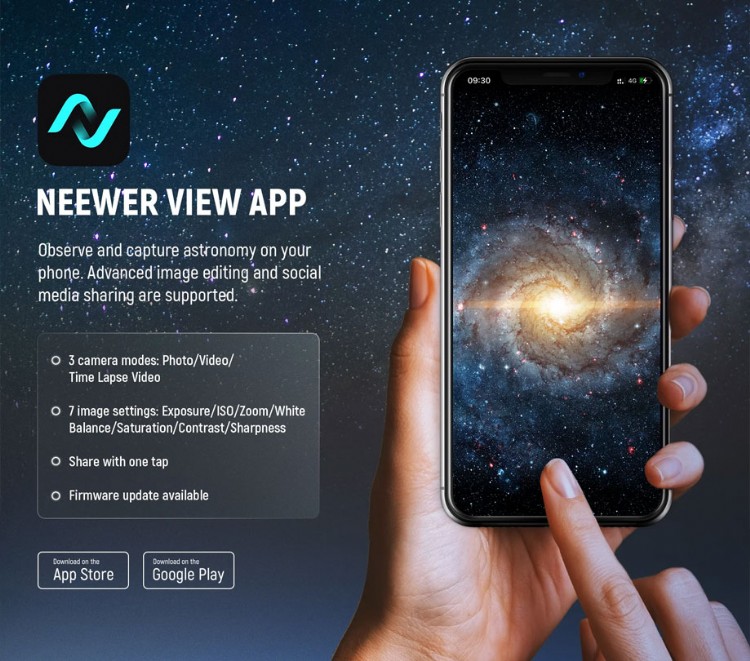

NEEWER View App

Final thoughts and technical recap of the NEEWER LS-T22

In terms of specs, the NEEWER LS-T22 hits a practical sweet spot between affordability, portability, and functionality. The 1080p Full HD sensor is tuned for bright objects and delivers crisp real-time video streaming straight to your mobile device via a dedicated app. It doesn’t rely on your home Wi-Fi or require any internet connection, the eyepiece itself generates a local 2.4 GHz signal for fast, reliable communication with your phone or tablet. Control is handled entirely within the app, allowing users to monitor live images, adjust settings, and record content effortlessly. Its rechargeable battery is rated for roughly two and a half hours of use per charge and is easily recharged with a USB-C cable. All of this fits into a lightweight body under five ounces, which means it won’t stress your telescope’s focuser or require any balancing adjustments.

While the LS-T22 isn’t a replacement for dedicated astrophotography cameras, it fills an important niche. It's perfect for casual astronomers who want to enhance their observing sessions or capture basic photos and videos for sharing. The 1.25-inch universal fit ensures wide compatibility, and the internal app-based controls eliminate the need for adapters or external devices. With solid build quality, wireless convenience, and beginner-friendly operation, the LS-T22 brings the digital universe within reach for just about anyone. Whether you're showcasing the lunar surface in a classroom or posting Saturn to Instagram from your backyard, this electronic eyepiece offers a new way to connect with the night sky, all without the steep learning curve.
