EZT Astro harmonic EQ Alt-Az MEQ-17EX is now available

The South Korean manufacturer EZT Astro has introduced a new dual-mode telescope mount, the MEQ-17EX, a harmonic-drive equatorial and alt-azimuth hybrid designed for serious astrophotographers and observatories seeking compact power and stability. The mount combines harmonic gear technology, dual-axis control, and a minimalist body that weighs just six kilograms, making it practical for both portable imaging sessions and semi-permanent installations.

Key capabilities and design

The MEQ-17EX uses precision harmonic drives on both the right ascension (RA) and declination (DEC) axes. Each axis is built with a 100:1 reduction ratio, giving the system high torque with minimal backlash. The harmonic design means there are no traditional worm gears, which greatly reduces mechanical play, offering smoother, more consistent tracking for long exposures.

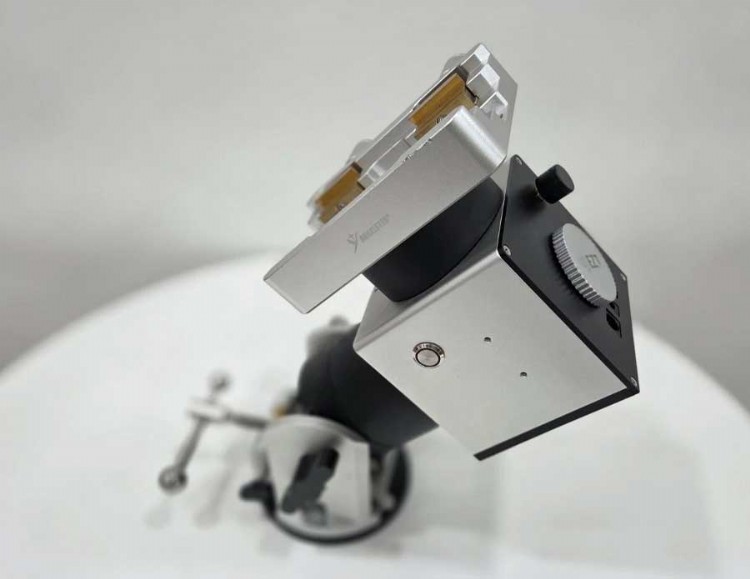

Above photo credit: EZT Astro

The mount supports both equatorial (EQ) and alt-azimuth (AZ) configurations. This makes it equally effective for deep-sky imaging, solar and lunar tracking, and casual visual observing. The ability to switch between the two modes allows users to tailor their setup for different observing conditions without changing equipment.

Another feature is its counterweight-optional system, which enables mounting lighter telescope rigs without the need for a counterweight bar or additional weights. For larger payloads, users can still employ the M12×1.75 threaded shaft for traditional balancing. This flexibility makes the MEQ-17EX attractive to mobile users who want to minimize setup time while maintaining precision.

Technical specifications and performance

• Mount type: Harmonic equatorial and alt-azimuth
• Drive gears: Dual harmonic drives (Model 17), 100:1 ratio each axis
• Motors: NEMA 17 hybrid stepper motors with 10:1 gearbox
• Payload (recommended): 15 kg
• Payload (maximum): 25 kg (balanced with counterweight and reduced slew speed)
• Weight: 6 kg including dual saddle
• Altitude range: 0°-90°
• Azimuth range: ±5°
• Saddle type: Losmandy and Vixen compatible
• Counterweight shaft thread: M12×1.75
• Max slewing speed: 5°/sec
• Interfaces: USB 2.0 and Wi-Fi (802.11 b/g/n/e/i)
• Power input: 12–24 V DC (5.5×2.1 mm connector)
• Power consumption: 0.5 A standby, 0.7 A tracking, 1.2 A slewing
• Guiding: ST-4 compatible
• Operating temperature: -10 °C to 40 °C

The combination of low power draw, modern communication ports, and robust motor control gives the MEQ-17EX a versatile balance of efficiency and strength. Its internal gearing and software control allow smooth slewing and accurate sidereal tracking for long imaging runs.

Photo credit: EZT Astro

Modes of use and applications

The dual-mode system expands the mount’s versatility. In equatorial mode, the MEQ-17EX tracks the sky using polar alignment, ideal for long-exposure astrophotography of galaxies, nebulae, and other deep-sky objects. In alt-azimuth mode, the mount simplifies setup by eliminating the need for polar alignment—useful for outreach events, quick observing sessions, or planetary imaging.

The light weight allows it to pair easily with portable tripods or compact piers, while the high payload capacity supports mid-sized refractors, Newtonians, and small Ritchey-Chrétien telescopes. The integrated Wi-Fi and USB connectivity enable remote control through guiding software and mobile devices, aligning it with modern imaging workflows.

The MEQ-17EX also includes an integrated ST-4 guiding port for compatibility with auto-guiding systems, making it a strong option for imaging sequences that require sub-arcsecond precision. The hybrid drive mechanism produces minimal backlash, improving tracking quality for high-magnification imaging.

Pricing and availability

The MEQ-17EX is available for order directly from EZT Astro and through select distributors in Asia and Europe. The typical listed retail price is around US $1,499, though regional pricing may vary. Accessories such as the counterweight bar, Wi-Fi module, and control cables can be purchased separately. Buyers can also add optional firmware updates and software support for ASCOM and Alpaca control systems, ensuring compatibility with major astronomy platforms.

Each mount is tested before shipping and includes a carrying case, AC power cable, and user documentation. Early feedback from users notes its quiet operation and stable tracking under heavy load, suggesting that the MEQ-17EX could compete with more established models in the mid-range harmonic-drive category.

Considerations for buyers

For astrophotographers planning to mount large optical tubes or imaging trains, the MEQ-17EX’s torque output provides strong support, but payload limits should be respected for best performance. While it can function without counterweights, balance remains important when carrying heavy equipment.

Users seeking to automate their observatories can benefit from the MEQ-17EX’s dual connectivity and guiding features. The unit’s efficiency also makes it suitable for battery-powered remote imaging setups.

Potential owners should also consider the difference between alt-azimuth and equatorial operation: while alt-az mode offers faster setup, equatorial alignment is necessary for deep-sky tracking to avoid field rotation.

Expanding harmonic drive accessibility

EZT Astro’s design demonstrates a growing shift in amateur astronomy toward harmonic-drive mounts, which use strain-wave gearing to deliver compact performance with minimal mechanical maintenance. Once limited to industrial robotics and high-end observatory equipment, harmonic mounts are now emerging as portable alternatives for users who need precision in a small package.

The MEQ-17EX continues this trend by offering both flexibility and strength at a moderate price point. Its accessibility may encourage more enthusiasts to adopt harmonic-drive technology as an upgrade from traditional worm-gear mounts.

Available now the EZT Astro harmonic EQ/Alt-Az MEQ-17EX

The EZT Astro harmonic EQ/Alt-Az MEQ-17EX represents a capable entry in the evolving class of harmonic-drive telescope mounts. Combining a lightweight chassis, high torque output, dual operational modes, and modern connectivity, it provides both portability and performance. For astrophotographers seeking a compact yet precise mount for demanding imaging work, the MEQ-17EX stands out as a forward-looking tool in the growing market for advanced harmonic systems.
