Seestar S50 Pro Review

30 Days of Real-World Testing, Images, EQ Performance and OS08B10 Sensor Analysis

The wait is over. ZWO has just moved the needle with the all new Seestar S50 Pro. Similar to the S30 Pro, but with more of a punch, the S50 Pro takes the idea of a portable, app controlled observatory and gives it a 50 millimeter objective, a 260 millimeter focal length, a redesigned four element folded apochromatic optical system, an OmniVision OS08B10 (4K resolution, 3840 x 2160 pixels, 8.3 MP) main camera, a second 4K wide angle camera, a stronger precision drive, and a 10,000 mAh battery.

That is the quick description. It is not the review.

I have spent more than forty years working with telescopes, and most of that time has been tied in one way or another to astrophotography. I have used small refractors, large refractors, mirrored systems, German equatorial mounts, strain wave mounts, cooled monochrome cameras, one shot color cameras, and enough software to know that a good feature list does not always survive first contact with the night sky. I also make my living designing computer systems, so I tend to look at a telescope like this as an entire platform. The optics matter. The camera matters. The drive matters. The software matters. More importantly, all of those parts have to work together without one weak link spoiling the evening.

ZWO supplied the S50 Pro for evaluation, but the opinions here are mine. I tested it beside the S30 Pro, under the same sky, on the same kinds of targets, and over enough nights to get past the first impression. I used it in normal Alt-Az operation and in equatorial mode. I let it run long sessions. I used the automatic processing, exported individual frames, compared its images with data from larger dedicated systems, and paid attention to the little things that become obvious only after the new equipment smell has worn off.

How I Tested the Seestar S50 Pro

Testing period: 30 days
Experience: 40+ years in astronomy and astrophotography
Modes tested: Alt-Az and Equatorial
Maximum exposures tested: 60 seconds

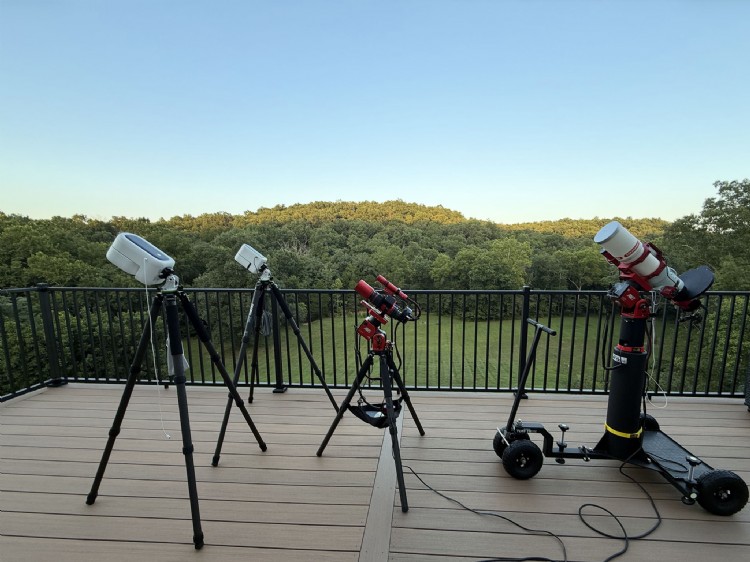

Comparison telescope: Seestar S30 Pro / Takahashi FSQ-106EDX4 (for fun)
Data tested: Seestar stacks and individual exported frames
Processing: Seestar, PixInsight and Photoshop
Sky conditions: Missouri Bortle level 3

My early conclusion is fairly simple. The S50 Pro is a meaningful step beyond the S30 Pro, but not for the lazy reason that 50 is a bigger number than 30. The important improvement is the way the 50 millimeter aperture, 260 millimeter focal length, OmniVision OS08B10 (4K resolution, 3840 x 2160 pixels, 8.3 MP) sensor, corrected field, and lower backlash drive work together. That combination gives the telescope more reach, better sampling, stronger mechanical consistency, and a much more useful native frame for deep sky work.

Quick Verdict

After a month of testing, the Seestar S50 Pro is the Seestar I would choose for my own astrophotography. The 50 mm aperture, 260 mm focal length, larger 4K field, 60-second EQ exposures and improved drive make it noticeably more capable on galaxies, compact nebulae and fine structure than the S30 Pro. It is larger, more expensive and still uses an uncooled color sensor, so the S30 Pro remains the better choice for maximum portability and very wide targets.

It is also larger, heavier, more expensive, and still limited by a small uncooled one shot color sensor. Those facts do not disappear because the telescope is easy to use.

What Sensor Is in the Seestar S50 Pro?

The Seestar S50 Pro uses the OmniVision OS08B10 as its primary 4K imaging sensor, not the Sony IMX585.

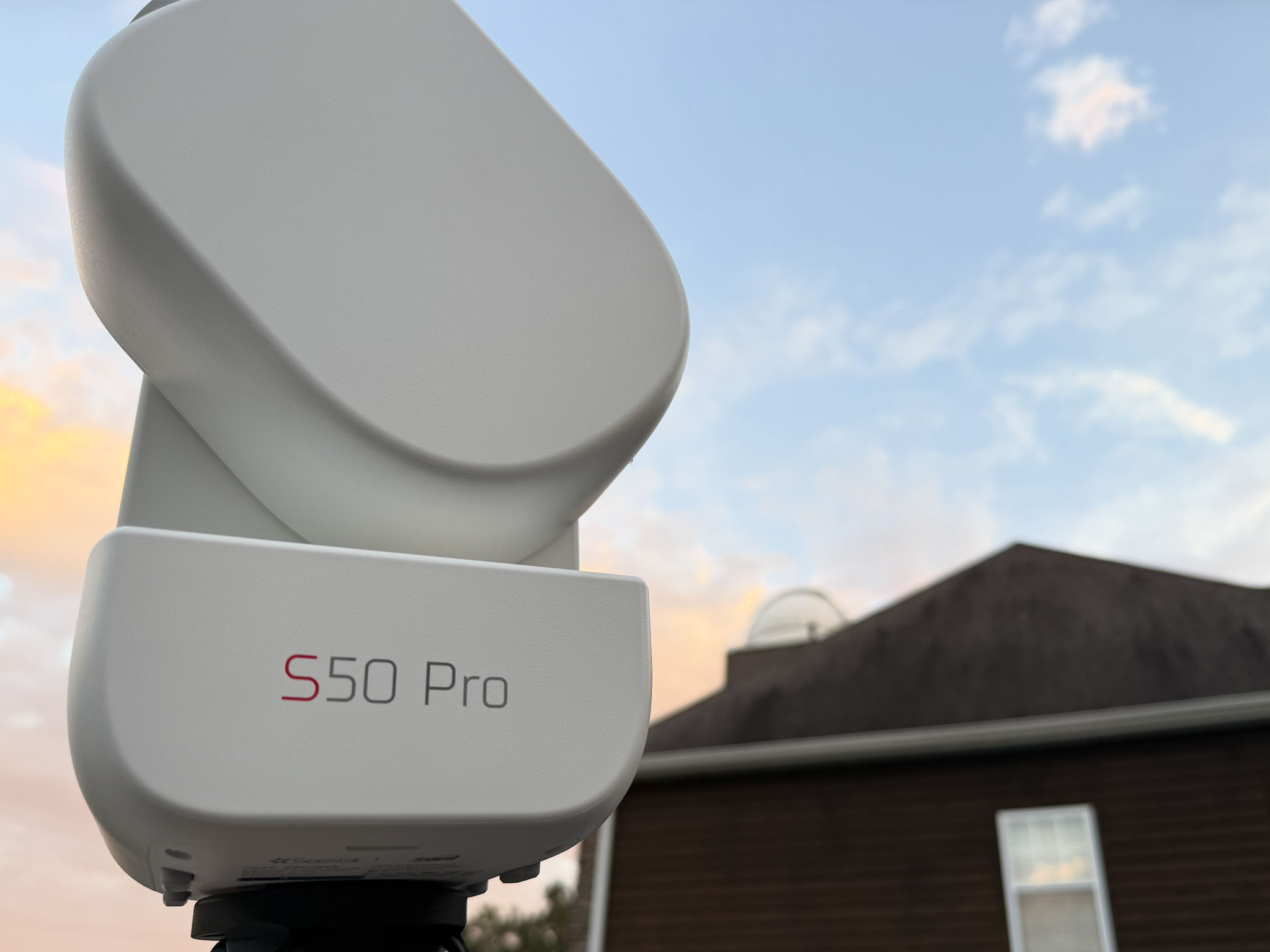

First Impressions From a Month of Testing

The first thing I noticed was not the camera or the optical design. It was how complete the S50 Pro feels as a system. The body is solid, the arm has less free movement than I expected, the drive is quiet, and the app sees the telescope and gets to work without the sort of connection drama that can ruin an otherwise clear evening.

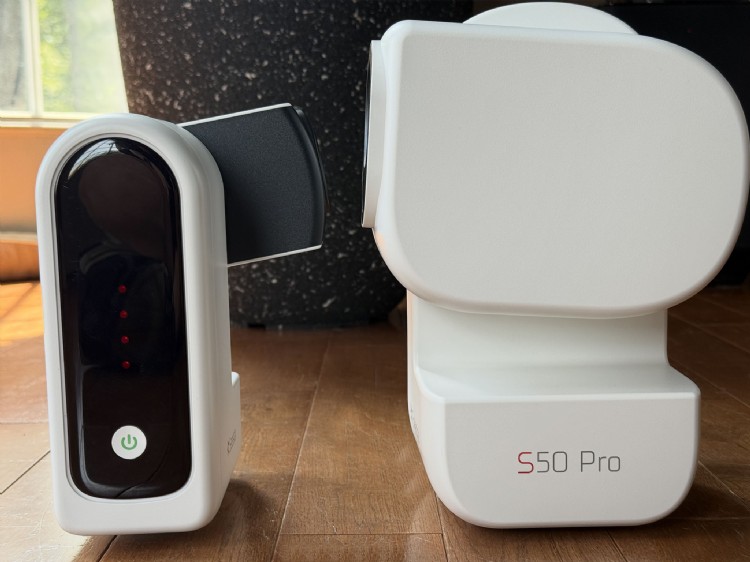

The second thing I noticed was the size. Anyone coming directly from the S30 Pro is going to notice it. The S30 Pro is something I can slide into a backpack almost without planning around it. The S50 Pro is still portable, and at roughly six pounds it is not remotely heavy by traditional telescope standards, but it occupies more room and feels more like a small instrument than a camera accessory.

That difference is not just a larger battery hidden inside a bigger shell. The main reason is the optical system. A 50 millimeter objective is nearly 2 inches across, compared with the S30 Pro objective at about 1.18 inches. The S50 Pro also has a 260 millimeter light path, which is about 10.2 inches, compared with 160 millimeters, or about 6.3 inches, in the S30 Pro. ZWO folded that longer path inside the body, but folding a light path does not make the optical geometry disappear. The mirror, lens groups, focusing mechanism, structural support, and clearances still require space.

The S50 Pro did not make the S30 Pro look bad. That would be an easy line to write, but it wouldn’t be true. Although the two cameras initially appeared to share similar sensor specifications, we now know they use different silicon. The S30 Pro uses Sony’s IMX585, while the S50 Pro uses OmniVision’s OS08B10. That makes the comparison considerably more interesting because differences in aperture, focal length, sensor behavior and image scale are all contributing to what we see in the finished image.

The S50 Pro starts pulling away when the target contains smaller structure. Galaxy cores, compact nebulae, globular clusters, solar detail, lunar detail, and the tighter portions of emission nebulae all benefit from the longer focal length and finer image scale. The gain becomes clearer when I compare the data at full resolution instead of looking at a processed image on a phone.

That is an important point. Smart telescope photographs are often judged at phone size, where almost anything reasonably sharp and colorful can look convincing. Full resolution inspection is less forgiving. Star shape, background noise, rejected frames, optical correction, interpolation, and weak signal all become visible. The S50 Pro holds together better than the S30 Pro when I inspect the image rather than merely admire it.

Seestar S50 Pro Review After Real Nights Under the Sky

My overall impression is that ZWO has stopped treating the Seestar line as a novelty and is beginning to treat it as an imaging platform. The S50 Pro is still built around simplicity, but there is more serious engineering underneath that simple exterior.

The app can still take a first time user from power button to a live image without asking that person to understand plate solving, focus curves, field rotation, sensor calibration, or stack rejection. That is good product design. Hiding complexity is not the same as removing capability.

At the same time, experienced users can save individual frames, run equatorial mode, use exposures as long as 60 seconds, plan multiple targets, build mosaics, apply calibration, perform background extraction, remove or reduce stars, restack several nights, and move the files into PixInsight, Siril, or Photoshop. The system has a low floor and a much higher ceiling than the original S50.

The S50 Pro is not a replacement for my dedicated rigs. It does not replace a cooled camera, a filter wheel, a larger aperture, a guided equatorial mount, or the freedom to choose every component. What it replaces is the hour I sometimes spend deciding whether a short clear window is worth dragging all of that equipment outside.

There are nights when the forecast gives me two useful hours between clouds. A dedicated system can spend a good part of that window being assembled, balanced, connected, focused, calibrated, and tested. The S50 Pro can be outside, connected, solved, focused, and collecting data while I am still thinking about which counterweight belongs on the larger mount.

That difference is not glamorous. It is practical, and practical equipment gets used.

The Optics Are the Center of the Upgrade

The S50 Pro uses a 50 millimeter aperture with a 260 millimeter focal length. Divide focal length by aperture and the result is f/5.2. The original S50 used the same 50 millimeter aperture with a 250 millimeter focal length, making it f/5. The S30 Pro uses a 30 millimeter aperture and a 160 millimeter focal length, which works out to about f/5.3.

Those numbers tell us several things immediately.

First, the S50 Pro has essentially the same speed class as the other Seestar systems. It is not gathering diffuse nebula signal per sensor pixel two or three times faster simply because the objective is larger. For extended objects, image brightness at the focal plane is controlled mainly by f ratio. Since the S50 Pro and S30 Pro both sit near f/5.2, and both use 2.9 micron pixels, the signal landing on one pixel from an evenly illuminated patch of nebula is broadly similar for the same exposure and filter.

That does not mean the larger aperture is wasted. Far from it. Fair warning, I'm going to geek-out a bit here.

The 50 millimeter objective has 2.78 times the collecting area of a 30 millimeter objective. The calculation is the square of the diameter ratio. Fifty divided by thirty is 1.667. Square that and the result is 2.78. Another way to say it is that the S50 Pro gathers about 178 percent more light than the S30 Pro.

For stars and compact objects, that additional collecting area matters directly. For extended objects, the longer focal length spreads the object across more pixels, so the per pixel surface brightness stays close because the f ratios are close. The benefit appears as greater image scale, more samples across the target, better total signal across the resolved structure, and a higher optical resolution ceiling.

This is where people sometimes make the wrong claim. They say a 50 millimeter telescope makes every pixel nearly three times brighter than a 30 millimeter telescope. That is not how focal ratio and image scale work. The S50 Pro gives you more information across the object, not a free threefold increase in surface brightness at each pixel.

The image scale makes the difference easy to quantify. The OmniVision OS08B10 uses 2.9 micron pixels. At a 260 millimeter focal length, the S50 Pro samples the sky at about 2.30 arc seconds per pixel. At 160 millimeters, the S30 Pro samples at about 3.74 arc seconds per pixel.

That means the same target appears about 1.63 times larger across each dimension on the S50 Pro. A feature that spans 100 pixels on the S30 Pro will span about 163 pixels on the S50 Pro, assuming the same orientation and no rescaling. Across area, that can place roughly 2.64 times as many pixels over the same object.

That is the punch I see in actual images. It is not a vague claim about better quality. Smaller structures are recorded by more pixels.

The original S50 is a different comparison. Its 250 millimeter focal length with the same 2.9 micron pixel size produces about 2.39 arc seconds per pixel. Moving from 250 to 260 millimeters improves image scale by only about 4 percent. Anyone claiming the S50 Pro gives dramatically more target detail than the original S50 because the focal length grew by 10 millimeters is overselling the number.

The major improvement over the original S50 is not target scale. It is the much larger sensor, corrected field, 4K resolution, expanded field of view, improved drive, second camera, storage, processing, and battery.

The original S50 main camera covered a diagonal field of about 1.46 degrees. The S50 Pro reaches about 2.8 degrees diagonally. The active OmniVision OS08B10 sensor area is about 0.44 by 0.25 inch, or roughly 11.2 by 6.3 millimeters. At 260 millimeters, that works out to a native field near 2.45 by 1.38 degrees, with the longer dimension commonly shown vertically in the app.

The larger frame is not just convenient. It creates a harder optical problem.

A small sensor sees only the central portion of the image circle, where almost any decent optical system looks its best. A larger sensor reaches farther away from the optical axis. That is where field curvature, astigmatism, coma, lateral color, tilt, and imperfect alignment begin showing themselves. Stars that look round in the center can turn into short lines, crosses, wings, or little colored commas near the corners.

ZWO addressed that by moving from the original S50 three element design to a folded four element apochromatic system and by improving the precision of the internal fold mirror. ZWO also developed a dedicated star quality testing system for production units.

The fold mirror deserves more attention than it usually gets. In a straight refractor, the lens and sensor share one direct optical axis. In a folded system, a mirror redirects the light inside the body. That helps package a 10.2 inch focal length into a compact chassis, but it introduces another precision surface and another alignment relationship.

If the fold mirror is tilted incorrectly, not flat enough, stressed in its mount, or offset from the designed path, it can introduce field dependent aberrations and sensor tilt symptoms. Improving mirror precision is not a cosmetic change. It is part of keeping the entire 4K frame usable.

The fourth optical element also matters because the sensor is much larger than the one in the original S50. ZWO has not published the exact lens grouping, glass types, element spacing, spot diagrams, modulation transfer curves, or measured Strehl values. I am not going to invent those details. A four element count alone does not tell us whether the system is a triplet with a corrector, two paired groups, or another folded prescription.

What I can judge is the result. The S50 Pro keeps star shape under control across a much larger frame than the original S50 had to cover. That is the real test.

The word apochromatic also deserves a little restraint. APO is useful shorthand, but it is not a complete optical report. The practical question is whether red, green, and blue focus closely enough that stars do not grow colored edges or different sized halos, and whether that correction survives away from the center. In my data, the color correction is appropriate for the sensor and focal length. Bright stars can still expose processing and atmospheric issues, but I did not see the larger frame fall apart at the edges the way an underspecified optical system often does.

The theoretical resolving power of a 50 millimeter objective also gives us a useful boundary. The Dawes limit is about 2.32 arc seconds. The Rayleigh criterion is about 2.76 arc seconds. The S30 Pro, with its 30 millimeter aperture, has a Dawes limit near 3.87 arc seconds and a Rayleigh value near 4.60 arc seconds.

Those are ideal optical numbers. Real results also depend on focus, seeing, tracking, sensor sampling, processing, and contrast. Still, the S50 Pro has roughly 40 percent finer theoretical angular resolution than the S30 Pro.

At 2.30 arc seconds per pixel, the S50 Pro places about one pixel across the Dawes separation and a little more than two pixels across the full Airy disk diameter at visible wavelengths. That is workable sampling, though not excessive sampling. Subpixel movement across many frames and careful stacking can recover some additional information, but there is no hidden reserve of infinite detail. The sensor and optics are reasonably matched.

The S30 Pro has a similar relationship between its pixel size, f ratio, and diffraction pattern, but its angular scale is coarser. This is why the S50 Pro image looks like the target has moved closer even though the two sensors share the same 2.9 micron pixel size and native 4K resolution. For a target such as M16, that difference is easy to see. The Eagle Nebula fits in both systems, but the central structure occupies more pixels with the S50 Pro. The larger objective also collects more total signal from compact stars and smaller structures. The result is not merely a bigger crop. It is a better starting point for resolving the central detail.

There was a lot of speculation surrounding the imaging sensor in the Seestar S50 Pro when the telescope was first announced. Because its basic specifications looked so similar to Sony’s IMX585, many of us naturally assumed that was what ZWO was using.

It isn’t.

ZWO has now officially identified the primary telephoto sensor in the Seestar S50 Pro as the OmniVision OS08B10. The separate wide angle camera uses Sony’s IMX586. That distinction matters because although the OS08B10 and IMX585 share some remarkably similar physical characteristics, they are completely different sensors from different manufacturers and use different underlying technologies.

The OS08B10 is an approximately 8.3 megapixel color CMOS sensor producing a native 3840 by 2160 image. Its pixels are 2.9 microns square, exactly the kind of pixel size that has become very familiar in modern planetary and deep sky astronomy cameras.

OmniVision specifies an active imaging area of approximately 11.23 by 6.31 millimeters, giving it a diagonal of about 12.9 millimeters. OmniVision technically describes the device as a 1/1.25 inch optical format sensor, while ZWO rounds its specification to 1/1.2 inch. Neither designation describes the sensor’s actual physical dimensions. These fractional inch labels are historical optical format classifications left over from the television camera tube era.

What matters to an astrophotographer is that the sensor itself is about 11.2 millimeters wide and 6.3 millimeters tall.

At the S50 Pro’s 260 millimeter focal length, that produces the telescope’s broad approximately 2.8 degree field across its long dimension while maintaining a sampling rate of roughly 2.3 arcseconds per pixel.

It Is Not a Sony STARVIS 2 Sensor

This is probably the most important correction to some of the early descriptions of the S50 Pro.

The OS08B10 does not use Sony STARVIS 2 technology.

It uses OmniVision’s own PureCel Plus S pixel architecture along with its Nyxel technology. OmniVision specifically designed Nyxel to improve sensitivity farther into the near infrared portion of the spectrum, an area where the OS08B10 appears to perform particularly well.

Like most modern high sensitivity CMOS sensors, the OS08B10 uses a back illuminated architecture. Instead of forcing incoming photons to work their way around much of the sensor’s wiring before reaching the light sensitive region, a back illuminated sensor places much of that circuitry behind the photodiode structure.

The practical result is better photon collection from a very small pixel.

That becomes particularly important when we are talking about 2.9 micron pixels being fed by a 50 millimeter telescope.

The OS08B10 was actually developed primarily for demanding low light security and industrial imaging rather than astronomy. That might initially sound less impressive than having a purpose built astronomical sensor, but some of the requirements overlap considerably.

Security cameras need extremely low light sensitivity, low noise, good near infrared response and enormous dynamic range. Those happen to be very useful characteristics when the subject is a galaxy several million light years away.

The Measurements Are More Interesting Than the Name

Once it became known that the S50 Pro was not using an IMX585, there was an understandable tendency to ask whether OmniVision represented a downgrade.

That is where actual measurements become much more valuable than brand recognition.

Astrophotographer Cuiv, The Lazy Geek, performed SharpCap sensor analysis on an S50 Pro and compared the resulting measurements with an S30 Pro using Sony’s IMX585. His results paint a much more nuanced picture than simply declaring one sensor better than the other.

At gain zero, his measurements showed approximately:

OS08B10 in the S50 Pro

Read noise: 3.34 electrons
Full well: 15,745 electrons
Dynamic range: 12.20 stops

IMX585 in the S30 Pro

Read noise: 6.66 electrons
Full well: 39,187 electrons
Dynamic range: 12.52 stops

Immediately you can see the tradeoff.

The Sony has dramatically greater full well capacity at low gain. The OmniVision, however, starts with approximately half the measured read noise.

Things become considerably more interesting when gain increases.

Around gain 150, the OmniVision sensor appears to enter its high conversion gain region. Cuiv measured its read noise falling from approximately 2.36 electrons at gain 100 to only 0.86 electron at gain 150.

At the same time, measured dynamic range actually increased from approximately 11.06 stops to 11.68 stops, despite full well capacity declining from approximately 5,024 electrons to 2,809 electrons.

That is an important result.

It demonstrates why judging an astronomical sensor solely by full well capacity can be misleading.

At gain 200, Cuiv measured approximately 0.76 electron of read noise, and at still higher gains the sensor approached approximately 0.61 electron.

Those are exceptionally low numbers.

What Full Well Capacity Actually Means Here

The biggest technical advantage of the IMX585 remains its full well capacity.

A pixel can only accumulate a certain number of photoelectrons before it saturates. Think of each pixel as a bucket collecting rain. A deeper bucket can collect more water before overflowing.

At low gain, Cuiv measured almost 39,200 electrons for the IMX585 compared with approximately 15,700 electrons for the OS08B10.

That sounds like an enormous advantage for the Sony, and under some circumstances it absolutely is.

But context matters.

The S50 Pro is not designed around five, ten or twenty minute individual exposures. In equatorial mode, it currently tops out at 60 second individual exposures. The telescope takes many relatively short exposures and stacks them together.

That changes the importance of an enormous full well.

Bright stars certainly can saturate in a 60 second exposure, particularly at higher gain. But much of the faint signal from nebulae and galaxies will never come remotely close to filling a 40,000 electron pixel well during a single short exposure.

In that environment, extremely low read noise becomes particularly valuable because the sensor is being read over and over again as hundreds of individual exposures are accumulated.

This is one reason the OS08B10 makes considerably more sense in the S50 Pro than its low gain full well specification might initially suggest.

There is another important detail.

ZWO does not expose normal astronomical camera gain control to the Seestar owner. The telescope operates according to gain and exposure strategies selected by ZWO.

As several people in the Cloudy Nights discussion correctly pointed out, if ZWO operates the OS08B10 primarily around its high conversion gain region, comparing the maximum low gain full well capacities of these two sensors becomes much less relevant to the way either telescope actually operates.

Dynamic Range Is Surprisingly Competitive

Dynamic range tells us approximately how large a range the sensor can distinguish between its noise floor and saturation.

This is where the OmniVision sensor surprised me.

At gain 150, Cuiv measured the following:

IMX585: approximately 10.70 stops

OS08B10: approximately 11.68 stops

So even though the OmniVision had substantially lower full well capacity at that operating point, its much lower read noise gave it almost another stop of measured dynamic range.

At gain zero the Sony still wins, at approximately 12.52 stops versus 12.20 stops.

So there is no single answer to the question, ‘Which sensor has better dynamic range?’

It depends upon how they are operated.

And that is precisely why the sensor inside an automated telescope has to be considered as part of the complete imaging system.

Near Infrared Performance May Be One of Its Strengths

Another characteristic of the OS08B10 that deserves more attention is its near infrared response.

OmniVision specifically incorporates Nyxel technology into this sensor to improve quantum efficiency farther into the near infrared spectrum. OmniVision itself lists enhanced NIR quantum efficiency as one of the OS08B10’s significant features.

That does not automatically mean that the OS08B10 has superior astronomical quantum efficiency at every wavelength.

We should be very careful about that claim.

I have not seen a sufficiently complete, independently verified spectral QE curve for the exact implementation in the S50 Pro that would justify saying that it beats the IMX585 at H alpha, OIII or across the entire visible spectrum.

There is also no basis for continuing to quote the roughly 91 percent peak QE number commonly associated with the IMX585 as though it belongs to the S50 Pro.

It doesn’t.

Those are Sony IMX585 specifications.

What we can say is that the OS08B10 was deliberately engineered for high sensitivity and enhanced near infrared response, and measurements of the finished S50 Pro show very impressive low noise characteristics.

That is far more meaningful than borrowing specifications from another sensor.

The Thermal Noise Result May Be Even More Important

The S50 Pro does not actively cool its imaging sensor, and I originally considered that one of its more important compromises.

I still would prefer cooling in an ideal world.

But the measurements coming from the S50 Pro make the situation considerably less troubling than I initially expected.

Cuiv also measured the thermal behavior of the camera, and the results appear extremely good for an uncooled sensor. The reaction within the Cloudy Nights discussion was similar, with several people pointing out that thermal noise may actually be one of the OmniVision sensor’s strongest characteristics.

That matters enormously in a device like the Seestar.

Dark current increases as a sensor becomes warmer. On a traditional astronomical camera we solve much of that problem with thermoelectric cooling, holding the camera at something like 0°C, minus 10°C or minus 20°C regardless of reasonable changes in ambient temperature.

The Seestar cannot do that.

Instead, ZWO relies on the native characteristics of the sensor, dark frame calibration, hot pixel management, frame rejection and stacking.

For ten second exposures this approach has always worked surprisingly well.

The more interesting question with the S50 Pro is what happens at 30 and 60 seconds on a warm summer night.

Based on the early measurements, I am considerably less worried about that than I was before seeing the data.

The lack of cooling remains a limitation, but it may not be nearly as significant with this particular sensor as simply looking at the absence of a TEC cooler would suggest.

The 16:9 Shape Is Still a Compromise

One characteristic I have not changed my mind about is the physical shape of the sensor.

The OS08B10 is essentially an 11.2 by 6.3 millimeter rectangle.

That is a natural format for 4K video. Astronomy is another matter.

Galaxies, nebulae, star fields and large molecular cloud complexes do not conveniently arrange themselves into television aspect ratios.

I would still prefer a taller sensor.

Something square, similar in shape to Sony’s IMX533, makes composition wonderfully easy for astronomy. A larger APS C class detector would be even more attractive.

But those comparisons can also become unfair very quickly.

A larger sensor would require a correspondingly larger corrected image circle from the optics. It would increase the amount of data the processor has to manipulate. Storage requirements would rise. Processing time could increase. Power consumption could increase, and the complete optical system might have to become larger.

You cannot simply install an APS C sensor behind the existing lens and assume everything else stays the same.

The S50 Pro has been engineered around this particular sensor size.

8.3 Megapixels Does Not Mean Four Times the Detail

There is another misconception worth clearing up.

The original Seestar S50 uses a 1920 by 1080 IMX462 while the S50 Pro delivers 3840 by 2160 pixels.

That sounds like four times the resolution.

Technically there are approximately four times as many pixels, but that does not mean the S50 Pro suddenly resolves four times as much astronomical detail.

Both sensors have 2.9 micron pixels.

The original S50 operates at approximately 250 millimeters of focal length, giving roughly 2.39 arcseconds per pixel.

The S50 Pro operates at 260 millimeters, giving roughly 2.30 arcseconds per pixel.

Its sampling is therefore only a few percent finer.

The enormous improvement is sensor area and field of view, not four times greater angular resolution.

The S50 Pro captures substantially more sky while maintaining approximately the same image scale.

That distinction matters.

It Is Still a Color Sensor

The OS08B10 uses a Bayer color filter array.

That means every individual photosite does not independently measure red, green and blue light.

In a conventional RGGB Bayer arrangement, half of the filtered locations record green, one quarter record red and one quarter record blue. Software reconstructs the missing color information at each image location through debayering.

So an 8.3 megapixel color sensor produces an 8.3 megapixel color image, but it is not collecting 8.3 million independent red measurements, 8.3 million green measurements and 8.3 million blue measurements.

A monochrome astronomy camera remains fundamentally different.

Remove the Bayer matrix and every pixel can respond to whatever wavelength is being passed by the filter in front of the sensor. Put an H alpha filter in front of it and every pixel participates in measuring H alpha.

That is why monochrome imaging remains so powerful for advanced astrophotography.

But it would also fundamentally change what the Seestar is.

A monochrome S50 Pro would require some combination of a filter wheel, multiple filters, separate exposures, image registration and channel combination. It would increase complexity, cost and imaging time.

The one shot color OS08B10 is therefore completely consistent with what the S50 Pro is intended to accomplish.

I would still buy a monochrome Seestar Pro tomorrow if ZWO made one.

But I understand why this one isn’t it.

So Is the OmniVision Sensor Worse Than the IMX585?

After looking at the actual measurements, I don’t think that is an accurate way to describe it.

The sensors have different strengths.

The IMX585 has substantially greater full well capacity at low gain and established excellent astronomical performance.

The OS08B10 gives up much of that enormous low gain well depth, but counters with extremely low measured read noise once it enters its high conversion gain region, excellent measured dynamic range at useful gain settings, apparently excellent thermal behavior and strong sensitivity extending into the near infrared.

For a conventional cooled astronomy camera intended to take very long exposures, I could easily construct circumstances where I would prefer the IMX585.

But that isn’t what the S50 Pro is.

The S50 Pro is limited to relatively short individual exposures, stacks large numbers of them, controls its own gain, calibrates its own images and performs much of its processing automatically.

Within that particular environment, the characteristics of the OS08B10 actually make a lot of sense.

ZWO says it spent more than six months testing multiple sensors not only on a bench, but inside complete S50 Pro systems. The company says it evaluated noise, star shapes, fine detail, exposure consistency and stacking behavior before selecting the OS08B10. Supply consistency was part of the decision as well.

I think that last part of the story is important.

If someone had simply handed me the specification sheets for the IMX585 and OS08B10 before I ever used the telescope, I probably would have picked the Sony.

After actually using the S50 Pro and now seeing independent measurements of the OmniVision sensor, I’m not so sure I would.

Its lower full well is real.

So is its remarkably low read noise.

And in a telescope that rarely exposes longer than 60 seconds at a time, that tradeoff may be much smarter than it first appears.

Seestar S50 Pro OmniVision OS08B10 real-world astrophotos taken by Rich Harris

Helix Nebula 4 hours, EQ mode, stacked in Seestar, adjusted in Photoshop.

Elephant's Trunk Nebula, EQ mode, 300 X 60 second exposures. Stacked and processed with Seestar, final adjustments made in Photoshop.

Lagoon and Trifid Nebula, wide field, EQ mode.. This photo really took me back because it was a Mosiac photo in just over a 60 minute total integration time. Stacked and adjusted soley in Seestar. By Rich Harris.

M31 galaxy, EQ mode, 250 X 60 second expsoures, mosiac mode. Stacked and processed in Seestar, exported, then final adjustments in Pixinsight and Photoshop. by Rich Harris.

The Mount and Why Backlash Matters

The S50 Pro does not have a separate telescope mount in the traditional sense. The mount, optical tube, focuser, camera, computer, battery, and communications hardware are integrated into one body. The external shell hides the mechanism, but the mechanical requirements do not disappear.

ZWO describes the S50 Pro as using a zero backlash precision drive system on both axes. That is an important improvement, but the words need to be interpreted correctly.

Backlash is lost motion between drive components. Imagine two gear teeth with a small gap between them. When the motor turns in one direction, the driving face of one tooth pushes the mating face of the other. Reverse the motor and it must cross that gap before the opposite faces make contact. During that interval, the motor is moving but the telescope is not.

In a well adjusted mount, backlash can be small. In a poorly adjusted mount, the delay can be large enough to watch.

I spent years working inside equatorial mounts and developed the HyperTune process because mechanical adjustment, bearing preload, gear mesh, lubrication, and alignment could change an inexpensive mount from frustrating to useful. That experience taught me not to treat backlash as an abstract specification. It shows up in real operation.

In an automated smart telescope, backlash can affect more than star shape. It can affect the entire acquisition sequence.

The telescope slews to a target, takes an image, solves the star pattern, calculates the pointing error, and sends a correction. If that correction reverses an axis and the mechanism has significant slack, part of the command is consumed taking up the gap. The next plate solve may show that the target barely moved. The software corrects again, perhaps with a larger command. Once the gear finally engages, the mount can move farther than expected.

A well written control loop can compensate for known backlash, but compensation is not the same as removing the mechanical cause. Backlash can vary with direction, load, temperature, altitude angle, and gear position.

Over a long automated session, that matters. A target can fail to center. A mosaic panel can begin with an offset. A dither can take too long to settle. A wind gust can push the system across the free movement zone. A meridian side change in equatorial operation can alter how the mechanism is loaded. A plan can lose time repeating acquisition attempts.

Reducing backlash makes the behavior more predictable. Predictability is what automation needs.

There is also a direct relationship with frame acceptance. In normal Alt Az tracking, both axes continually contribute to following the target. The drive has to make small corrections while the image field rotates. In equatorial mode, the main tracking motion is concentrated into one axis, but declination corrections, centering, dithering, wind recovery, and mechanical settling still depend on the second axis.

The S50 Pro drive feels tighter than the S30 Pro mechanism, and the improvement becomes most useful in equatorial mode. Sixty second exposures magnify tracking errors that a 10 second exposure can hide. A brief disturbance occupies a much larger portion of the exposure, and every rejected frame costs a full minute instead of 10 seconds.

The stronger drive does not repeal the rest of mount physics. Zero backlash does not mean zero periodic error. It does not mean zero flexure, zero vibration, zero wind response, or perfect polar alignment. Periodic error is a repeating speed variation in the gear train. Backlash is lost motion during reversal. They are different problems.

ZWO has not published the internal gear material, tooth count, reduction ratio, motor step size, encoder resolution, periodic error curve, or control loop bandwidth. I am not going to label it a worm drive, harmonic drive, or any other specific mechanism without documentation. What matters to the owner is that the new system reduces free movement, improves correction consistency, and increases the percentage of usable long exposures.

The compact tripod can be set at two leg angles and is stable enough for normal use when the legs are spread correctly and the surface is solid. In equatorial mode, the center of mass shifts to one side because the entire telescope is tilted. At lower latitudes, the lean becomes more pronounced. A taller and wider tripod gives better clearance and a larger support footprint.

An equatorial wedge is still required. I would have liked to see one built into a body this large, but an external wedge has one advantage. It allows the user to choose a more precise or more stable unit and keeps the normal Alt Az setup simple.

What the S50 Pro Can Actually Do

The S50 Pro is a one shot color smart telescope, but that description leaves out most of the system.

The main 50 millimeter camera is built for deep sky imaging, lunar work, solar work with the supplied filter, and distant daytime subjects. The second camera covers a 63 degree diagonal field at 4K resolution and includes autofocus. It supports wide sky imaging, Milky Way compositions, star trails, time lapse work, scenery, and easier target acquisition.

The wide camera is the same basic sensor and lens system used in the S30 Pro. The S50 Pro advantage is not a better wide camera. The advantage is that the wide camera now works beside a more capable main optical system.

In Stargazing mode, the telescope can locate a target, plate solve, center it, focus, track, capture a series of exposures, reject poor frames, align the accepted frames, and add them into a live stack. A person can watch the object develop in real time without understanding any of the steps underneath.

Solar System mode handles the Sun, Moon, and planets. The included magnetic solar filter must be installed correctly before pointing at the Sun. I inspect any solar filter for damage, gaps, or loose seating before every use. No software feature can protect the sensor or a nearby person from an improperly filtered solar beam.

Milky Way mode uses the wide camera for broad sky fields, star trails, and night time lapse work. A 63 degree view includes a large amount of sky, which is useful under dark conditions and unforgiving under heavy light pollution. The camera sees not only the Milky Way but also every town glow, humid layer, high cloud, and nearby light source in that wide cone.

Scenery mode turns the telescope into a remotely controlled daytime imaging system. The wide camera makes finding a subject easier, while the 260 millimeter main optical path provides the closer view.

The app adds automated plans, mosaics, framing, an integrated sky atlas, target recommendations, an AI assistant, community sharing, and Telescope Network features for remote sharing, device management, and telescope transfer. The product brief also lists support for astronomical photometry workflows, which is worth watching. A stable, widely distributed imaging platform could be useful for coordinated citizen science if calibration and data consistency are handled carefully.

The processing tools are more capable than the simple word automatic suggests. The app can perform noise reduction, star removal, star reduction, crop and rotation, image optimization, and dynamic background extraction. Background extraction estimates and removes broad gradients caused by light pollution, moonlight, or uneven illumination.

That does not make every processing decision correct. Automatic tools can remove faint real structure, over smooth the background, sharpen noise, or push color farther than the data supports. The advantage is that the user can get a presentable image without a separate computer. The advanced user can save the individual frames and make different choices later.

The S50 Pro includes 128GB of internal storage. That is storage, not working memory. It is enough for many sessions, but individual 4K FITS files add up quickly when saving every frame. I treat the telescope like a camera card. I copy important data, verify the copy, and clear old sessions before the device is nearly full.

Connectivity includes Wi Fi, Bluetooth, NFC, and USB C. NFC simplifies initial pairing. It does not carry the image stream. The working connection moves through Wi Fi.

I strongly prefer Station Mode at home. The telescope joins my existing wireless network, and my phone or Mac can reach it through the same network. That gives me better range and lets me remain connected to the internet instead of switching my device onto the telescope’s private wireless connection.

The 10,000 mAh battery is a major improvement over the 6,000 mAh pack in the S30 Pro. ZWO rates the S50 Pro for up to about seven hours under typical stacking conditions. Dew heater use, temperature, wireless activity, processing, slewing, and battery age all affect that number. I would plan around seven hours rather than promise nine, and I would attach external USB C power for an unattended full night.

The built in dew heater is more important than it may sound. A small objective can radiate heat to the sky and fall below the surrounding air temperature. When it reaches the dew point, moisture forms on the glass and contrast collapses. The heater adds enough warmth to keep the optical surface above that point.

Using the S50 Pro

Charging is straightforward. The telescope uses the supplied USB C cable and a suitable power source. With a three amp supply, a full charge from near empty takes roughly three to four hours in my experience. I charge it before a planned night rather than assume the remaining indicator is accurate enough for a long session.

For normal Alt Az use, setup is almost embarrassingly simple. Spread the tripod fully, attach the telescope securely, place it on firm ground, turn it on, connect through the app, and choose a target. Precise leveling is not as critical as it is with some older automated mounts, but a stable and reasonably level platform still helps the mechanical system and keeps the telescope clear of a tripod leg.

NFC pairing makes the first connection quick on a compatible device. After that, I use Station Mode whenever my home network is available.

The built in sky atlas is where I spend most of my time. I can search by object name or catalog number, inspect what is well placed, move around the map, preview the frame, and decide whether the native view or a mosaic makes more sense.

The telescope slews, photographs the field, plate solves, corrects its pointing, focuses, and presents the target. Plate solving is one of the reasons modern automation feels so different from older GoTo systems. An old mount trusted its mechanical model. A plate solved system checks the stars and measures where it is actually pointing.

I usually run the built in hot pixel correction and calibration routine. It adds several minutes before the first serious acquisition, but it gives the system a current map of hot pixels and fixed sensor artifacts. That is time well spent.

In Alt Az mode, the telescope tracks by changing altitude and azimuth together. The target stays centered, but the camera’s orientation relative to the sky rotates over time.

I sometimes explain field rotation as walking up a curved staircase while trying to keep a picture frame level with the room. Your position changes, your direction changes, and the frame slowly turns relative to everything around it. The telescope can keep the center of the target in place while the outer field rotates around that center.

Short exposures can be aligned and stacked despite that rotation, but the usable overlapping area shrinks over time and stars near the edges become more difficult to manage. This is why Alt Az mode favors short individual exposures.

Equatorial mode changes the geometry. A wedge tilts the telescope’s tracking axis so it points near the celestial pole. Once polar aligned, the mount follows the sky mainly by rotating around one axis at the sidereal rate. Field rotation drops dramatically, and the S50 Pro can use individual exposures as long as 60 seconds.

Longer exposures are not automatically better. Under bright skies, the background may become dominant before 60 seconds. Wind, polar error, heat, target altitude, and tracking quality can also reduce the accepted frame rate. I choose the longest exposure that produces a high percentage of clean subs without wasting dynamic range.

A 60 second frame that fails costs six times as much acquisition time as a 10 second frame. The better drive helps, but I still watch the acceptance rate during the first part of a session.

I ran the S50 Pro on bright targets, faint targets, objects low in the sky, compact targets, and emission regions that challenge a one shot color system. The app remained reliable, and the telescope recovered from normal interruptions without turning the session into a software project.

That reliability matters to me as much as the sensor. A telescope can have excellent optics and still be a poor instrument if the control system loses connection, stalls during a plan, or fails to recover from one rejected step. The S50 Pro behaves like a finished product rather than a box of features waiting for the user to integrate them.

Key Differences: S50 Pro Compared With the S30 Pro

Feature	S50 Pro	S30 Pro
Aperture	50 mm	30 mm
Focal length	260 mm	160 mm
F-ratio	f/5.2	f/5.3
Main sensor	OmniVision OS08B10	Sony IMX585
Resolution	3840 × 2160	3840 × 2160
Pixel size	2.9 μm	2.9 μm
Image scale	2.30″/pixel	3.74″/pixel
Storage	128 GB	128 GB
Battery	10,000 mAh	6,000 mAh
Best for	Smaller targets/detail	Large fields/portability

The S30 Pro and S50 Pro share a similar main sensor, the same 4K resolution, the same 128GB storage class, similar app features, and essentially the same wide angle camera system. The differences come from the main optics, mechanical drive, battery, physical size, and native framing.

The S30 Pro uses a 30 millimeter objective, about 1.18 inches, with a 160 millimeter focal length, about 6.3 inches, at roughly f/5.3. The S50 Pro uses a 50 millimeter objective, just under 2 inches, with a 260 millimeter focal length, about 10.2 inches, at f/5.2.

The S30 Pro main camera covers about 4.6 degrees diagonally. The S50 Pro covers about 2.8 degrees. The S30 Pro is therefore better suited to very large targets in one frame. The S50 Pro gives up some field for more reach.

Because the sensors are identical, the focal length ratio tells the story cleanly. Two hundred sixty divided by one hundred sixty is 1.625. A small galaxy or nebula core is about 62.5 percent larger across the S50 Pro sensor.

The 50 millimeter aperture has 2.78 times the area, and its diffraction limit is finer. The S50 Pro therefore has a real advantage on compact structure, but the nearly identical f ratios mean diffuse surface brightness per pixel is not dramatically different. This is why a quick comparison of a large nebula can look closer than expected, while a close inspection of small detail favors the S50 Pro.

The S30 Pro is not being replaced in purpose. It is a different instrument. Its broad field is useful for the North America Nebula, the Heart and Soul region, large molecular cloud complexes, broad Milky Way areas, and travel situations where every inch and pound matters.

The S50 Pro is better for M16, many galaxies, globular clusters, compact emission nebulae, tighter lunar framing, solar detail, and any target where the 160 millimeter focal length leaves too much empty sky around a small object.

The stronger zero backlash drive is another major difference. The S30 Pro can run equatorial mode, but the S50 Pro is mechanically better prepared for long exposures, wind, repeated centering corrections, and automated sessions. The result should be understood as higher imaging efficiency. More of the night becomes accepted data.

Battery capacity rises from 6,000 mAh to 10,000 mAh. The official typical runtime difference is closer to one useful hour than the capacity numbers alone suggest, because the larger system also consumes more power. Even so, the additional reserve is welcome when the heater, wireless connection, processor, and motors are all working.

The S30 Pro weighs about three and a half pounds. The S50 Pro is roughly six pounds. Neither is difficult to carry, but the S30 Pro can disappear into a small travel load in a way the S50 Pro cannot.

The wide angle experience is essentially the same. If a person is buying mainly for Milky Way images, star trails, broad scenery, or maximum portability, the S50 Pro does not deliver a major advantage through that second camera. The money is being spent on the main 50 millimeter system and drive.

The S30 Pro also remains the easier choice for Andromeda in a single native field. The S50 Pro can image it well, but the galaxy’s full extent pushes beyond the comfortable native rectangle and benefits from mosaic mode.

The S50 Pro is quieter to my ear and feels more mechanically settled. The S30 Pro was never offensively loud, but on a still night the S50 Pro almost disappears acoustically. I also appreciate being able to disable spoken prompts and other sounds in the app.

The best upgrade demonstration is not a giant nebula processed for social media. It is a target with fine central structure, captured under the same conditions, with the same integration time, and inspected at full resolution. M16 is a good choice. A smaller galaxy is another. That is where the S50 Pro earns its size.

Price and What the Hardware Would Cost Separately

I know that $1,000 does not come easily. That is real money, especially for someone entering a hobby that already has a reputation for emptying bank accounts one adapter at a time.

The S50 Pro carries a regular price of $999, with a $899 launch price. Whether that is inexpensive depends on the comparison.

Compared with another consumer electronic device, $999 can feel high. Compared with the components required to reproduce the same basic functions in a modular astrophotography system, it is difficult to call it overpriced.

Start with a portable GoTo equatorial mount. A ZWO AM3 class mount is around $1,500 before the tripod. It is more mount than a 50 millimeter refractor strictly needs, but it is the closest modular ZWO comparison that offers serious equatorial operation, automation, portability, and room to grow. Add roughly $300 for a suitable tripod.

A corrected 50 millimeter apochromatic imaging refractor generally costs somewhere around $700 to $1,000. A camera built around the OmniVision costs roughly $400 in an uncooled form and closer to $600 with cooling.

An electronic focuser is about $200. A controller such as an ASIAIR adds roughly $200 to $300. A dual band filter, filter holder, and related adapters can add $200 to $350. A dew heater and controller can add $60 to $120. A proper solar filter can add $50 to $100. A separate wide angle imaging camera and lens can add several hundred dollars.

Then add plates, rings, cables, power distribution, adapters, and the small pieces that never seem expensive until the cart total appears. A portable battery capable of running the mount, camera, controller, focuser, and heater through the night can add another $150 to $300.

A like for like automated modular package can easily land between $3,700 and $5,000. A careful shopper can build a cheaper system around a smaller tracker, used equipment, and fewer features, perhaps near $2,500, but it will not have the same integrated automation, dual cameras, internal battery, simple deployment, and unified support.

The dedicated system is more expensive because it is also more flexible. The mount can carry another telescope. The camera can move to another optical tube. The filters can be replaced. The controller can operate a larger rig. The components have value beyond one fixed configuration.

The S50 Pro gives up that modular future in exchange for integration and price. At $899 during launch, it is a strong value. At $999, it still costs far less than the parts inside it would cost when purchased as a working modular system.

I have eyepieces in a case that cost more than this telescope. That does not make $999 small money. It does put the number into perspective.

Should I Upgrade

For an S30 Pro owner, the answer depends on what feels limiting now.

If small targets are too small, if you want more lunar and solar detail, if your main interest is galaxies and compact nebulae, if you intend to use equatorial mode regularly, or if wind and rejected long exposures are reducing your usable data, the S50 Pro is a clear step forward.

The increase is not subtle in target scale. The same object is about 62.5 percent larger across the sensor. The optical resolution ceiling is finer, the aperture collects 2.78 times as much total light, and the mechanical drive is better suited to long imaging runs.

If the S30 Pro fits your life because it is exceptionally small, easy to pack, and wide enough to frame large nebulae in one shot, the upgrade is not automatic. The S50 Pro is almost twice the weight and takes more space. It does not improve the wide camera experience in a meaningful way because that system is essentially shared.

For an original S50 owner, the upgrade case is broader. The S50 Pro keeps nearly the same image scale but adds a much larger corrected field, native 4K capture, a second 4K camera, 128GB of storage, a larger battery, NFC, improved processing, and the precision drive. The original S50 remains capable, but the Pro is a more complete platform.

For a new buyer choosing between the S30 Pro and S50 Pro, the decision comes down to portability, target scale, and price. The S30 Pro is the backpack choice. The S50 Pro is the deeper main camera choice.

I would choose the S50 Pro for my own use. It is still easy to carry, and I value the 260 millimeter focal length and stronger drive more than I value saving a few pounds and inches.

Compared With a Dedicated Astrophotography Rig

This comparison needs some honesty on both sides.

A dedicated rig is not automatically better because it has more cables. A smart telescope is not automatically equal because a processed image looks good on a phone.

The S50 Pro is a 50 millimeter imaging system. Physics sets the ceiling. A 4 inch refractor has four times the collecting area of a 50 millimeter objective and about twice the theoretical angular resolution. A 180 millimeter refractor has almost thirteen times the collecting area and a Dawes limit near 0.64 arc second.

No amount of AI processing can make a 50 millimeter objective collect photons it never received or resolve spatial information that the aperture did not transmit.

A dedicated 50 millimeter refractor is a fairer comparison. Consider a RedCat 51 class telescope with an ASI2600 camera. The aperture is nearly the same, so the diffraction limit is nearly the same. The dedicated system does not win because 51 millimeters somehow defeats 50 millimeters.

It wins in other ways.

The ASI2600 has a sensor more than five times larger by area, regulated cooling, deeper control over gain and offset, a larger full well, a different pixel size, and the ability to run monochrome or color versions. The telescope can use a filter wheel, narrow filters, external guiding, a field rotator, and sophisticated calibration. The mount can track more accurately and accept corrections from a separate guide camera.

The S50 Pro actually samples at a finer angular scale than a 2600 camera behind a 250 millimeter RedCat because its pixels are smaller. The S50 Pro is near 2.30 arc seconds per pixel, while 3.76 micron pixels at 250 millimeters are near 3.10 arc seconds per pixel. That does not make the S50 Pro the superior system. It demonstrates why one number never tells the whole story.

The dedicated system has better thermal control, much more field, more filter flexibility, more calibration control, and a higher processing ceiling. A different camera can also be selected if finer sampling is desired.

At normal display size, the S50 Pro can deliver much of the visual impression of an expensive rig on a bright target. The galaxy is there. The spiral shape is there. The bright nebula is there. The colors are there. It may deliver 70 percent of the immediate impression with a small fraction of the setup effort.

That is not the same as delivering 70 percent of the data.

Zoom in and the differences appear. The larger rig resolves smaller stars, tighter dust lanes, smaller H II regions, background galaxies, subtle color separation, and low contrast structure. A cooled monochrome system also builds cleaner narrowband channels and tolerates stronger processing before the background breaks apart.

I compared the S30 Pro and S50 Pro against data from a TEC 180 FL and a full frame monochrome camera on M33. At the first glance, all of the images clearly showed the same galaxy. The main arms and overall shape were recognizable.

At full resolution, the larger system moved into another class. Individual star forming regions separated. Dust structure became more coherent. Small stars stayed smaller. Background galaxies survived processing. The smart telescope images had the object. The large refractor had the object’s internal geography.

That is not a criticism of the S50 Pro. It is the reason a large dedicated system costs many times more and demands far more work.

The dedicated rig also has disadvantages. It takes longer to deploy. It has more failure points. A loose cable, wrong back focus, poor balance, bad guide calibration, focus drift, filter problem, driver update, or software conflict can waste a night. The owner has to understand the system well enough to diagnose it.

The S50 Pro arrives as a working instrument. Turn it on, let it identify the sky, choose a target, and begin. The right comparison is not which system wins every technical category. The right question is how much result a person can obtain with the money, time, skill, sky, and patience available.

For me, the two systems are complementary. The dedicated rig is for maximum data quality. The S50 Pro is for speed, travel, outreach, short clear windows, broad experimentation, and nights when I want to collect data without operating a small power station.

Pro Tips That Make a Real Difference

Tip #1: Use a Mac

You can run the Seestar app on a compatible modern Mac. Open the Mac App Store, locate the Seestar application, and install the version made available for Apple silicon systems. That gives you a larger screen, easier file handling, and more processor capacity than many phones or tablets.

The processing difference can matter. On a portable device, some AI operations may use BIN 2 output to reduce memory and processor demand. BIN 2 combines each two by two group of pixels into one output pixel. A 3840 by 2160 image becomes 1920 by 1080. The linear resolution is cut in half and the total pixel count drops to one quarter.

On a CMOS sensor, software binning does not produce the same read noise advantage as classic CCD hardware binning, because the pixels have already been read. It can still improve apparent signal to noise through averaging and makes processing much lighter.

On a capable Mac, BIN 1 processing preserves the native 4K grid. It also makes it easier to move the result into Photoshop or another editor without passing files through several mobile sharing steps.

Tip #2: Taller Tripod

The included tripod is light, compact, and useful, but it places the telescope close to the ground. A full height carbon fiber tripod is one of the first accessories I would buy for serious field use. It improves access, makes polar alignment less of a kneeling exercise, increases visibility around people, and can provide a wider support footprint.

Keeping the telescope farther from hot ground can also help. Concrete, gravel, roofs, and dry soil absorb heat during the day and release it after sunset. The rising warm air mixes with cooler air and creates a local turbulent boundary layer. That is ground seeing. A small telescope is less sensitive to some atmospheric effects than a large one, but it can still record softened stars when placed inches above a heat reservoir.

Tip #3: EQ Mode

Use equatorial mode when the goal is maximum deep sky performance. A wedge can cost around $79, and the improvement is worth more than many expensive accessories. Polar alignment removes most field rotation, permits longer subs, preserves more of the frame during long sessions, and makes multi night integration easier.

Do not assume 60 seconds is always the correct exposure. Start with a short test. Inspect the accepted frame rate, star shape, background level, and bright star saturation. Under a bright sky, 20 or 30 seconds may produce a better overall data set because fewer frames are rejected and less highlight information is clipped.

Tip #4: Mosaic mode

Use the native field when the target fits. Mosaic mode is excellent, but it divides total imaging time across a larger area. A three hour mosaic does not give every point in the completed image the same integration as a three hour single frame stack. The telescope has to spend time on each panel and overlap region.

For M31 and other targets slightly larger than the OmniVision frame, mosaic mode is exactly the right tool. Give it enough time. The app can handle the panel movement, overlap, registration, and assembly, but it cannot escape the signal cost of covering more sky.

Tip #5: Run Seestars at the same time

You can run more than one Seestar in the same app session and switch between them from the device selector. An S30 Pro and S50 Pro make a useful pair. The S30 Pro can collect a wider field while the S50 Pro concentrates on smaller structure. Their shared sensor family and processing environment can make later combination easier, though focal length, field, rotation, and calibration still have to be matched in external software.

Tip #6: Saving frames

Enable saving of individual frames when the target deserves serious processing. The onboard result is convenient, but the raw subs allow better rejection, registration, drizzle, gradient control, color calibration, star treatment, and combination across nights.

Tip #7: Calibrate

Take calibration seriously. Run hot pixel correction when the temperature changes materially. Use flat field calibration when the app and workflow support it, especially if dust, vignetting, or uneven illumination is visible. A flat frame measures how the optical path and sensor respond to an evenly illuminated field. It allows software to correct dust shadows and brightness falloff.

Tip #8: Station mode

Use Station Mode at home. A stable network connection is usually more comfortable than remaining attached to the telescope’s private access point. It also lets me move around the house without losing the device as quickly.

Tip #9: Setting up in daylight

Let the telescope reach outdoor temperature before judging focus. Moving a warm instrument into cold air changes the dimensions and refractive behavior of the optical system. Run autofocus again after a major temperature drop and before beginning a long unattended plan.

Tip #10: Using built filters

Use the built in dual band filter on emission nebulae, not on every target. A dual band filter passes regions around H alpha and O III while suppressing much of the surrounding spectrum. It is useful on emission nebulae under light pollution. It is not the right choice for broadband galaxies, reflection nebulae, or natural color star fields.

Tip #11: Processing

Do not over process the automatic result. AI enhancement can make faint structure easier to see, but it can also produce a background that looks too smooth, stars that look clipped, or detail that has more local contrast than the data can support. I keep the original stack and compare.

Tip #12: Planning

Finally, plan around the sky rather than the catalog. A target may be above the horizon but still be a poor choice because of altitude, moon position, haze, local obstructions, or the direction of city glow. Automation makes pointing easy. It does not make every target equally productive.

What ZWO Founder Sam Wen Told ScopeTrader About the S50 Pro

"The product vision for the entire Seestar brand has always been clear: to give more people the opportunity to look up at the stars and explore the universe by lowering the barrier to astrophotography."

Read our full interview with ZWO founder Sam Wen

Seestar S50 Pro Pros

I like that the S50 Pro is a complete system. There are compromises, but integration has a value that is difficult to appreciate until a night with uncertain weather. I can carry the telescope outside in one trip and collect useful data during a window that would not justify assembling a dedicated rig.

I like the 50 millimeter aperture and 260 millimeter focal length. The S30 Pro is broad and portable, but the S50 Pro places smaller targets on enough pixels to make them more satisfying. The increase from 30 to 50 millimeters brings 2.78 times the collecting area and a finer optical resolution limit.

I like that the sensor, optics, and field are reasonably matched. The OmniVision sensor is not the one I would choose in a cost independent system, but the 2.9 micron pixels create a useful 2.30 arc second image scale, and the four element optics cover the larger frame well.

I like the precision drive. Mechanical consistency does not make a dramatic product photograph, but it improves every automated operation that depends on predictable movement. Better centering, better settling, better wind recovery, and a higher accepted frame rate are worth more than another decorative feature.

I like equatorial mode. For an advanced astrophotographer, it is not an optional novelty. It is the path to longer exposures, less field rotation, better frame retention, and more serious multi night data.

I like the battery capacity. A self contained system that can run most of a night without a separate power station is the kind of portability that changes actual use, not just shipping weight.

I like the white body. White surfaces reflect a larger portion of incoming visible solar radiation, while black surfaces absorb more of it and convert that energy into heat. In direct summer sun, otherwise similar black and white surfaces can differ by 20°F to 40°F, depending on material, airflow, texture, and angle.

That does not mean the white body is a cooling system. It does mean the telescope is less likely to bake while set up for daytime scenery or solar work, or while waiting for sunset.

I like how quiet it is. On a still night, I can barely hear the motors during normal operation. Anyone who remembers older GoTo mounts that announced every slew to the neighborhood will appreciate that.

I like the app. It is stable, visually understandable, and deep enough that I do not feel trapped at the beginner level. As a software architect, I pay attention to whether a system handles failure paths, not just whether the main button works. The Seestar platform has matured.

I like the wide camera. It gives the telescope a second purpose and also helps the main system find and follow targets. The broad 63 degree view makes the product useful when the 260 millimeter main camera is too narrow.

I like what this kind of instrument does for outreach. A person can see a galaxy form on a screen in a few minutes, ask why stacking works, and then begin learning about photons, noise, motion, distance, and time. The telescope removes the first wall without preventing anyone from going deeper.

Seestar S50 Pro Cons

The lack of active cooling is the biggest technical omission.

The OmniVision is a clean sensor, and short exposures stack well, but a cooled version of the same sensor is measurably easier to calibrate over long sessions. Regulated cooling lowers dark current and keeps the sensor at a repeatable temperature. That repeatability matters as much as the temperature reduction because a library of dark frames can match the light frames closely.

An uncooled integrated body follows ambient temperature and internal heat. The sensor may warm as the processor, wireless system, and battery operate. A dark frame captured early in the evening may not match frames taken hours later after the air has cooled.

I understand the engineering reasons. Cooling adds power demand, heat rejection, condensation control, mechanical complexity, and cost. I would still pay more for an S50 Pro Cooled model.

I do not love the sensor aspect ratio. The 16 x 9 frame is familiar from video, but astronomy targets do not arrange themselves for television. The active field is about 2.45 by 1.38 degrees. That is useful, but the narrow dimension is restrictive.

A square OmniVision sized sensor would cover close to 2.49 degrees in both directions at the same focal length and would offer about 80 percent more area. An APS C sensor would cover more than five times the area. I know the existing optics may not support those fields, and I know the price would rise. I still feel the 50 millimeter optical platform leaves room for a more generous future sensor.

I also want a monochrome option.

A color sensor uses a Bayer pattern. Only one quarter of the physical pixels measure red, one quarter measure blue, and half measure green before interpolation. A monochrome sensor places every pixel behind the selected filter.

When I shoot H alpha with a monochrome camera, every pixel is available to measure H alpha photons. With a one shot color sensor and a dual band filter, the red pixels carry most of the H alpha signal while the other pixels contribute differently according to their spectral response. The final image is convenient, but it is not as efficient or as cleanly separated.

A monochrome Seestar with an automated filter system would be more expensive and slower to complete a color image. It would also be much stronger under light pollution and would allow true H alpha, O III, and S II channel control. ZWO has said there is not yet enough broad user demand to justify that complexity. Among advanced imagers I know, the interest is real.

The battery indicator is too dim. In daylight, I have to shade it with my hand and look carefully. The app displays the battery state once connected, but I often want to check the telescope before beginning a session. The S30 Pro indicator is easier to read. I would move the S50 Pro brightness somewhere between the two.

The size is worth discussing, even though I own mounts that weigh more than some people.

The S50 Pro is still portable, but it is much larger than the S30 Pro while sharing the same main sensor and wide camera. The optical system explains most of that difference. A 50 millimeter, 260 millimeter folded system requires more internal structure and alignment space. The battery and drive add to it.

Even so, once the body reached this size, I wish ZWO had found a way to integrate a basic equatorial tilt mechanism or offer a folding polar base that remains attached. An external wedge is not difficult, but it becomes one more part to pack and align.

The included tripod is useful but too low for the way I prefer to work. Placing the telescope near the ground increases the chance of someone tripping over it, makes controls and polar adjustments harder to reach, and can expose the instrument to stronger local heat turbulence.

The tripod supports compact travel, and it is not unusable. I knew on the first day that I would move to a full height tripod for regular field work.

I also dislike the closed nature of the system, even though that closure is part of what makes it reliable. The camera cannot be replaced. The battery is not intended as a normal user upgrade. The drive cannot be adjusted by the owner. The optical path cannot be changed. The focuser, computer, filters, and communications hardware are all part of one product.

What you see is what you get. That is excellent until one part ages faster than the rest.

The Limitations You Need to Understand

This is not a dedicated astrophotography rig. Say that clearly before buying it.

The S50 Pro can produce excellent images. It cannot produce the same data as a larger, cooled, guided, monochrome system with premium optics and narrow filters. The difference may be difficult to see on a phone and obvious at full resolution.

A 50 millimeter aperture has a fixed diffraction limit and fixed collecting area. It will not resolve what a 4 inch or 7 inch refractor resolves under good conditions. Processing can improve presentation, reduce noise, and increase local contrast. It cannot recreate optical information that never reached the sensor.

The sensor is uncooled. Long summer sessions accumulate more thermal signal than a regulated camera. Calibration and stacking help, but they do not create the same repeatability.

The camera is one shot color. The built in dual band filter can emphasize H alpha and O III dominated emission, but it does not provide separate full resolution narrowband channels. It cannot isolate S II, H alpha, and O III with the control of a monochrome camera and filter wheel.

Long exposures carry a cost. A six hour session at 60 seconds produces about 360 light frames, which is not an unreasonable file count. The burden comes from the value of each frame. A wind gust, tracking error, cloud, aircraft, or vibration can waste a full minute. Thermal signal and bright star saturation also become more important.

The S50 Pro is not primarily a planetary telescope. At 2.30 arc seconds per pixel, Jupiter at 45 arc seconds across spans only about 20 pixels before processing. Saturn’s globe at roughly 18 arc seconds spans about 8 pixels. Video stacking and sharpening can make recognizable images, and skilled users will produce results that exceed expectations, but the focal length and aperture are not built for high resolution planetary work.

The Sun and Moon are different because they are large. The S50 Pro can record useful solar and lunar detail within the aperture limit. Always use the supplied solar filter for the Sun and inspect it before use.

The native frame is not large enough for every target. Andromeda’s broad outer extent, the full Veil complex, the North America and Pelican region, and other large subjects require mosaics or selective framing. Mosaic mode works, but covering more sky divides the available integration time.

The wide camera is sensitive to sky quality. A 63 degree field collects every gradient and glow across a large portion of the sky. Dark, transparent, moonless conditions matter more for Milky Way imaging than they do for a small filtered field around an emission nebula.

The system depends on software. The app, device compatibility, wireless environment, firmware, and long term support are part of the telescope. A traditional refractor can remain useful for decades with no operating system. A smart telescope needs its software ecosystem.

There is no eyepiece. The S50 Pro sends the sky to a sensor and screen. It cannot replace the experience of receiving the light directly through an optical path with your eye.

There are no normal component upgrades. When a larger sensor, better processor, stronger drive, or cooled model arrives, the owner cannot install those pieces into this chassis. The upgrade path is another telescope.

Those limitations are real. They do not make the S50 Pro a poor value. They define what it is.

Is the Seestar S50 Pro Worth It?

Yes, for someone who wants the strongest deep-sky imaging performance currently available from a Seestar without moving to a traditional astrophotography rig, I think the S50 Pro is worth $999. It is harder to justify for an S30 Pro owner whose priority is portability or very large targets.

Seestar S50 Pro Review: Final Verdict

The Seestar S50 Pro is a serious astrophotography instrument within the smart telescope class. Everything required to begin imaging is built into the system, including the optics, camera, mount, focuser, filters, battery, computer, storage, wireless control, dew prevention, tripod, solar filter, stacking, planning, and processing.

The barrier to entry is low, but the instrument is not limited to first night users. Equatorial mode, 60 second exposures, individual frame storage, multi night stacking, calibration, mosaics, background extraction, and external processing give experienced users enough room to work.

The optics are the real center of the product. The 50 millimeter aperture, 260 millimeter focal length, four element folded design, larger corrected field, and 2.30 arc second image scale give the S50 Pro more reach than the S30 Pro without turning it into a traditional equipment pile.

The OmniVision is capable, sensitive, and well matched in pixel size. It is also small, rectangular, color filtered, and uncooled. The precision drive improves the part of the system that determines whether a long planned night becomes good data or a folder full of rejected frames.

At $999, the telescope is not cheap. At the $899 launch price, it is easier to recommend. In either case, it costs far less than a modular system offering the same basic list of functions.

A person entering astrophotography can begin with the S50 Pro and capture a galaxy on the first clear night. An experienced astrophotographer can use it as a travel rig, a second system, an outreach instrument, a quick response camera, or a way to make use of short weather windows.

Will it replace a $10,000 dedicated rig? At normal viewing size, it can make the comparison feel uncomfortable for the expensive equipment. Zoom in, examine the data, separate the channels, and push the processing, and the larger rig explains its cost.

That is exactly where the S50 Pro belongs. It does not need to pretend to be a TEC refractor on a premium mount. It needs to be a dependable 50 millimeter observatory that one person can carry outside with one hand and operate without turning the evening into a wiring project.

It does that very well.

Should You Buy the Seestar S50 Pro or Wait for DWARFLAB Draco?

There is one elephant in the room for anyone considering a Seestar S50 Pro right now: DWARFLAB Draco.

DWARFLAB has started teasing Draco as a new higher-end smart telescope, using phrases such as “bigger aperture” and “pro-level imaging.” That has understandably caused some prospective S50 Pro buyers to wonder whether they should wait.

I understand the temptation, particularly because the smart telescope market is advancing incredibly quickly.

But at the time of this review, Draco is still largely a promise. DWARFLAB has not yet published the complete specifications, final price or enough real-world imaging data for me to make a meaningful technical comparison with the S50 Pro.

The Seestar S50 Pro, on the other hand, is sitting in front of me.

I’ve spent a month imaging with it. I know what its 50 millimeter optics can produce. I’ve tested its 60-second equatorial exposures, worked with the individual frames, compared it directly with the S30 Pro and examined the performance of its OmniVision OS08B10 sensor.

Draco may ultimately outperform it. A larger aperture and longer focal length could make it extremely interesting for smaller galaxies, planetary nebulae and other compact targets. But until we know the actual optics, sensor, price, tracking performance and software capabilities, anything beyond that is speculation.

So should you wait?

If you already like what the S50 Pro produces and want a smart telescope now, I would not avoid buying it simply because another manufacturer has teased something potentially more powerful.

If you are in no hurry, however, and your primary interest is maximum aperture, longer focal length and whatever DWARFLAB means by “pro-level imaging,” and yes - spending much more money, then waiting to see the final Draco specifications is completely reasonable.

I certainly intend to find out what it can do.

Buy the S50 Pro
